Removal Procedure

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Remove the left rear body side trim panel. Refer to Body Side Rear Trim Panel Replacement (w/TB5) or Body Side Rear Trim Panel Replacement (w/o TB5) .

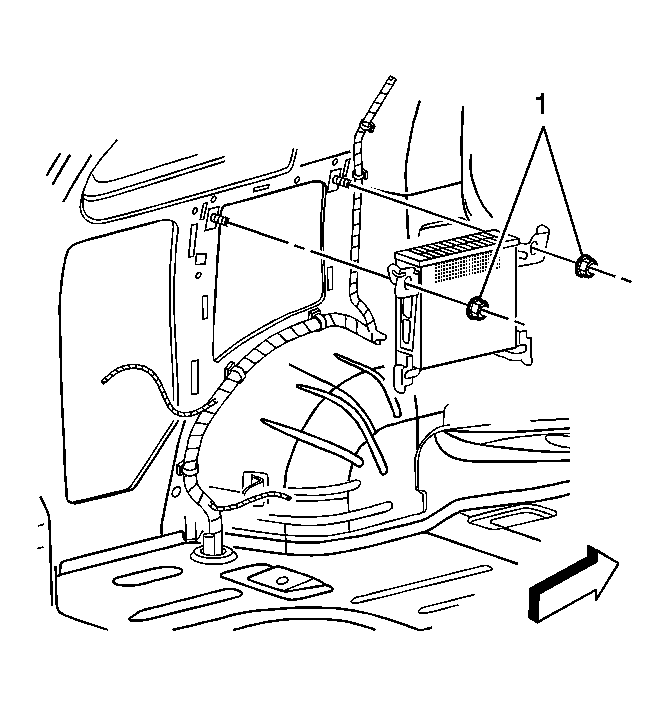

Fig 1: Locating Navigation Data Processor Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the nuts (1) securing the processor to the vehicle.

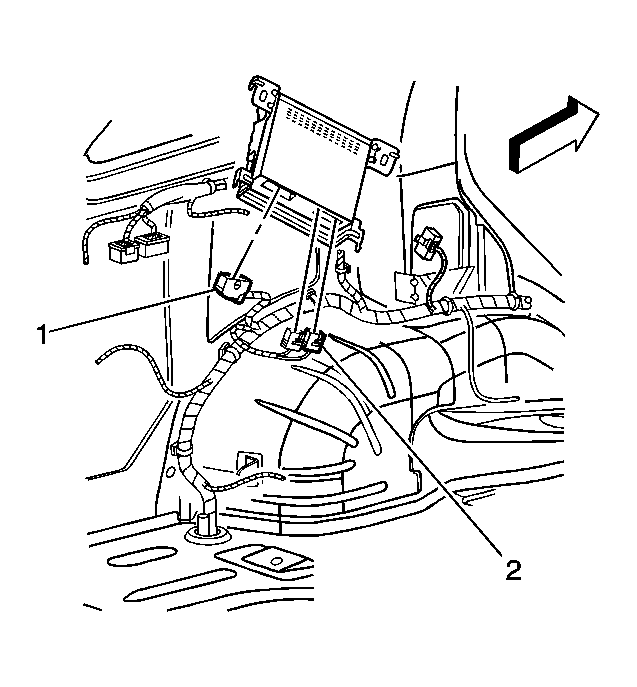

Fig 2: View Of Navigation Data Processor Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors (1, 2)
Remove the processor.
