Radio Antenna Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

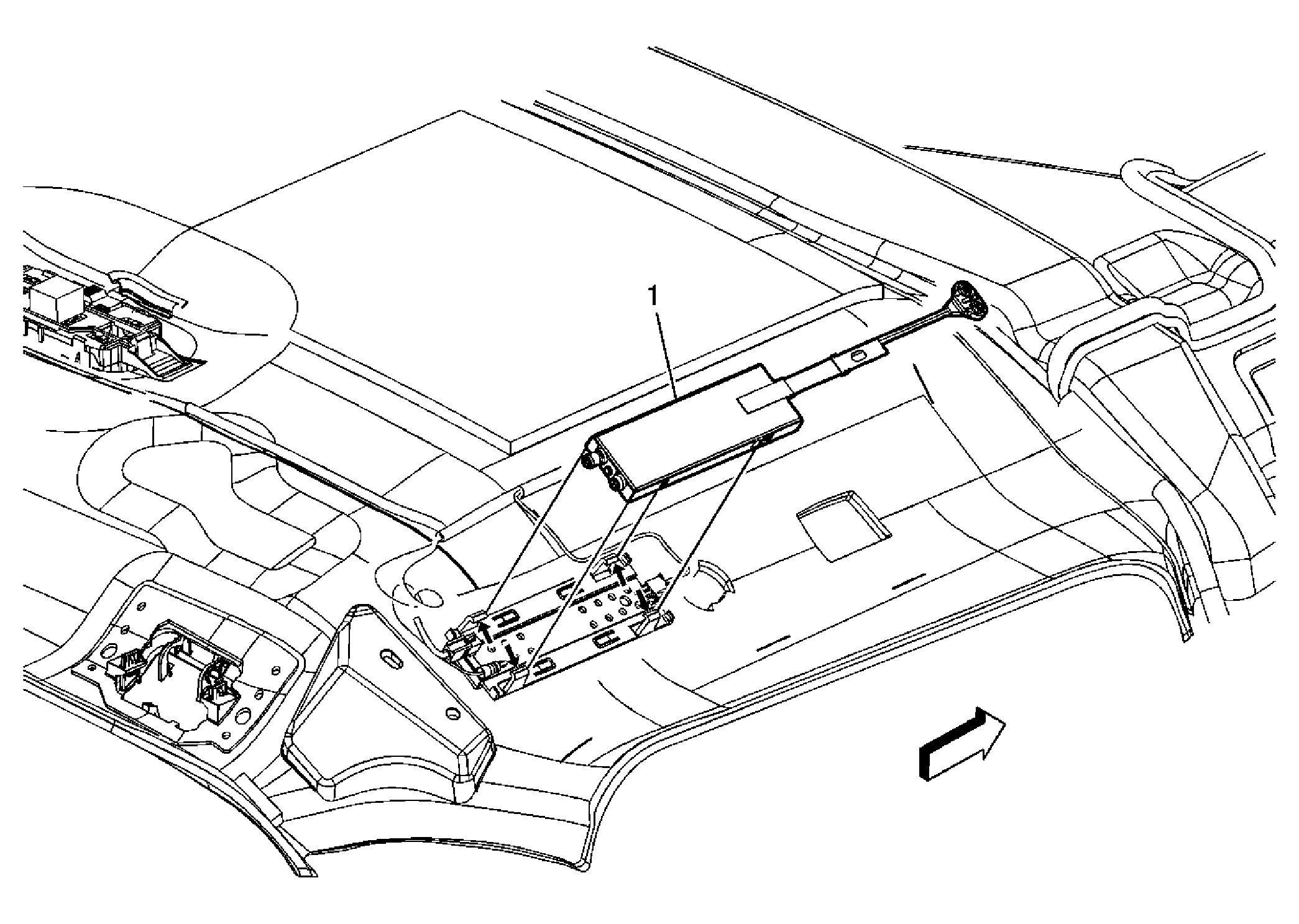

Fig 1: Identifying Radio Antenna Module
GM1827603Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Lower the rear of the headliner. Refer to Headlining Trim Panel Replacement .
1 Radio Antenna Module
Tip:
  1. Disconnect the electrical connectors and the coax cables.
  2. Push outward on the tabs to release the radio antenna module from the bracket.
