Radio/Navigation System Schematics

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Radio and Amplifier Power, Ground, and Communication UQA

Courtesy of GENERAL MOTORS CORP.

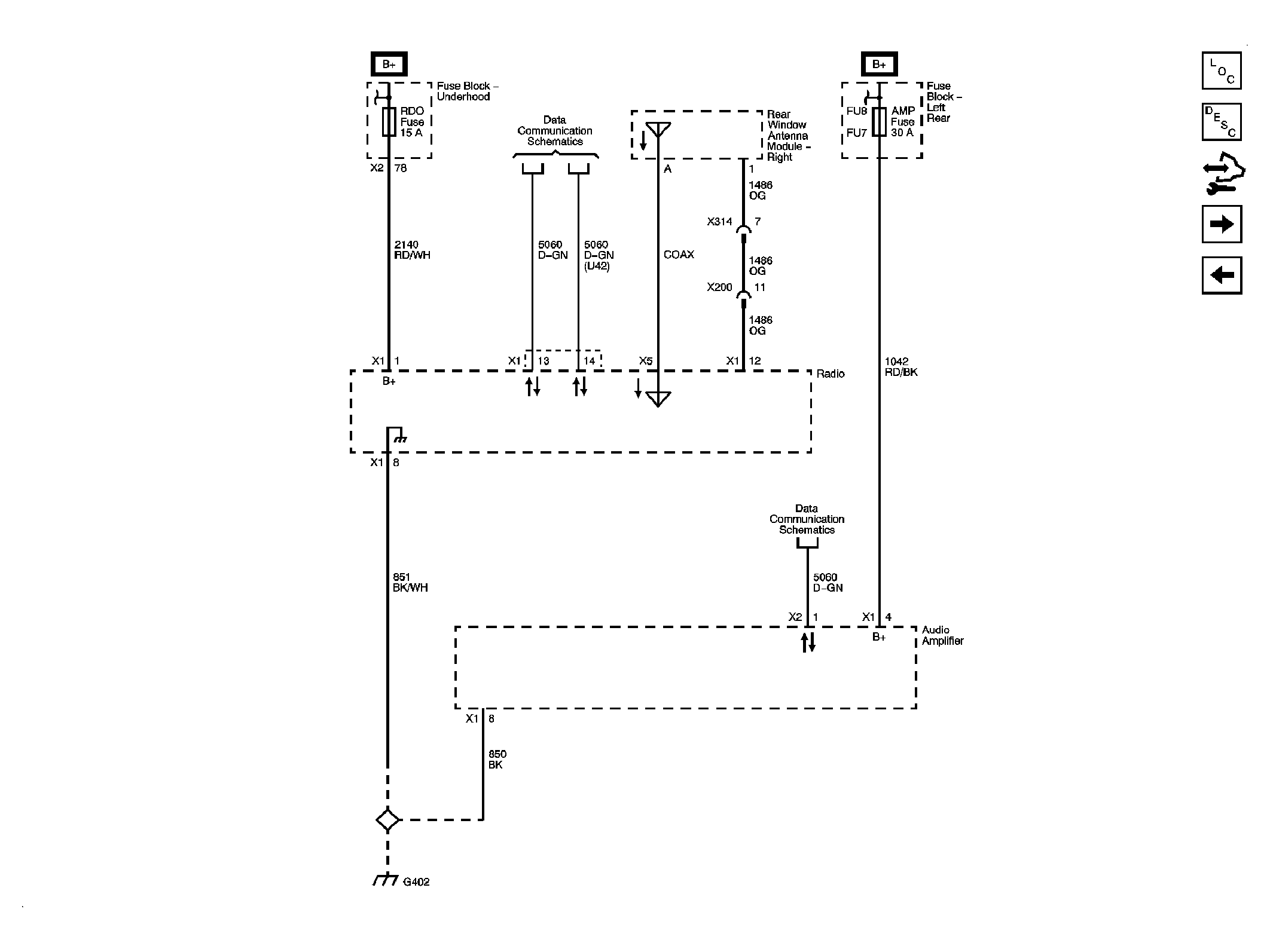

Fig 2: Radio and Amplifier Power, Ground, and Communication UQS -U42

Courtesy of GENERAL MOTORS CORP.

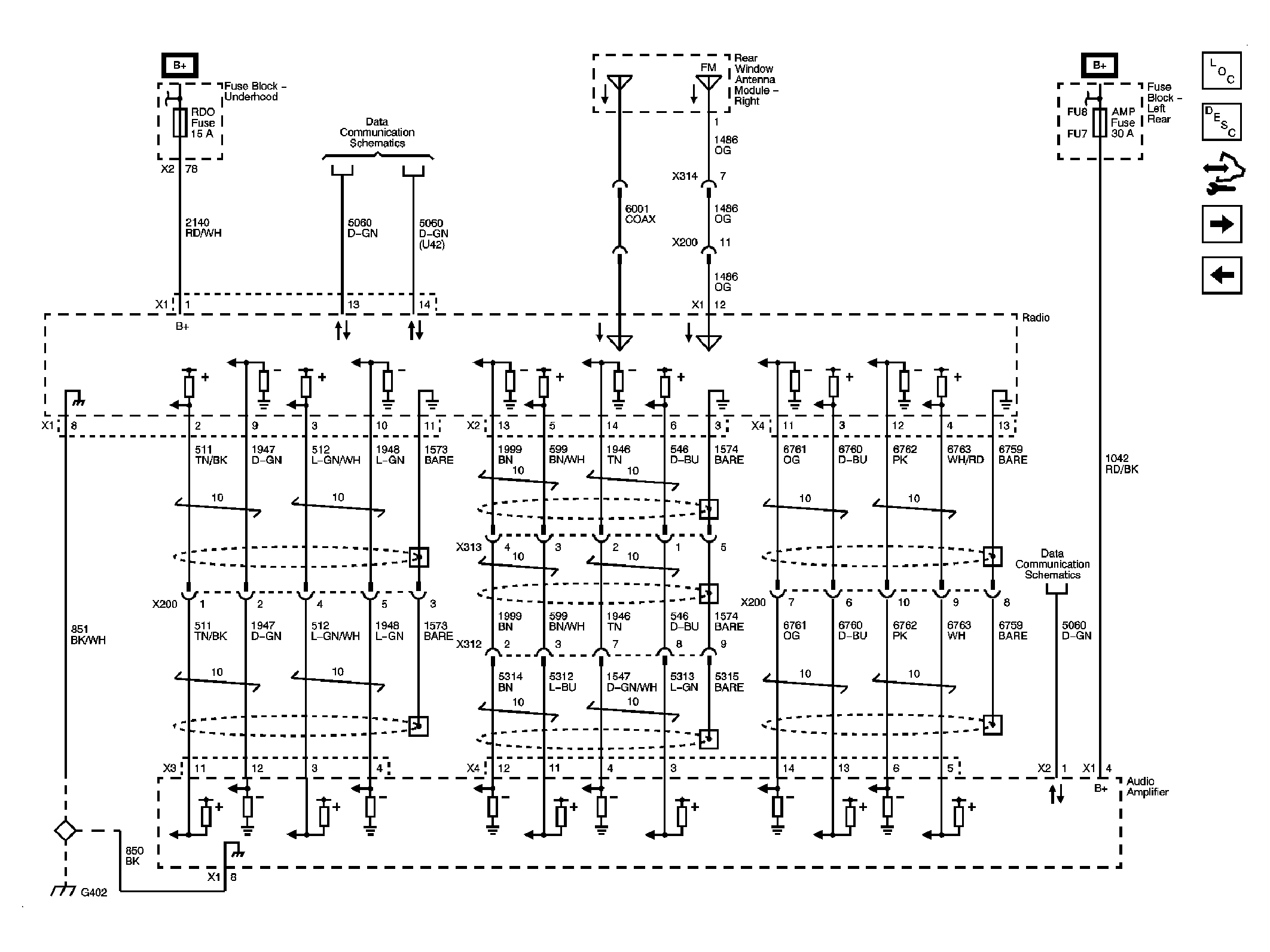

Fig 3: Radio, Amplifier, Power, Ground, and Communication UQS +U42

Courtesy of GENERAL MOTORS CORP.

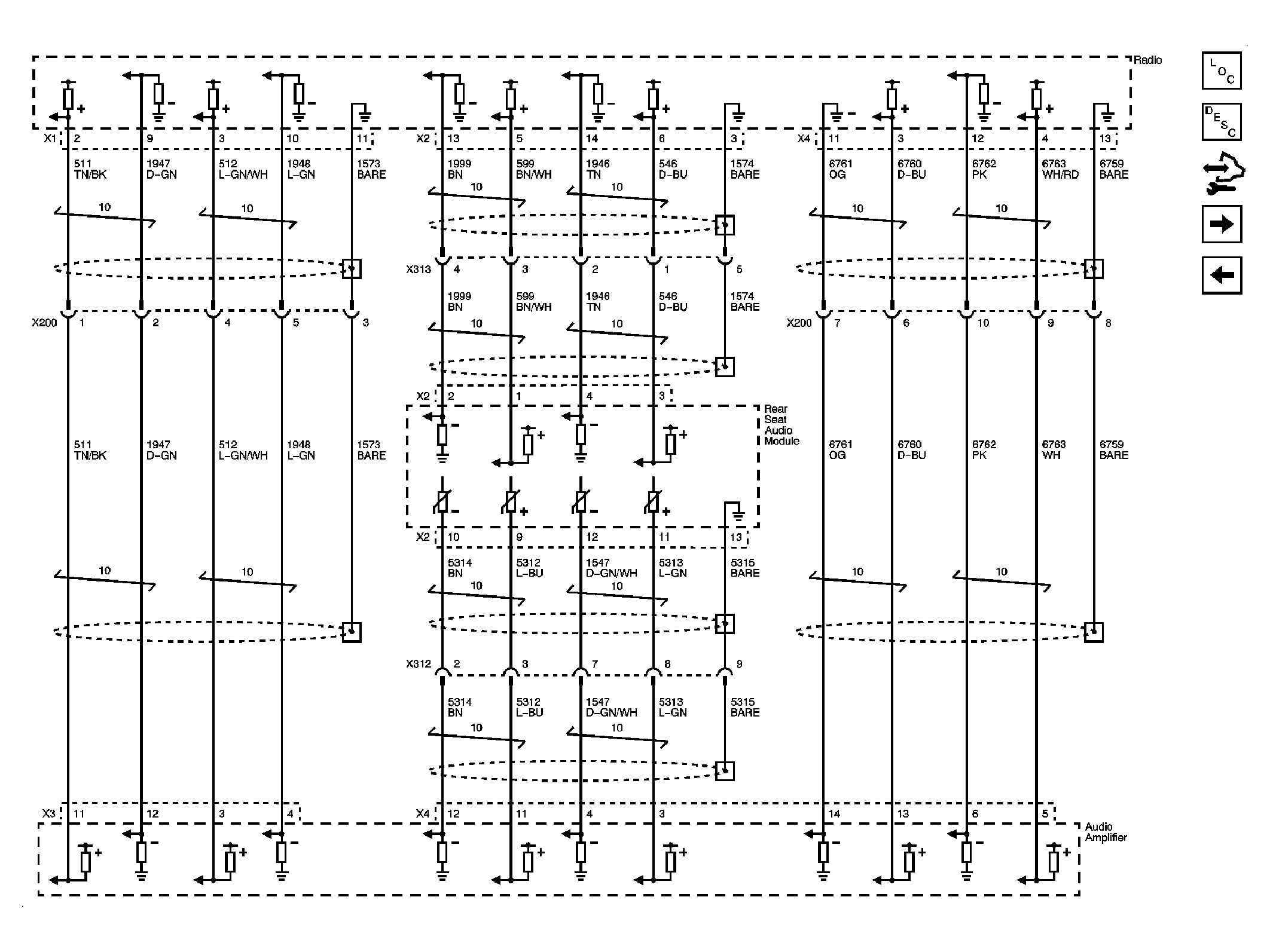

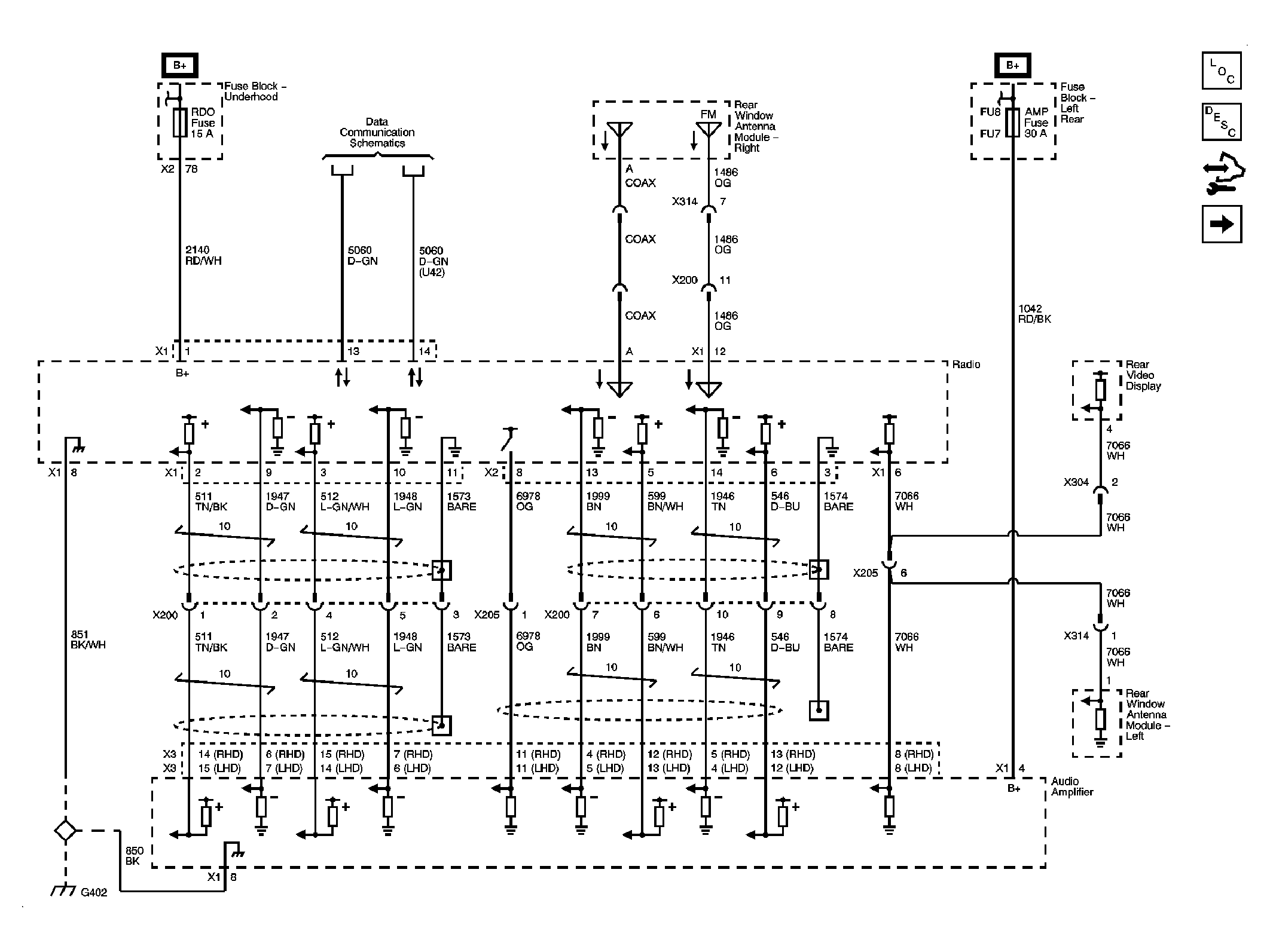

Fig 4: Radio, Amplifier, and Rear Seat Audio Module Signals UQS +U42

Courtesy of GENERAL MOTORS CORP.

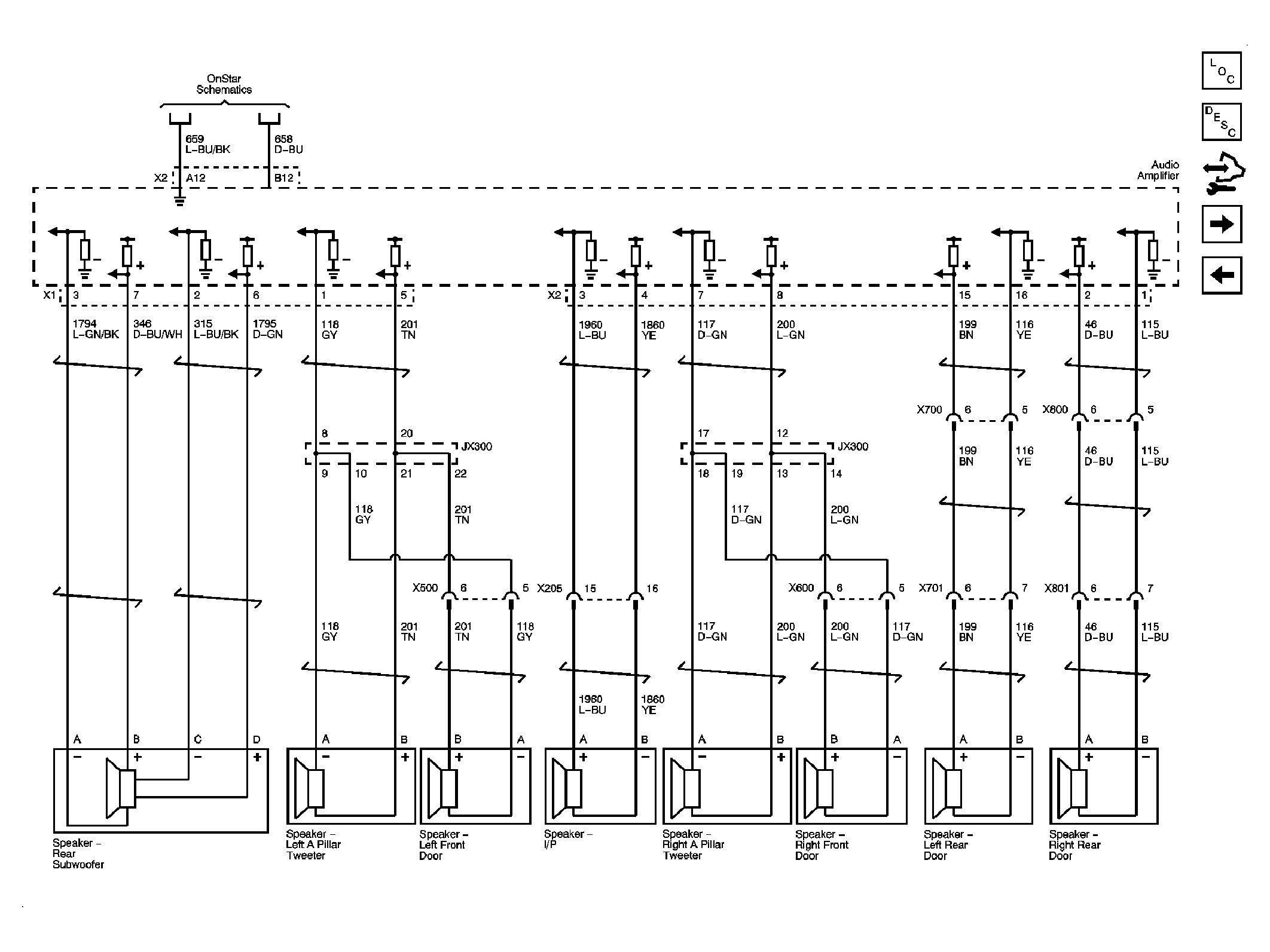

Fig 5: Speakers LHD UQA

Courtesy of GENERAL MOTORS CORP.

Fig 6: Speakers RHD UQA

Courtesy of GENERAL MOTORS CORP.

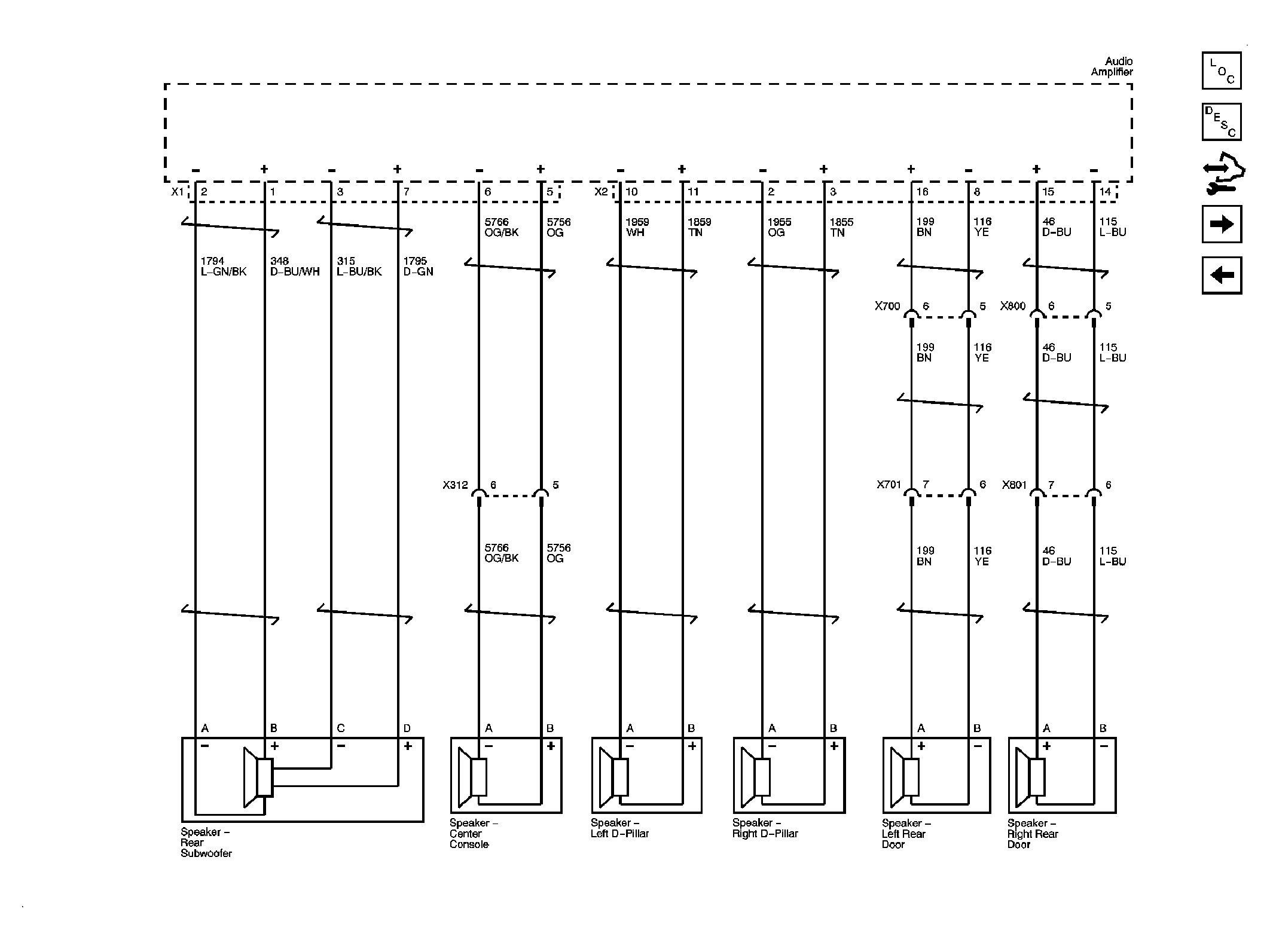

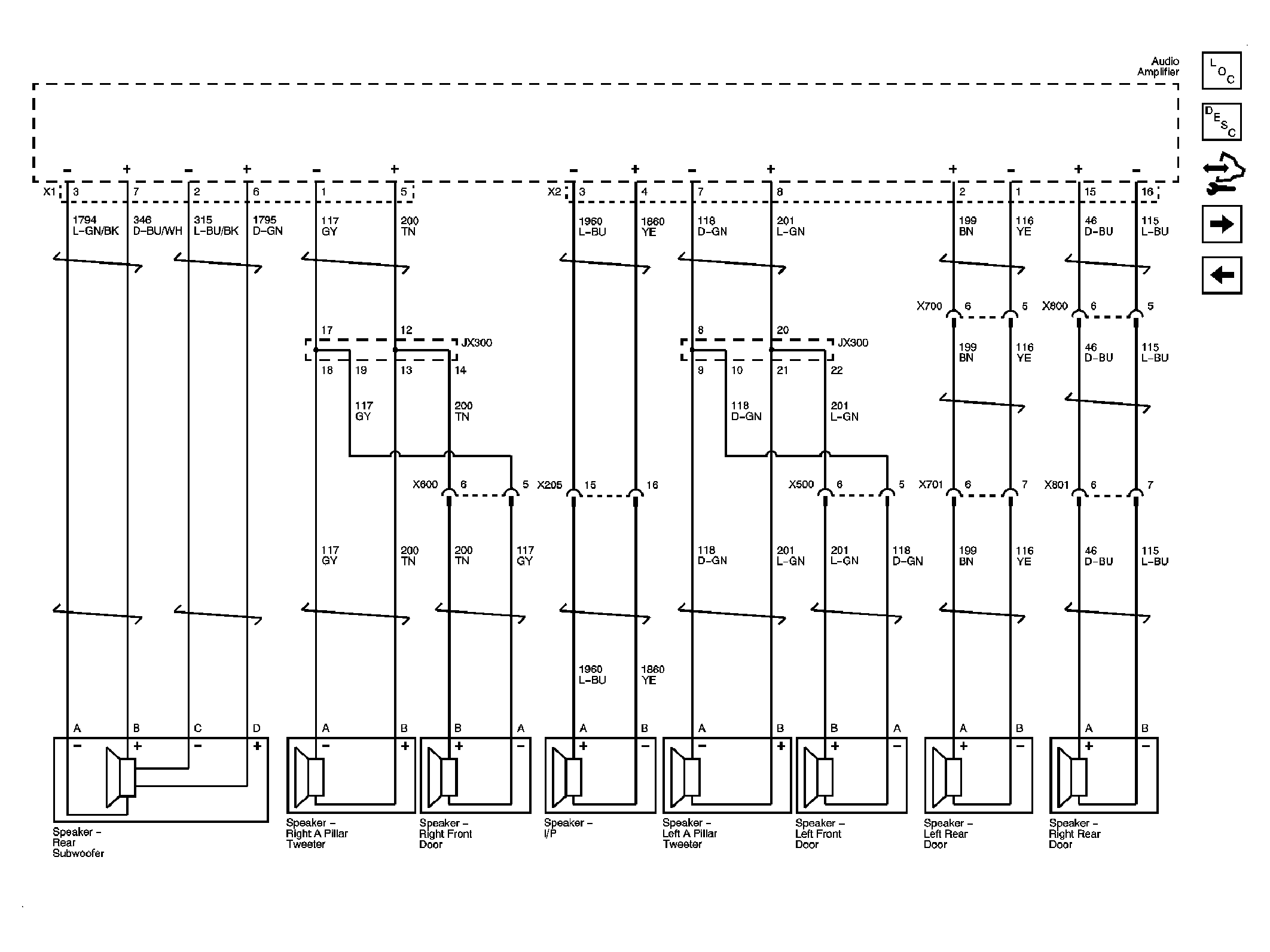

Fig 7: Subwoofer and Rear Speakers UQS

Courtesy of GENERAL MOTORS CORP.

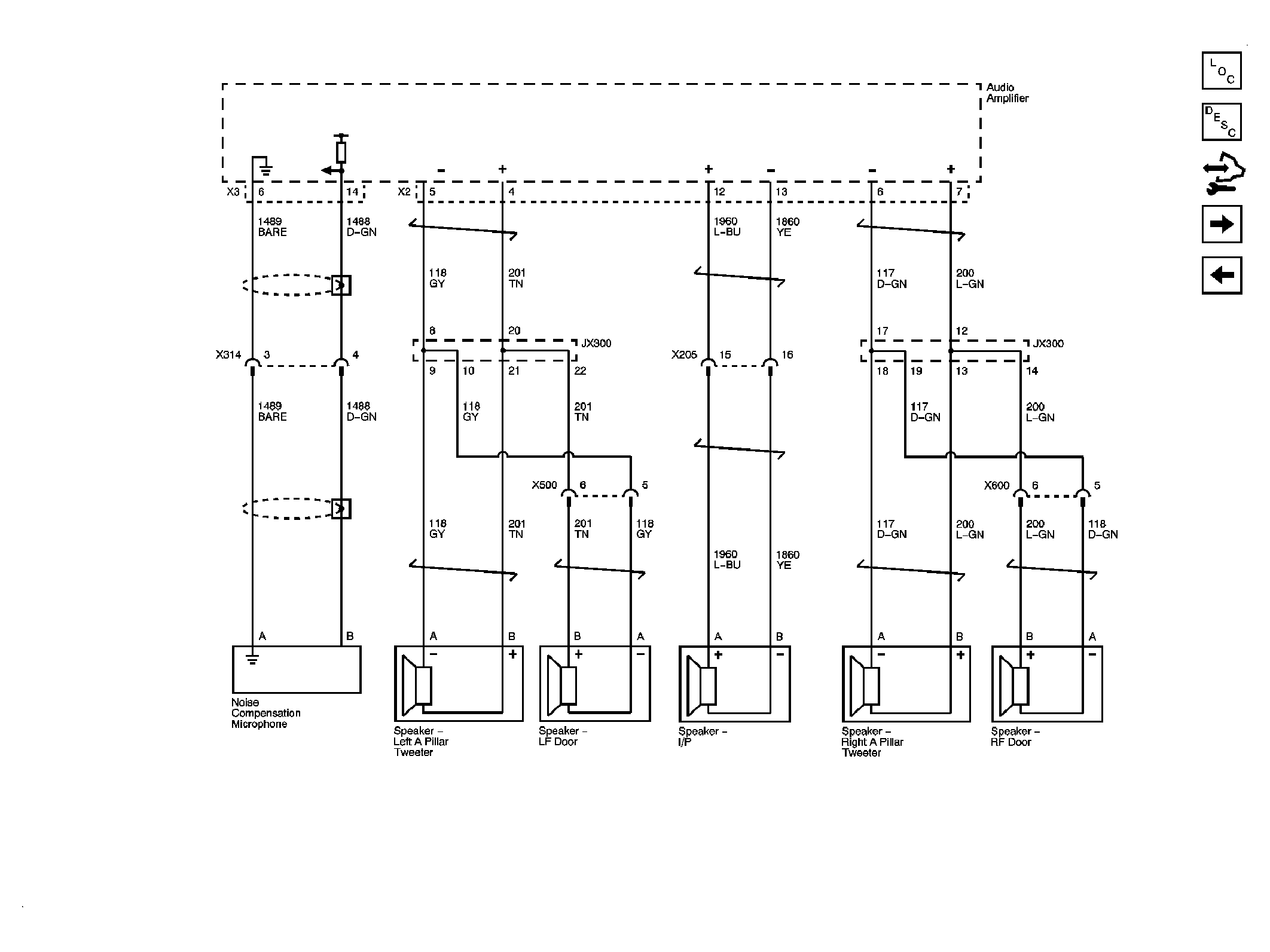

Fig 8: Noise Compensation Microphone and Front Speakers UQS

Courtesy of GENERAL MOTORS CORP.

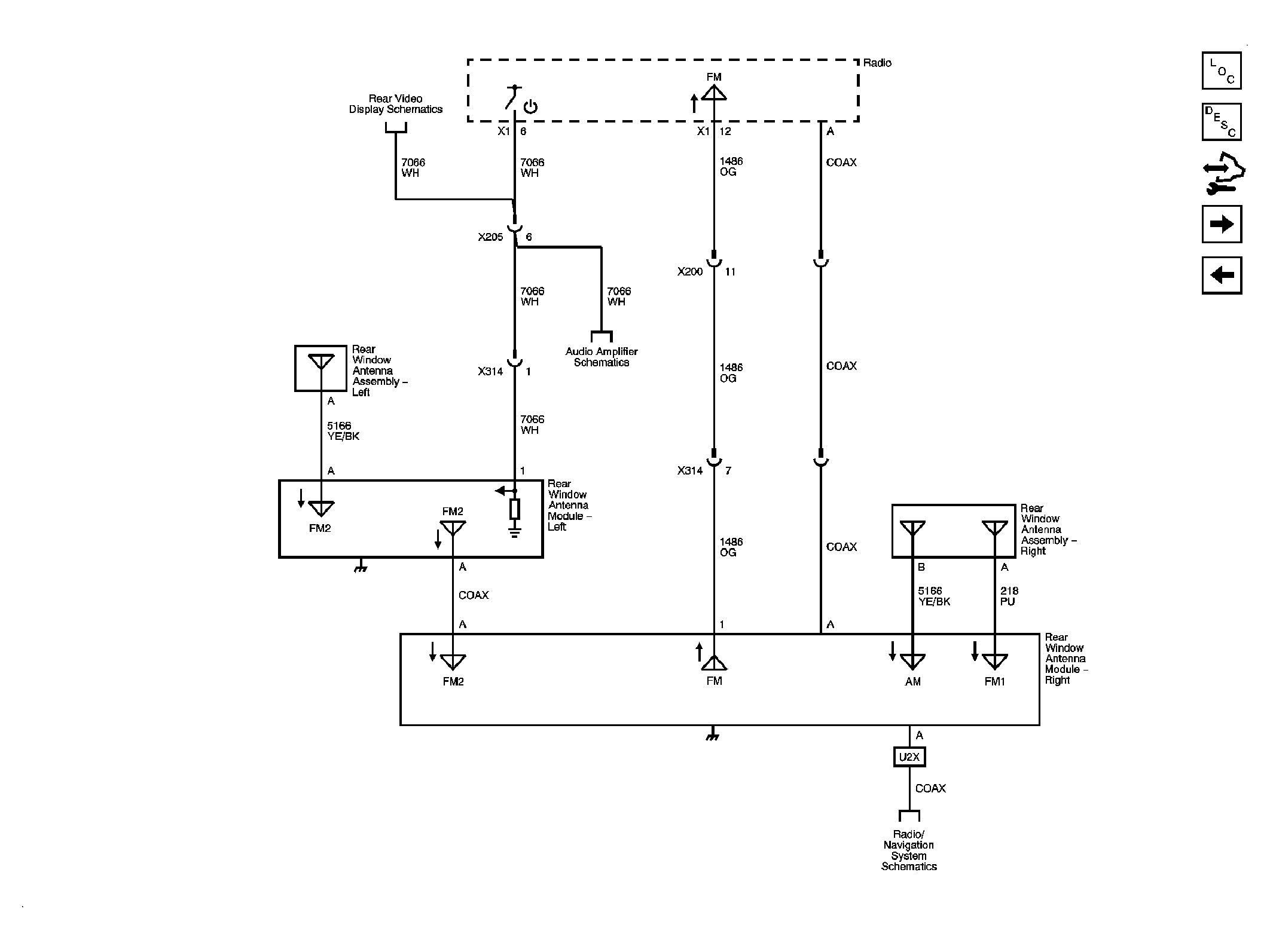

Fig 9: Antenna Signals

Courtesy of GENERAL MOTORS CORP.

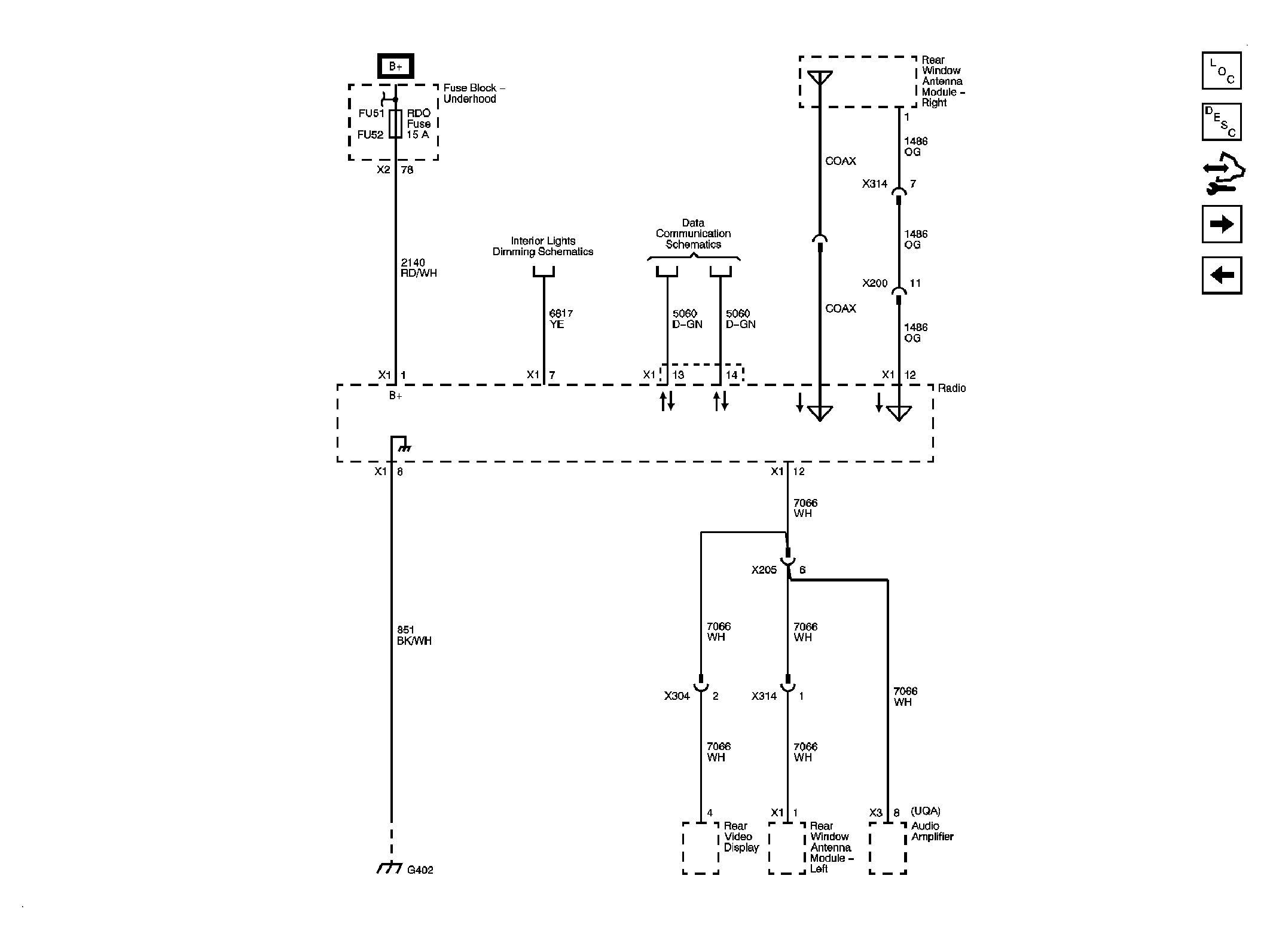

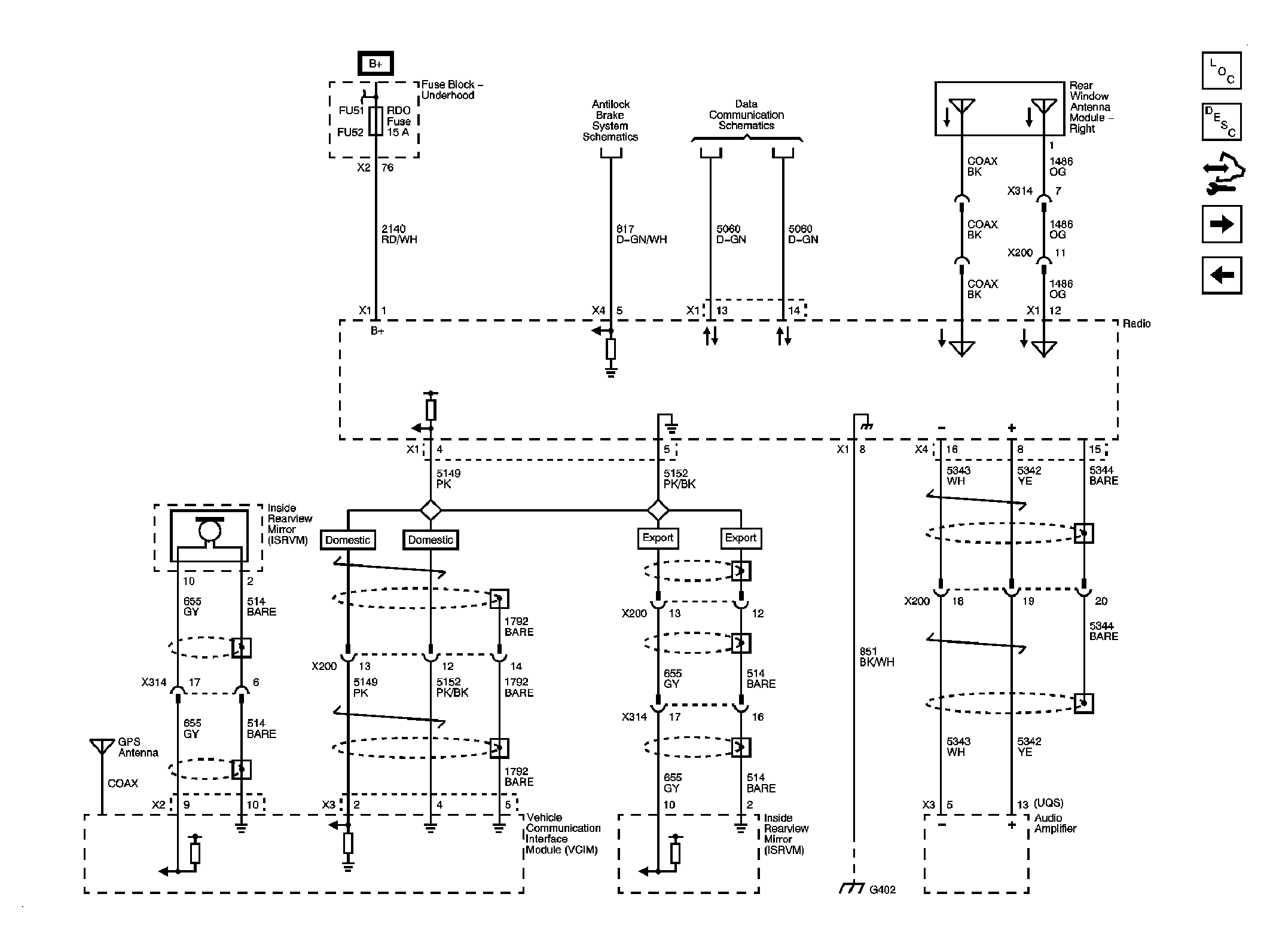

Fig 10: Radio Power, Ground, and Communication UQA

Courtesy of GENERAL MOTORS CORP.

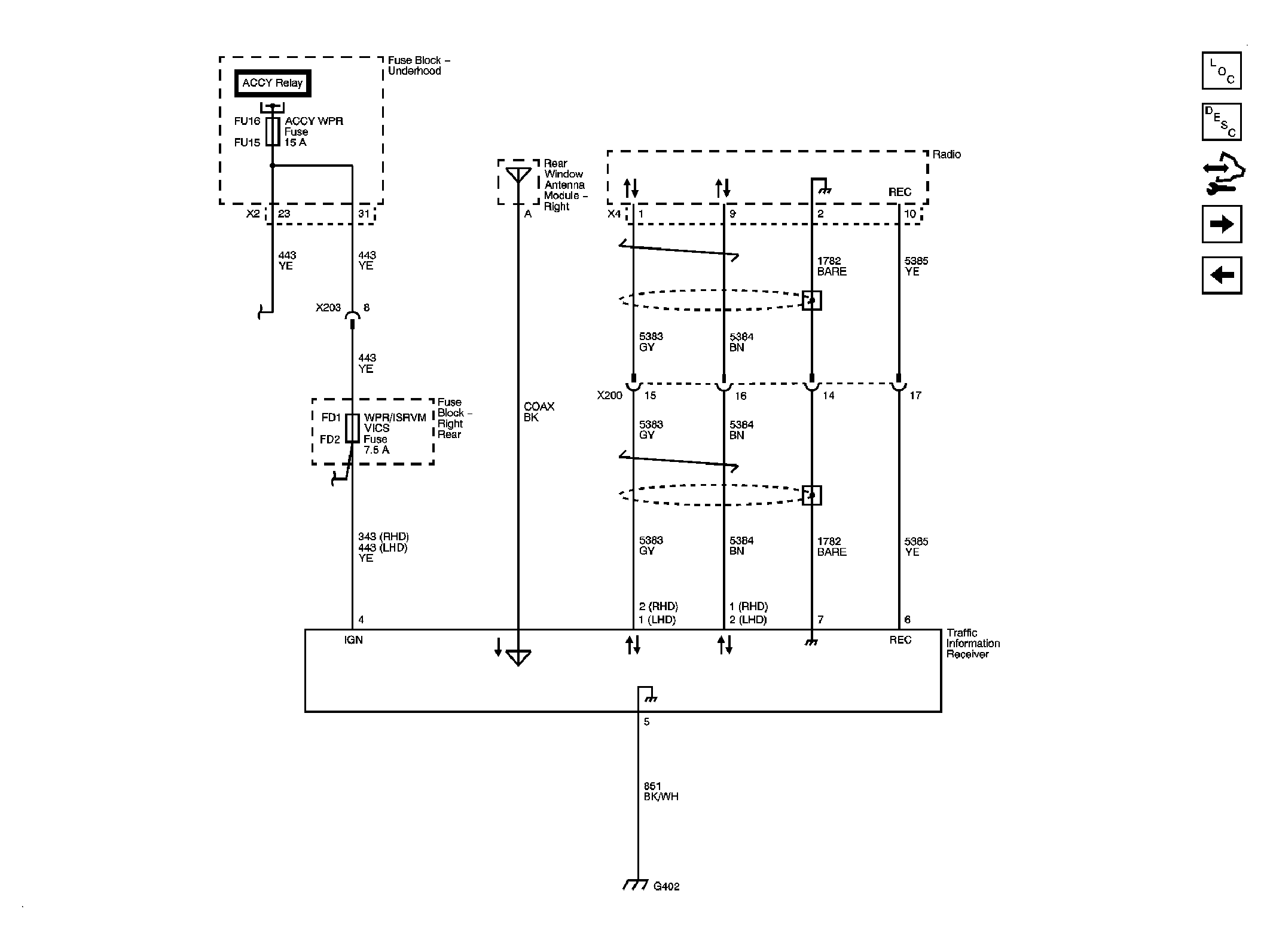

Fig 11: Traffic Information Receiver U2X

Courtesy of GENERAL MOTORS CORP.

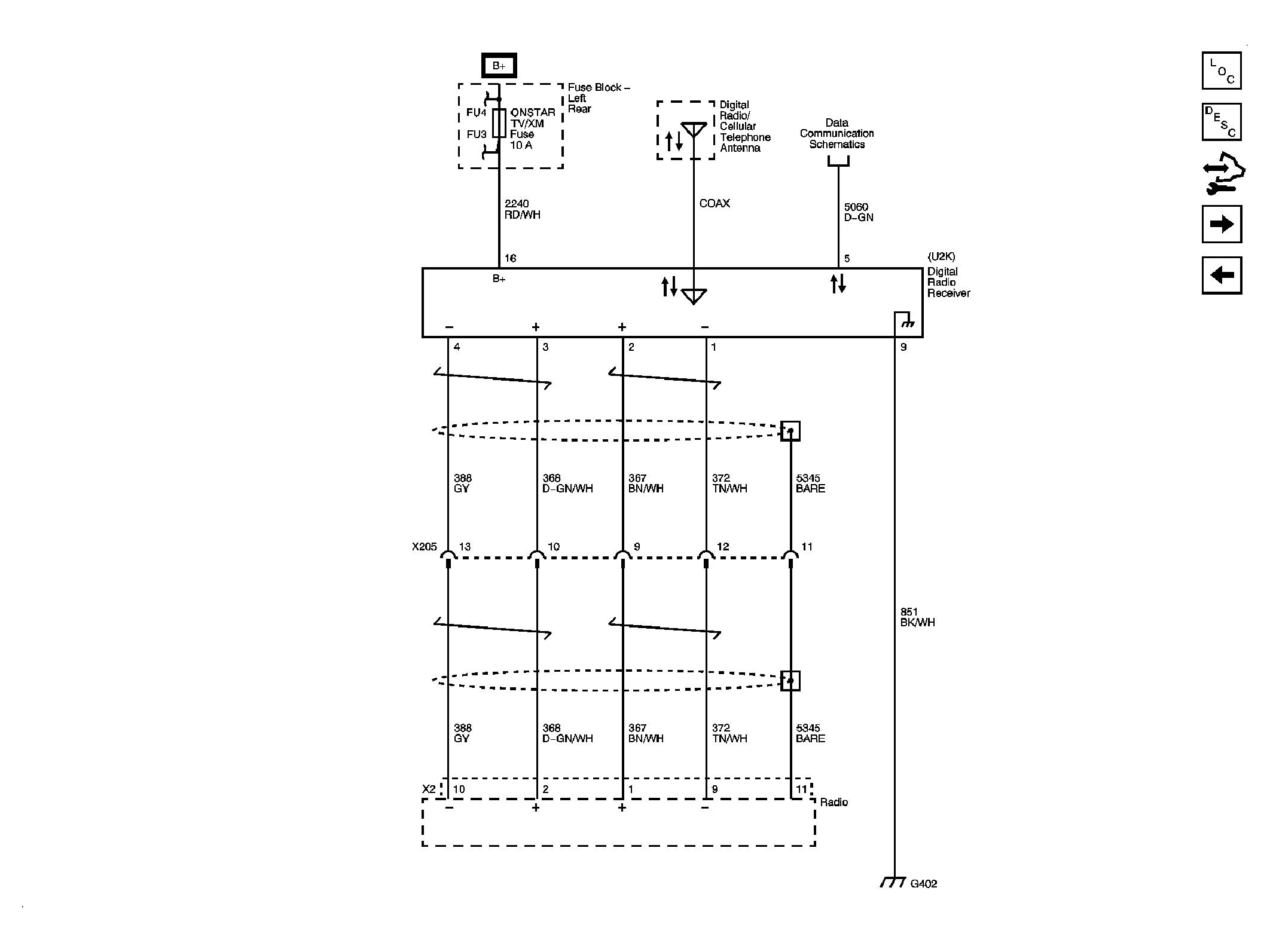

Fig 12: Digital Radio Receiver U2K

Courtesy of GENERAL MOTORS CORP.

Fig 13: Navigation Controls U2V/U2X/U2Y

Courtesy of GENERAL MOTORS CORP.

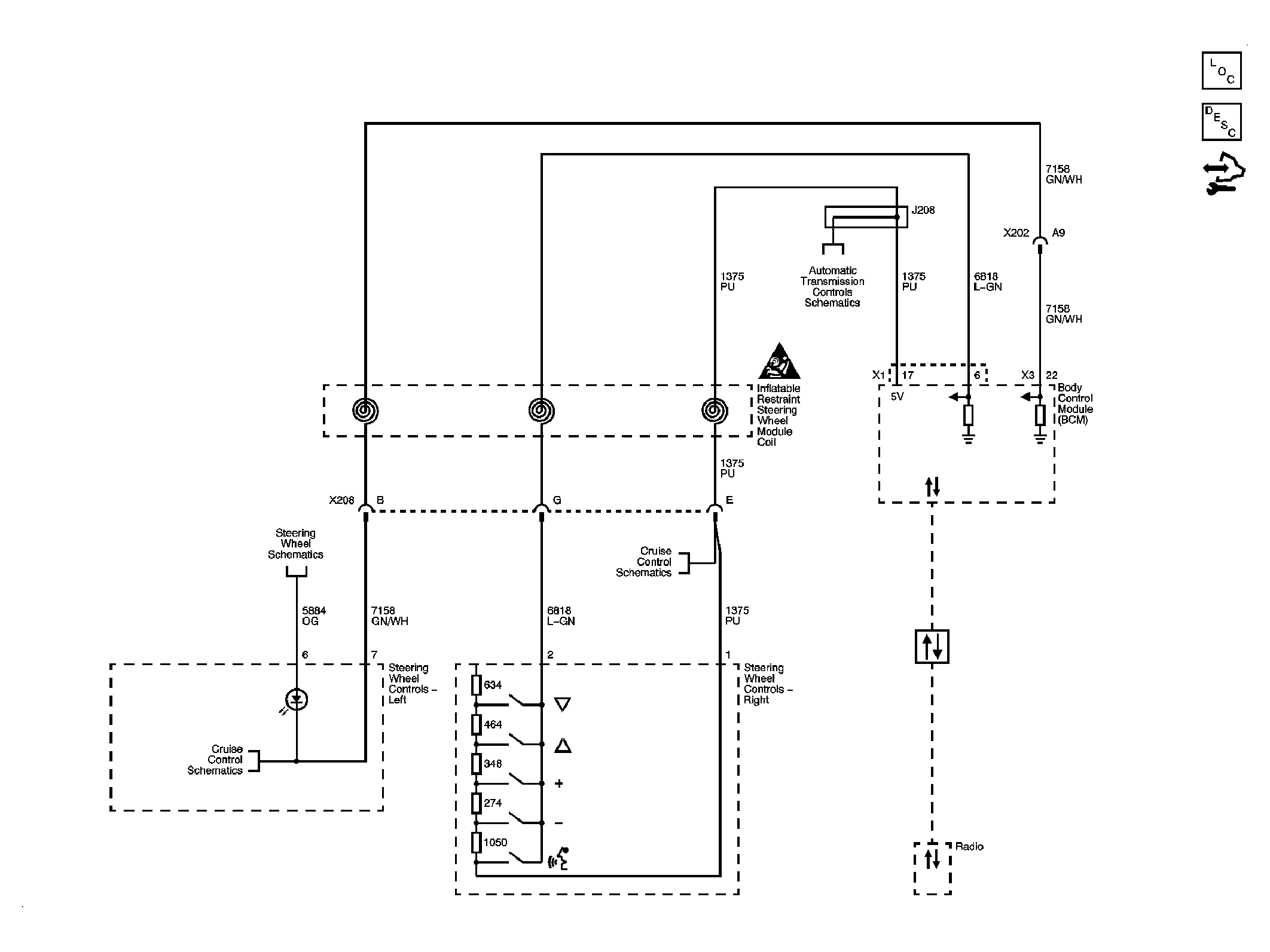

Fig 14: Steering Wheel Controls

Courtesy of GENERAL MOTORS CORP.
