Installation Procedure

WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

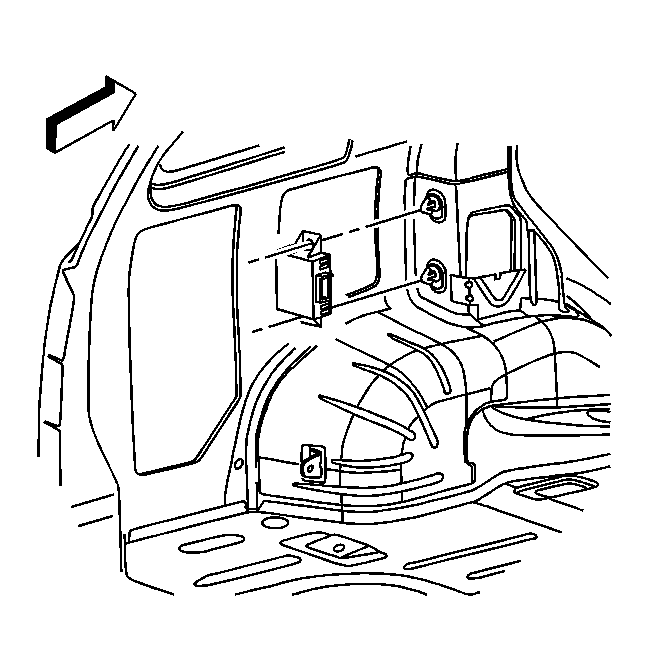

Fig 1: View Of RPA Module

Courtesy of GENERAL MOTORS CORP.

Install the RPA module to the retainers.

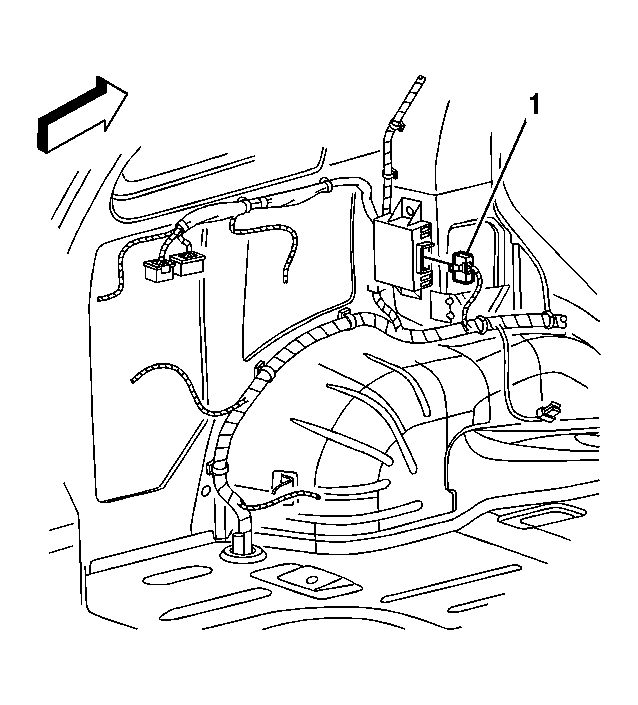

Fig 2: View Of RPA Module Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector (1).
Install the rear body side trim. Refer to Body Side Rear Trim Panel Replacement (w/o TB5) or Body Side Rear Trim Panel Replacement (w/TB5) .
