Active Exhaust System Control Module
>>
Exhaust Flow Control Module C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

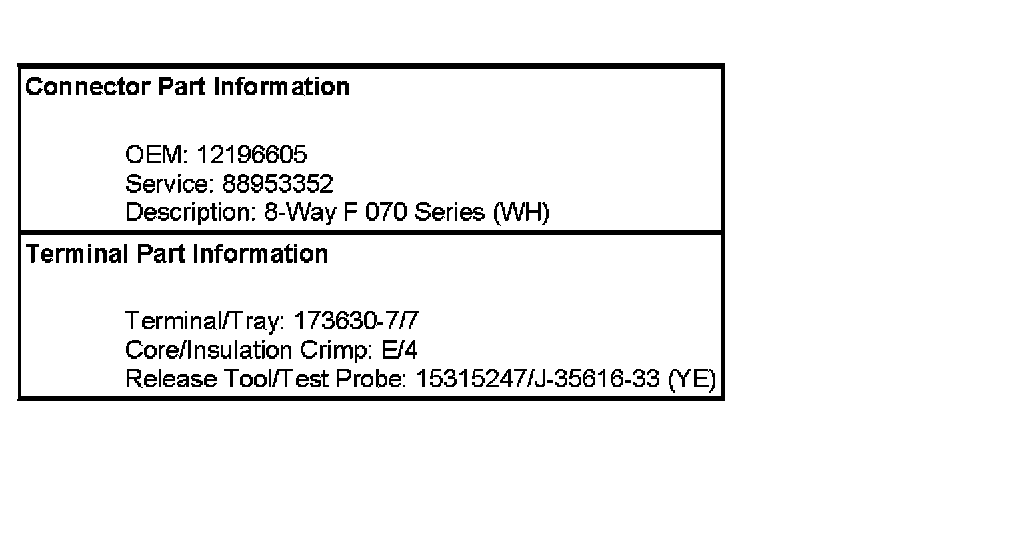

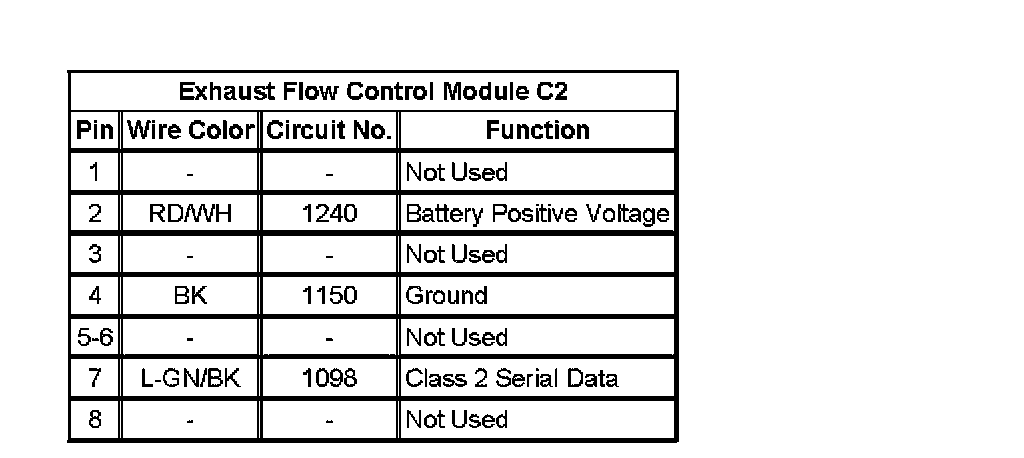

Exhaust Flow Control Module C2
Exhaust Flow Control Module C2
Exhaust Flow Control Module C2:
