Climate Control Seat Module - Driver

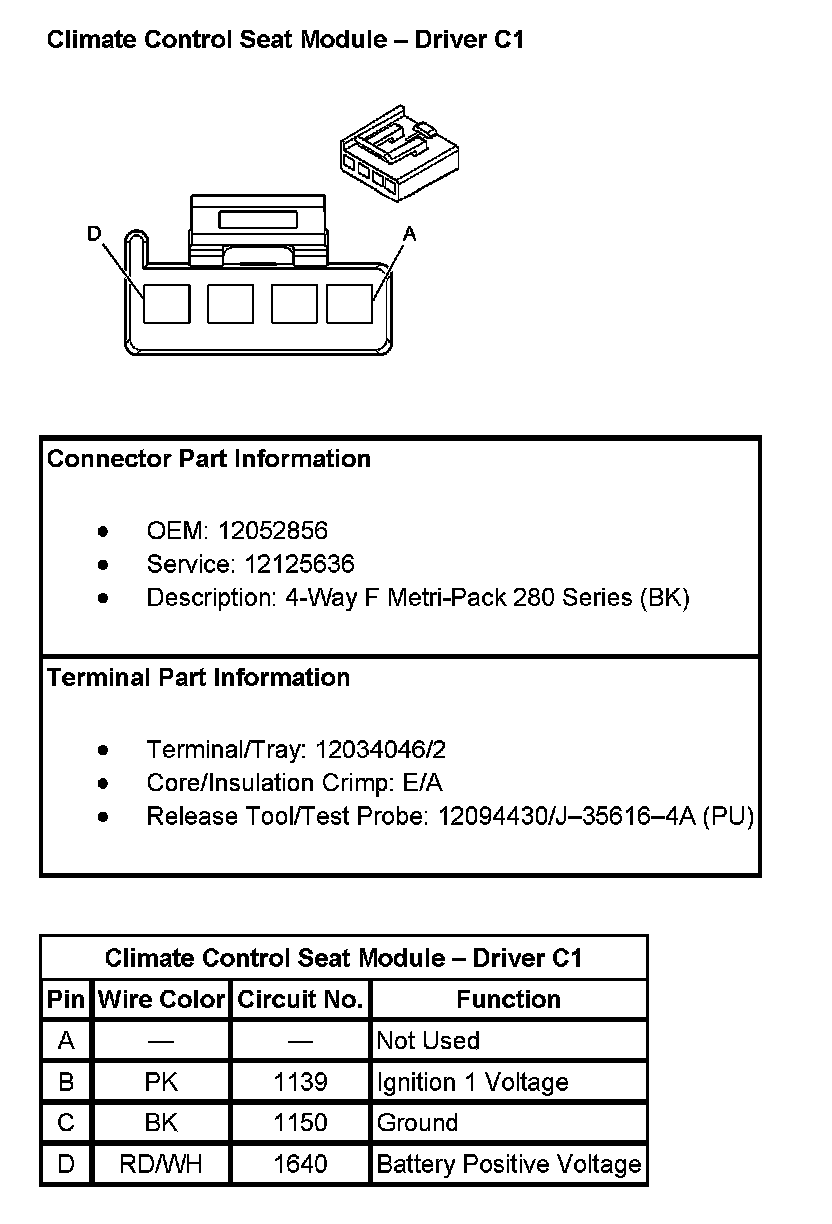

Climate Control Seat Module - Driver C1:

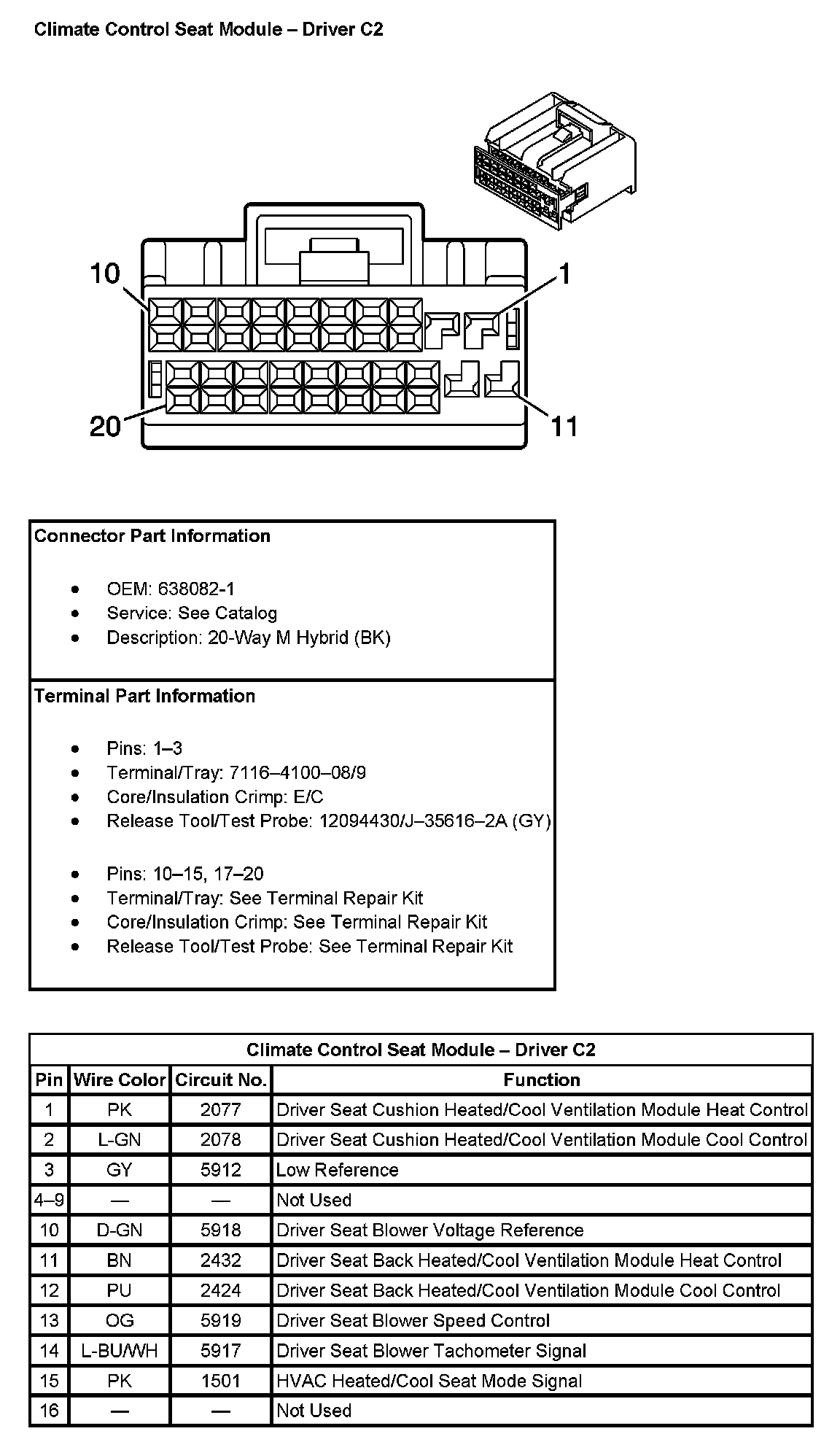

Climate Control Seat Module - Driver C2 (Pin 1 To 16):

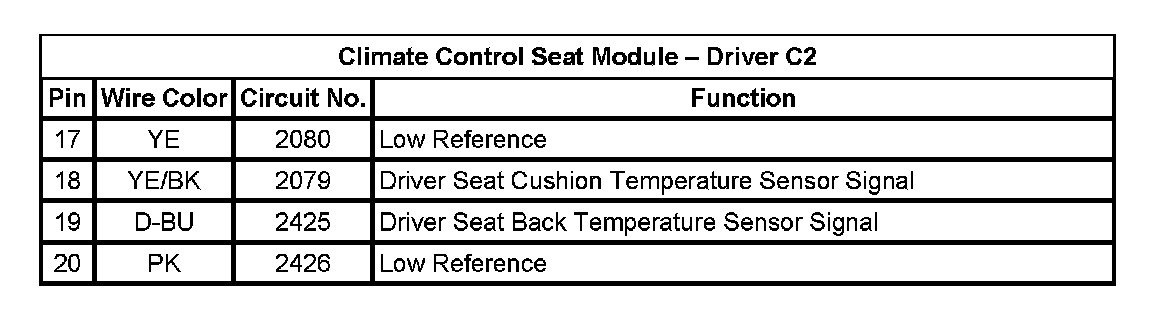

Climate Control Seat Module - Driver C2 (Pin 17 To 20):
