Connector Views

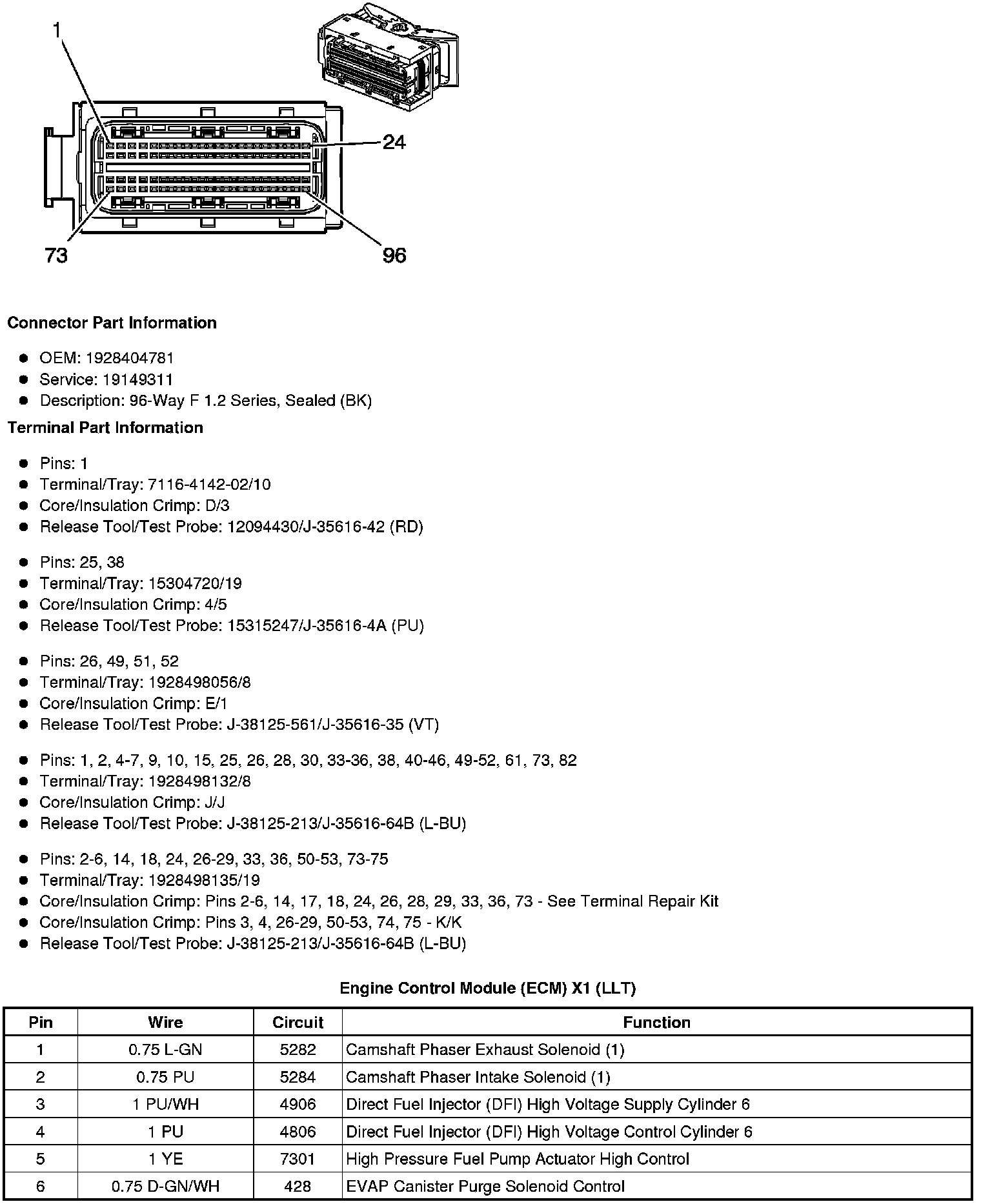

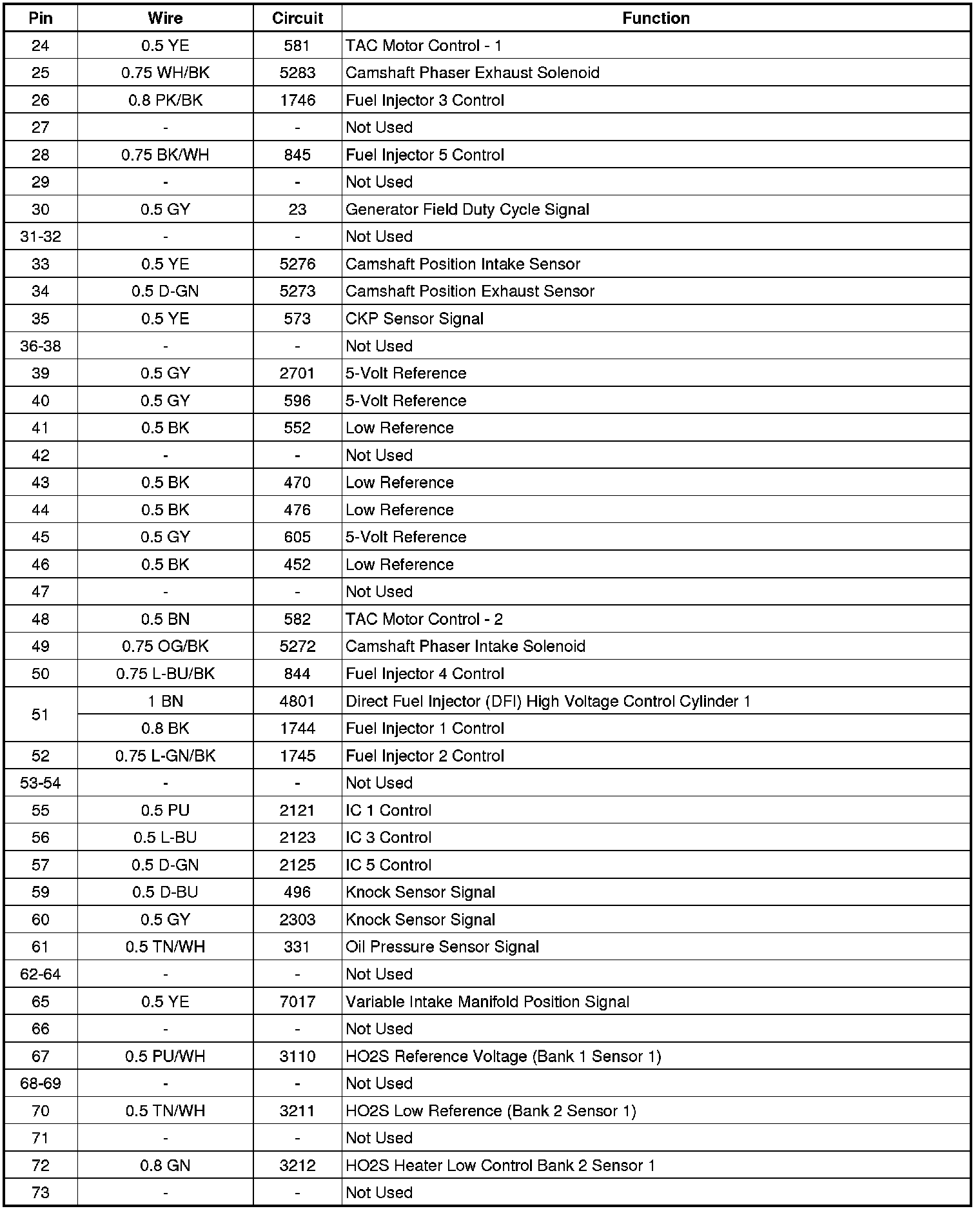

Engine Control Module (ECM) X1 (LLT)

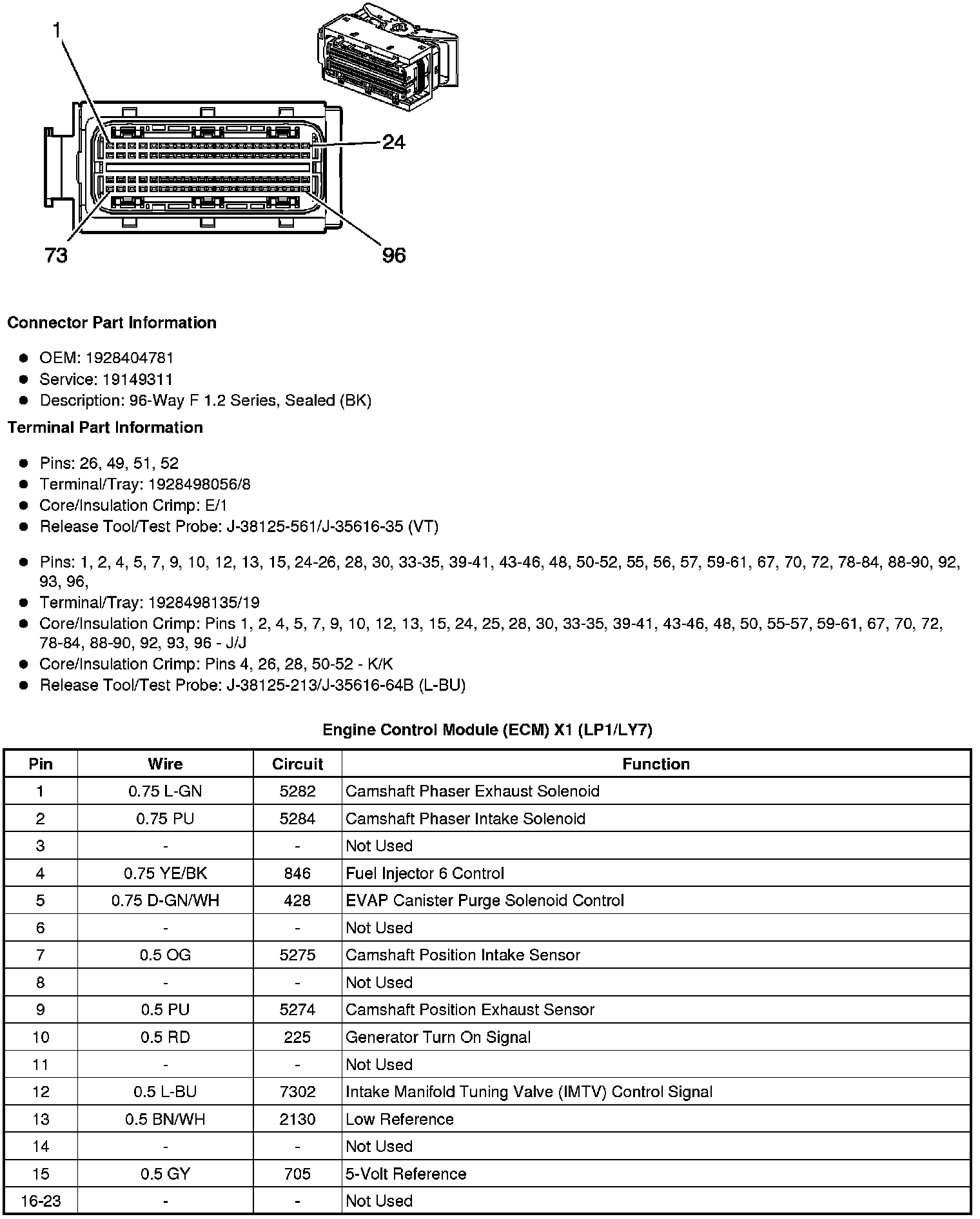

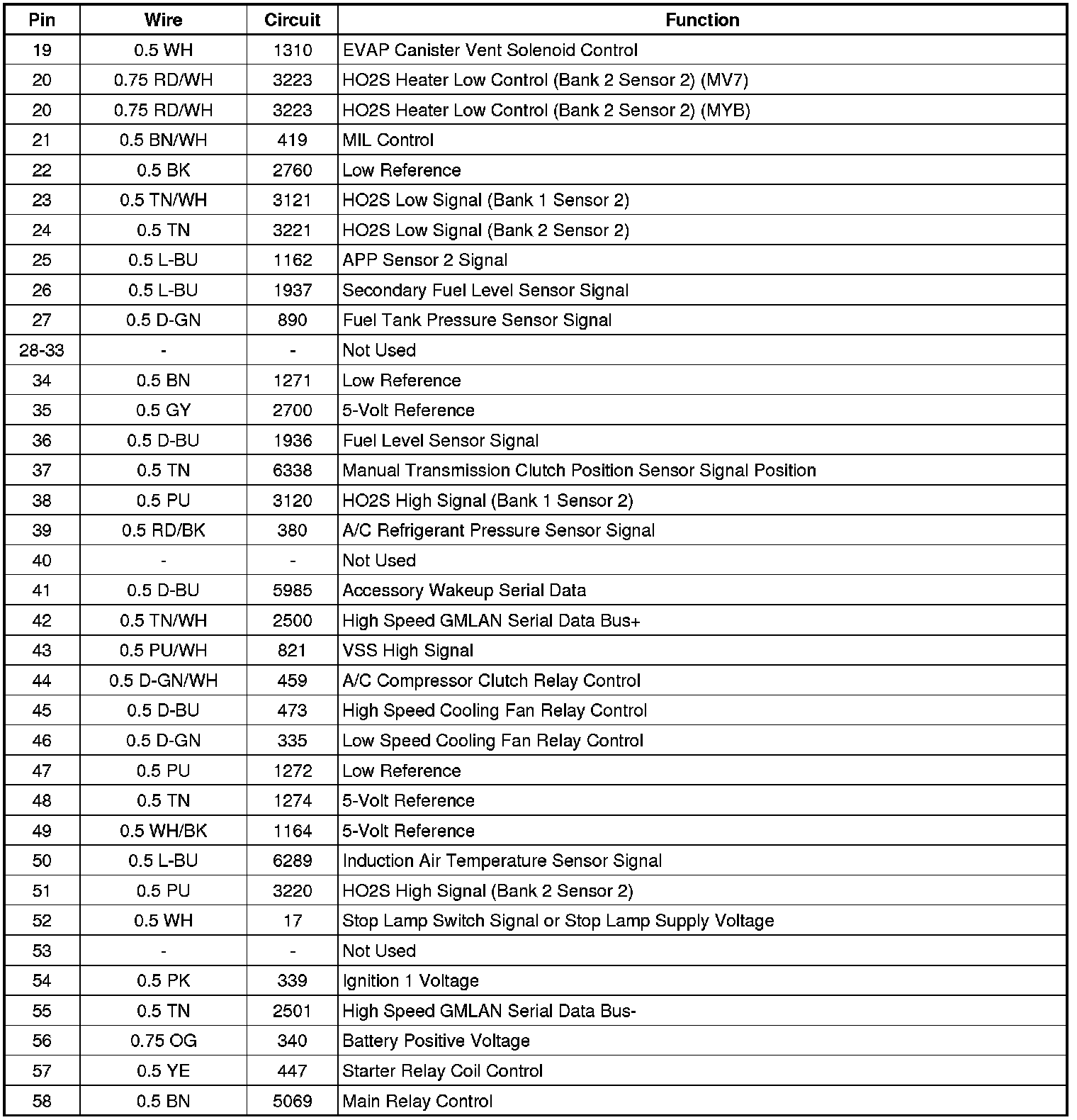

Engine Control Module (ECM) X1 (LP1/LY7)

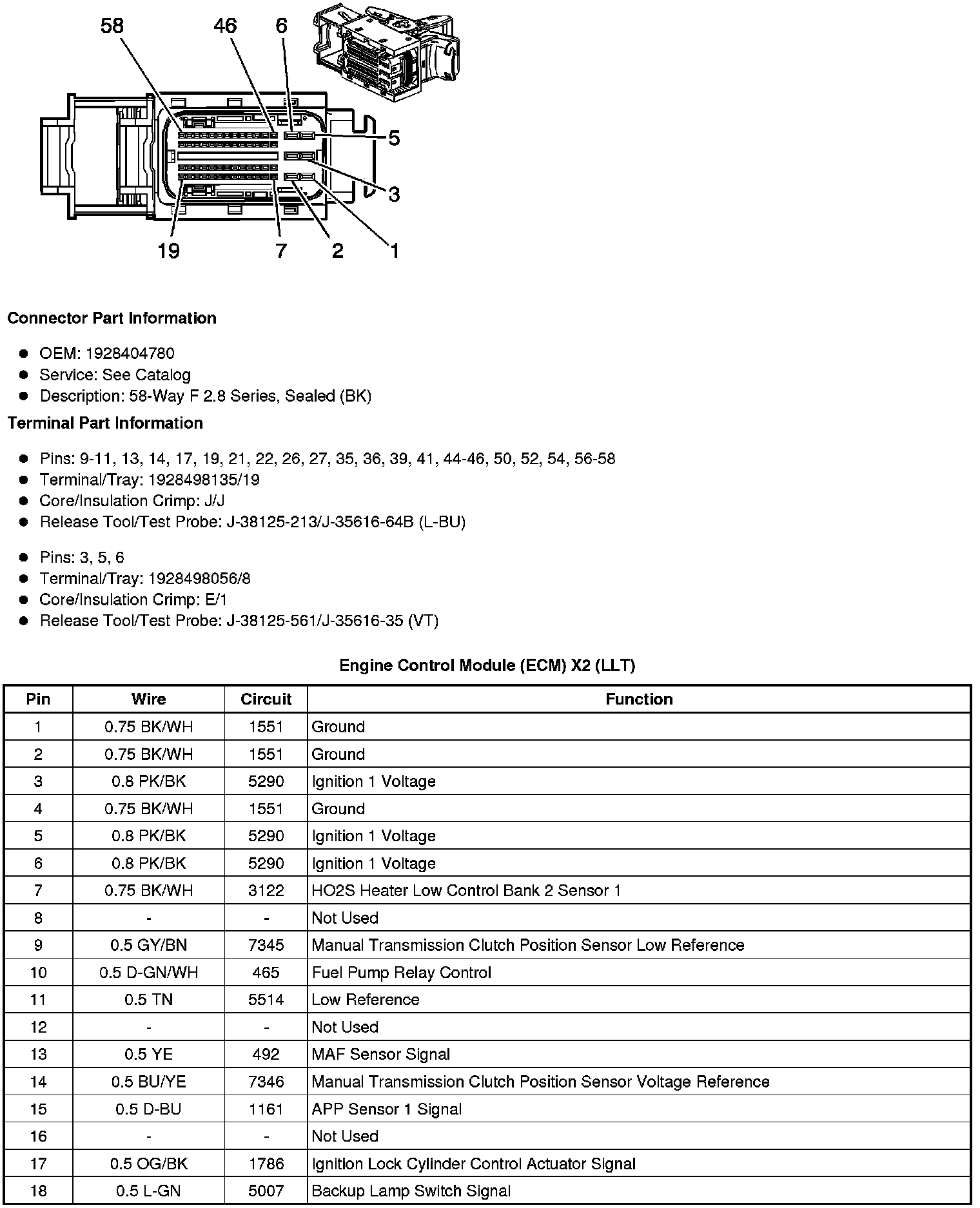

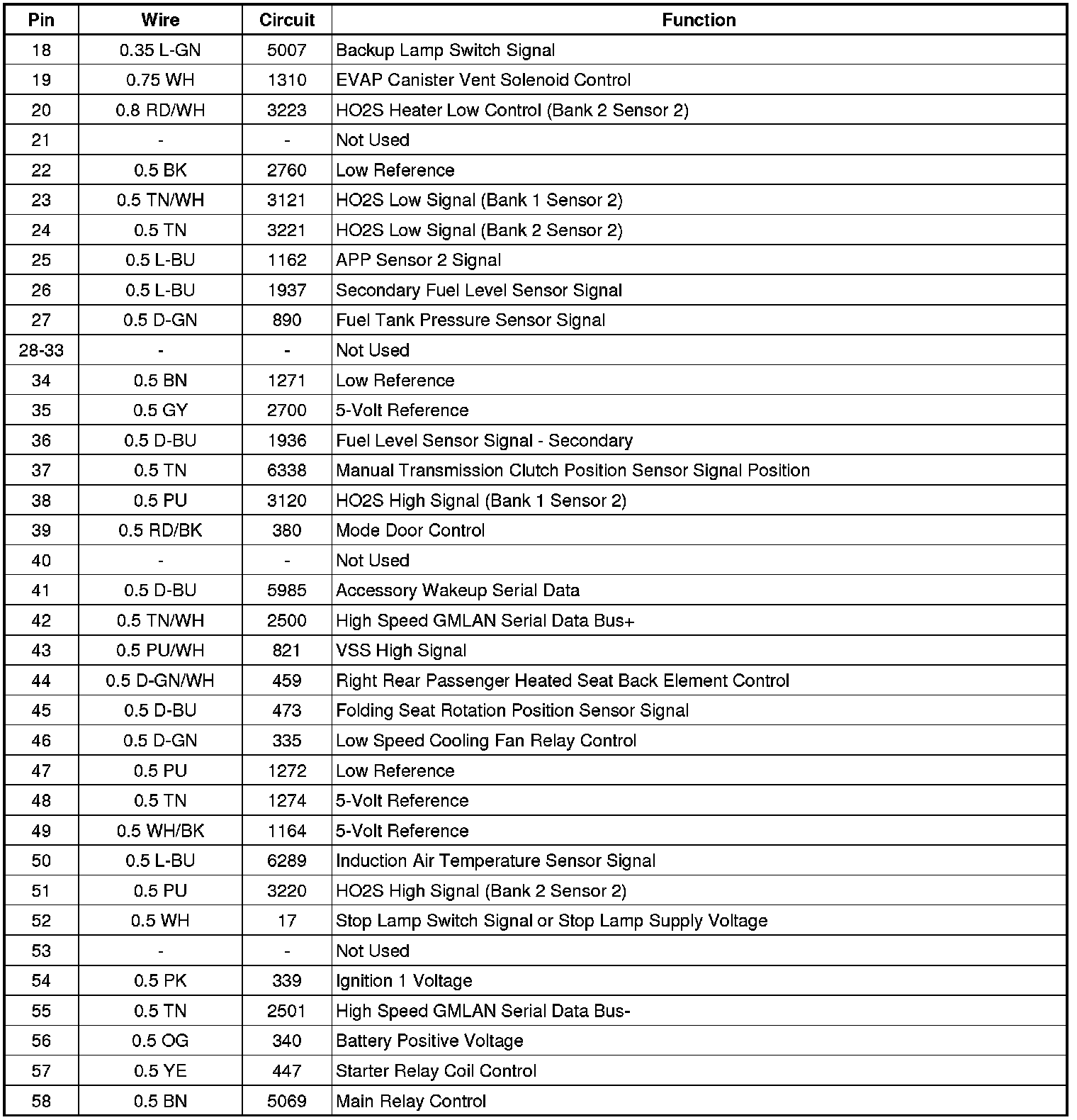

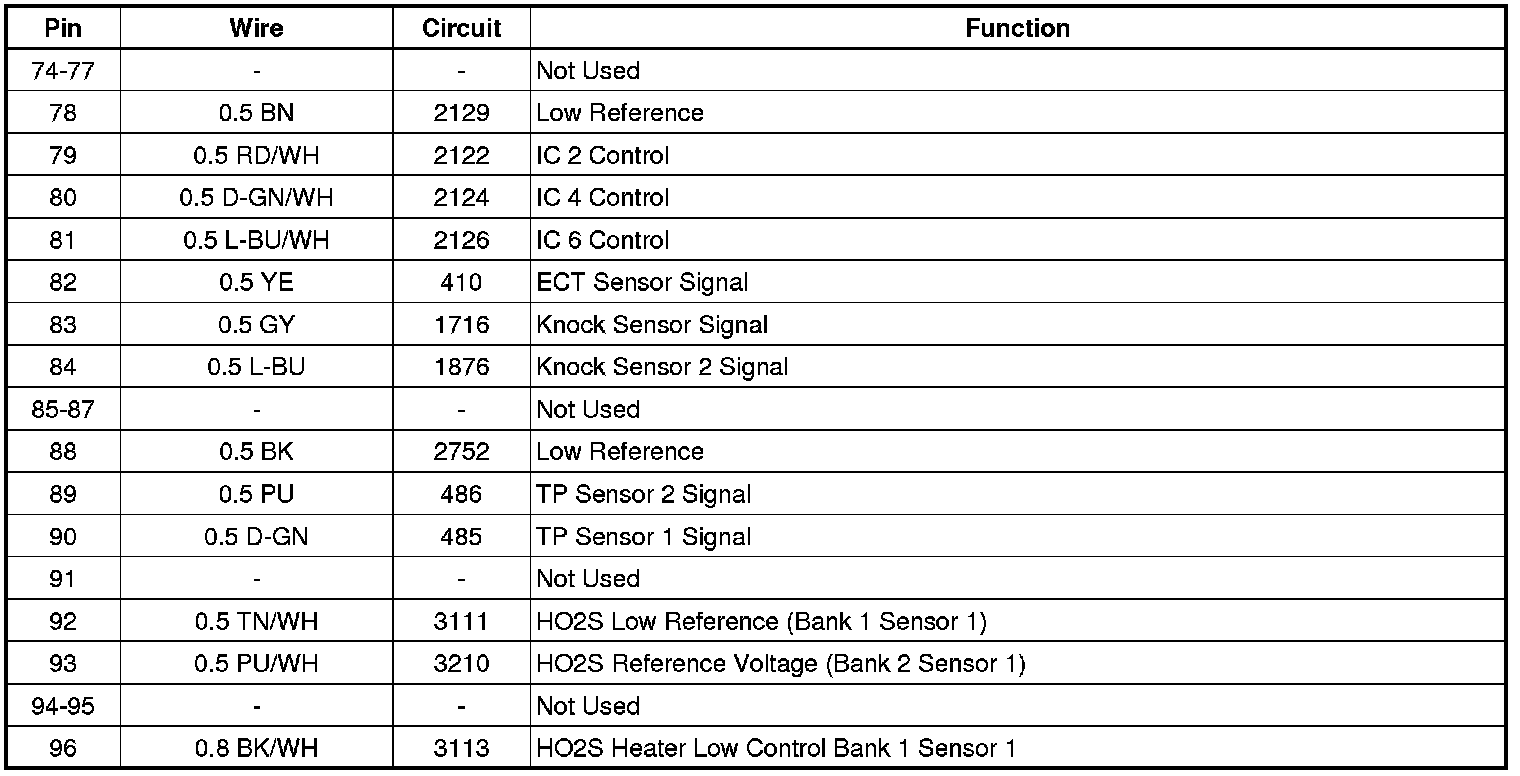

Engine Control Module (ECM) X2 (LLT)

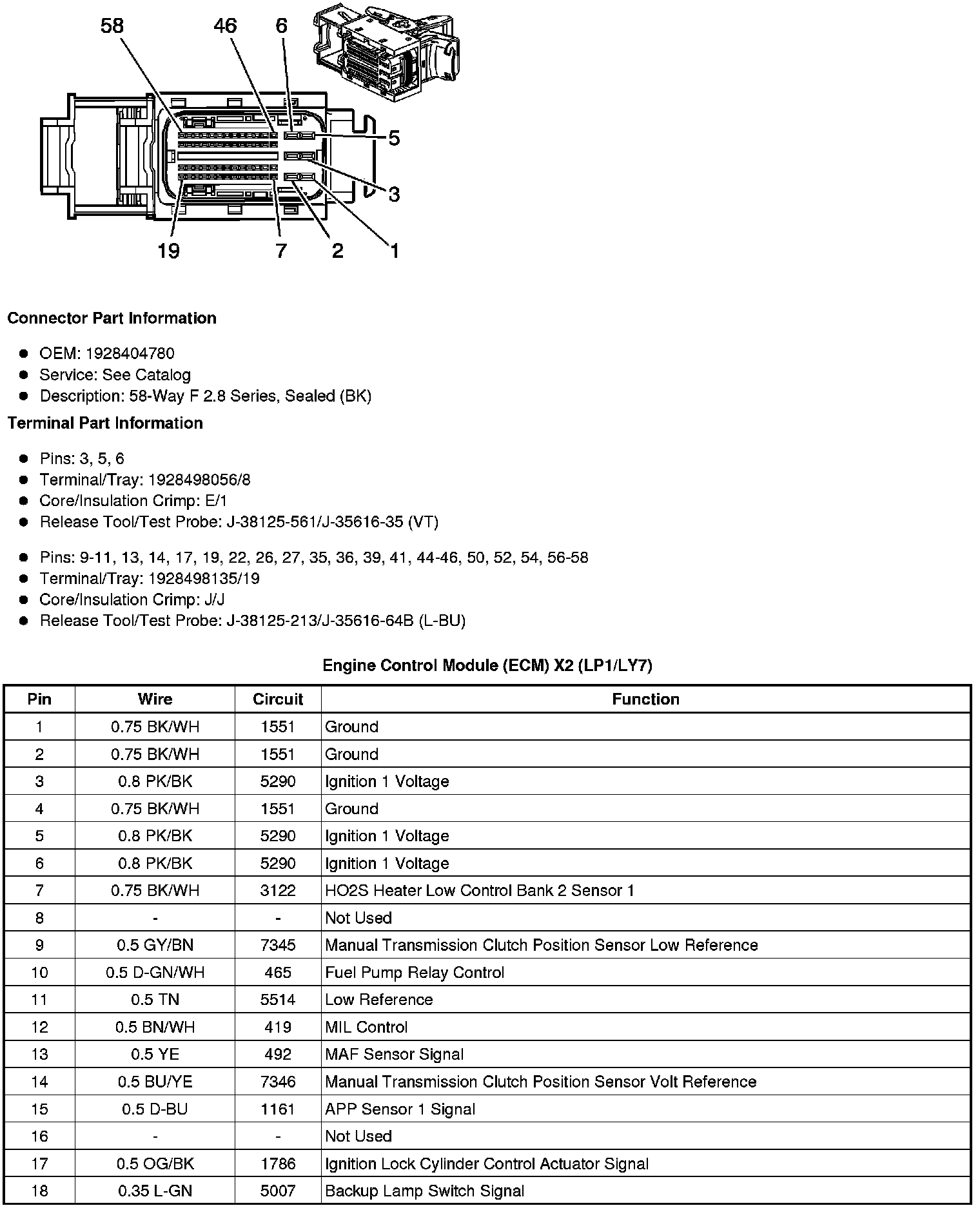

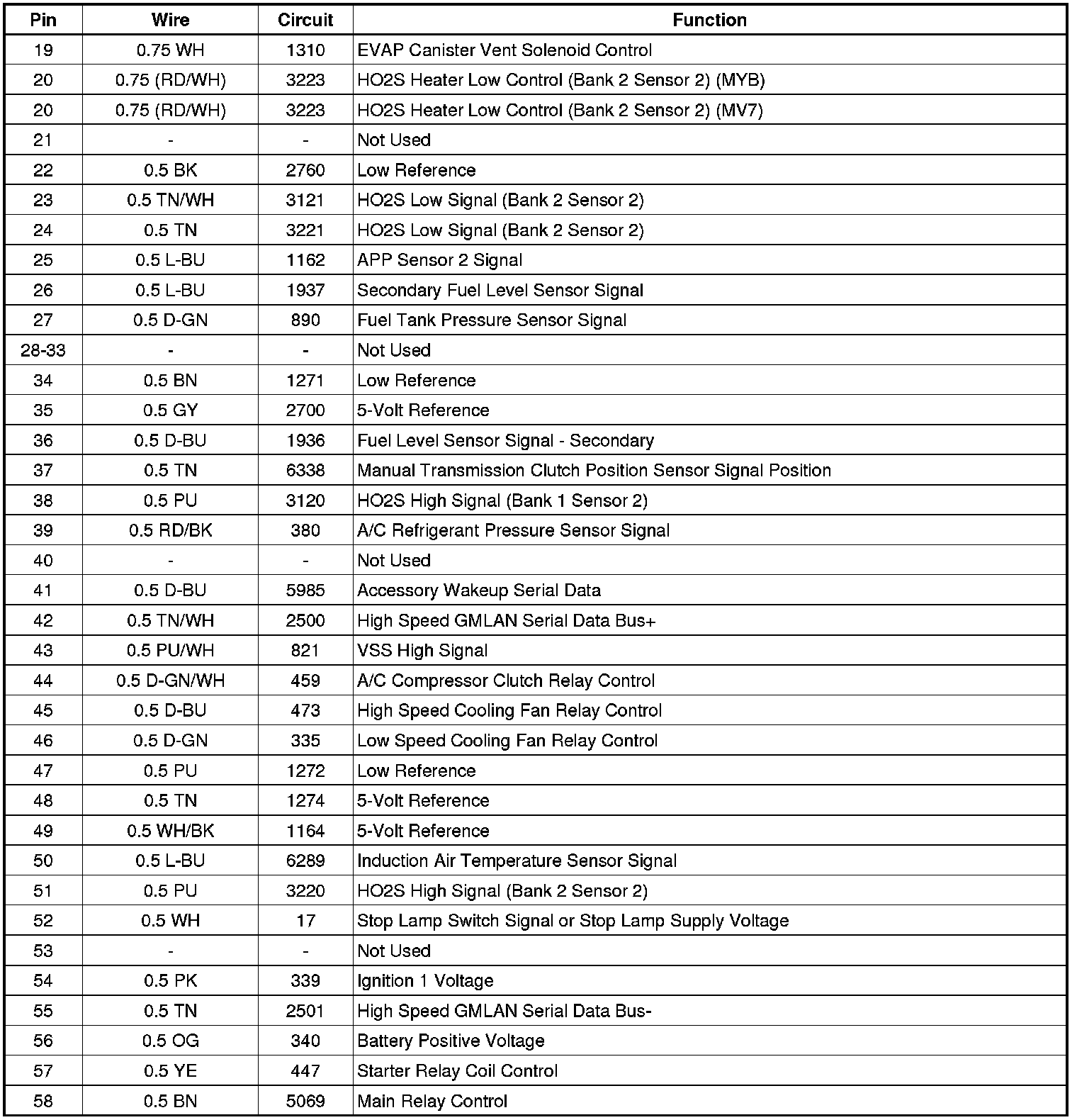

Engine Control Module (ECM) X2 (LP1/LY7)

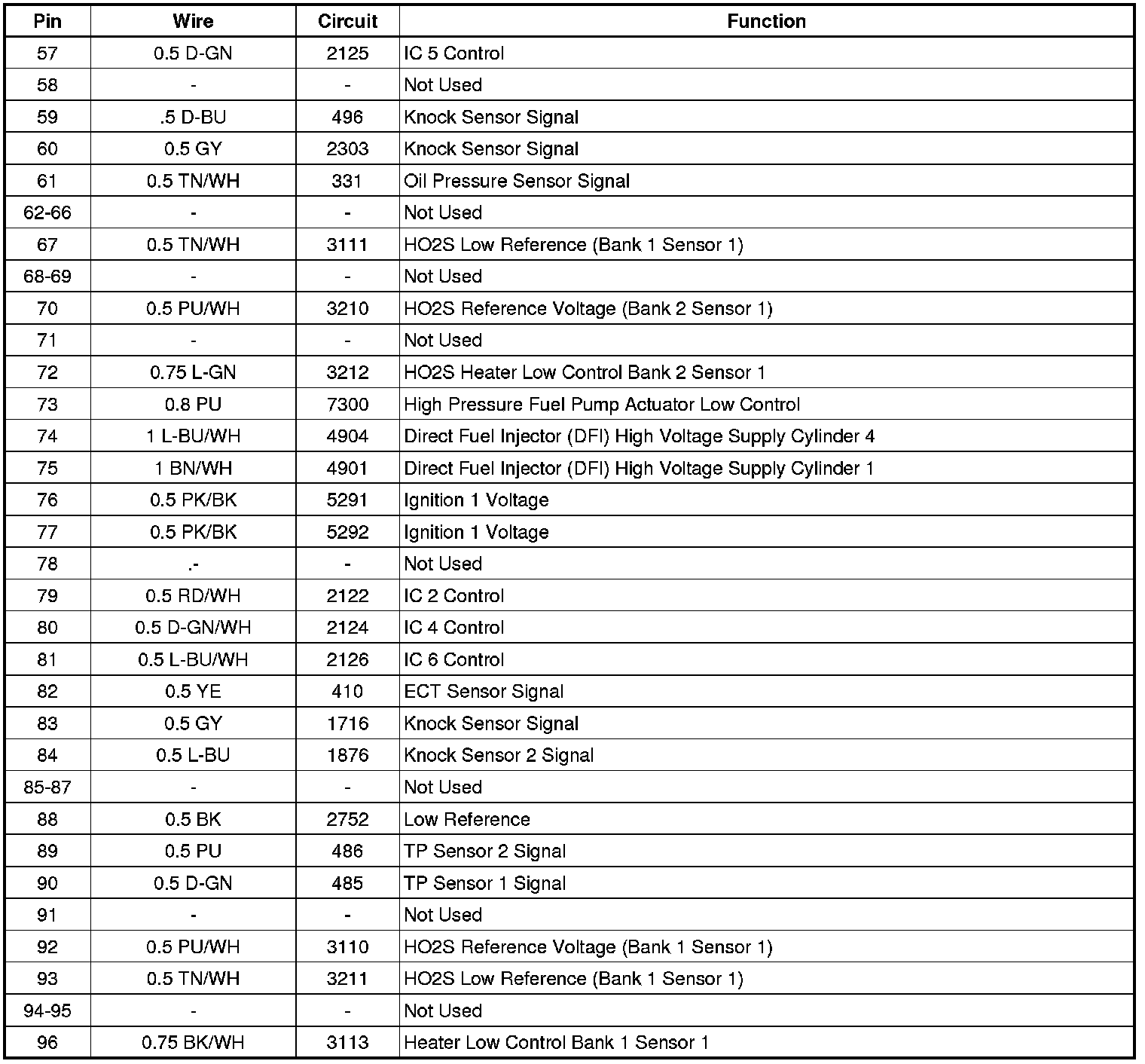

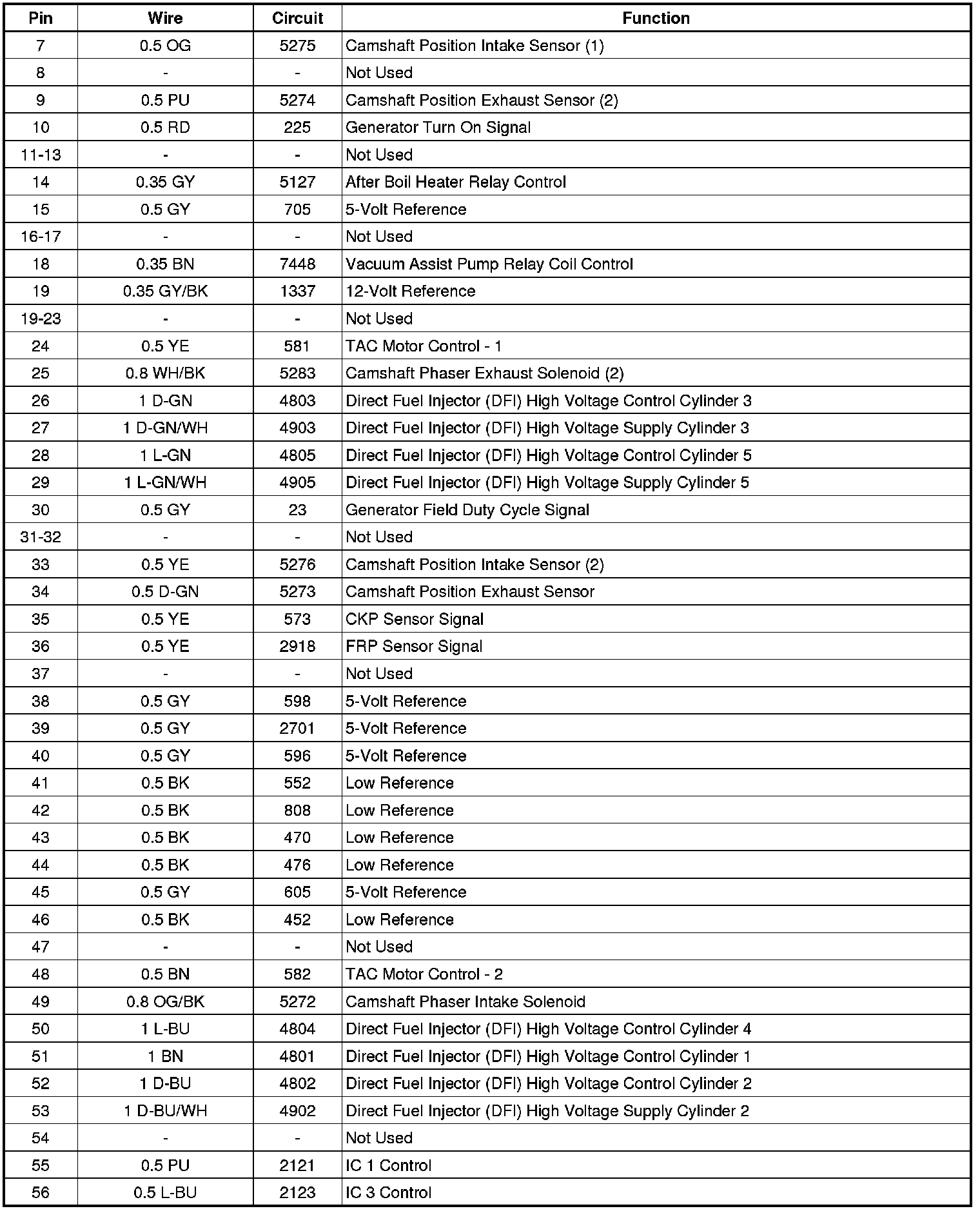

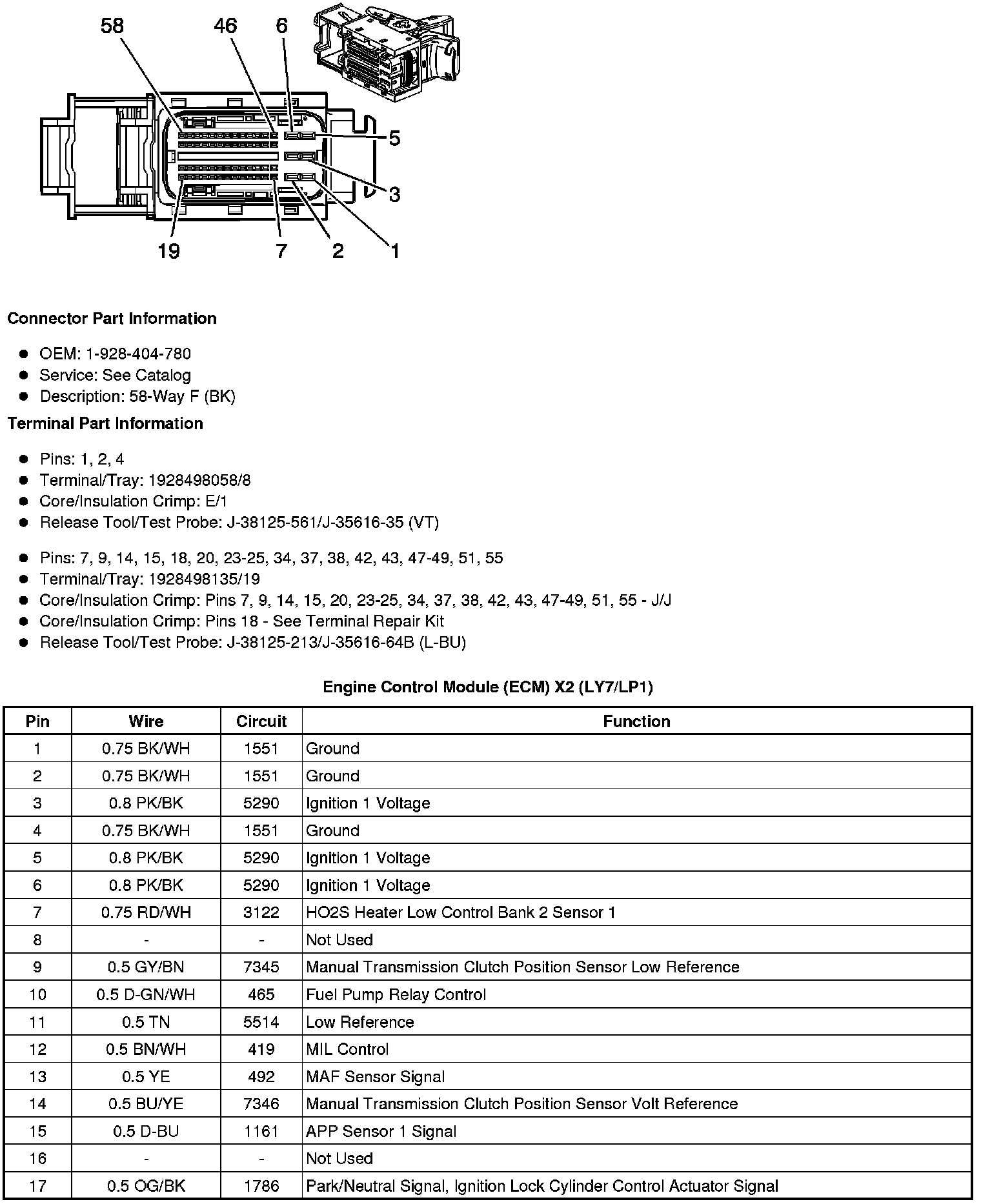

Engine Control Module (ECM) X2 (LY7/LP1)
