Impact Sensor

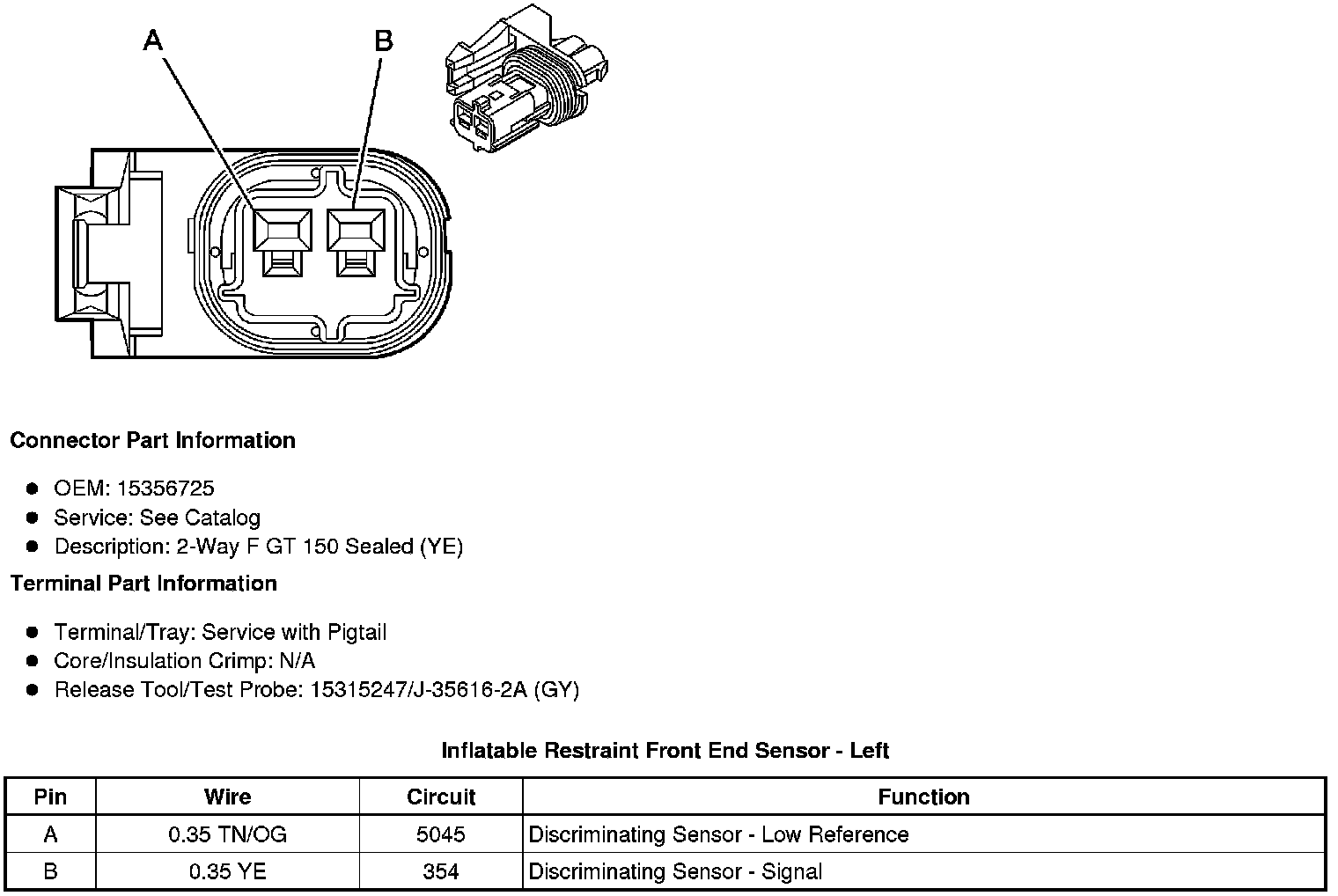

Inflatable Restraint Front End Sensor - Left






Inflatable Restraint Front End Sensor - Right





Inflatable Restraint Side Impact Sensor (SISM) - Left Front

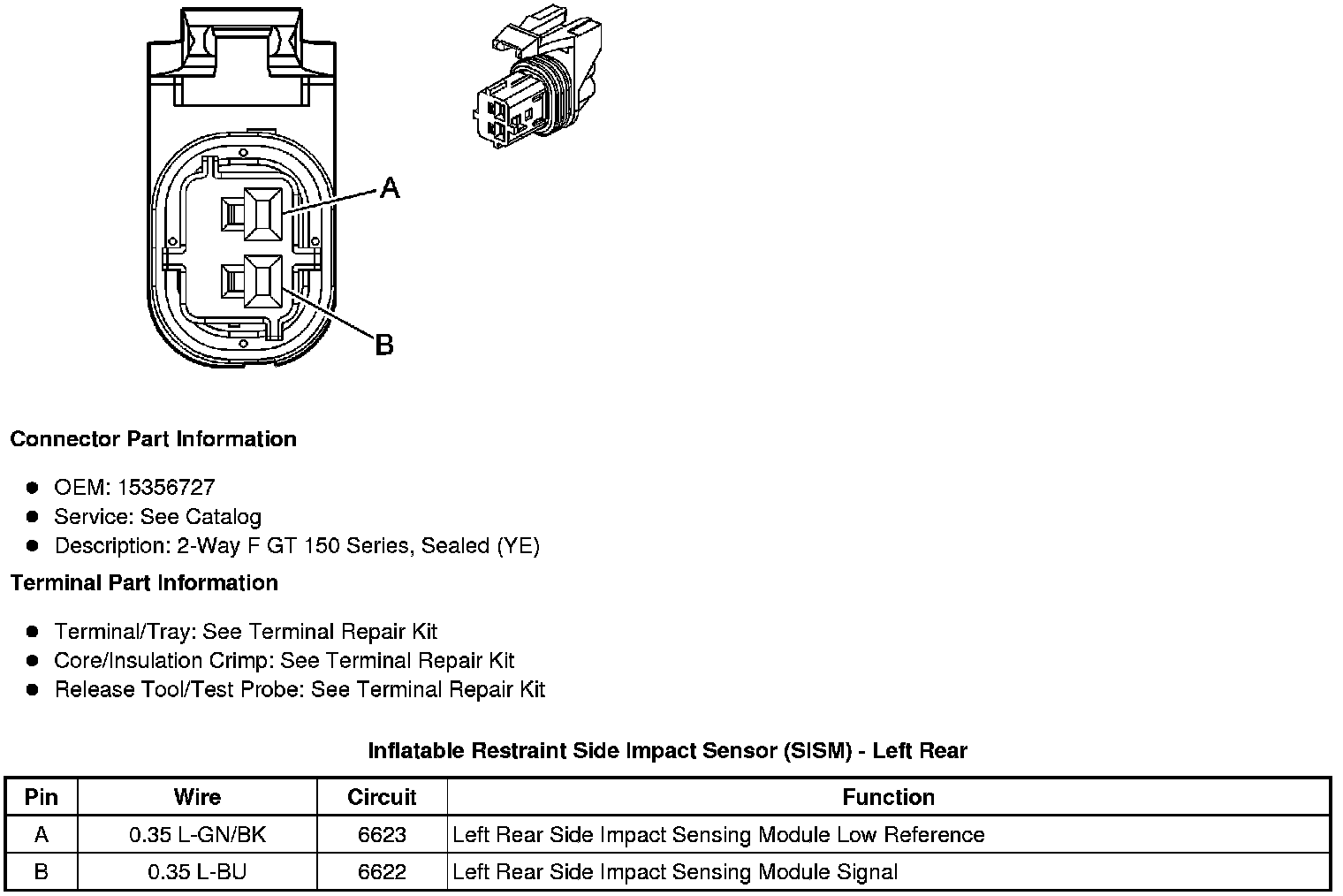

Inflatable Restraint Side Impact Sensor (SISM) - Left Rear

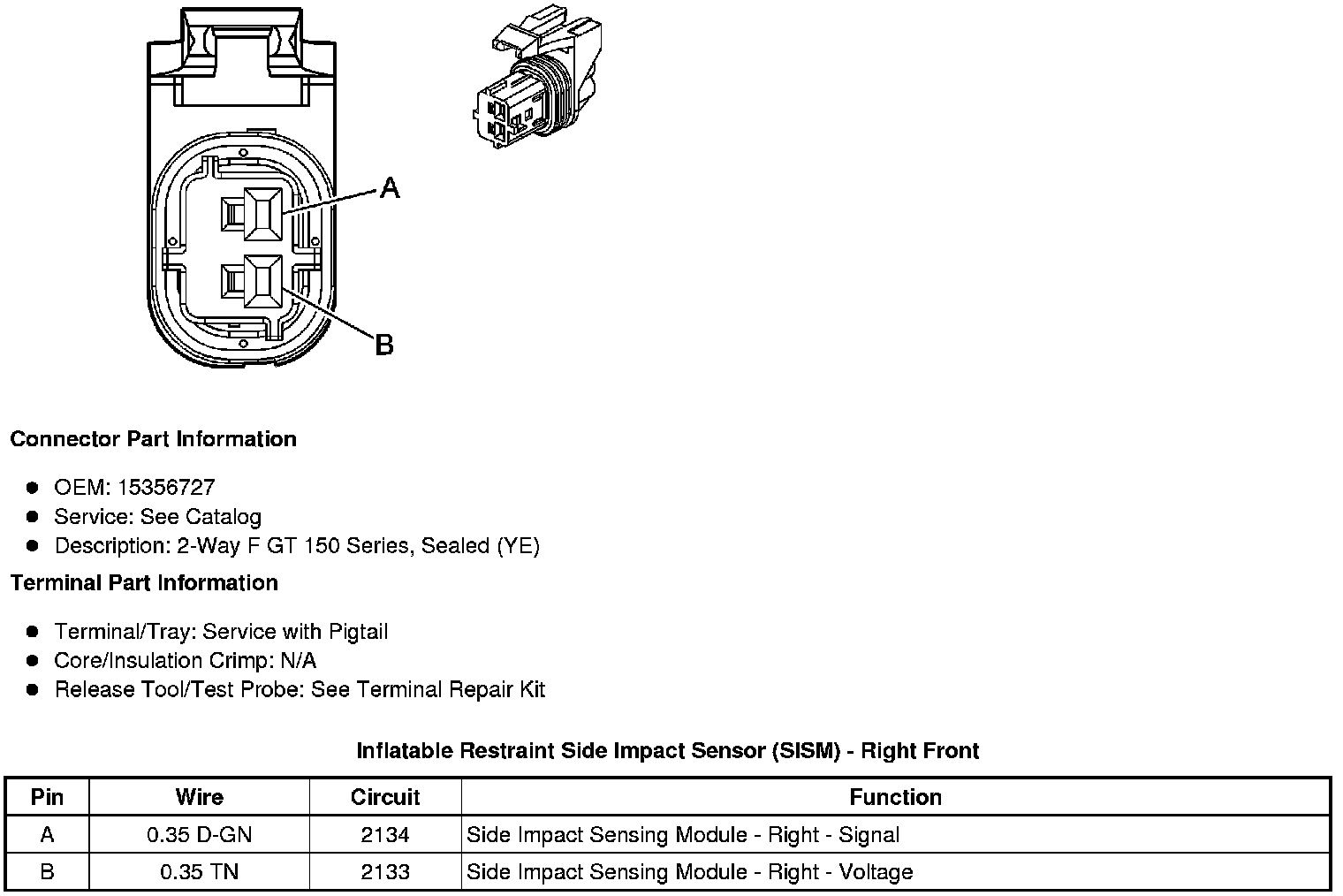

Inflatable Restraint Side Impact Sensor (SISM) - Right Front






Inflatable Restraint Side Impact Sensor (SISM) - Right Rear
