Home >> Cadillac >> 2008 >> CTS RWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor, Traction Control
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

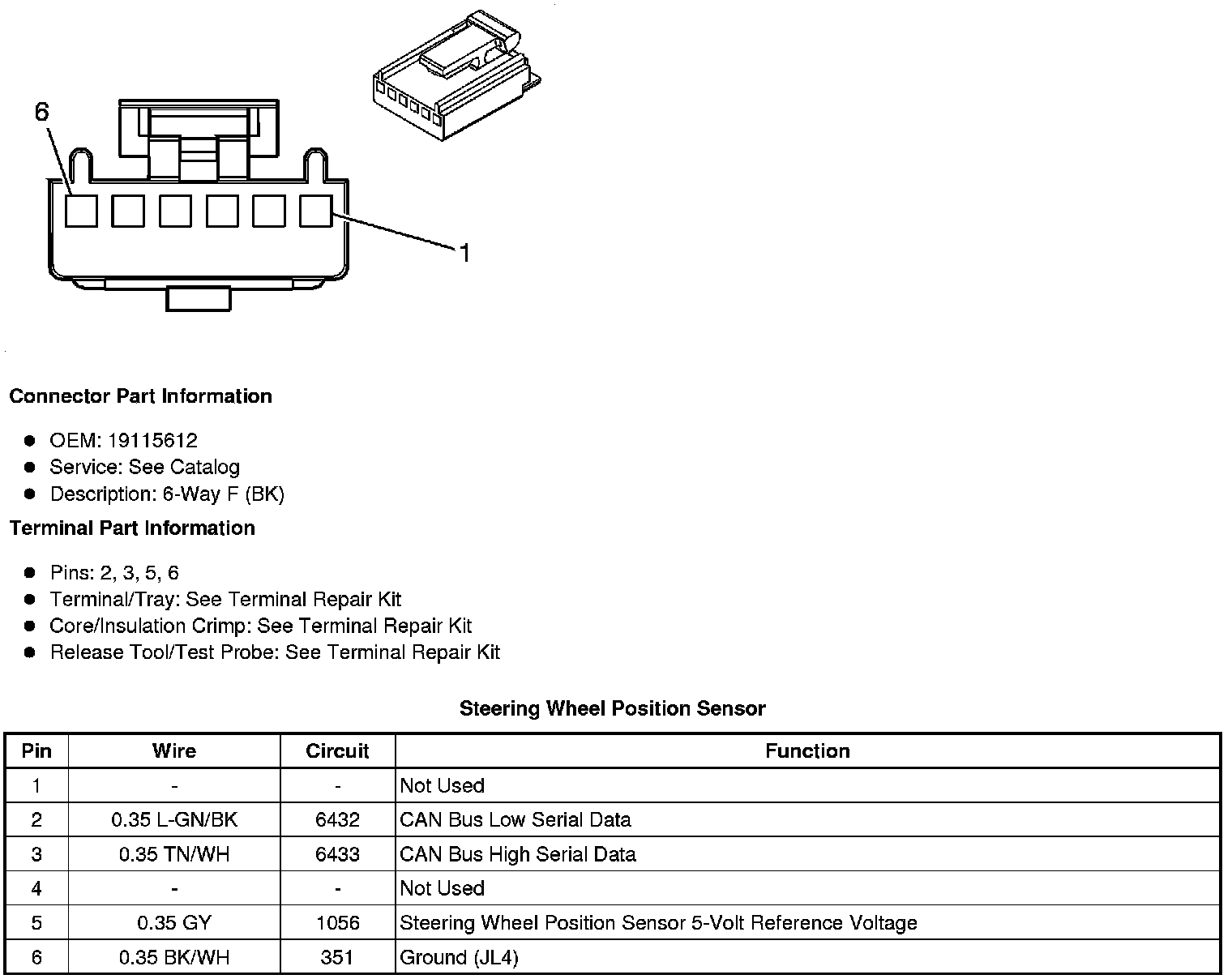

Steering Angle Sensor, Traction Control

Steering Wheel Position Sensor
