Control Assembly: Diagrams
Component Connector End Views - Continued
Hood Ajar Switch (AP3/AP8)
HVAC Control Module - Auxiliary (CJ3/CJ3)

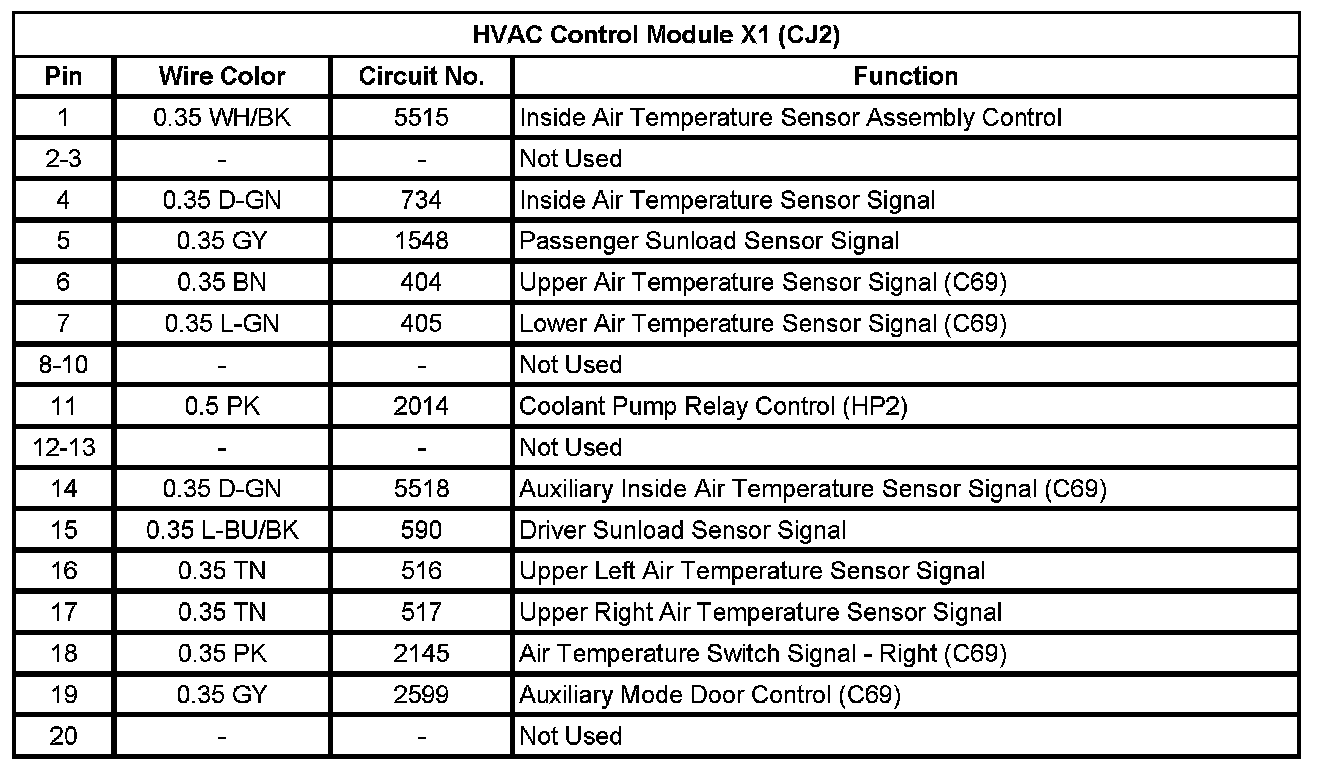

HVAC Control Module X1 (CJ2)
HVAC Control Module X1 (CJ3)
HVAC Control Module X2 (CJ2)
HVAC Control Module X2 (CJ3)

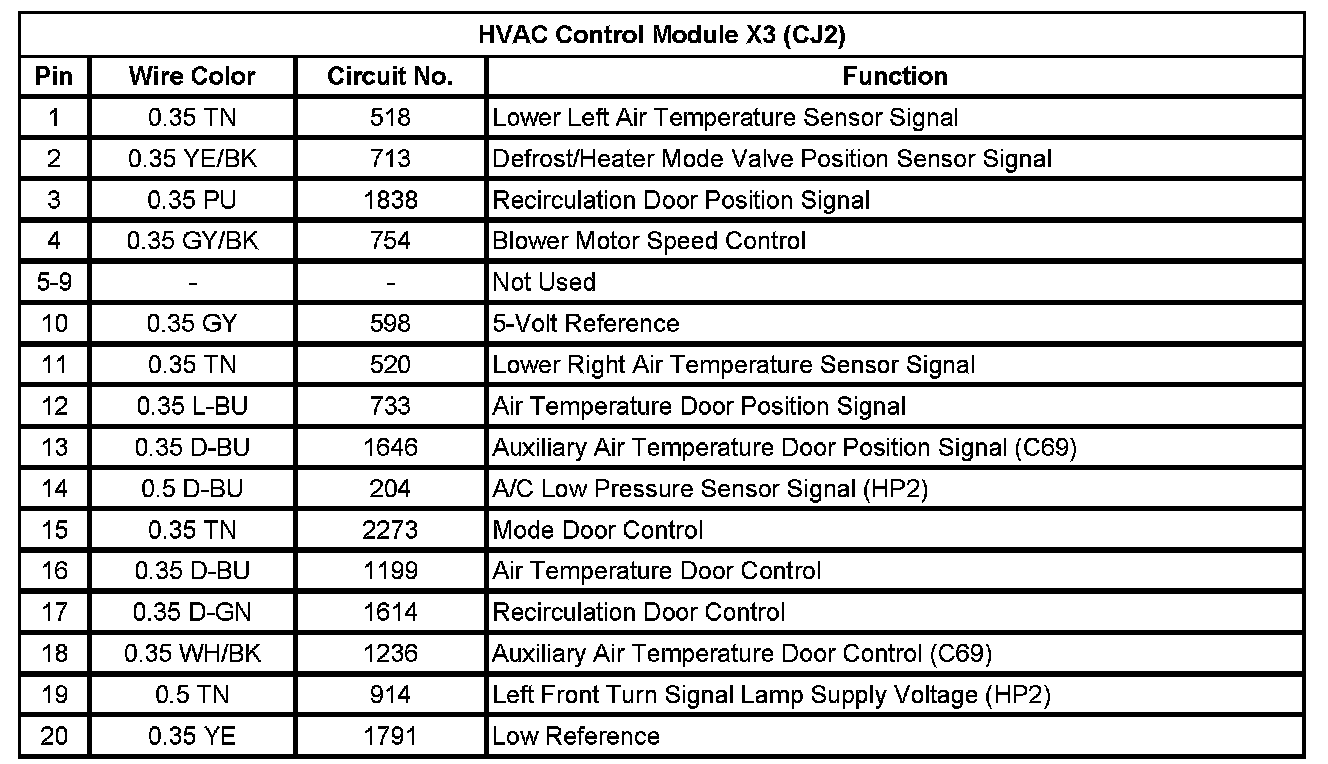

HVAC Control Module X3 (CJ2)
HVAC Control Module X3 (CJ3)
HVAC Control Module X4 (C69/CJ2)
HVAC Control Module X4 (CJ3)
