Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2007 GMC Yukon XL, 2007 GMC Yukon, 2007 Chevrolet Tahoe, 2007 Chevrolet Suburban, and 2007 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

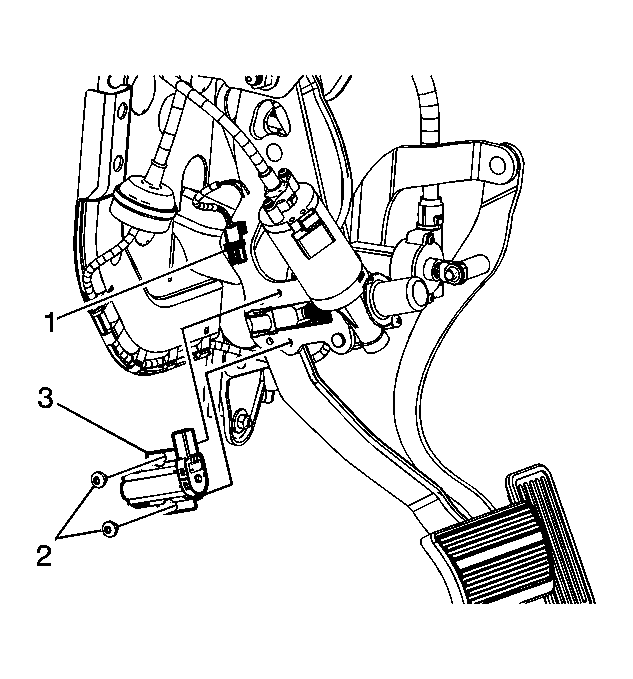

Fig 1: View Of Brake Pedal Position Sensor Electrical Connector, Brake Pedal Position Sensor & Bolts

Courtesy of GENERAL MOTORS CORP.

Install the brake pedal position sensor (3) to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the brake pedal position sensor bolts (2).
Tighten: Tighten the bolts to 9 N.m (80 lb in).
Connect the brake pedal position sensor electrical connector (1).
Install the fuse block cover.
Install the driver knee bolster. Refer to Knee Bolster Replacement (Cadillac) or Knee Bolster Replacement (Except Cadillac) .
