Front of Vehicle/Engine Compartment Component Views

Fig 1: Front of the Vehicle (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Right High Beam
2	Headlamp - Left High Beam
3	Headlamp - Left Low Beam
4	Park/Turn Signal Lamp - Left
5	Daytime Running Lamp (DRL) - Left
6	Fog Lamp - Left Front (T96)
7	Fog Lamp - Right Front (T96)
8	Daytime Running Lamp (DRL) - Right
9	Park/Turn Signal Lamp - Right
10	Headlamp - Right Low Beam

Fig 2: Front of the Vehicle (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Turn Signal Lamp - Right
2	Park/Turn Signal Lamp - Left
3	Marker Lamp - Left Front
4	Headlamp - Left
5	Fog Lamp - Left Front (T96)
6	Fog Lamp - Right Front (T96)
7	Headlamp - Right
8	Marker Lamp - Right Front

Fig 3: Front of the Vehicle (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Repeater Lamp - Right Front (TR2)
2	Marker Lamp - Right Front
3	Park Lamp - Right Front
4	Daytime Running Lamp (DRL) - Right
5	Headlamp - Right
6	Fog Lamp - Right Front (T96)
7	Park Lamp - Left Front
8	Repeater Lamp - Left Front (TR2)
9	Daytime Running Lamp (DRL) - Left
10	Marker Lamp - Left Front
11	Headlamp - Left
12	Turn Signal Lamp - Left Front
13	Fog Lamp - Left Front (T96)
14	Turn Signal Lamp - Right Front

Fig 4: Windshield Washer Container Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator
2	Windshield Washer Fluid Level Switch
3	Rear Window Washer Fluid Pump (E52)
4	Windshield Washer Fluid Pump

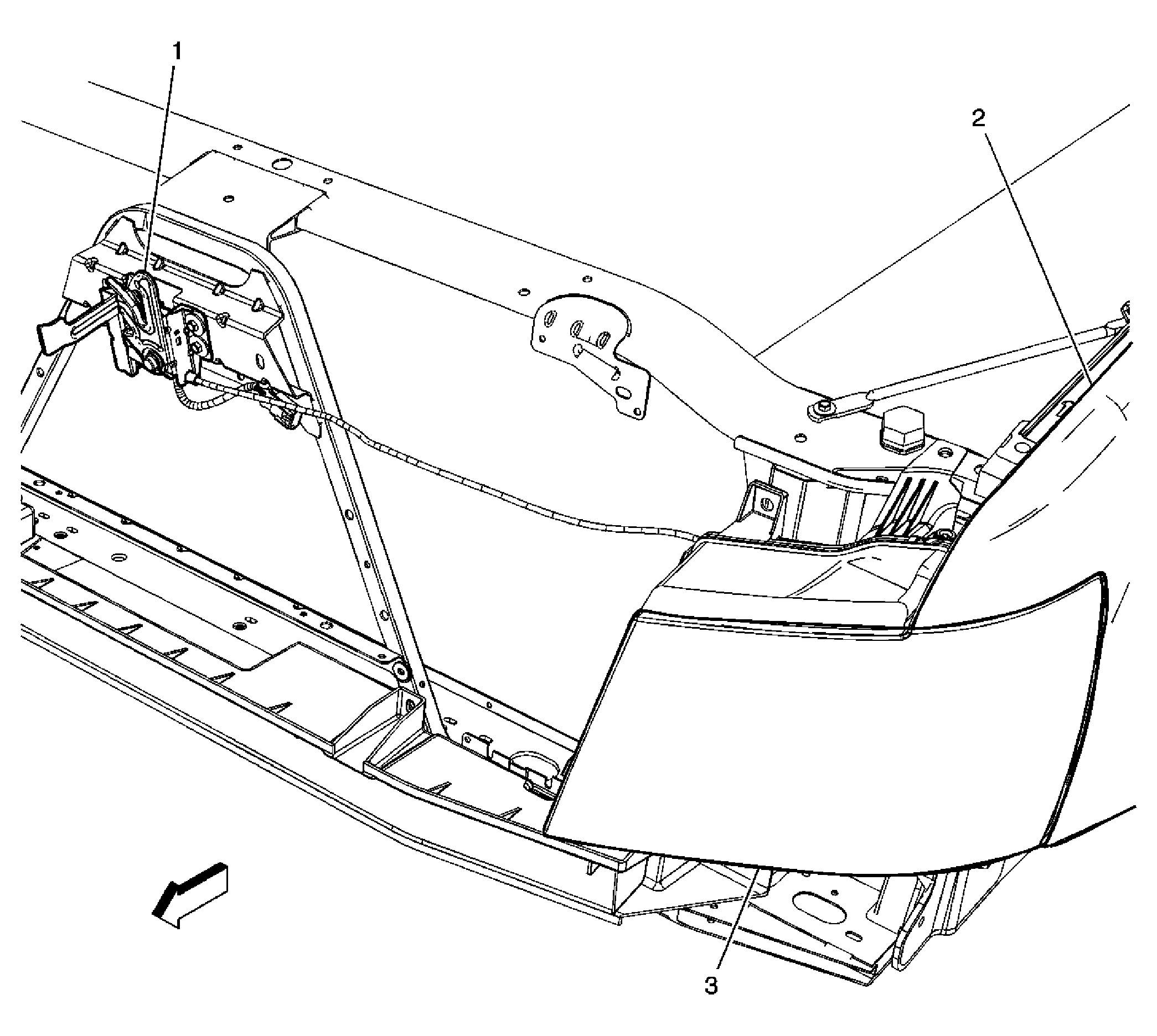

Fig 5: Behind the Grille Components - 1 of 4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3 or AP8)
2	Left Front Fender
3	Headlamp - Left Front

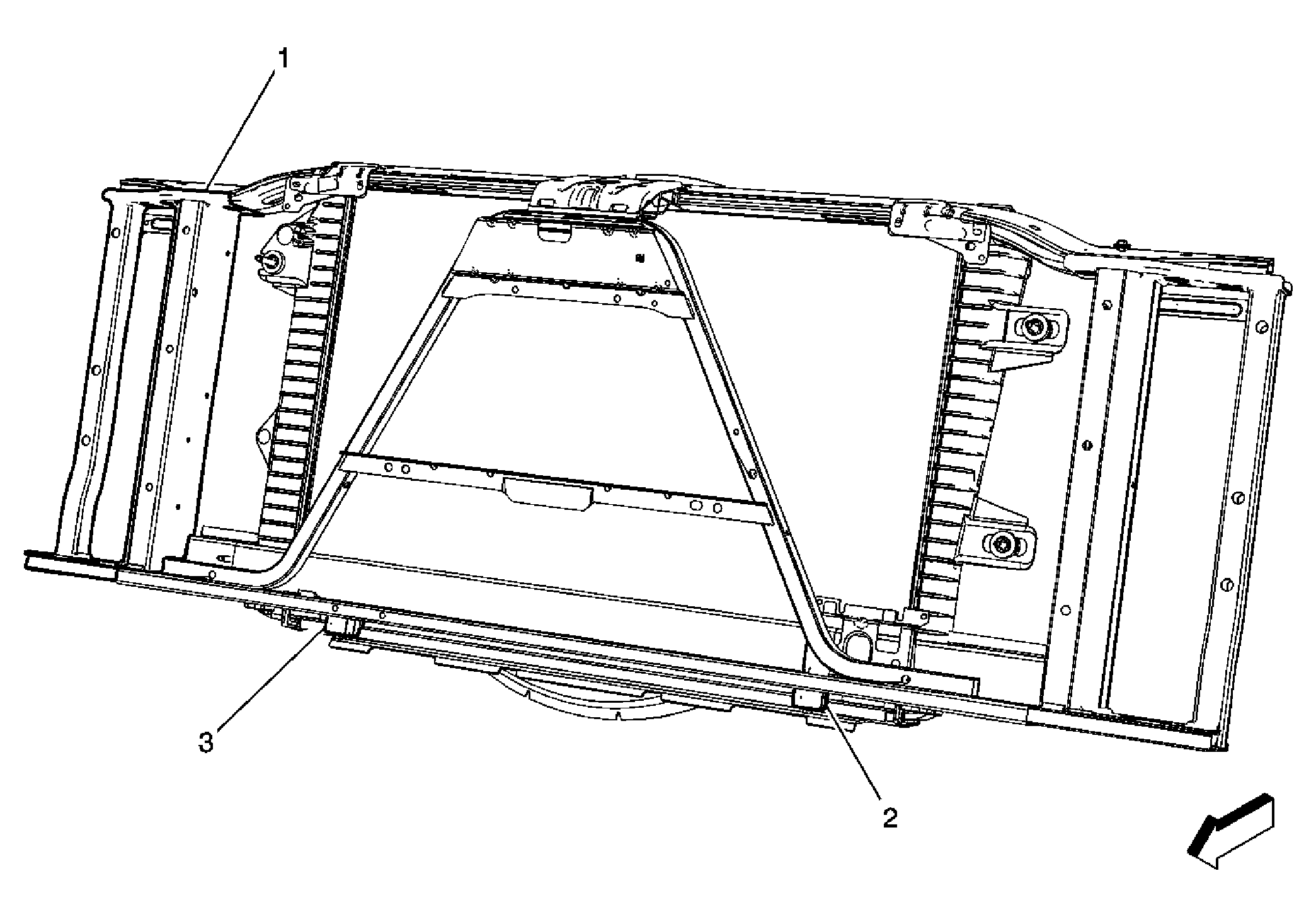

Fig 6: Behind the Grille Components - 2 of 4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Core Support
2	Inflatable Restraint Front End Sensor - Left
3	Inflatable Restraint Front End Sensor - Right

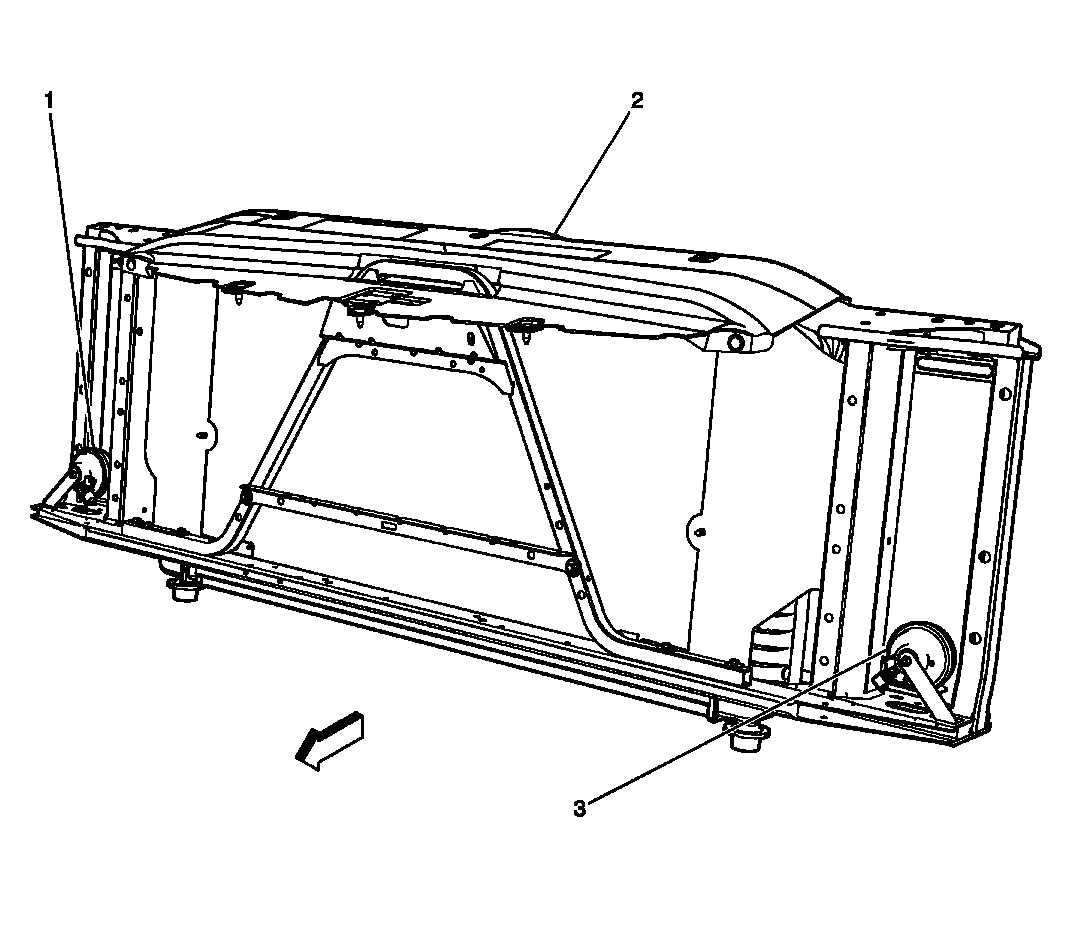

Fig 7: Behind the Grille Components - 3 of 4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn - Right
2	Radiator Core Support
3	Horn - Left

Fig 8: Behind the Grille Components - 4 of 4

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radiator Core Support
2	Ambient Air Temperature Sensor - ISRVM
3	Ambient Air Temperature Sensor - HVAC (CJ2)

Fig 9: Cooling Fans

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cooling Fan - Left
2	Engine Cooling Fan - Right
3	Forward Lamp Harness

Fig 10: Front of Engine Compartment Components (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Engine Cooling Fan Resistor - Left
2	Engine Cooling Fan Resistor - Right
3	Generator Control Module Temperature Sensor
4	A/C Low Pressure Sensor
5	Inflatable Restraint Front End Sensor - Right
6	High Voltage Circuit Impact Detection Sensor
7	Inflatable Restraint Front End Sensor - Left
8	Heater Coolant Pump
9	Generator Control Module Coolant Pump - Right
10	Generator Control Module Coolant Pump - Left

Fig 11: Left Side of the Engine Compartment Components - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Power Brake Booster
3	Windshield Washer Solvent Heater (XA7)
4	Fuse Block - Underhood
5	Engine Control Module (ECM)
6	Transmission Control Module (TCM) (except MYC)
7	Brake Booster Vacuum Sensor
8	Brake Fluid Level Switch

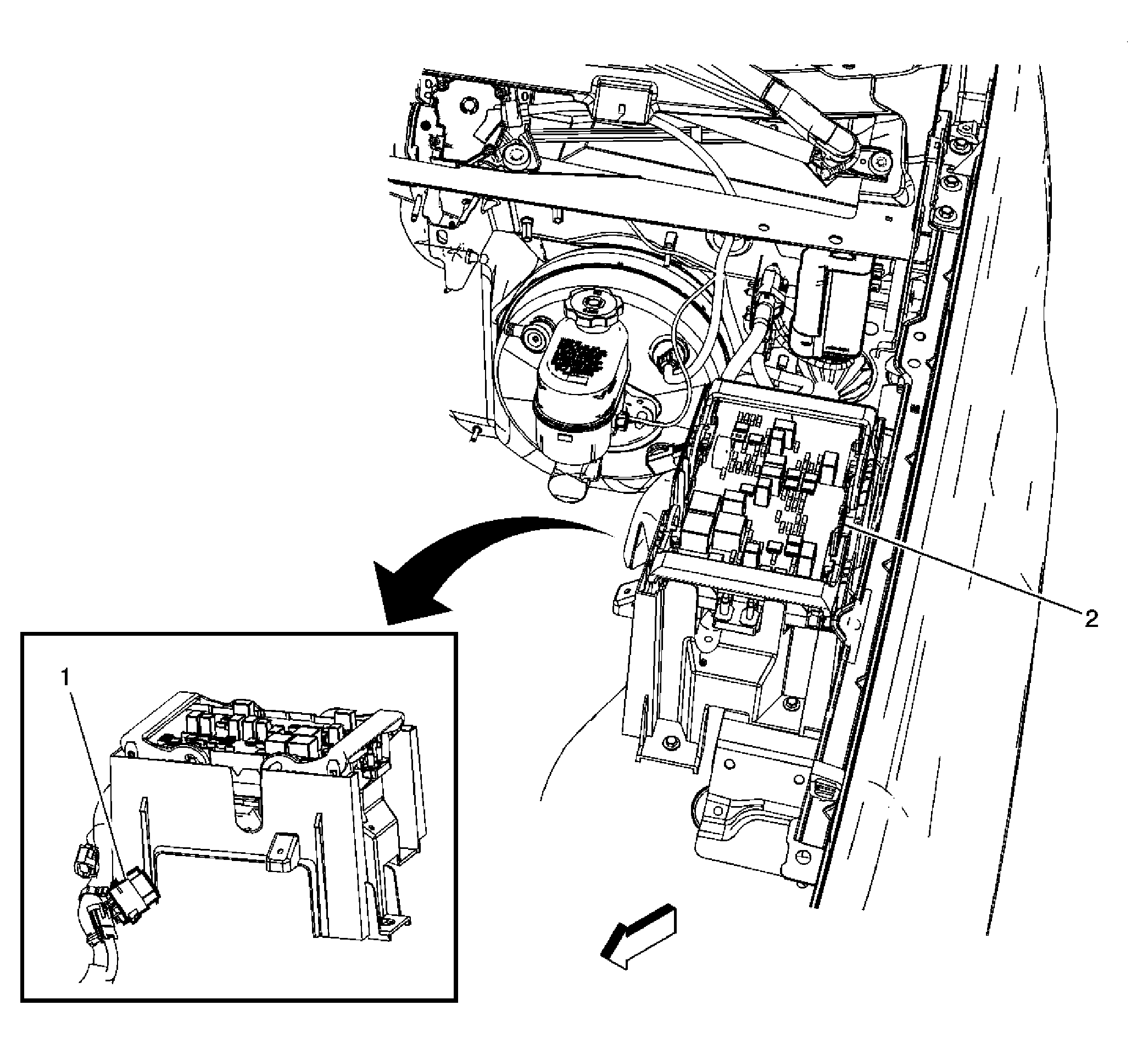

Fig 12: Left Side of the Engine Compartment Components - 2 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Level Control (ALC) Relay (Z55)
2	Fuse Block - Underhood

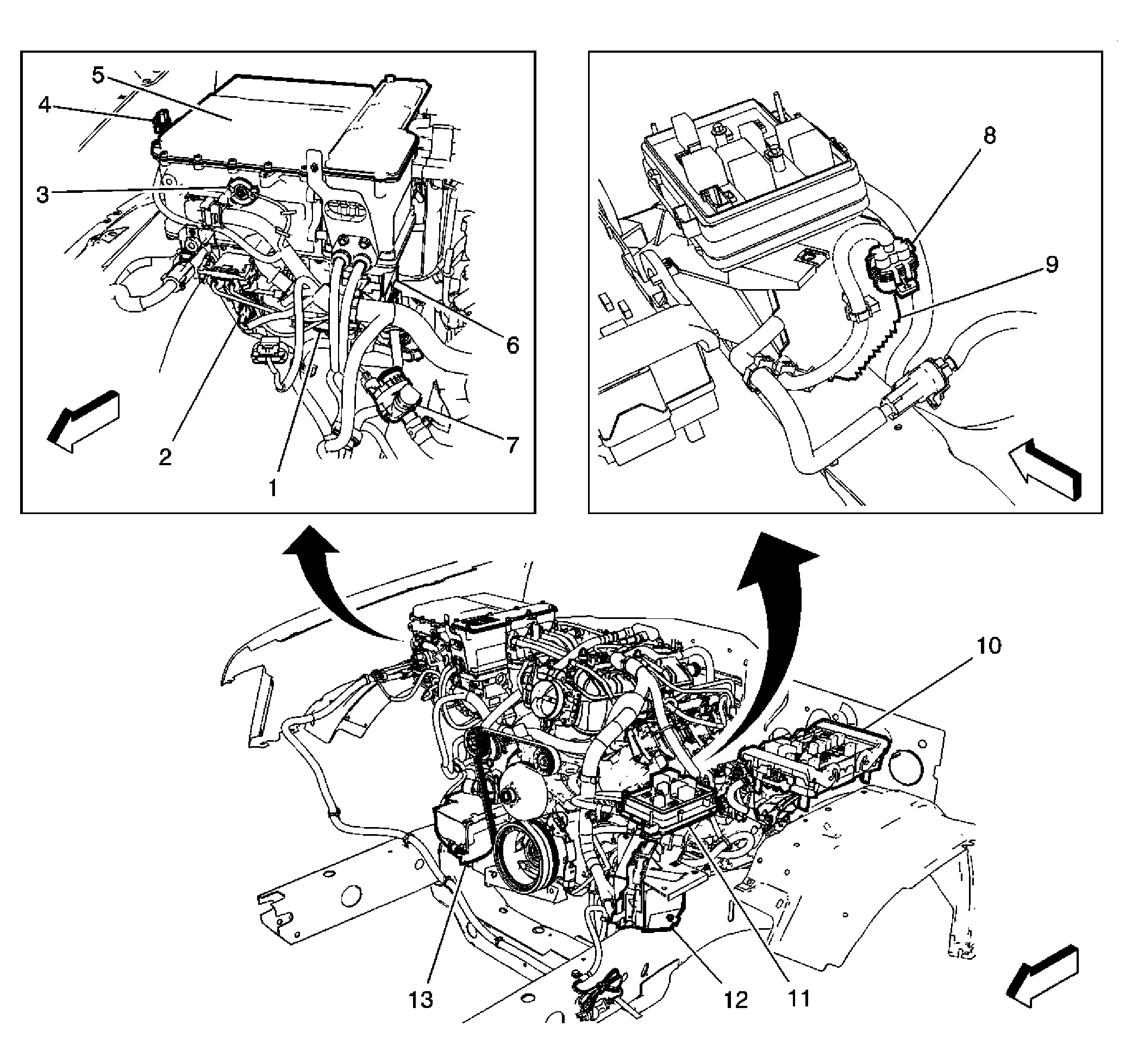

Fig 13: Engine Compartment Components (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accessory DC Power Control Module
2	Accessory DC Power Control Module Cover
3	Drive Motor Generator Power Inverter Module X6
4	Drive Motor Generator Power Inverter Module Cover
5	Drive Motor Generator Power Inverter Module
6	Electronic Power Steering Motor Control Module
7	Heater Coolant Pump
8	Battery Current Sensor
9	Automatic Transmission Auxiliary Fluid Pump Control Module
10	Fuse Block - Underhood
11	Fuse Block - Auxiliary
12	Engine Control Module (ECM)
13	A/C Compressor

Fig 14: Right Rear of the Engine Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery - Right
2	A/C Low Pressure Switch
3	A/C Compressor Clutch
4	A/C Refrigerant Pressure Sensor
5	Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor

Fig 15: Brake Master Cylinder Piston Position Sensor (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Master Cylinder Piston Position Sensor
