Instrument Panel/Center Console Component Views

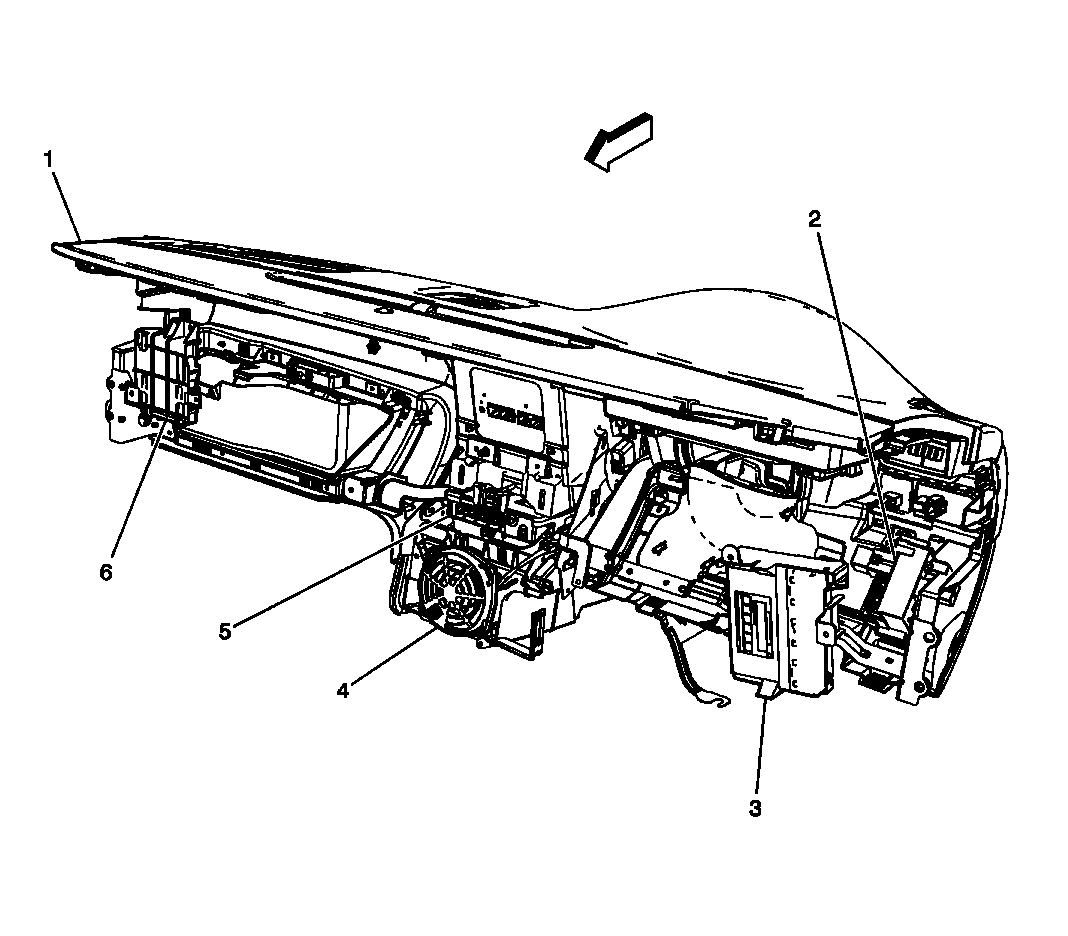

Fig 1: View Of Components Behind I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Fuse Block - I/P
3	Body Control Module (BCM)
4	Speaker - Subwoofer (UQA)
5	Vehicle Communication Interface Module (VCIM) (UE1)
6	Digital Radio Receiver (U2K)

Fig 2: Identifying I/P Harness Component (HP2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Serial Data Gateway (SDG) Module

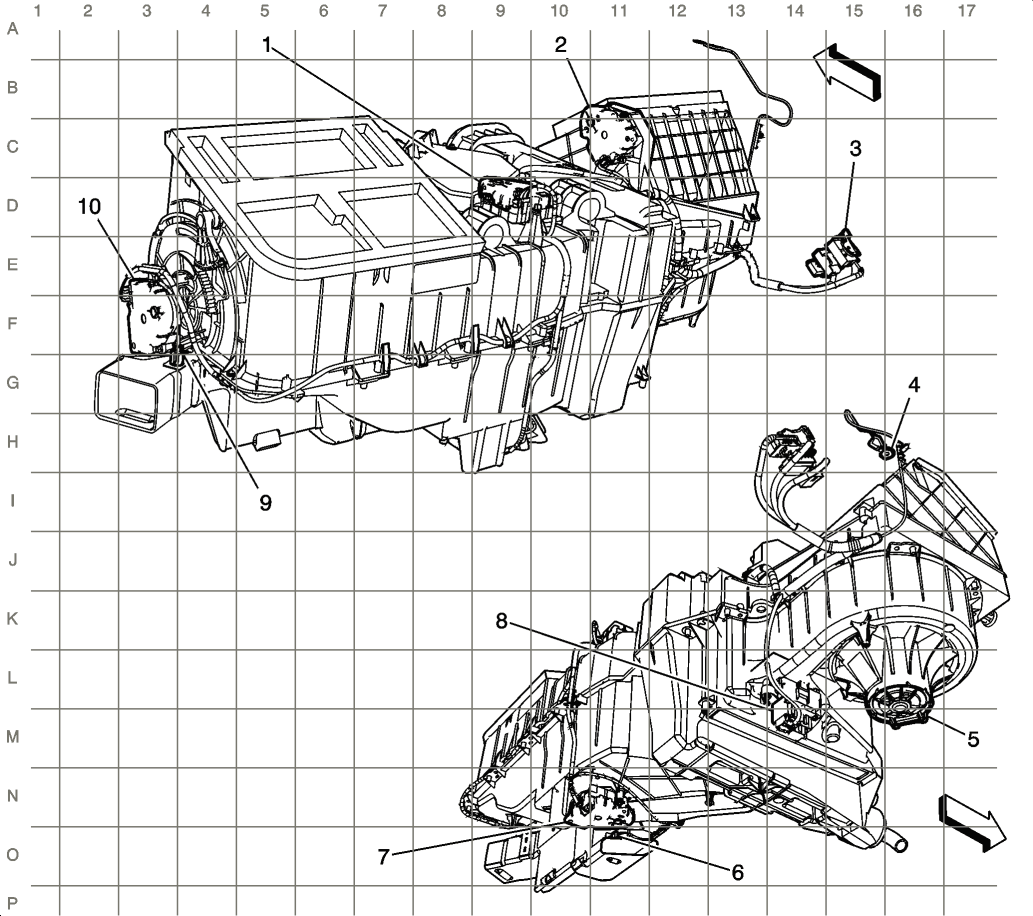

Fig 3: View Of Interior HVAC Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Right
2	Recirculation Actuator
3	Junction Block - Right I/P X4
4	G200
5	Blower Motor
6	Air Temperature Sensor - Lower Right (CJ2)
7	Air Temperature Actuator - Left
8	Blower Motor Control Module
9	Air Temperature Sensor - Lower Left (CJ2)
10	Mode Actuator

Fig 4: View Of Top Of I/P Components (Except Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Instrument Panel Cluster (IPC)
4	Tow/Haul Switch
5	Driver Information Center (DIC) Switch
6	Ambient Light/Sunload Sensor (CJ2) or Ambient Light Sensor (CJ3)
7	HVAC Control Module
8	Accessory Power Outlet - I/P 2
9	Multifunction Switch - I/P
10	Accessory Power Outlet - I/P 1
11	Radio
12	Transfer Case Shift Control Switch (NQH)
13	Headlamp and Panel Dimmer Switch

Fig 5: View Of Front Of I/P Components (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Driver Information Center (DIC) Switch
3	Ambient Light/Sunload Sensor (CJ2)
4	Speaker - Center I/P(UQS)
5	Clock
6	Radio
7	Traction Control Switch
8	HVAC Control Module
9	Multifunction Switch - I/P
10	Accessory Power Outlet - I/P 1
11	Noise Compensation Microphone (UQS or Y91 with UQA)
12	Transfer Case Shift Control Switch (NQH)
13	Fuse Block - I/P
14	Headlamp and Panel Dimmer Switch

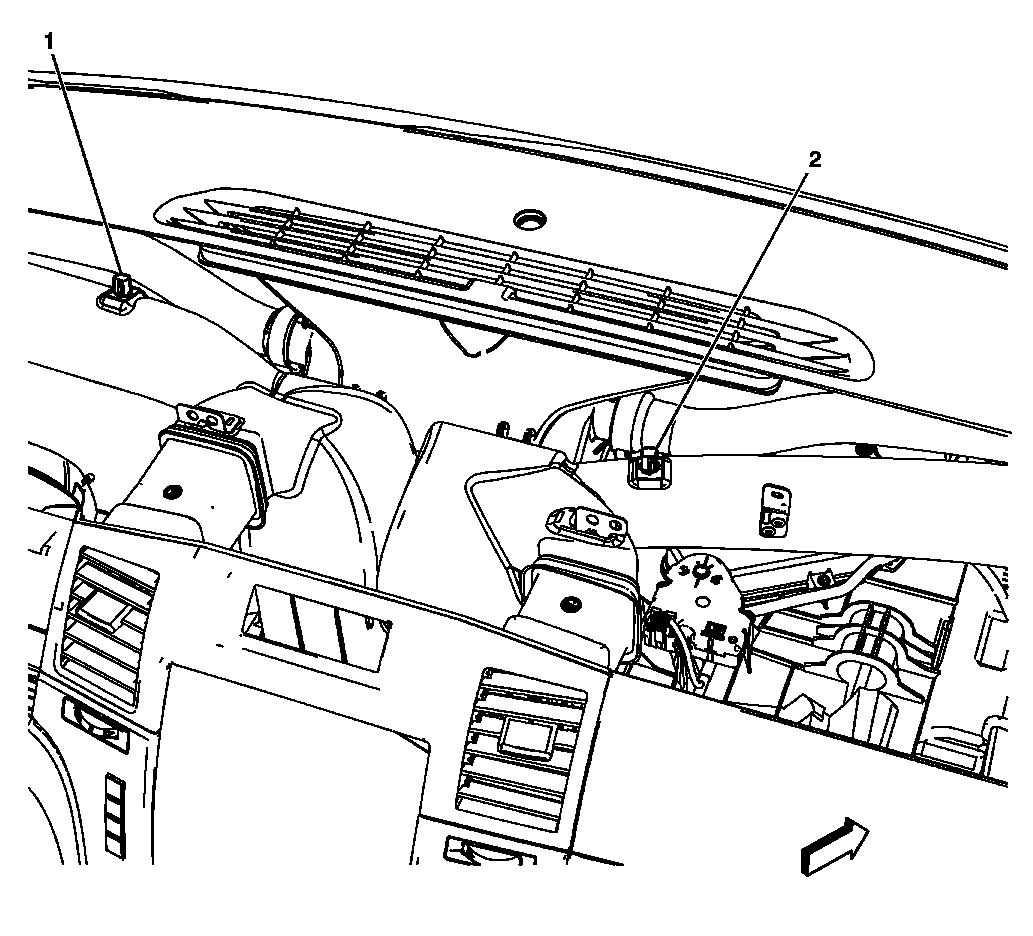

Fig 6: View Of Top Of I/P Components (CJ2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Sensor - Upper Left
2	Air Temperature Sensor - Upper Right

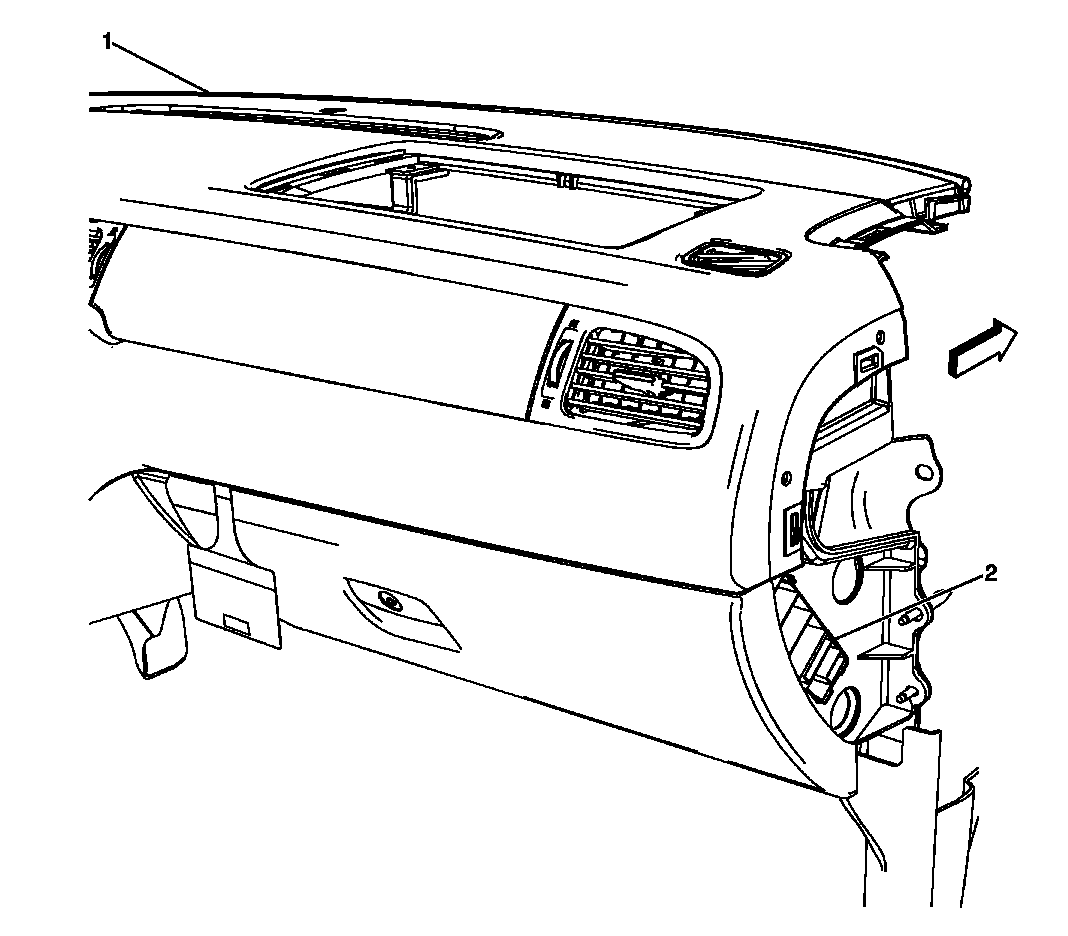

Fig 7: View Of Components At Right Side Of I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	Junction Block - Right I/P

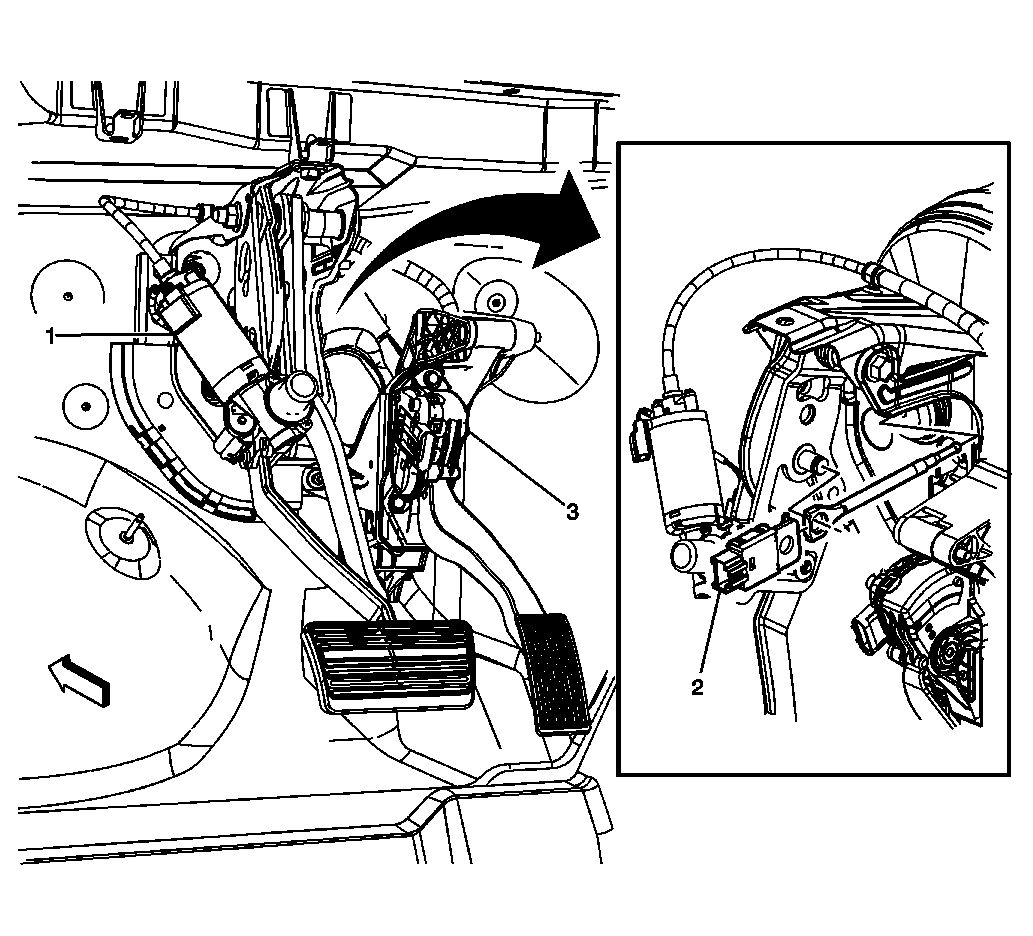

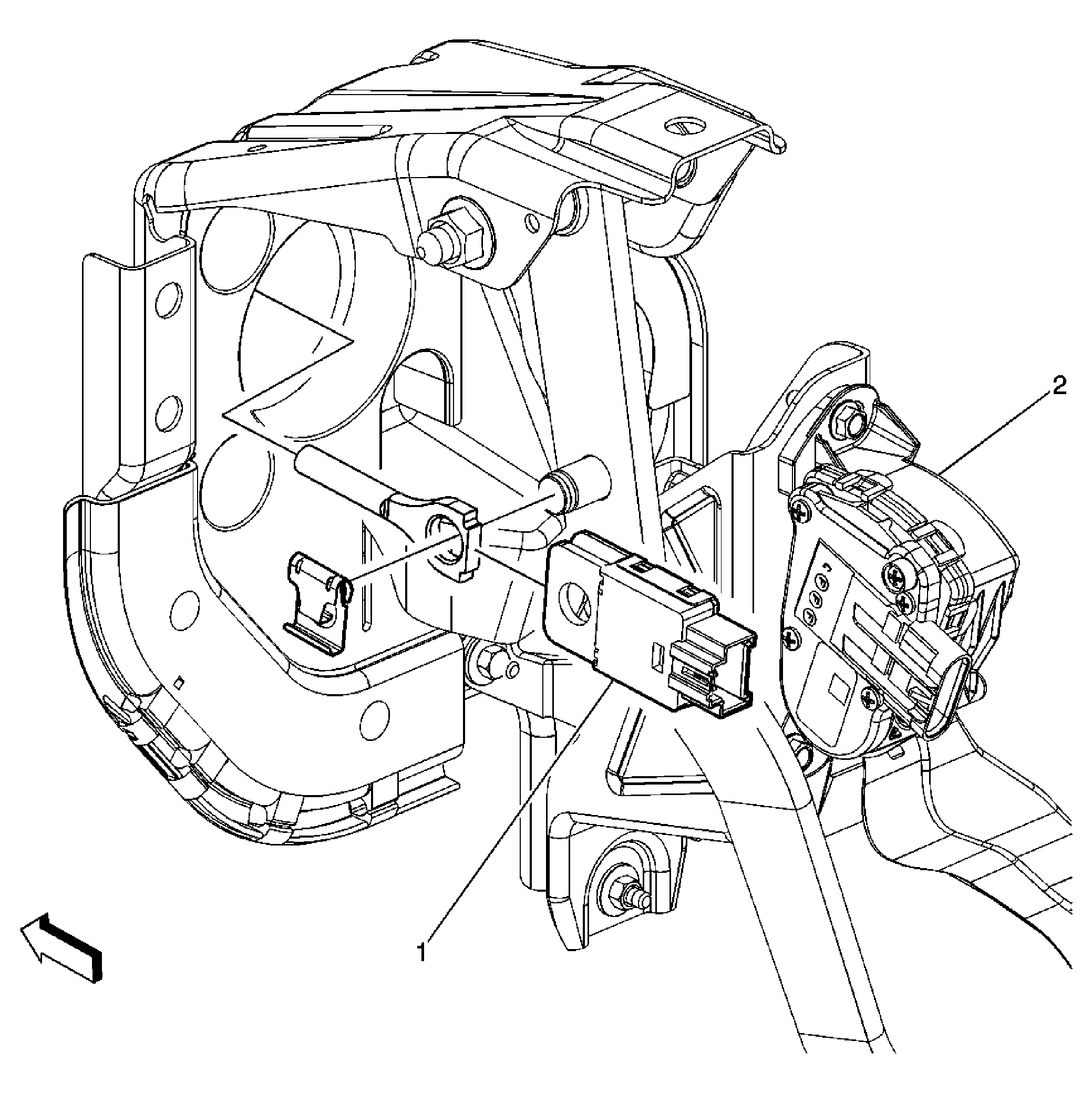

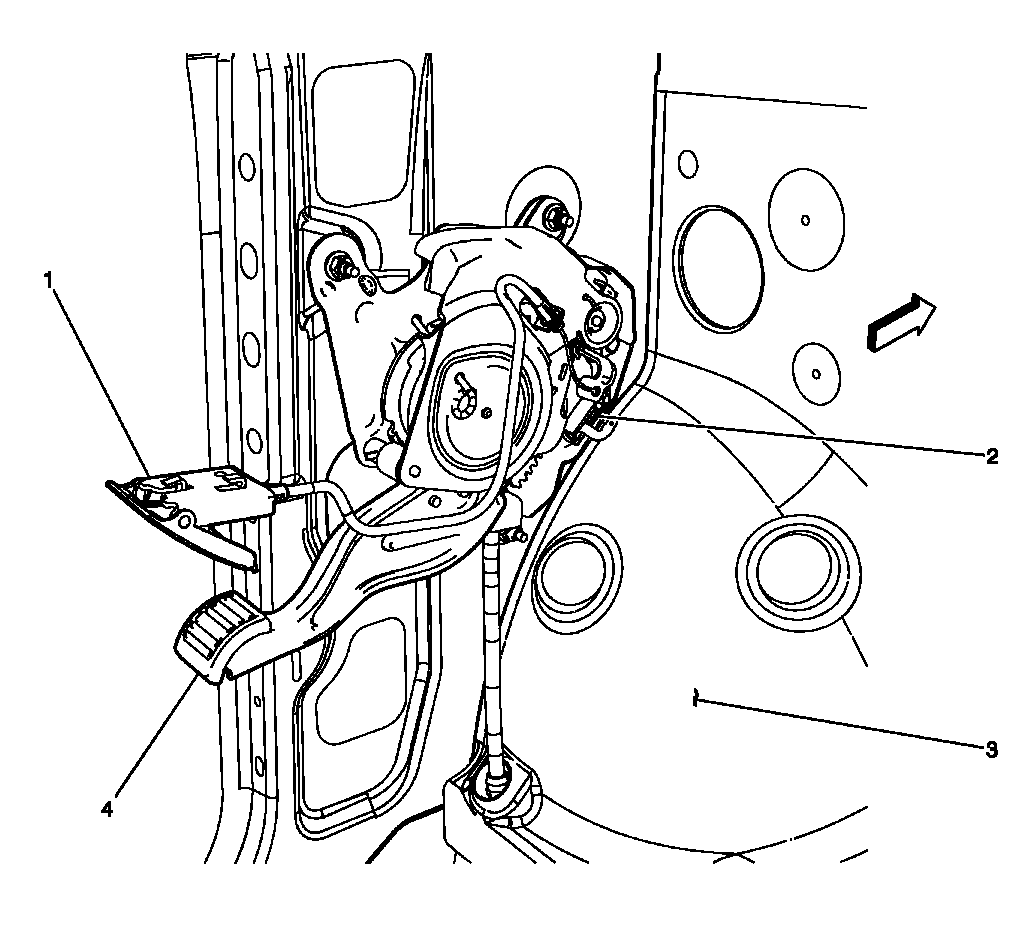

Fig 8: View Of Pedal Assemblies

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Electronic Adjustable Pedal (EAP) Assembly (JF4)
2	Stop Lamp Switch
3	Accelerator Pedal Position (APP) Sensor

Fig 9: View Of Components Below Left Side Of I/P (Without JF4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch
2	Accelerator Pedal Position (APP) Sensor

Fig 10: View Of Data Communication Component Below I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Trim
2	I/P Cluster Trim
3	Floor Panel
4	Junction Block - Left I/P
5	Body Control Module (BCM)
6	Transfer Case Shift Control Module (NQH)
7	Fuse Block - I/P

Fig 11: View Of Components Below Left Side Of I/P

Courtesy of GENERAL MOTORS CORP.

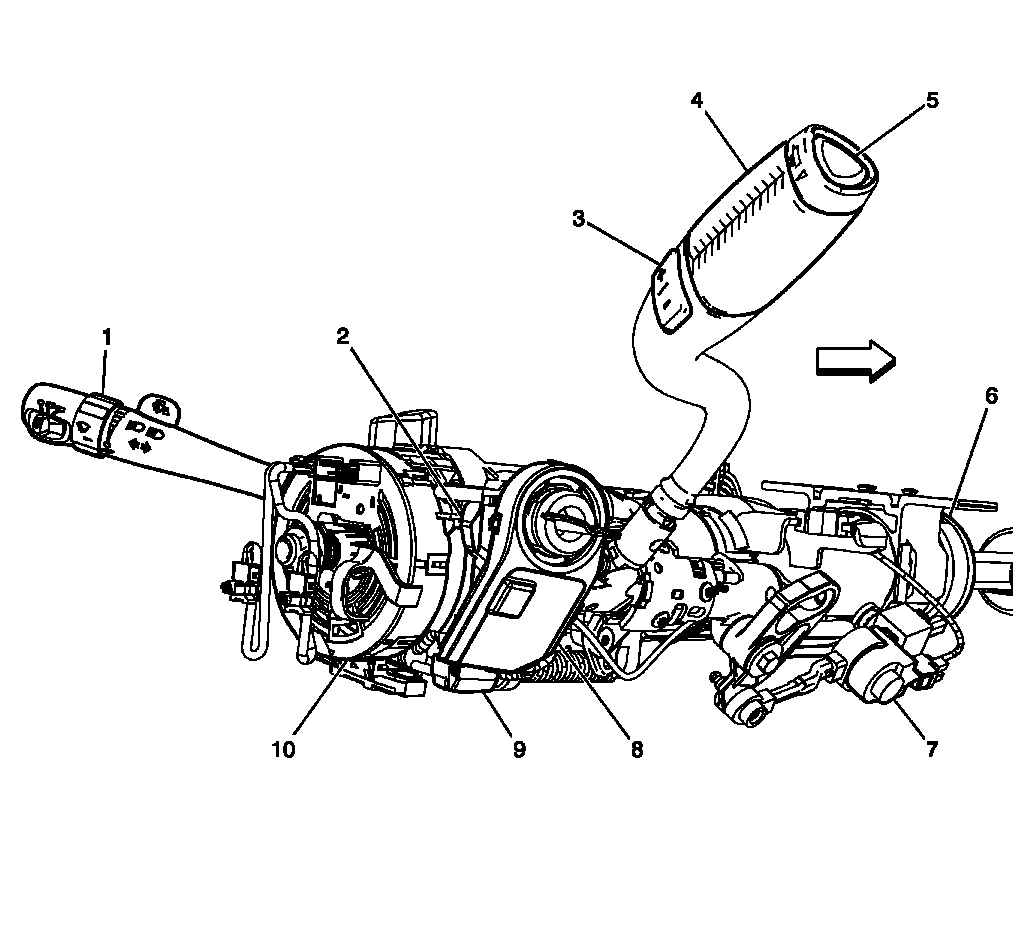

Fig 12: Identifying Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Ignition Lock Cylinder
3	Automatic Transmission Manual Shift Switch
4	Automatic Transmission Shift Lever
5	Tow/Haul Switch
6	Steering Angle Sensor
7	Automatic Transmission Shift Lock Control Solenoid
8	Theft Deterrent Module (TDM)
9	Ignition Switch
10	Inflatable Restraint Steering Wheel Module Coil

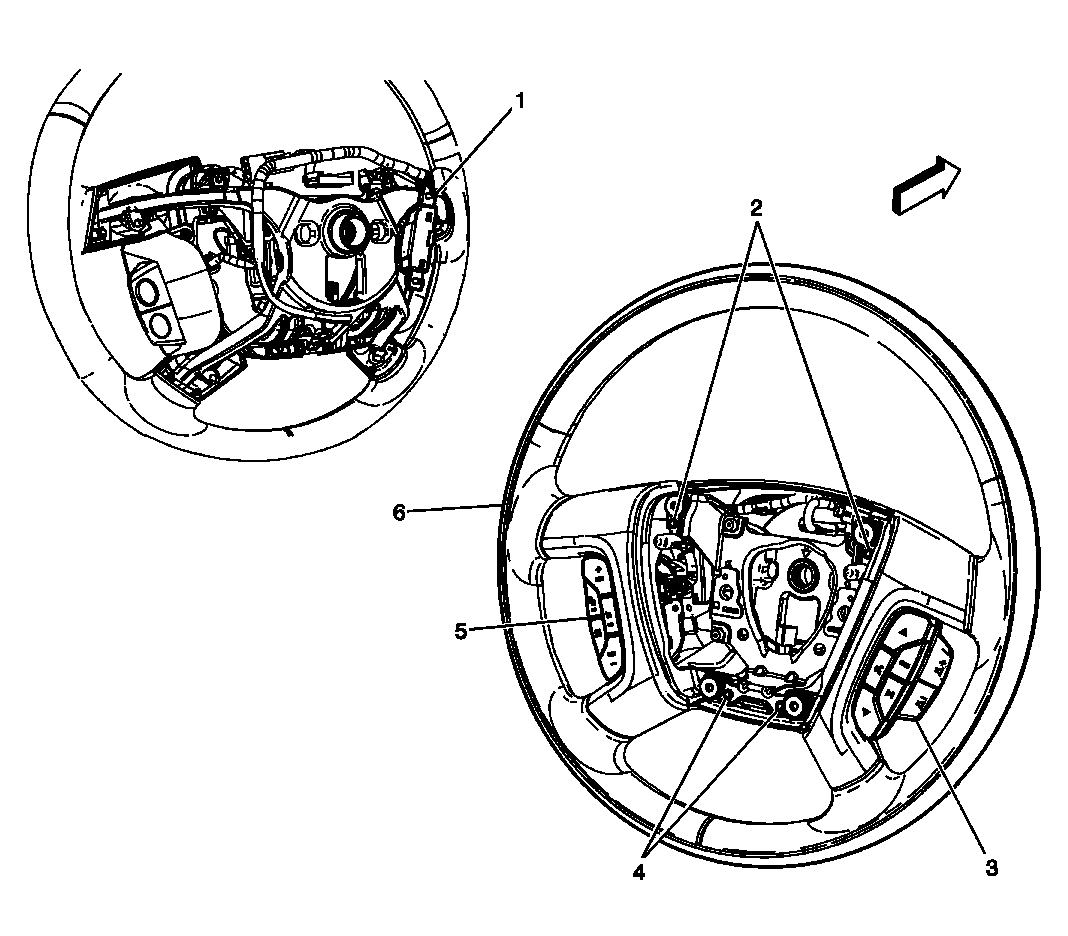

Fig 13: Identifying Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heated Steering Wheel Control Module (KA9)
2	Horn Switch
3	Steering Wheel Control Switch - Right (UK3)
4	Horn Switch
5	Steering Wheel Control Switch - Left (K34 or KA9)

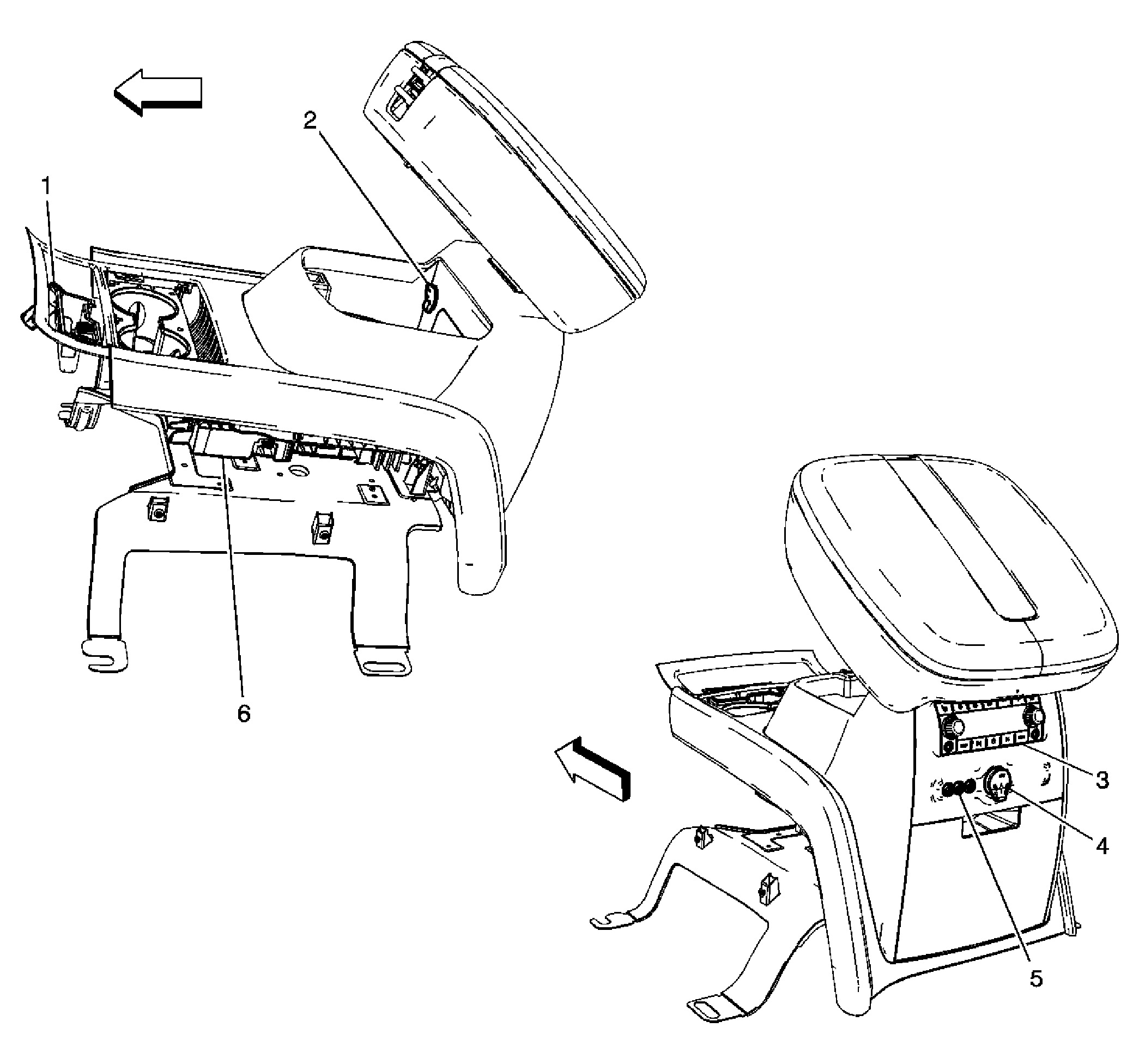

Fig 14: Identifying Console Components (D07) - 1 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accessory Power Outlet - I/P 1 (Z75)
2	Accessory Power Outlet - Center Console Compartment
3	Rear Seat Audio (RSA) Control (UK6)
4	Accessory Power Outlet - Console
5	Audio/Video Adapter (U42)
6	Audio Amplifier (UQA or UQS)

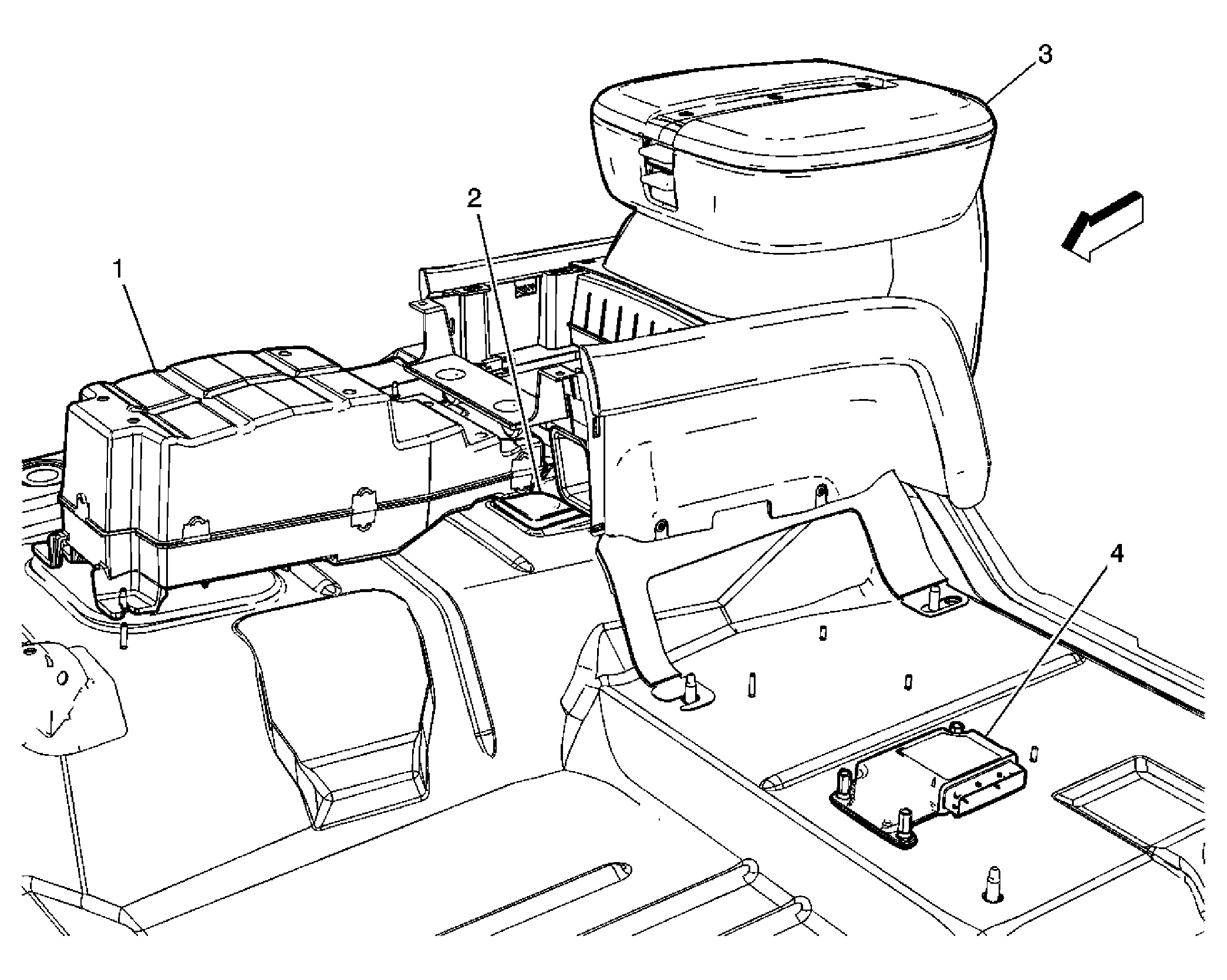

Fig 15: Identifying Console Components (D07) - 2 Of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Subwoofer (UQS)
2	Inflatable Restraint Vehicle Rollover Sensor (ASF)
3	Console
4	Inflatable Restraint Sensing and Diagnostic Module (SDM)
