Cadillac
>>
2008
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Steering
>>
Power Steering System
>>
Schematic & Routing Diagrams
>>
Power Steering Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Steering Schematics

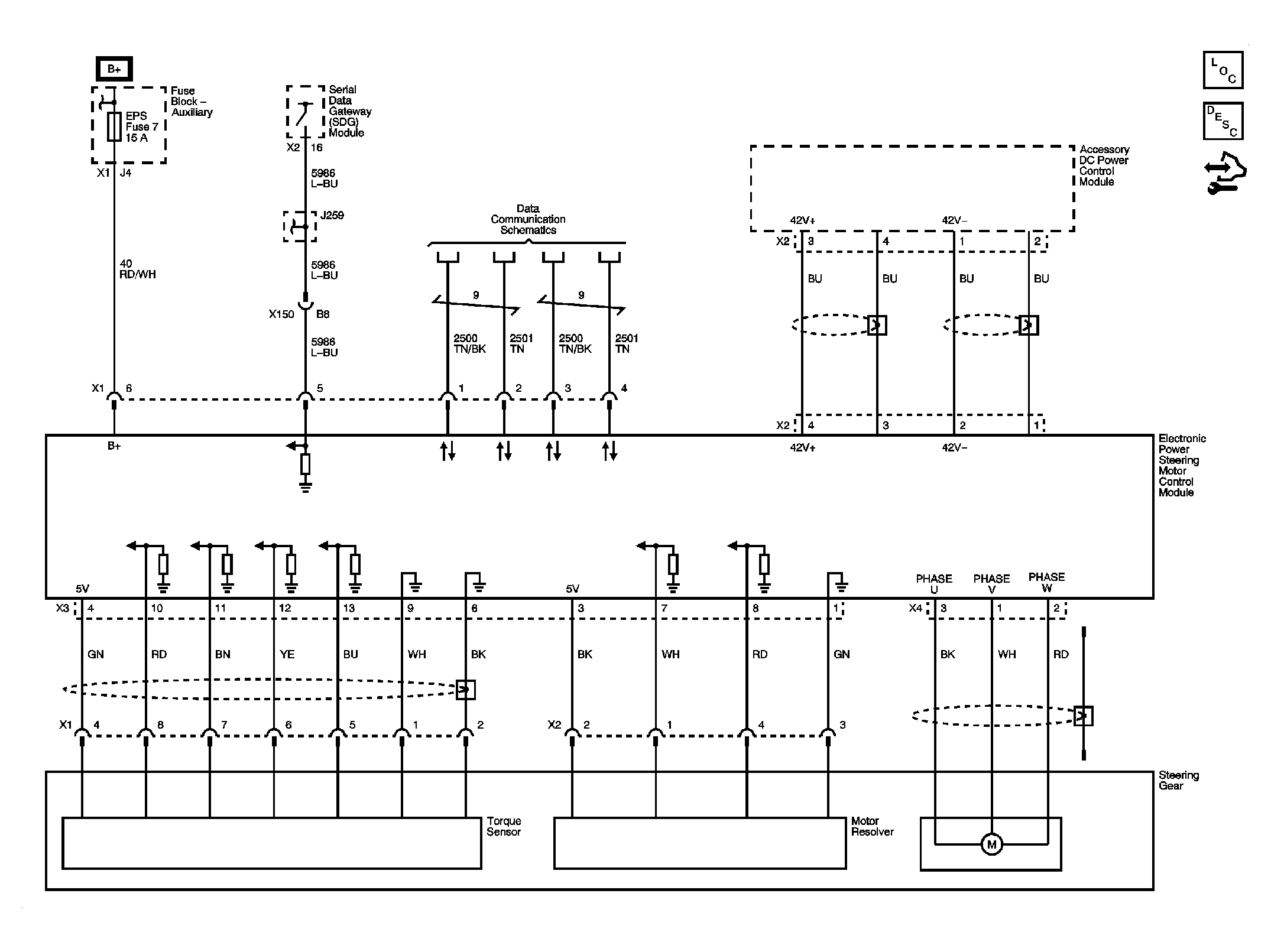

Fig 1: Hybrid Power Steering System Schematic
Courtesy of GENERAL MOTORS CORP.
