Connector Views



Component Connector End Views

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LC3 or LH2)

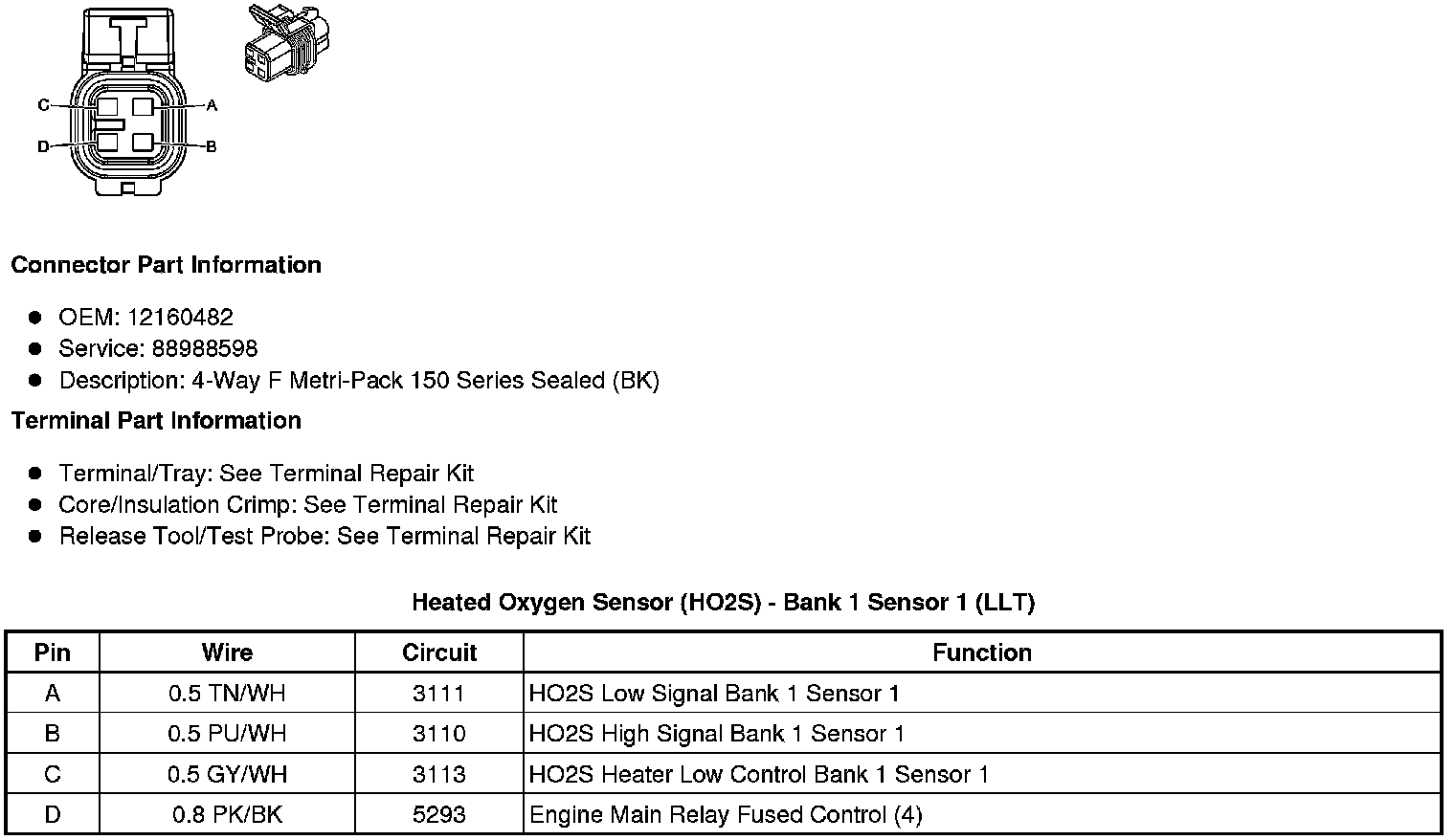

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)

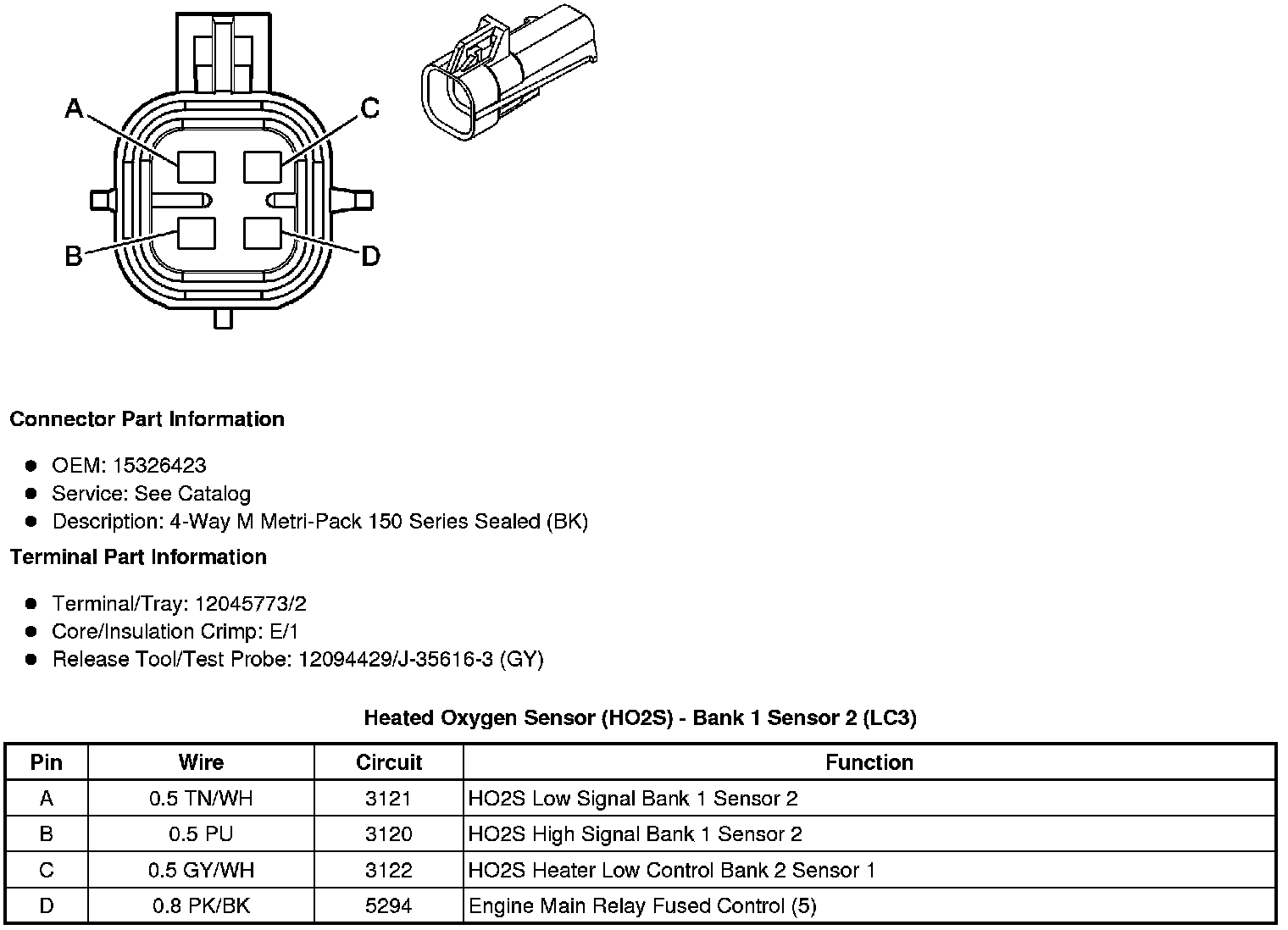

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)






Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LH2 or LLT)

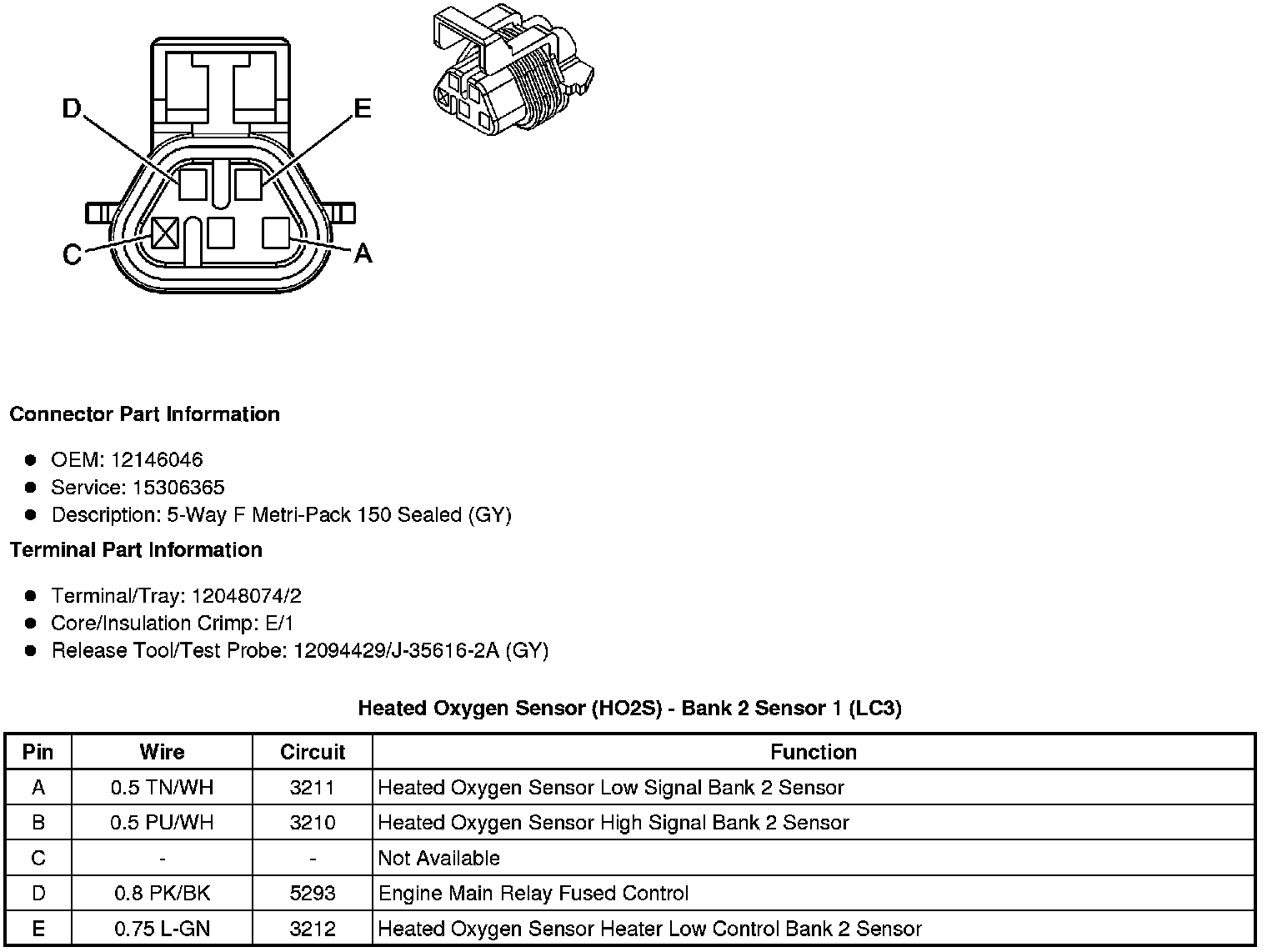

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LC3 - 8 Cyl, 4.4L, MFI, V8, SC, ALUM, DOHC)

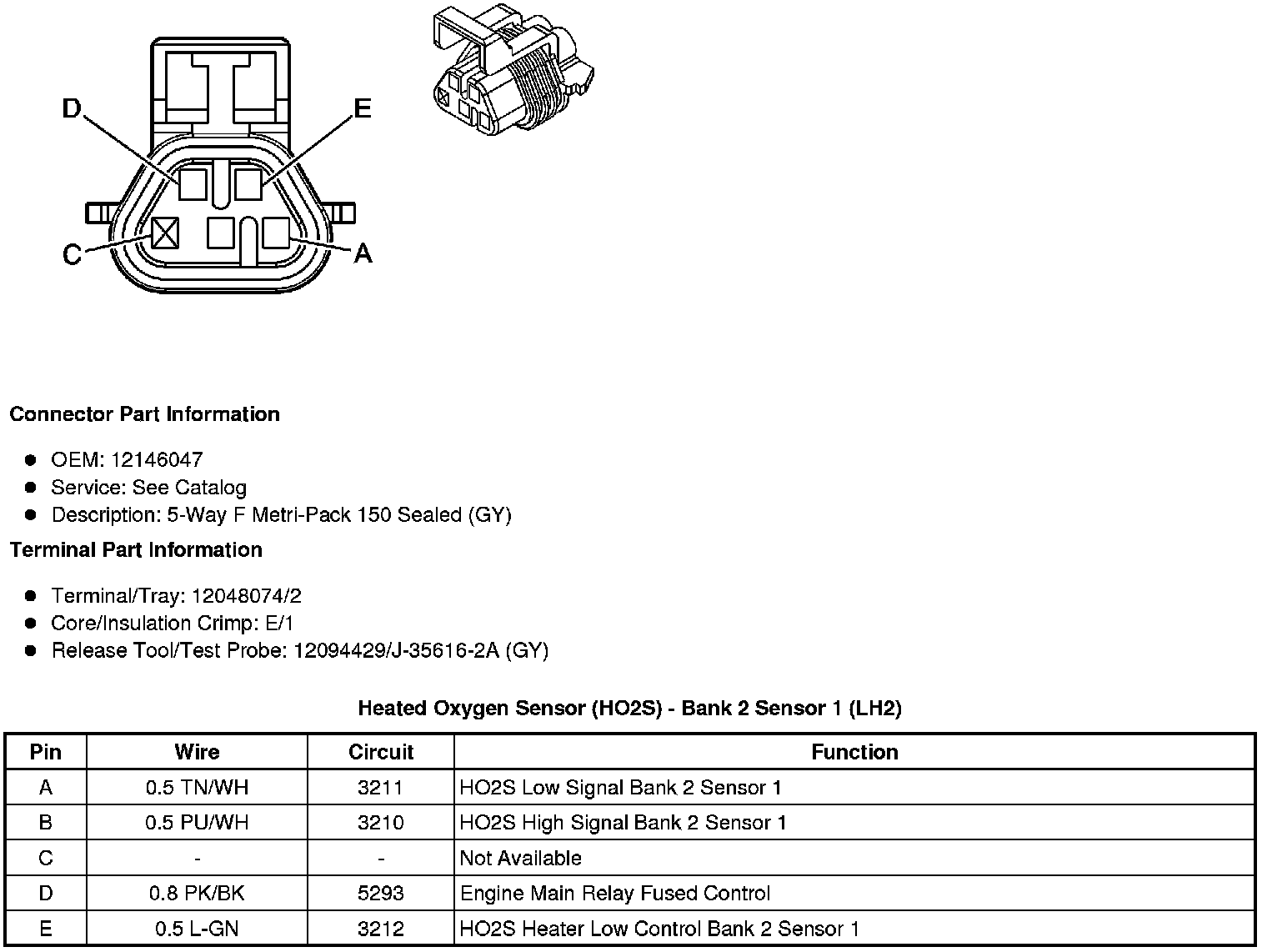

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LH2 - Gas, 8 Cyl, 4.6L, SFI, V8, DOHC, HO, Alum)

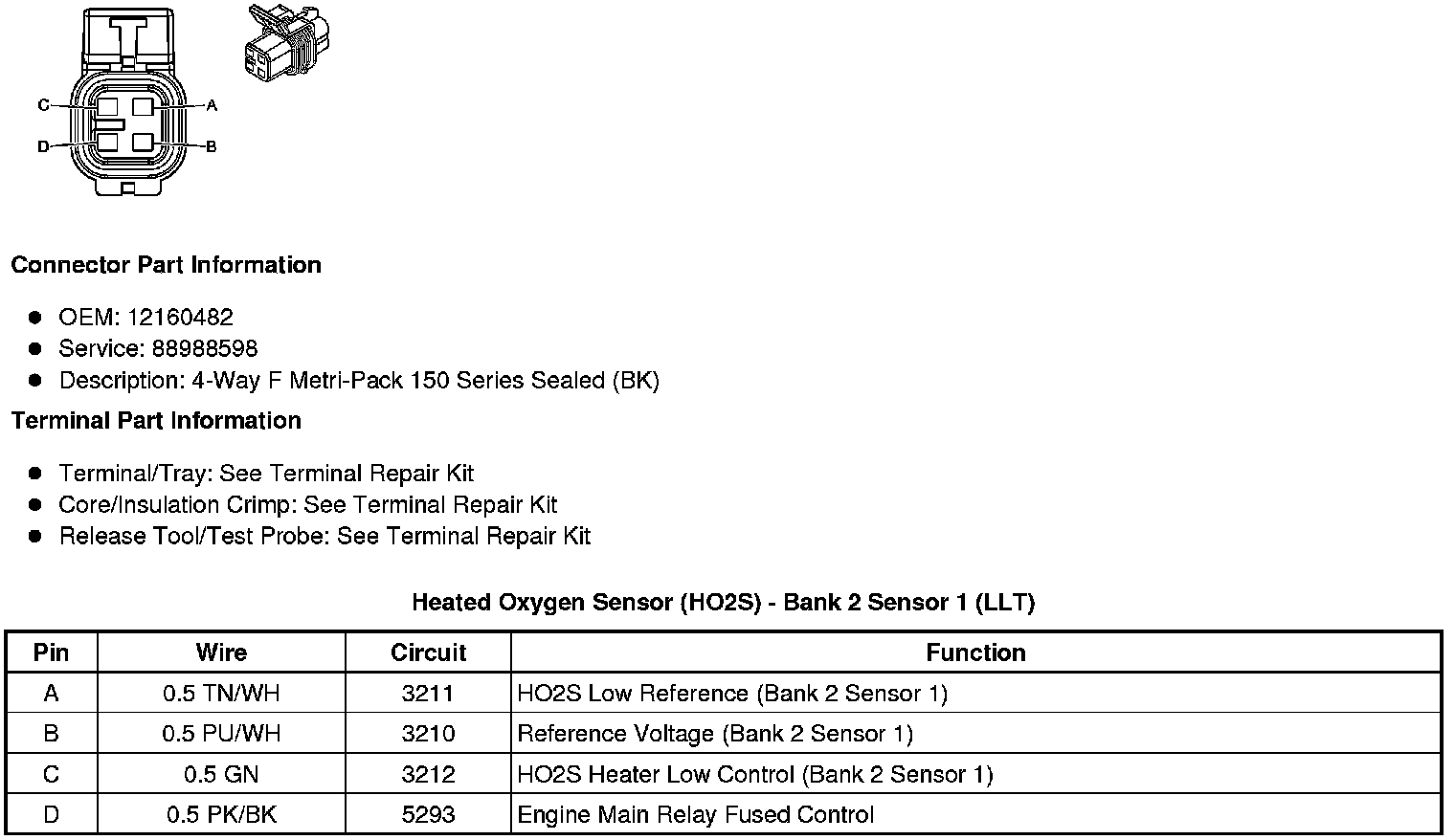

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)

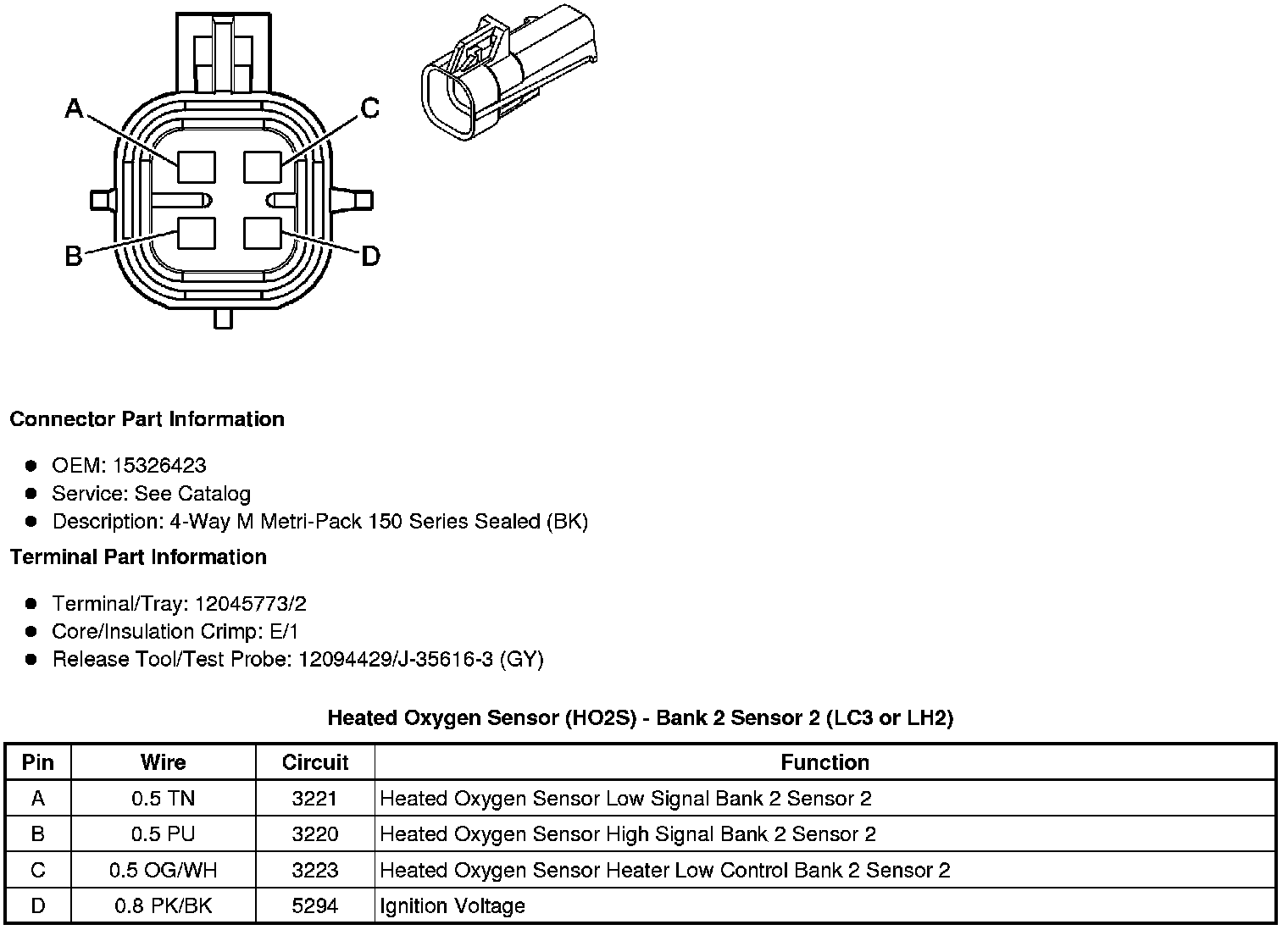

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LC3 or LH2)

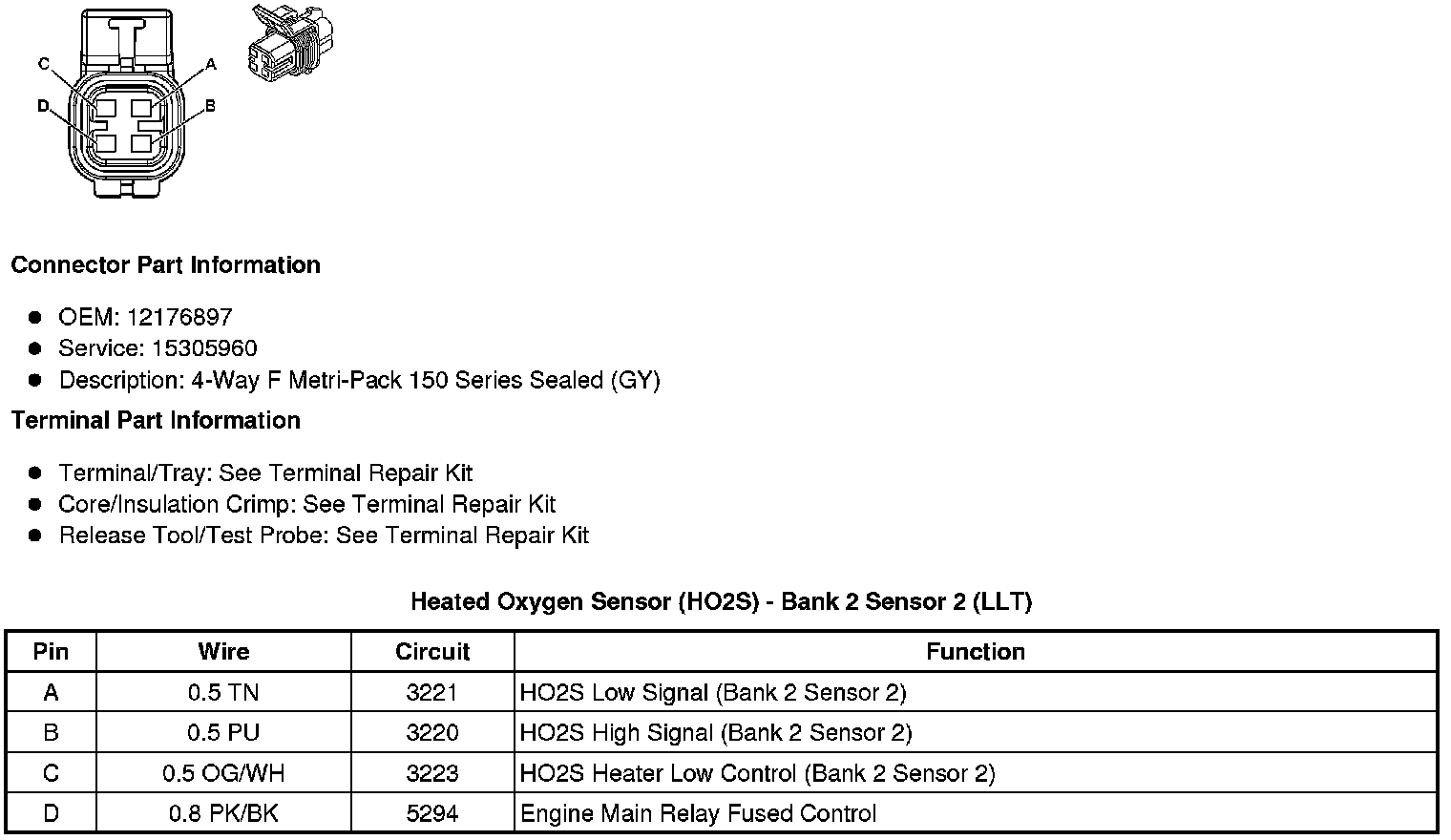

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LLT - Gas, 6 Cyl, 3.6L, Sidi, V6, Alum)
