Communications Control Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

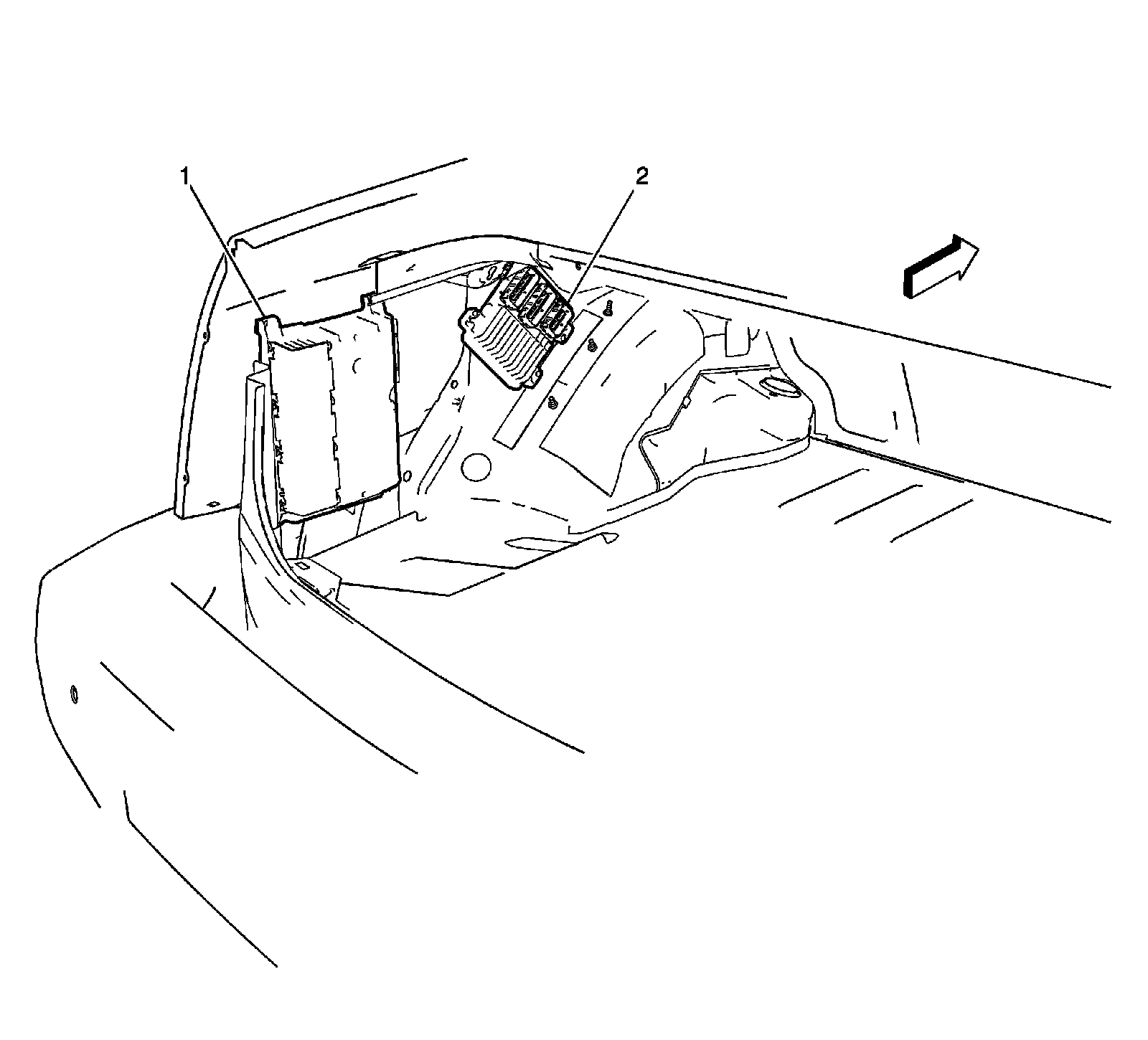

Left Rear Cargo Compartment




1 - Audio Amplifier
2 - Vehicle Stability Control Module (JL7)

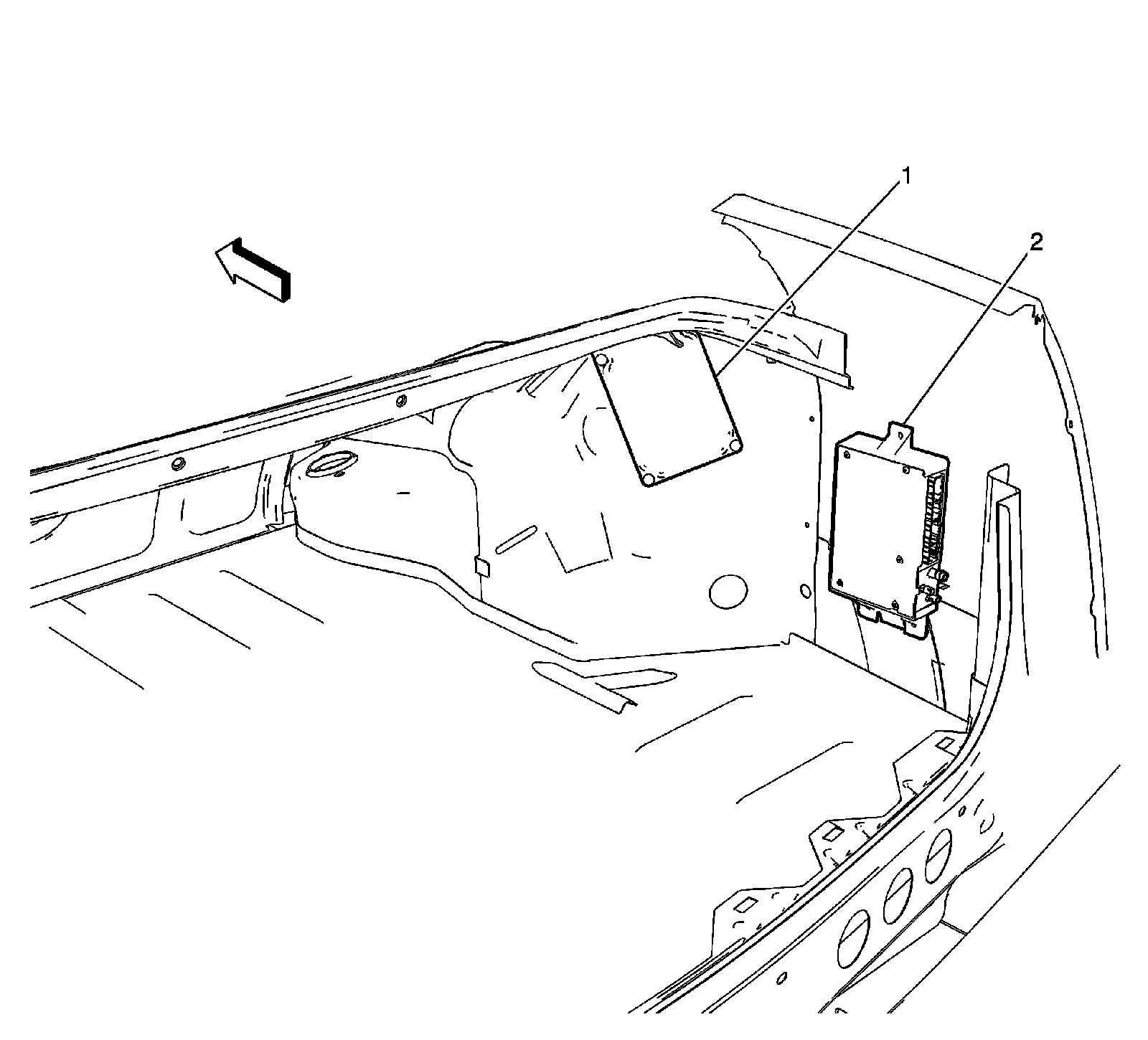

Right Rear Cargo Compartment




1 - Electronic Suspension Control (ESC) Module (F55)
2 - Vehicle Communication Interface Module (VCIM) (UE1)

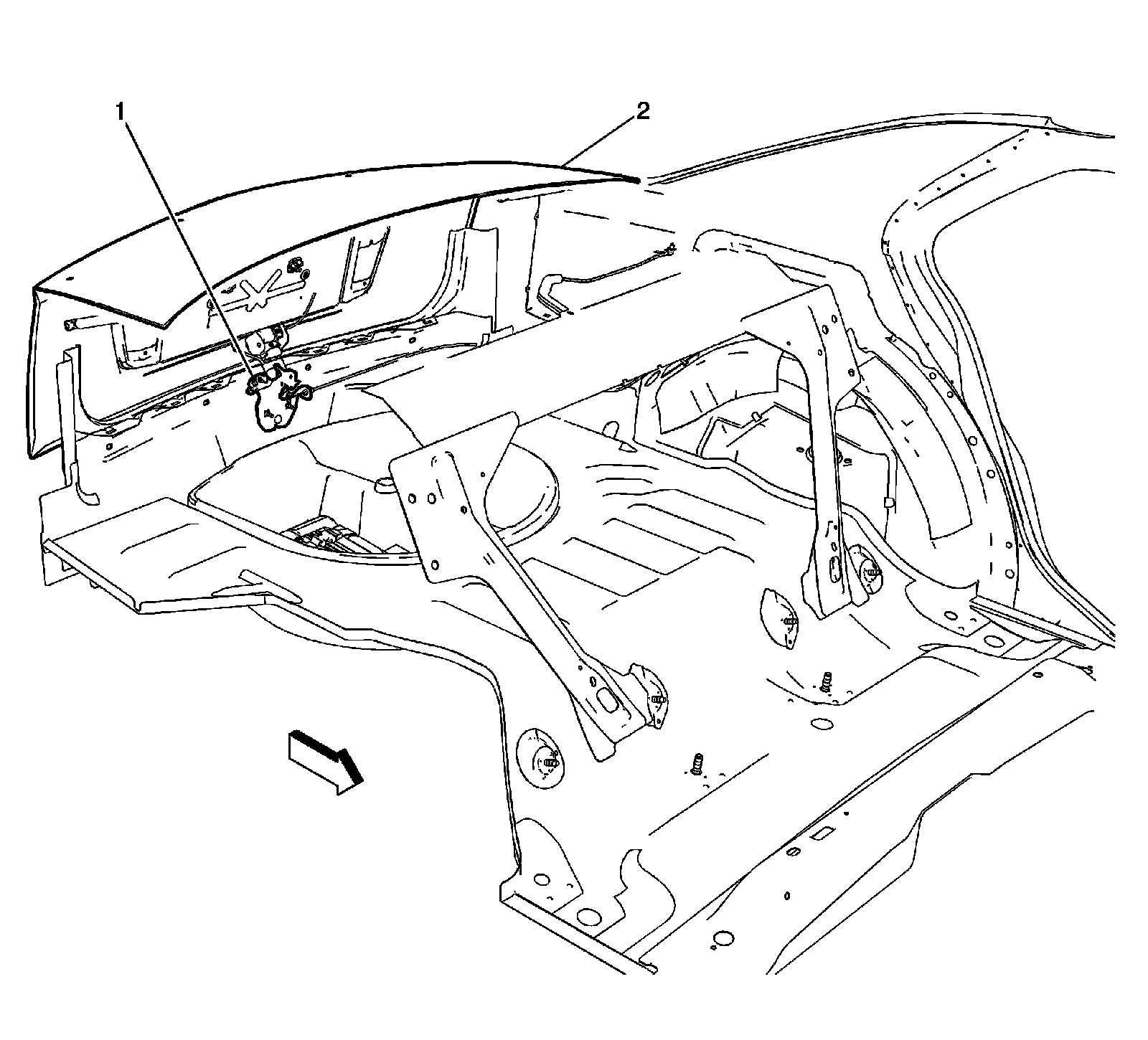

Rear Compartment Lid




1 - Rear Compartment Lid Latch
2 - Rear Decklid
