Antilock Brake System Schematics

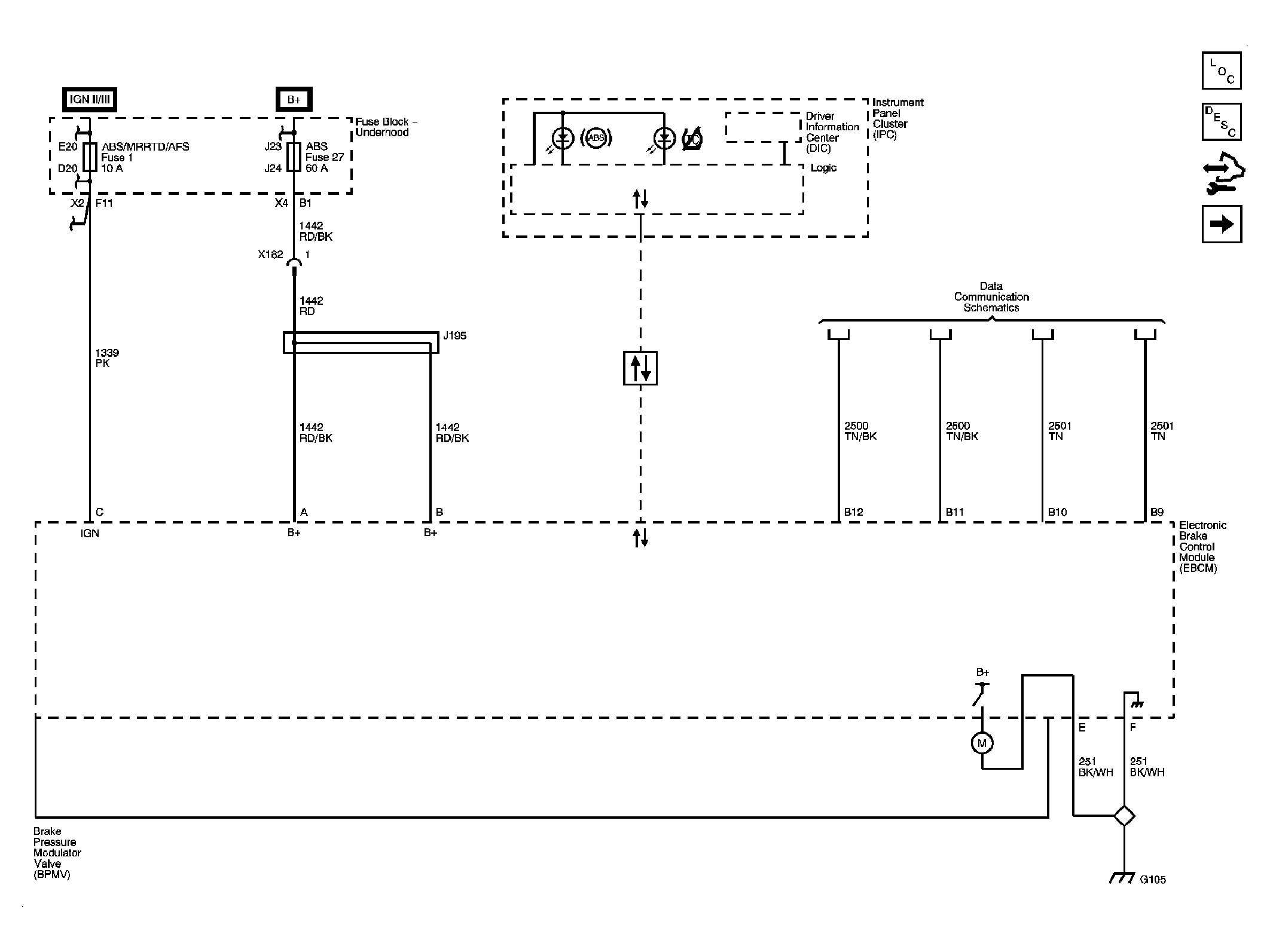

Fig 1: Power, Ground, Indicators, and Brake Pressure Modulator Valve

Courtesy of GENERAL MOTORS CORP.

Fig 2: Brake Pedal Signal, and Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

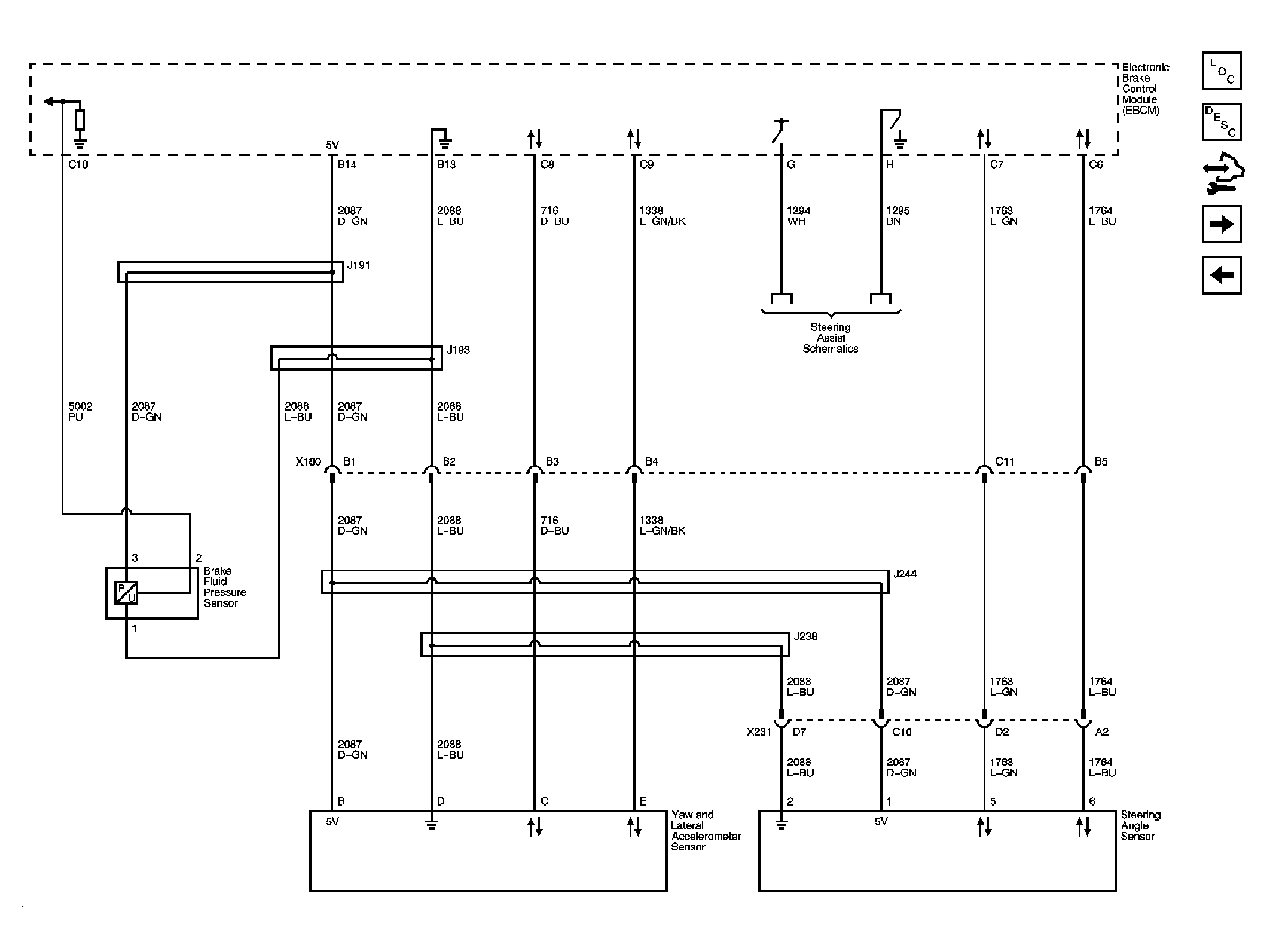

Fig 3: Stability Control Sensors

Courtesy of GENERAL MOTORS CORP.

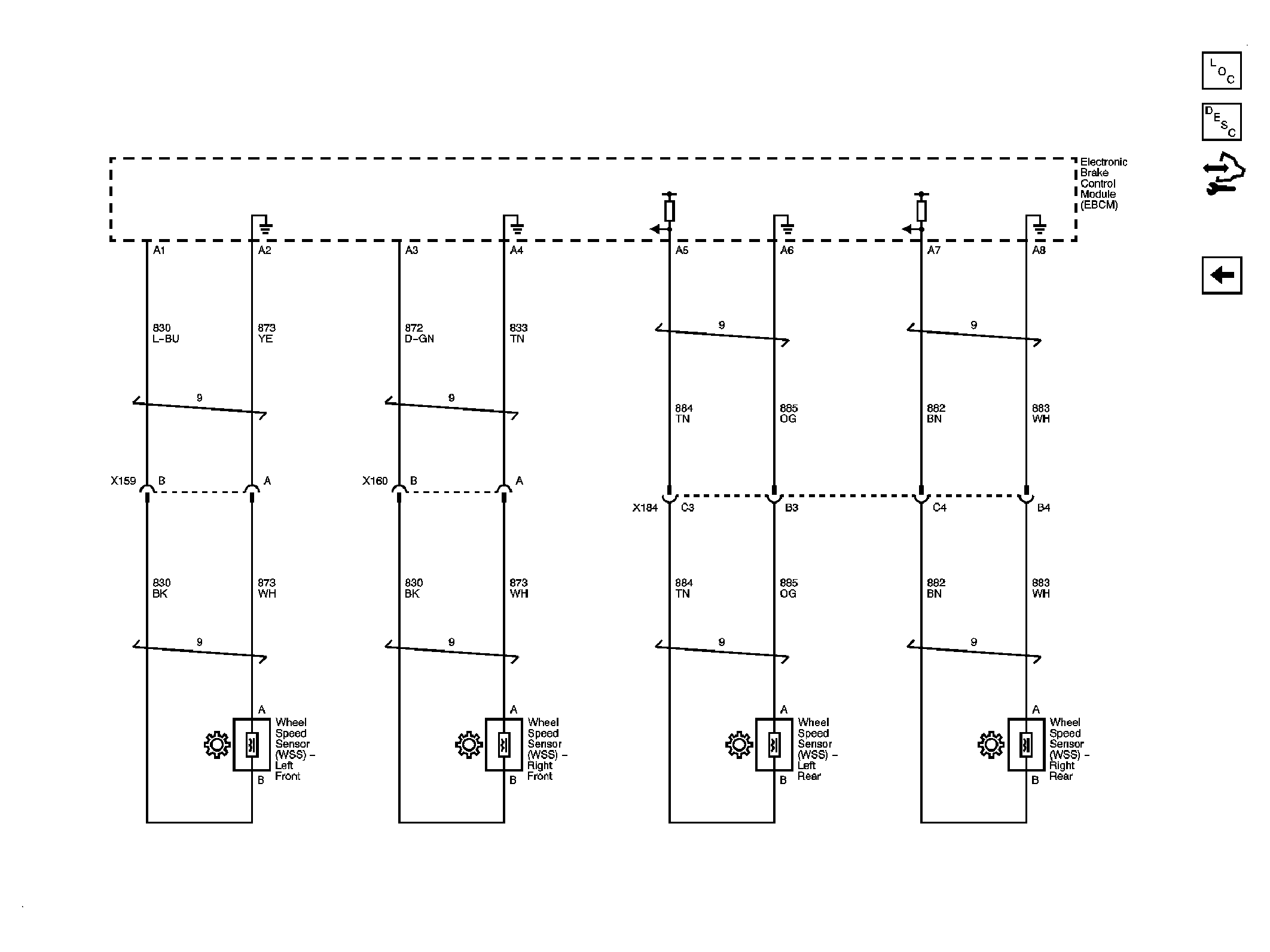

Fig 4: Wheel Speed Sensors

Courtesy of GENERAL MOTORS CORP.
