Passenger Compartment/Roof Component Views

Fig 1: View Of Modules Locations

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Folding Top Module
2	Digital Radio Receiver
2	Adaptive Crusie Control Module
4	Memory Seat Module
5	Driver Door Module (DDM)
6	Radio
7	Instrument Panel Cluster (IPC)
8	Head-Up Display (HUD)
9	Remote Control Door Lock Receiver (RCDLR)
10	Electronic Brake Control Module (EBCM)
11	Forward Looking Sensor (FLS)
12	Transmission Control Module (TCM)
13	Engine Control Module (ECM)
14	Body Control Module (BCM)
15	Audio Amplifier
16	Steering Column Lock Control Module (Export)
17	Inflatable Restraint Sensing and Diagnostic Module (SDM)
18	Front Passenger Door Module (FPDM)
19	HVAC Control Module
20	Rear Object Sensor Control Module
21	Vehicle Communication Interface Module (VCIM)
22	Antenna Ground Plane
23	Antenna Module - Right
24	Antenna Module - Left

Fig 2: Left Sunshade Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Garage Door Opener

Fig 3: Upper Center Of Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Fig 4: Upper Center Of Windshield Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Moisture Sensor (CE1)

Fig 5: Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Pretentioner - Left
2	Speaker - Driver Side Left
3	Speaker - Driver Side Right
4	Door Latch - Driver
5	Inflatable Restraint Side Impact Module - Left
6	Seat Back Heated/Cooled Ventilation Module - Driver
7	Seat Cushion Heated/Cooled Ventilation Module - Driver
8	Upper Lumbar Switch - Driver
9	Lower Lumbar Switch - Driver
10	Seat Adjuster Switch - Driver
11	Inflatable Restraint Seat Position Switch - Left
12	Seat Adjuster Switch - Driver
13	Memory Seat Switch

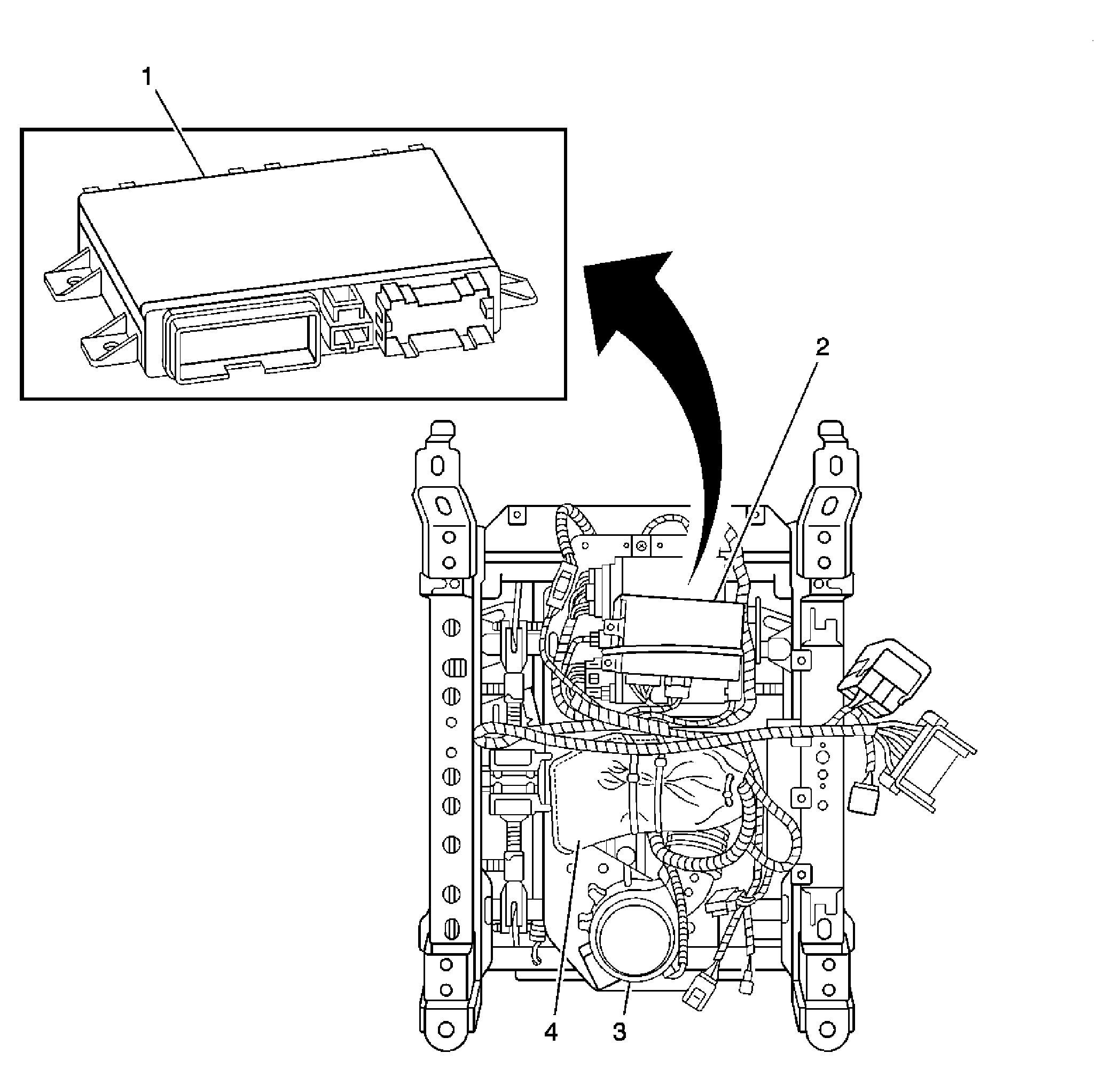

Fig 6: Bottom Of Driver Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Memory Seat Module - Driver
2	Climate Control Seat Module - Driver
3	Heated/Cooled Seat Blower Motor - Driver
4	Lumbar Pump/Control Module Assembly - Driver

Fig 7: Passenger Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - Passenger Seat Right
2	Speaker - Passenger Seat Left
3	Seat Belt Pretentioner - Right
4	Seat Adjuster Switch - Front Passenger
5	Inflatable Restraint Seat Position Switch - Right
6	Seat Adjuster Switch - Front Passenger
7	Lower Lumbar Switch - Passenger
8	Upper Lumbar Switch - Passenger
9	Seat Cushion Heated/Cooled Ventilation Module - Front Passenger
10	Seat Back Heated/Cooled Ventilation Module - Passenger
11	Inflatable Restraint Side Impact Module - Right
12	Door Latch - Front Passenger

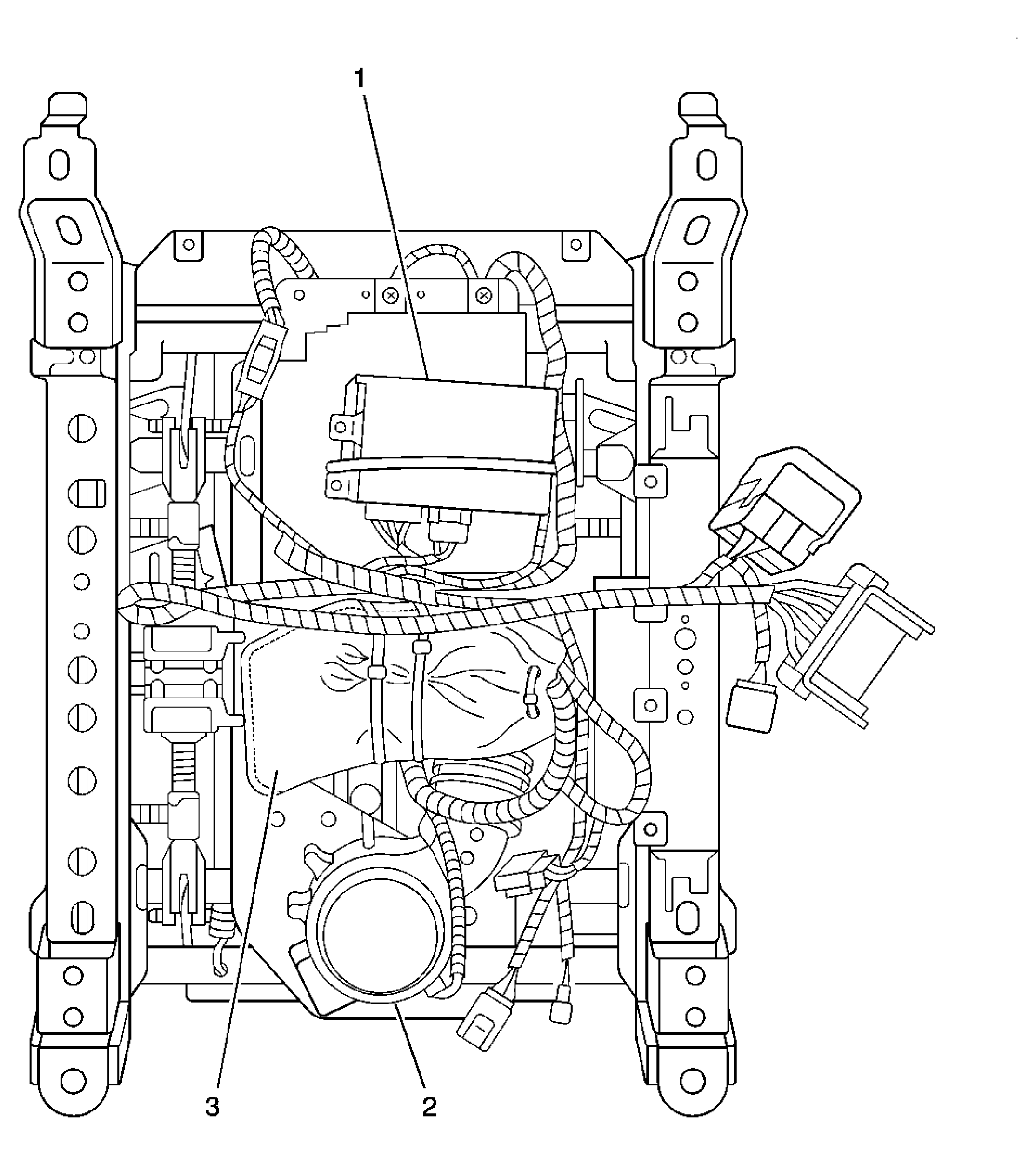

Fig 8: Bottom Of Passenger Seat Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Climate Control Seat Module - Passenger
2	Heated/Cooled Seat Blower Motor - Passenger
3	Lumbar Pump/Control Module Assembly - Passengerr

Fig 9: Driver Seat, Seat Belt Switch & Seat Buckle (Driver)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Drivers Seat
2	Seat Belt Switch-Driver Connector
3	Seat Belt Buckle-Driver

Fig 10: Center Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver
2	Rear Parking Assist (RPA) Display
3	Adaptive Cruise Control Module

Fig 11: View Of Rear Object Sensor Control Module & VCIM

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Object Sensor Control Module
2	Vehicle Communication Interface Module (VCIM)
3	Rear Parking Assist (RPA) Diagnostic Connector

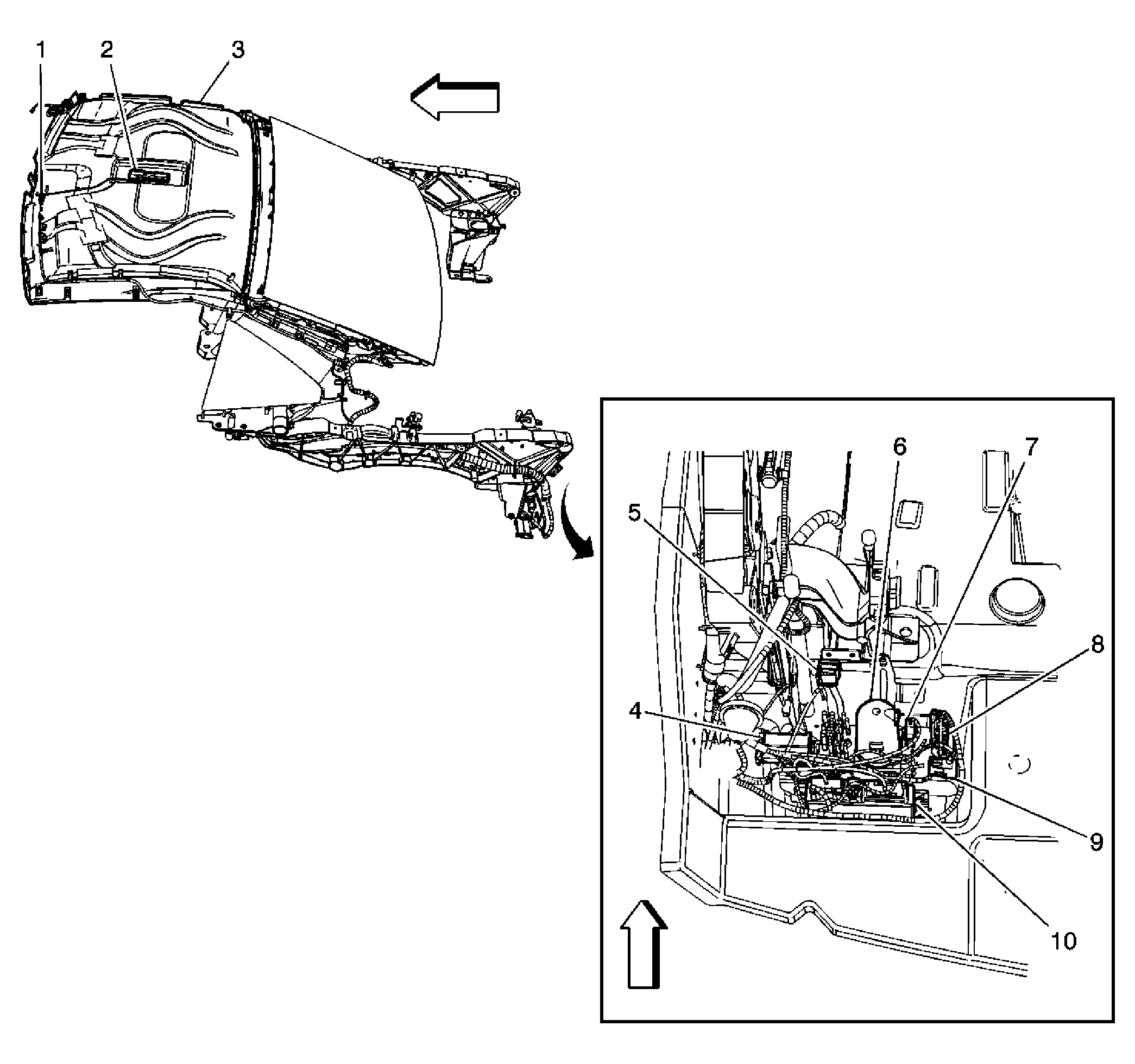

Fig 12: Folding Top Harness Routing

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X333
2	Intrusion Sensor
3	Folding Top
4	X431
5	X435
6	Folding Top Pump and Valve Assembly
7	X911
8	X455
9	X433
10	Folding Top Module
