Fuse Block - Instrument Panel



Electrical Center Identification Views

Fuse Block - Instrument Panel, Relay Block - Instrument Panel, and Body Control Module (BCM) Label

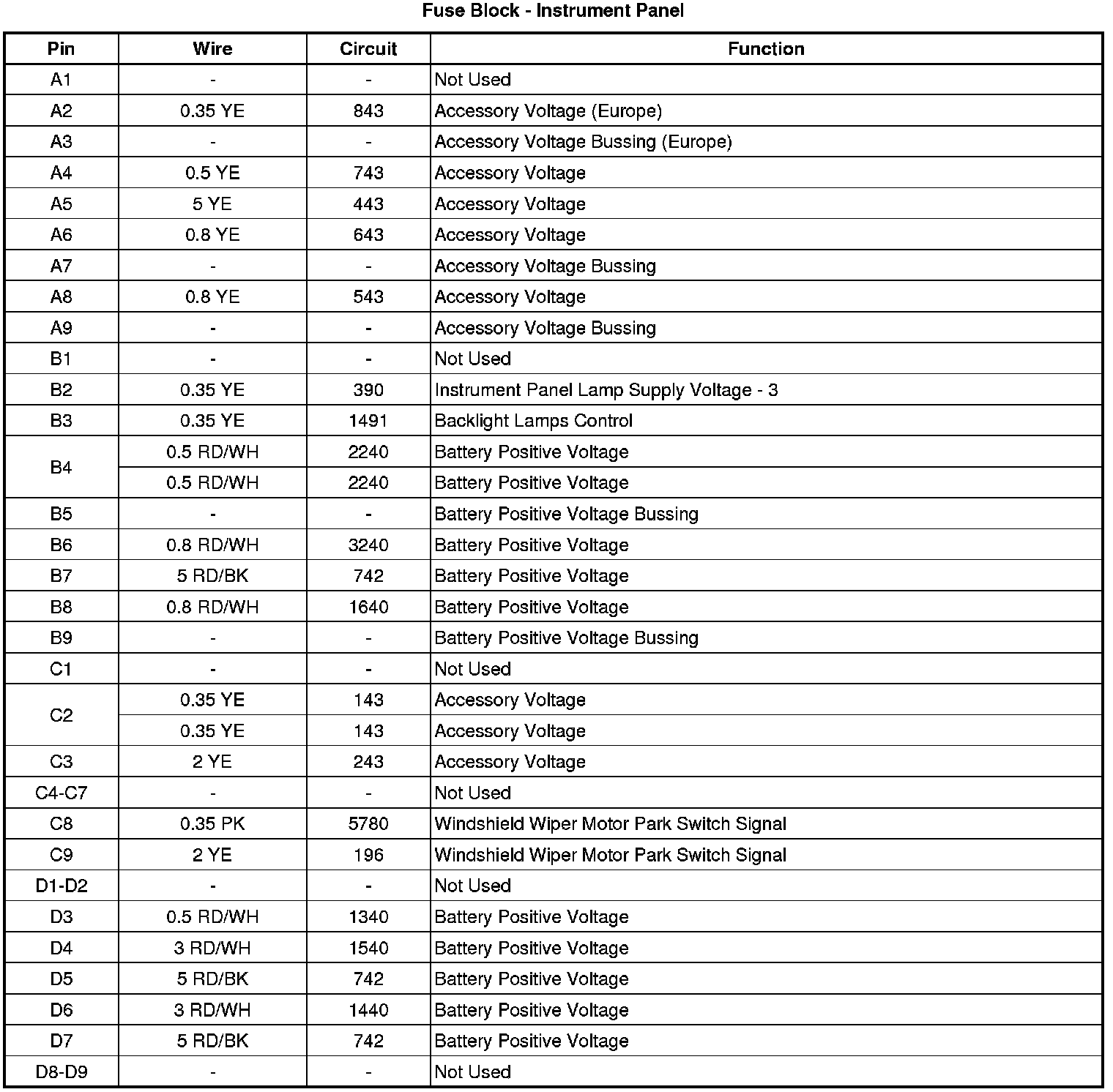

Fuse Block - Instrument Panel
