Convertible Top Control Module: Diagrams



Component Connector End Views

Folding Top Module X1

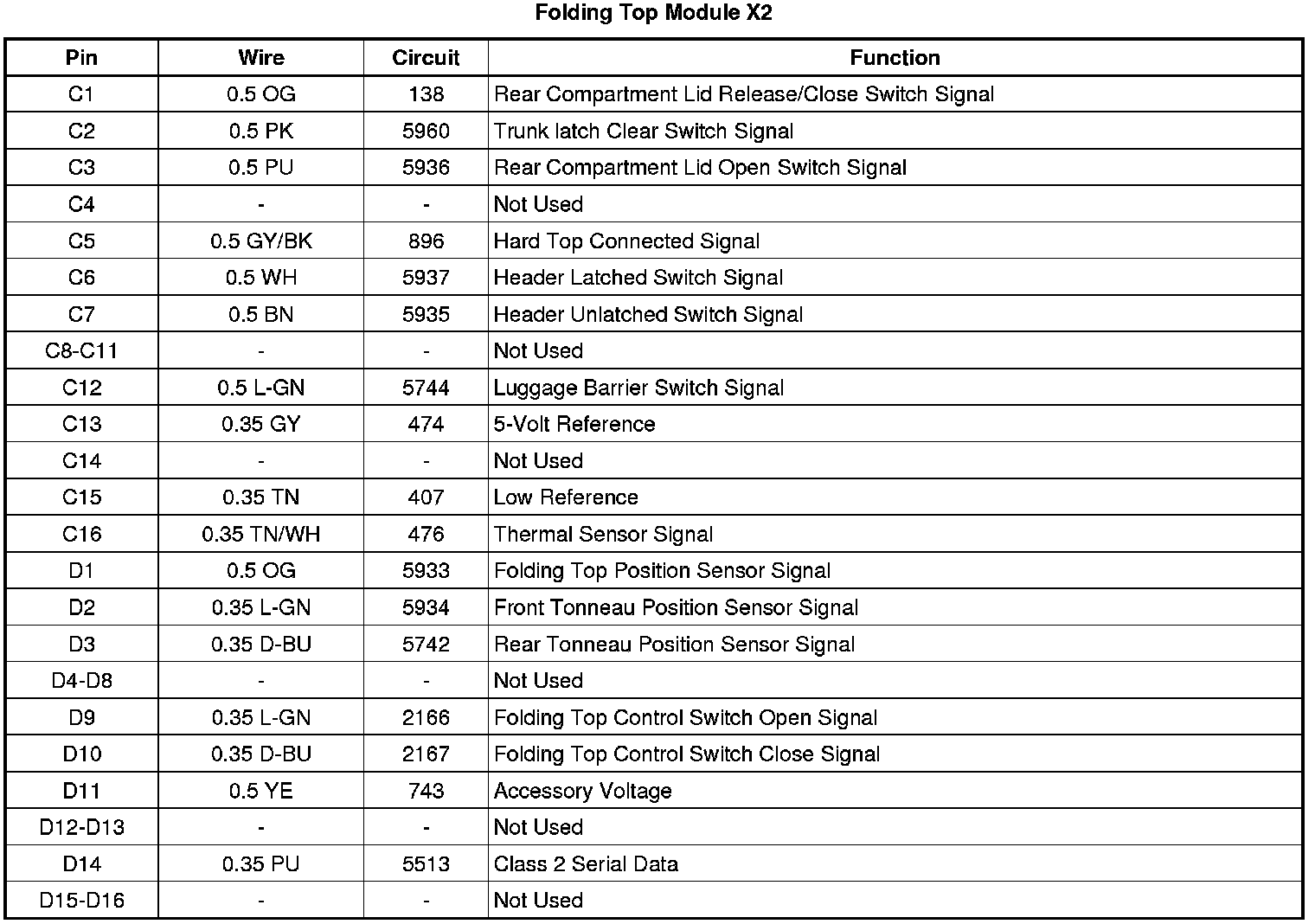

Folding Top Module X2









Folding Top Module X3
