Oil Pan, Engine
Oil Pan

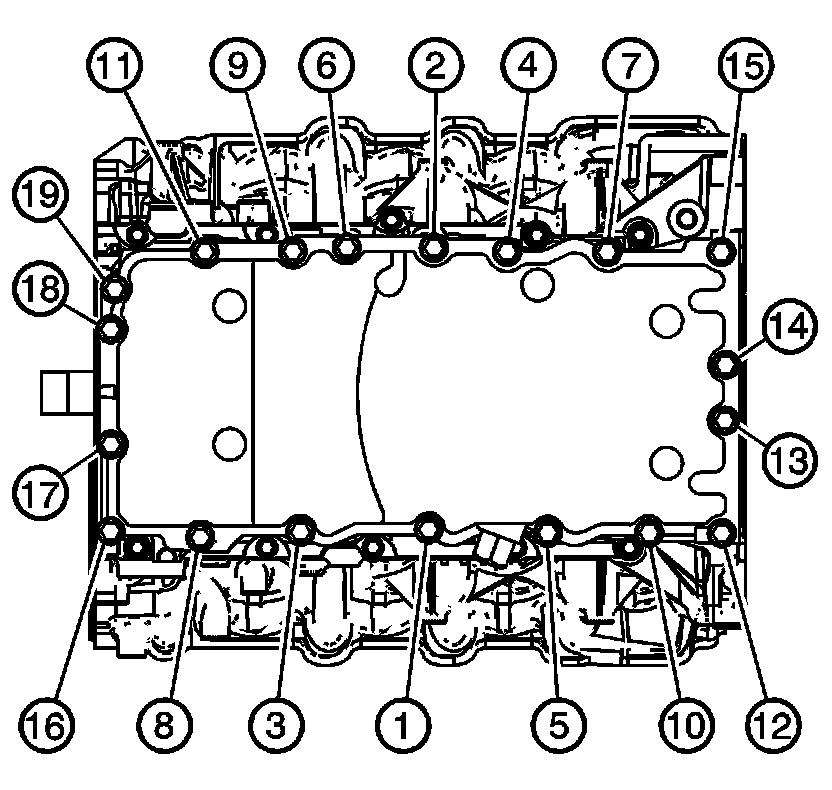

Bolts (in the sequence shown)
First Pass
15 N.m (11 lb ft).
Final Pass
25 N.m (18 lb ft).
