Solar Sensor: Locations

Instrument Panel/Center Console Component Views

Top of the Instrument Panel

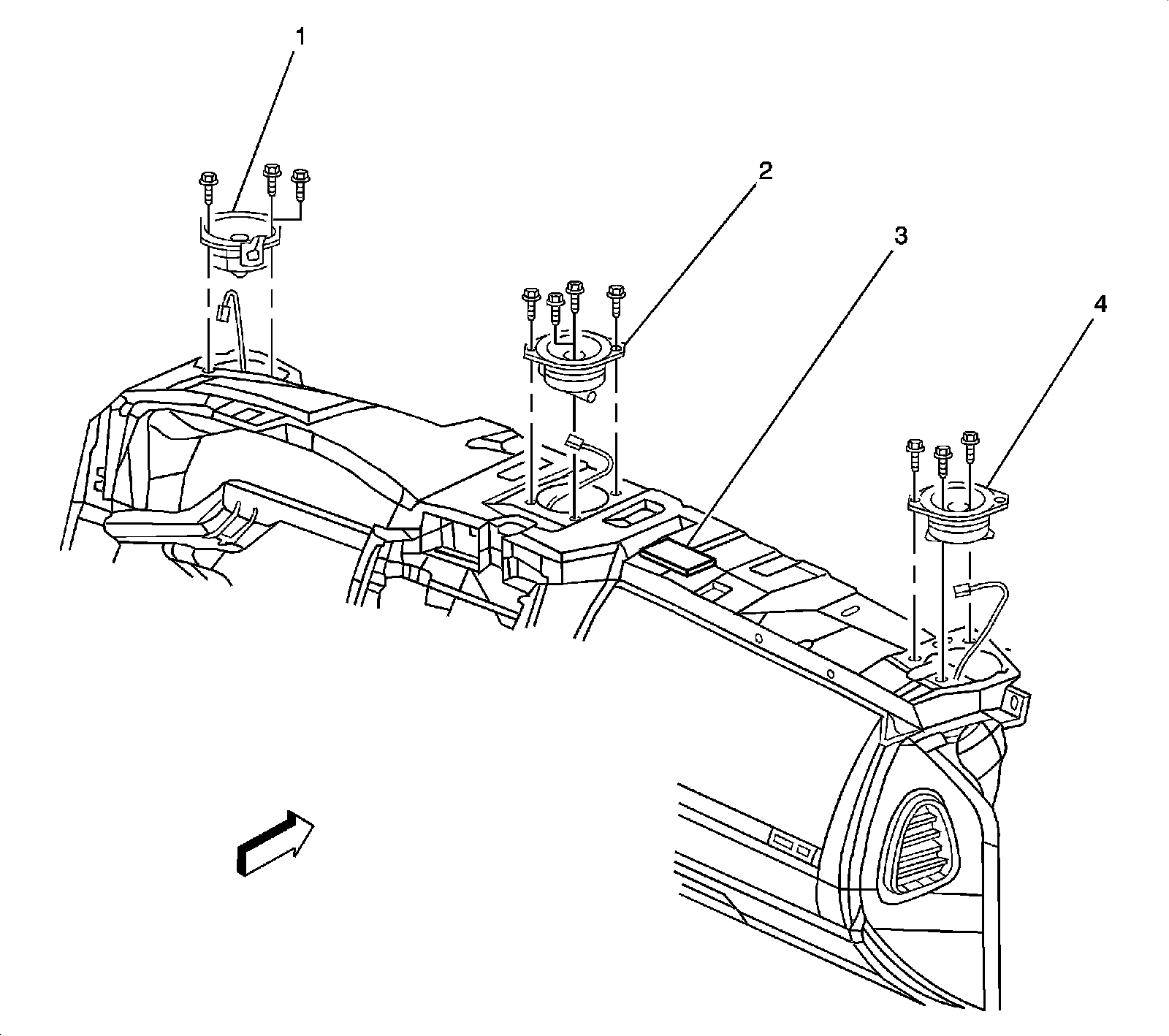

1 - Speaker - Left Front Midrange
2 - Speaker - Center
3 - Navigation Antenna
4 - Speaker - Right Front Midrange

Upper Left of the Instrument Panel




1 - Head Up Display

Upper Center of the Instrument Panel

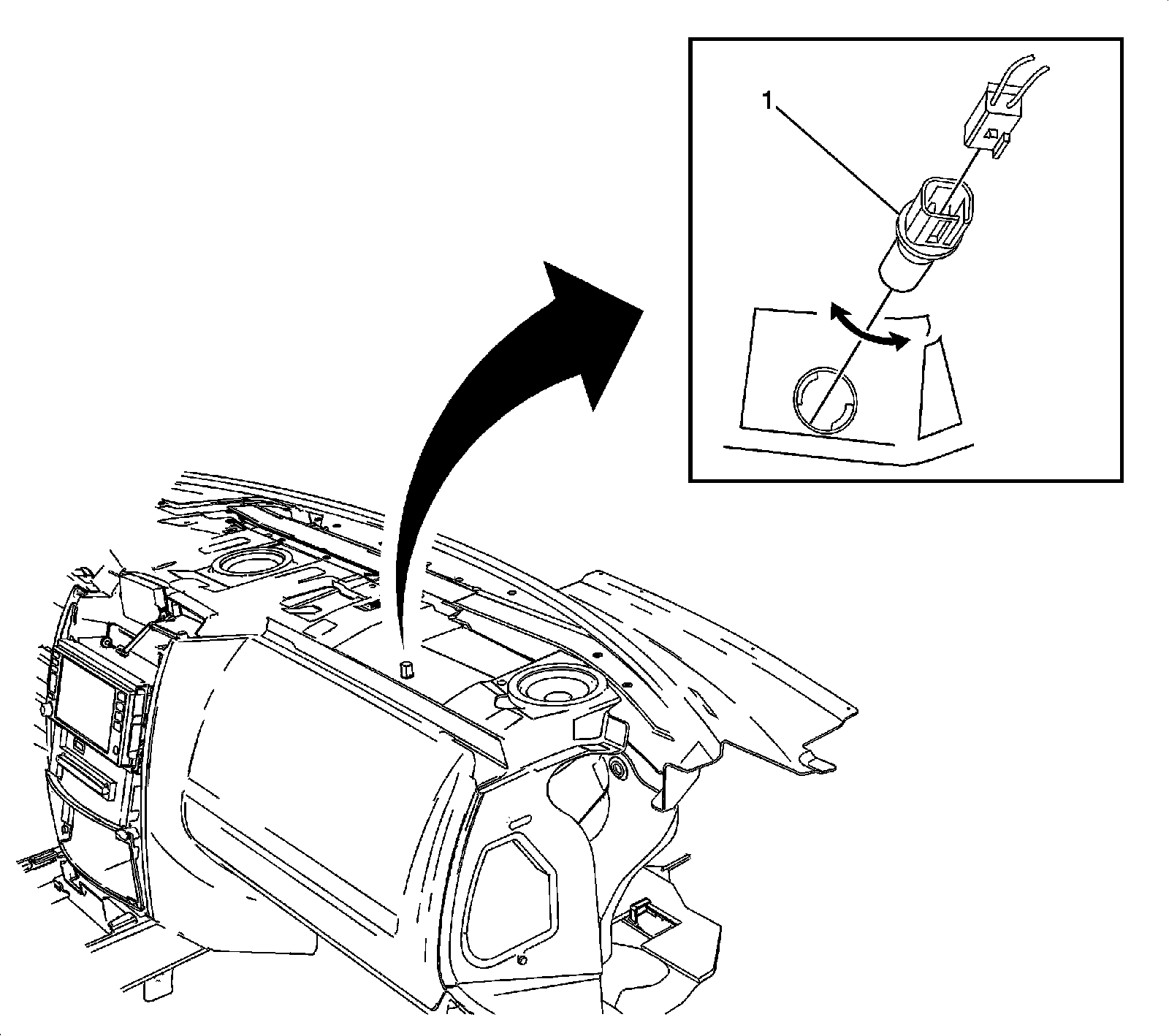

1 - Sunload Sensor

Behind Left Center of the Instrument Panel

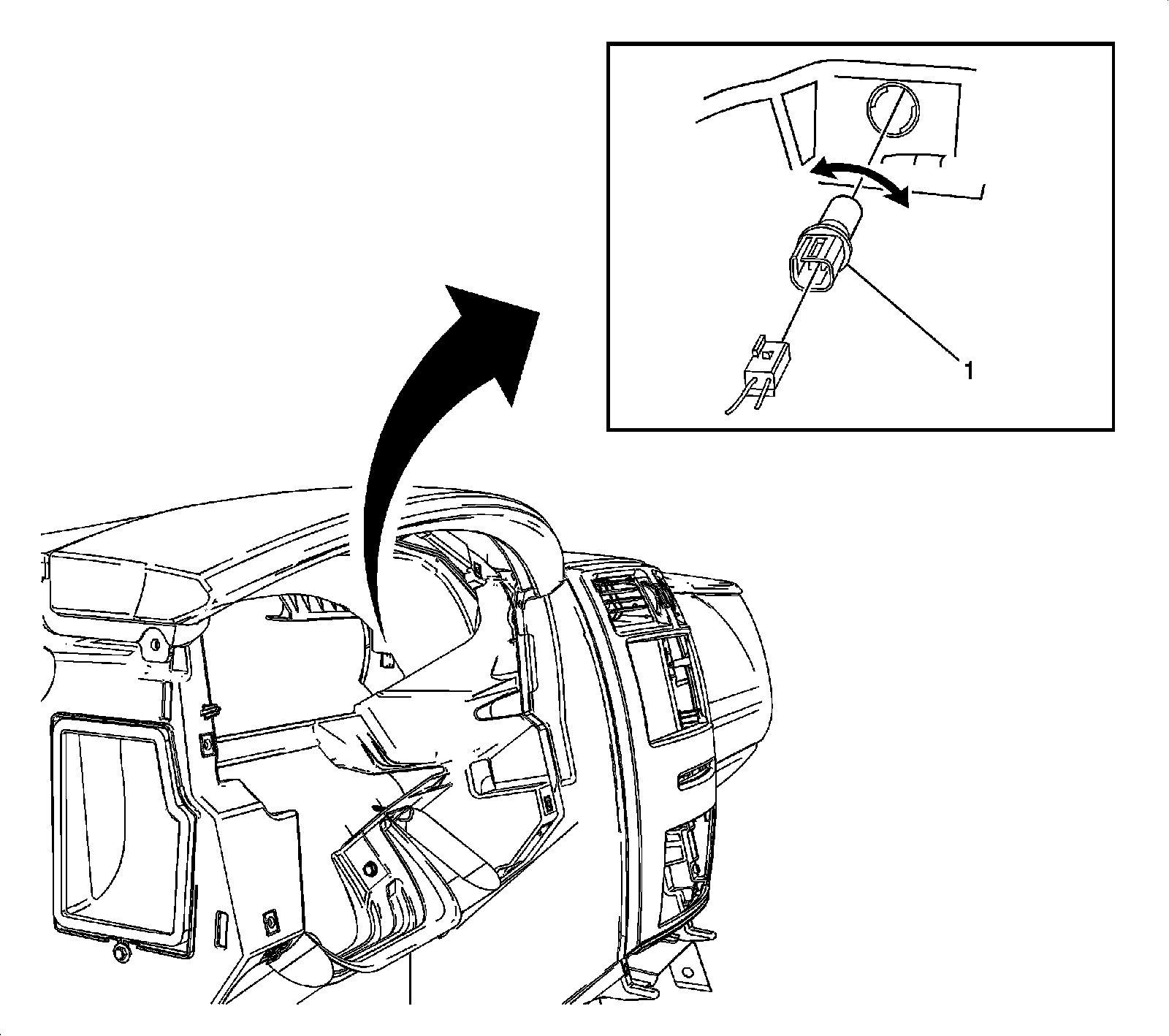

1 - Air Temperature Sensor - Upper Left

Left Side of HVAC Module

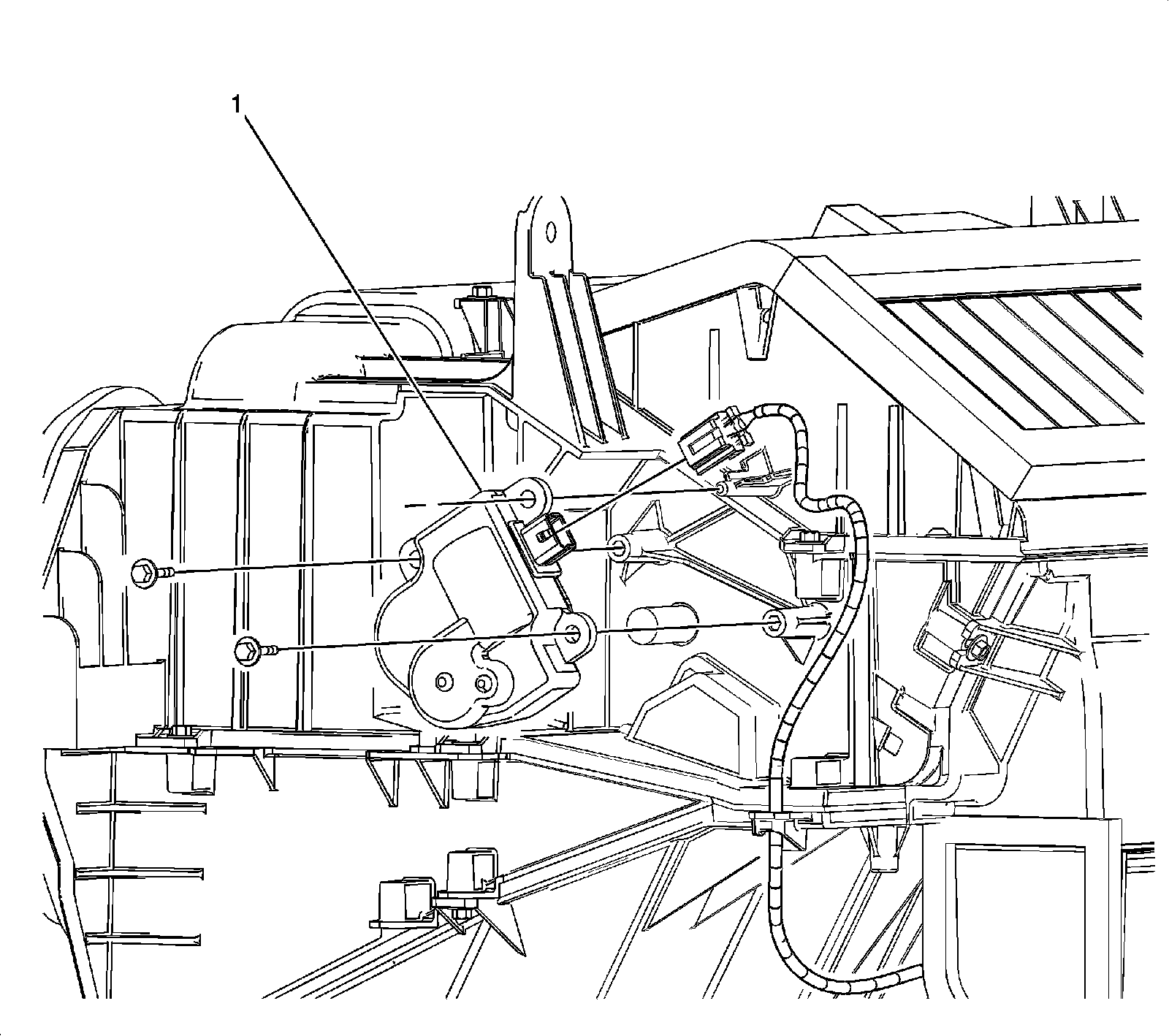

1 - Air Temperature Actuator - Left

Behind the Center of the Instrument Panel

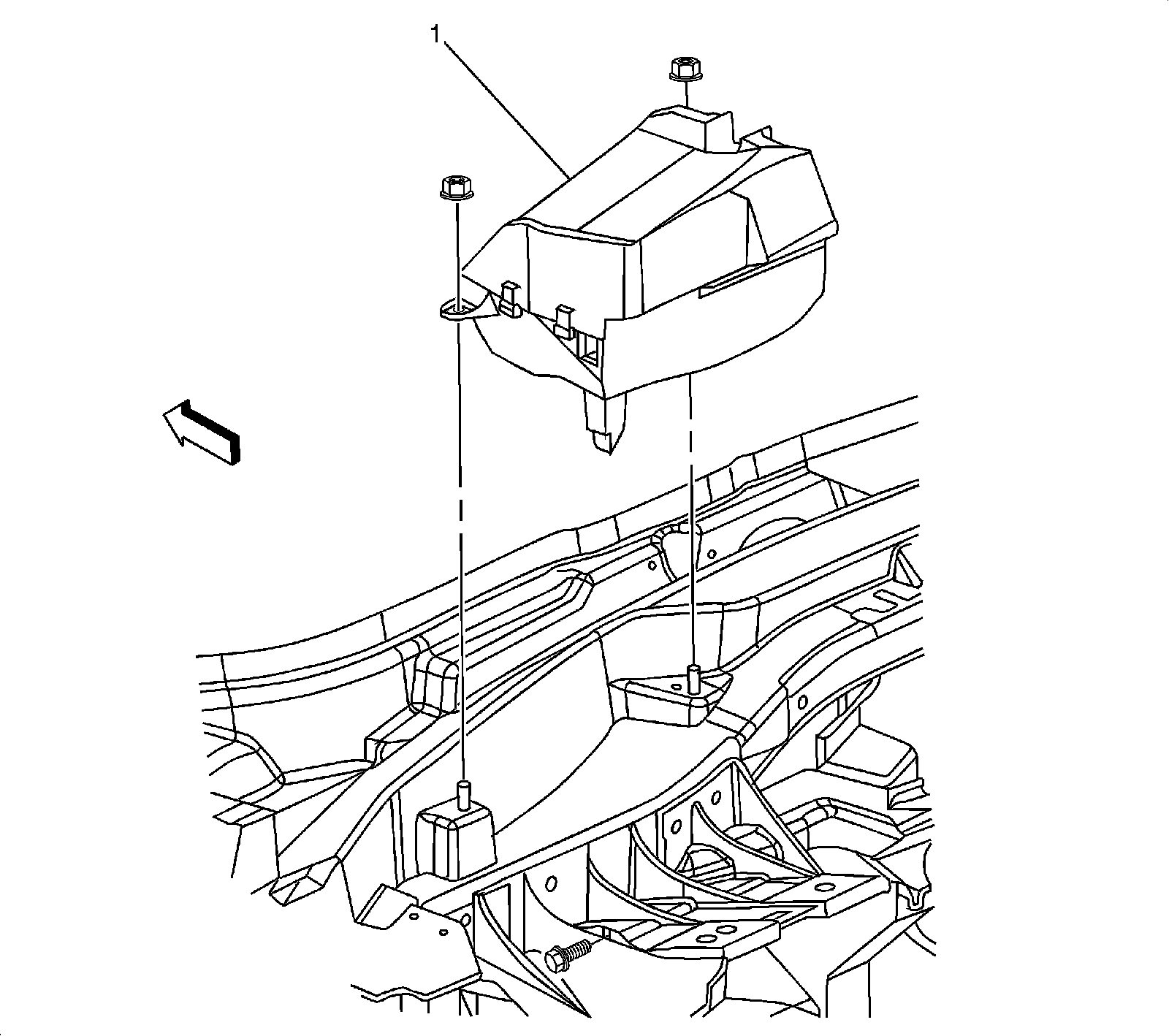

1 - Inflatable Restraint Sensing and Diagnostic Module (SDM)
2 - Yaw and Lateral Accelerometer Sensor

Upper Right of the Instrument Panel




1 - Air Temperature Sensor - Upper Right

Center of HVAC Module

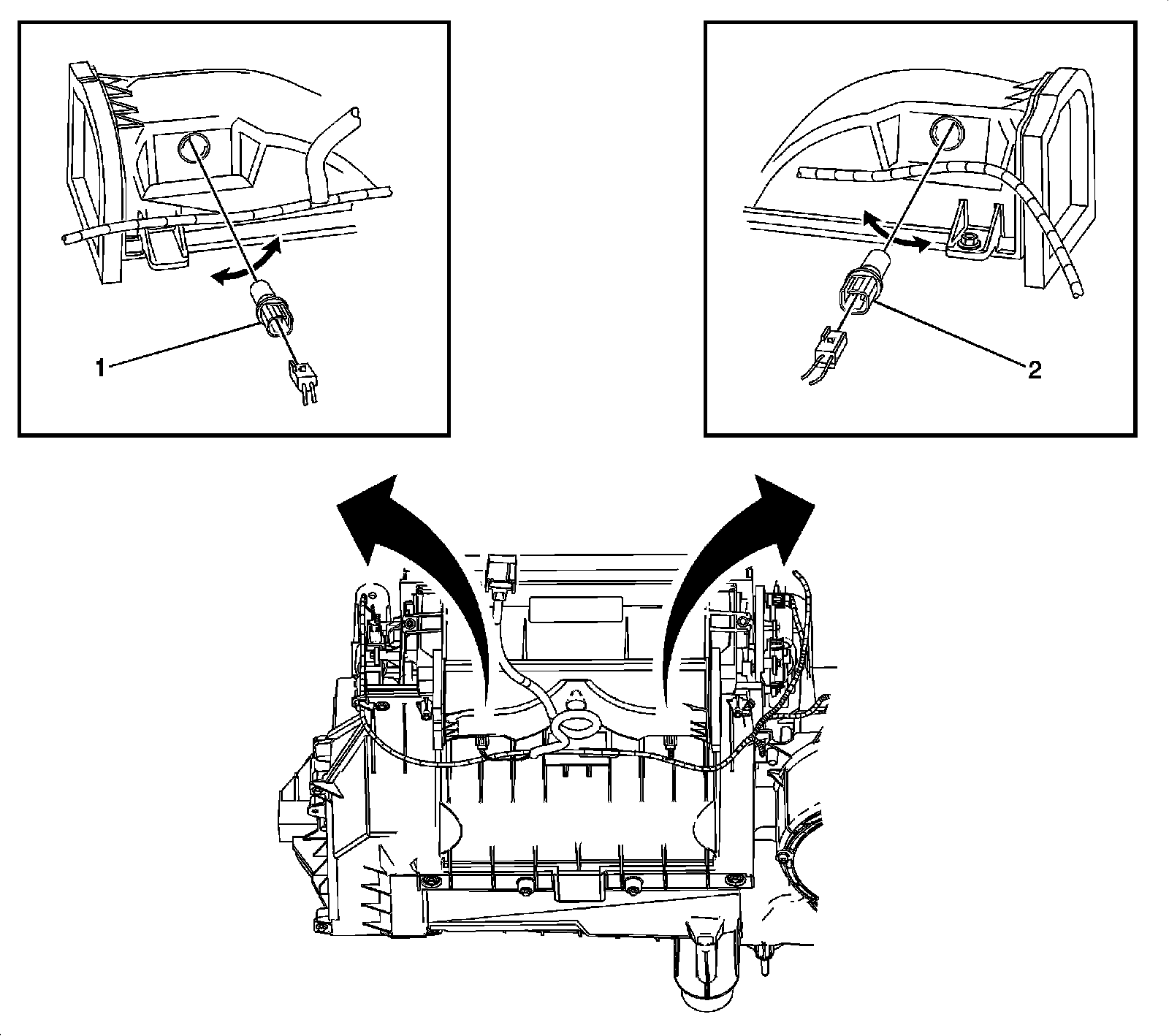

1 - Air Temperature Sensor - Lower Left
2 - Air Temperature Sensor - Lower Right

Right Side of HVAC Module

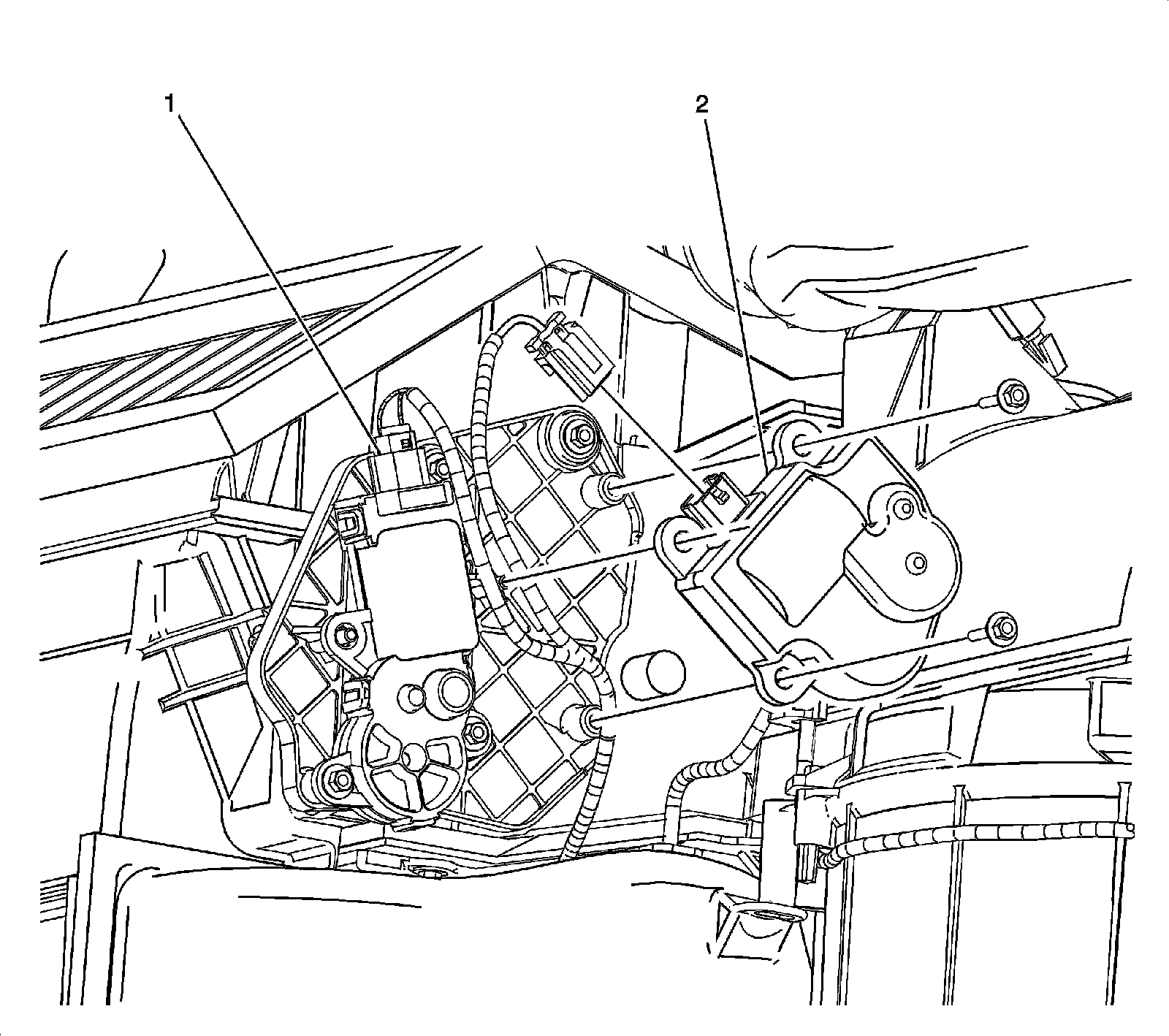

1 - Mode Actuator
2 - Air Temperature Actuator - Right
