Connector Views




Component Connector End Views


Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LP1/LY7/LLT)






Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LP1/LY7/LLT)

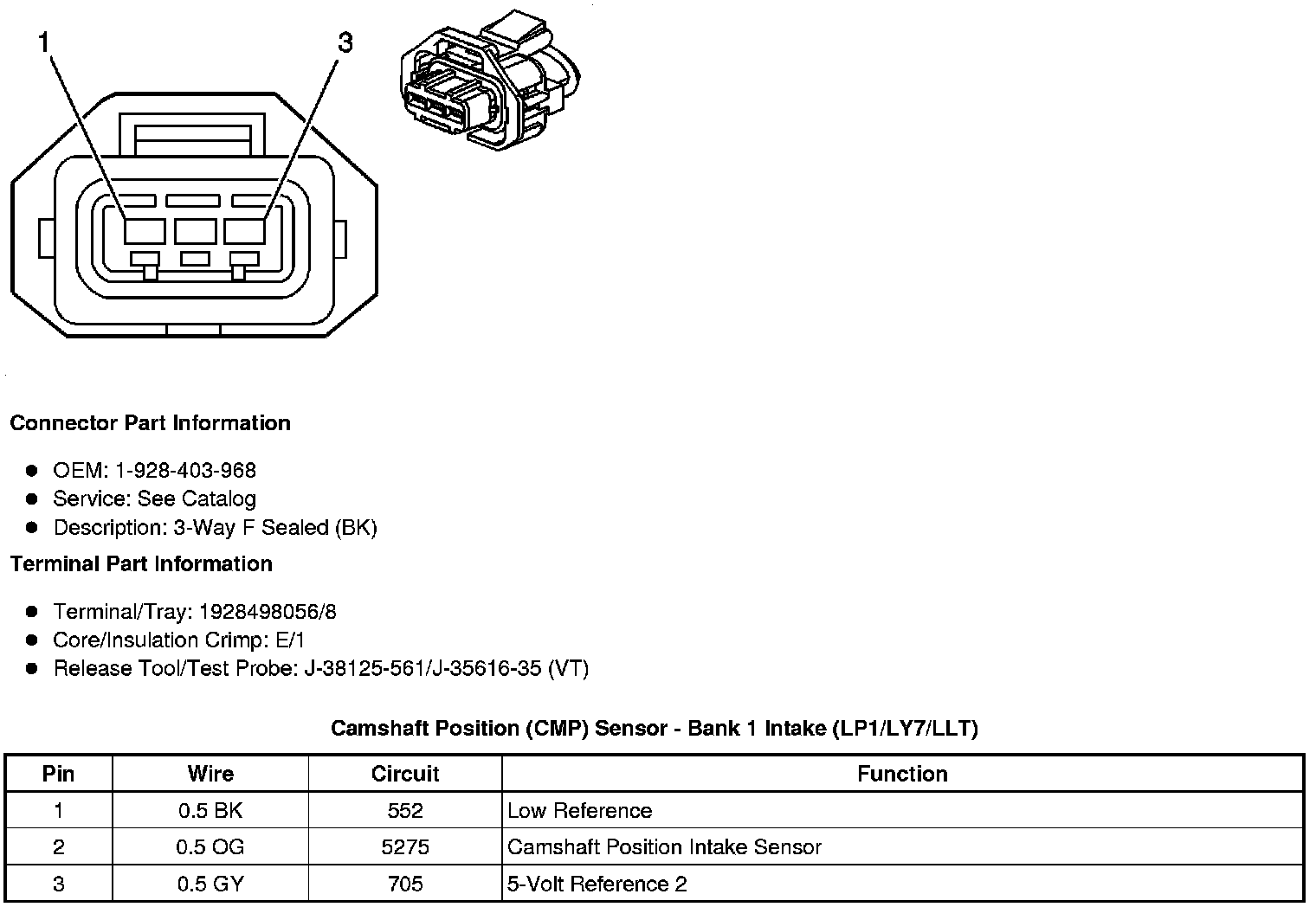

Camshaft Position (CMP) Sensor - Bank 1 Intake (LP1/LY7/LLT)






Camshaft Position (CMP) Sensor - Bank 2 Intake (LP1/LY7/LLT)
