Control Assembly: Diagrams




Component Connector End Views

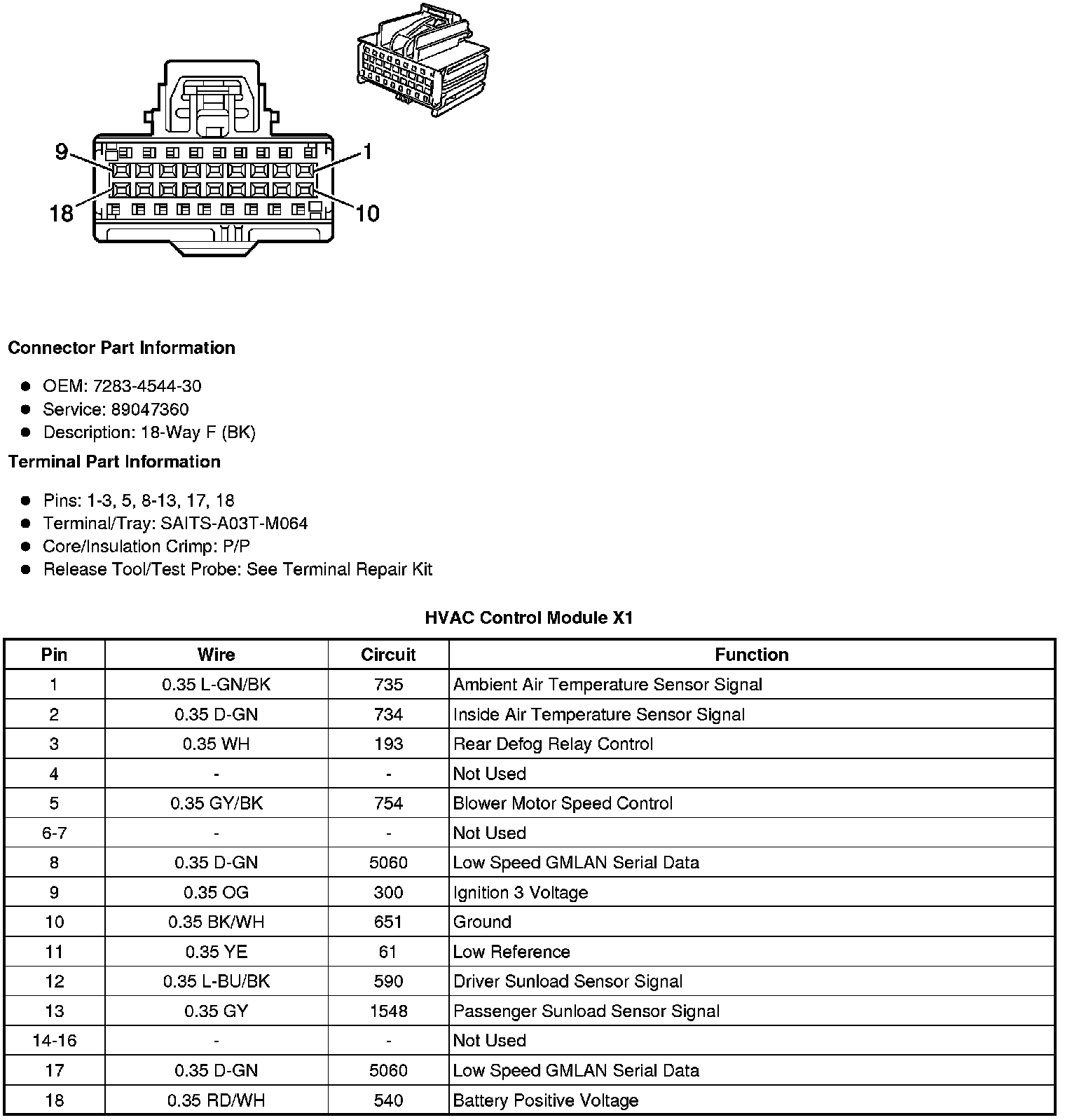

HVAC Control Module X1

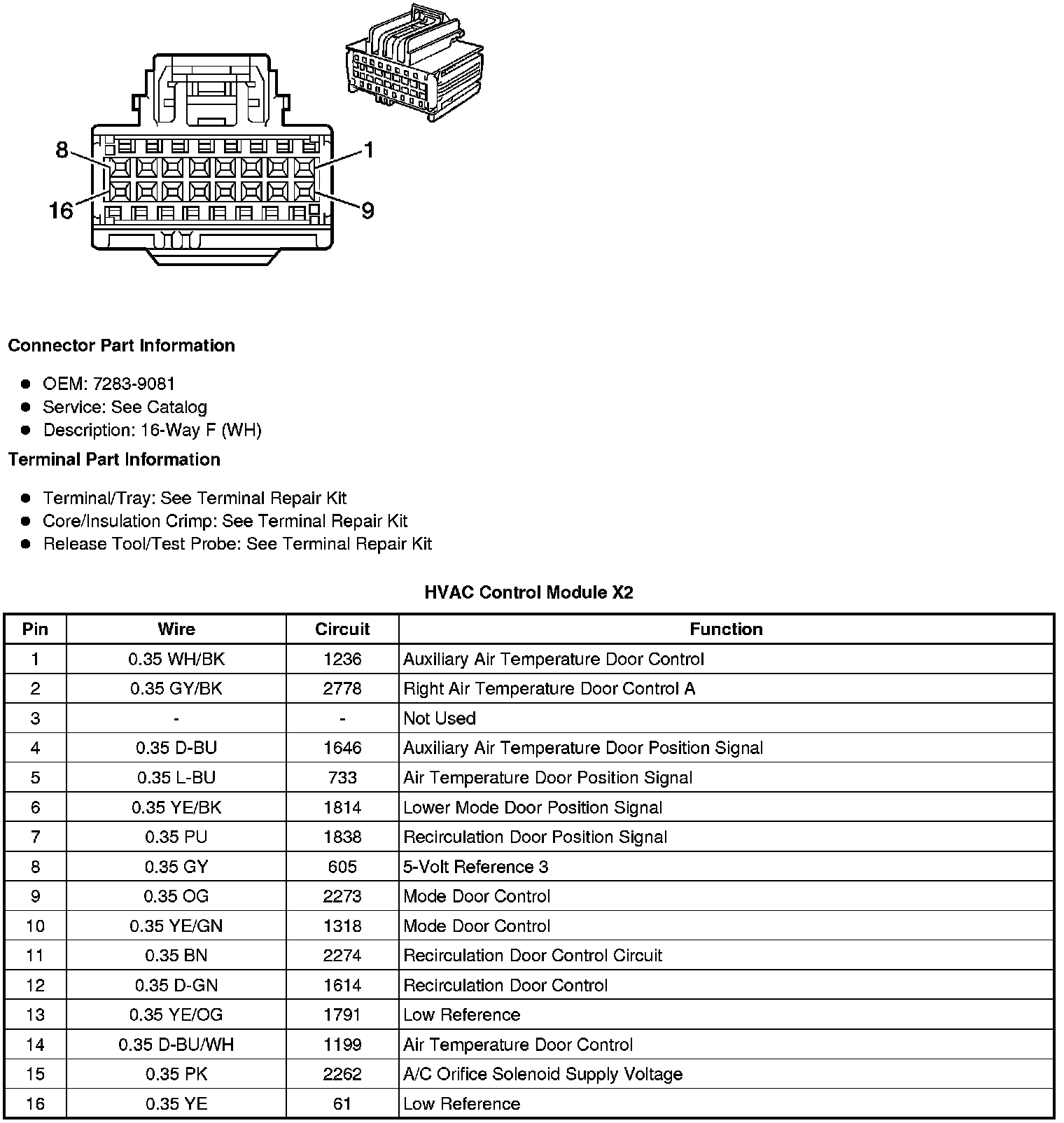

HVAC Control Module X2
