Air Cleaner Element Replacement

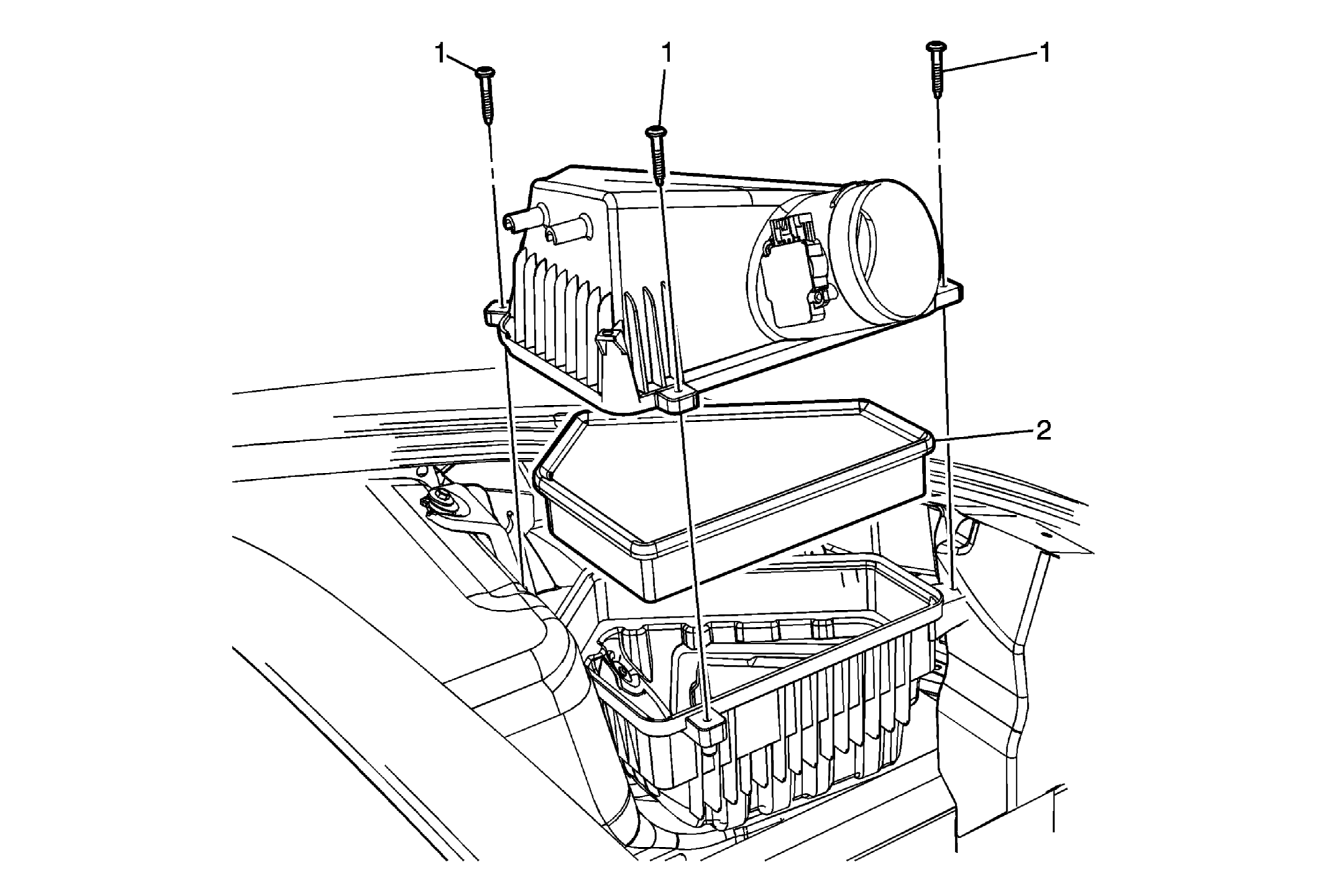

Fig 1: Identifying Air Cleaner Element
GM2164109Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement .
  2. Remove the air cleaner duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  3. Disconnect the MAF/IAT sensor harness connector.
1 Screw (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  4 N.m (35 lb in)
2 Air Cleaner Element

Procedure

  1. Disconnect the MAF sensor wiring harness.
  2. Lift the air cleaner cover in order to remove the air cleaner element.
