Intake Air Temperature Sensor Replacement

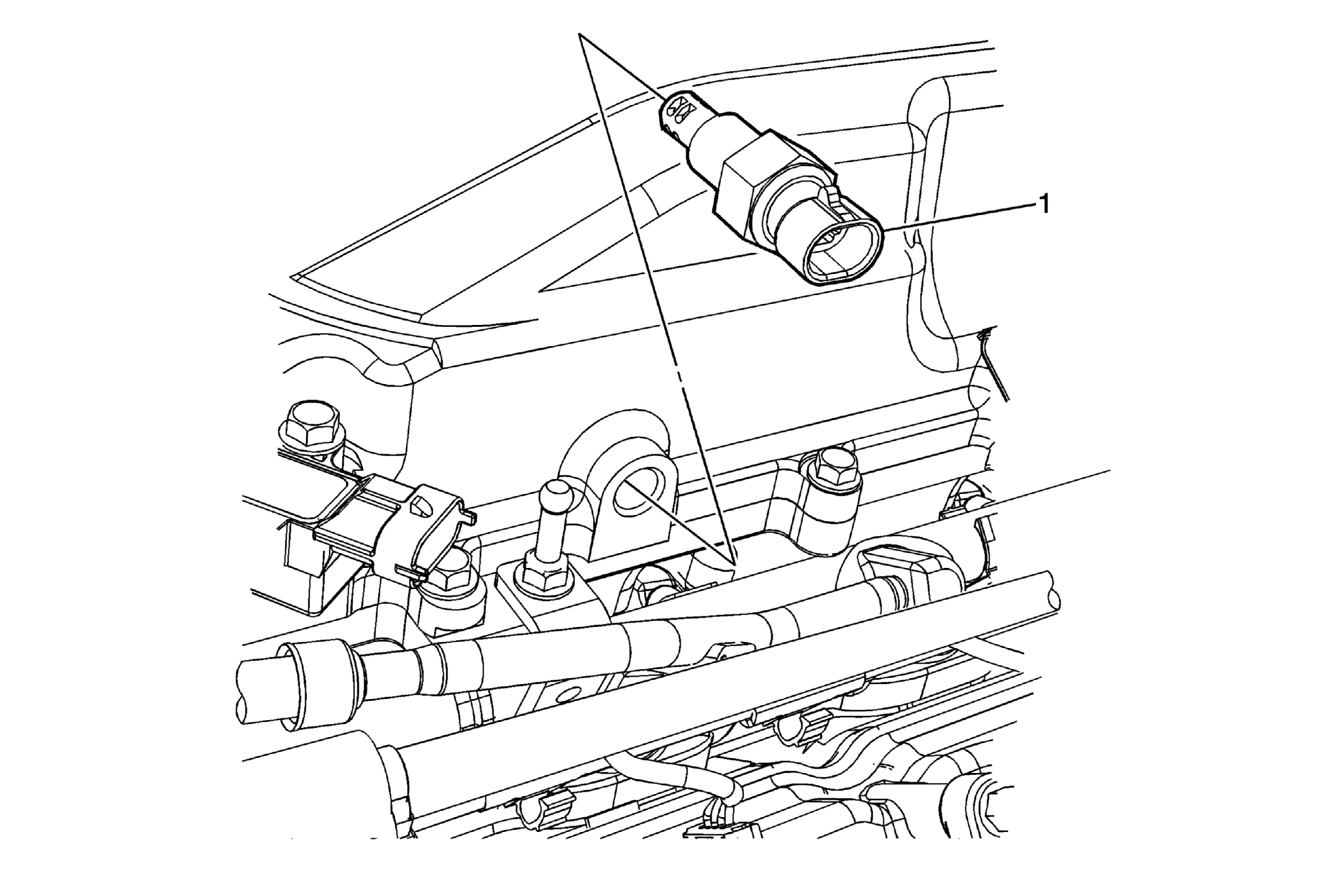

Fig 1: Identifying Intake Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Intake Air Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure: Disconnect the intake air temperature sensor harness connector. Tighten: 20 N.m (15 lb ft)
