Object Detection Schematics

WARNING: This page is about a different car, the 2009 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

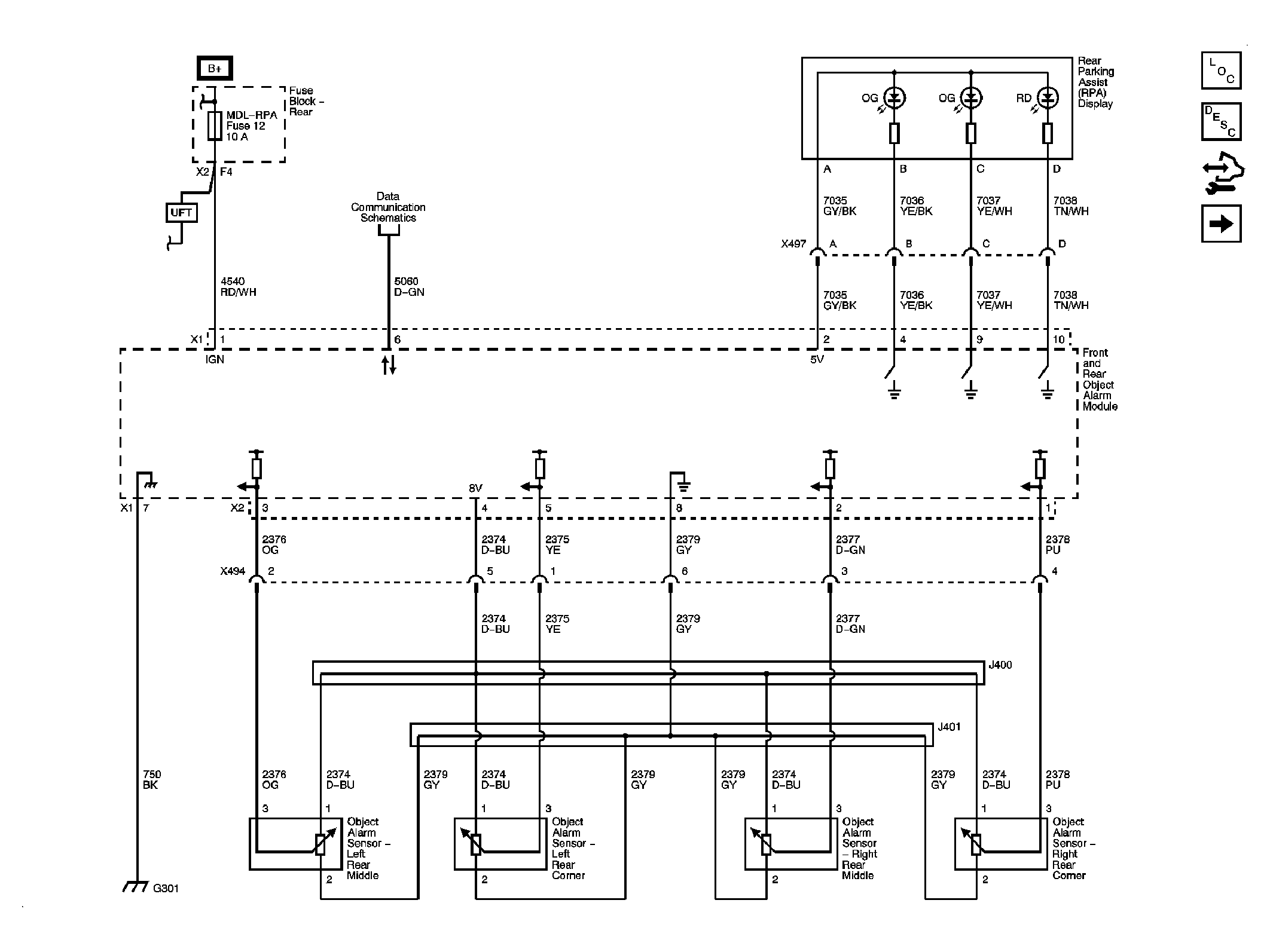

Fig 1: Rear Park Assist (UD7)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Lane Departure Warning (UFL)

Courtesy of GENERAL MOTORS CORP.

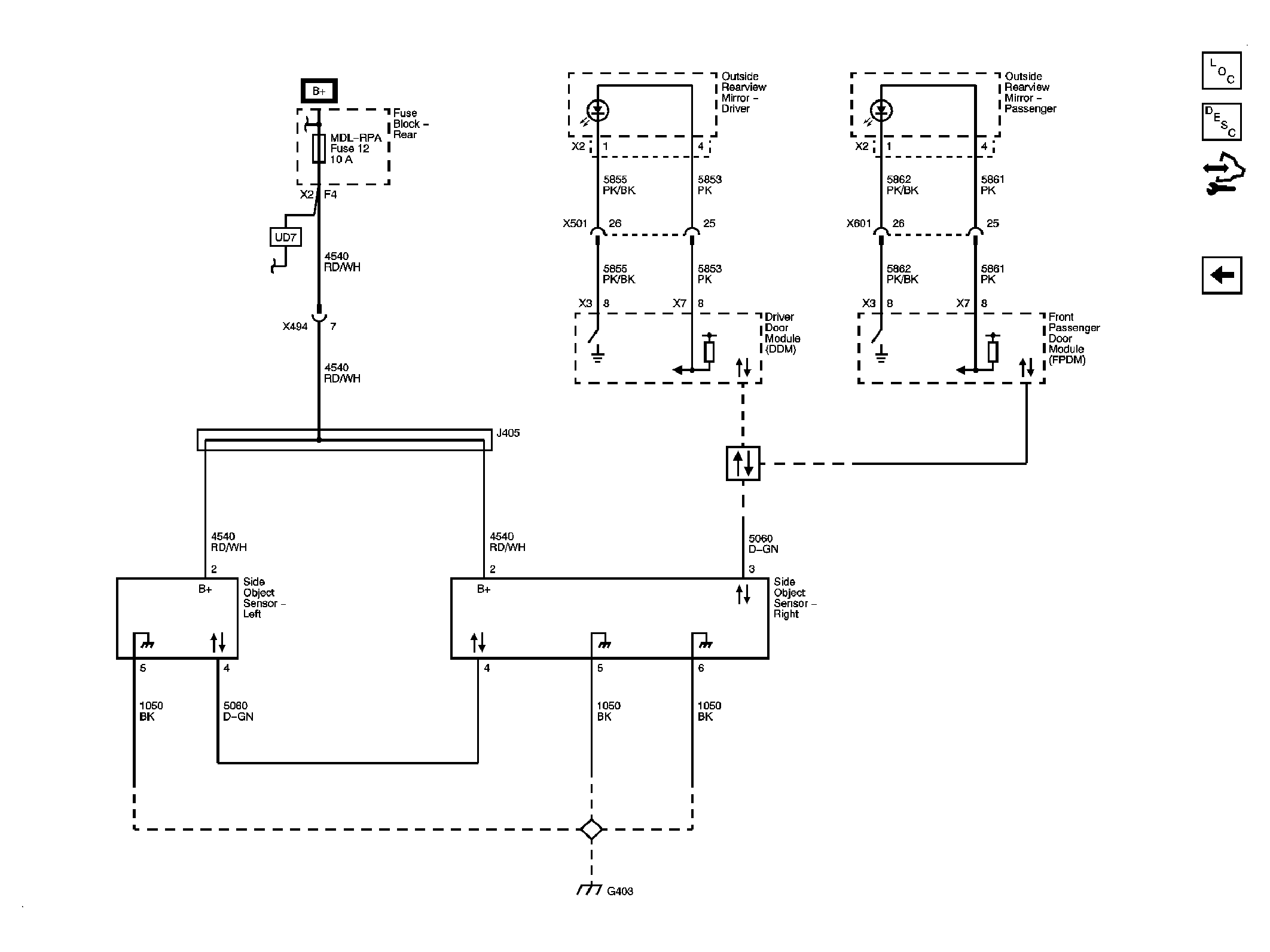

Fig 3: Side Object Detection (UFT)

Courtesy of GENERAL MOTORS CORP.
