Rear Fuse Block
Electrical Center Identification Views

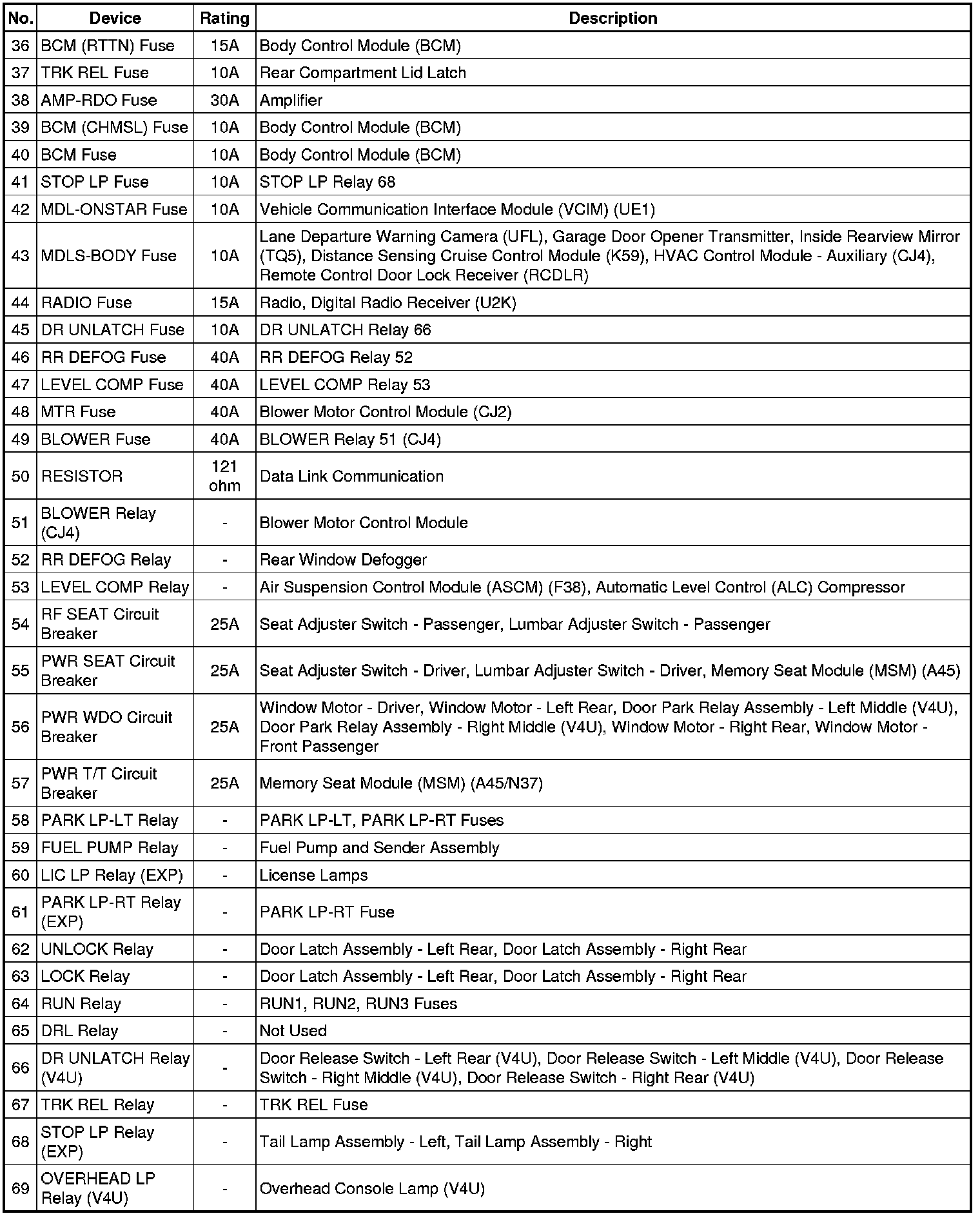

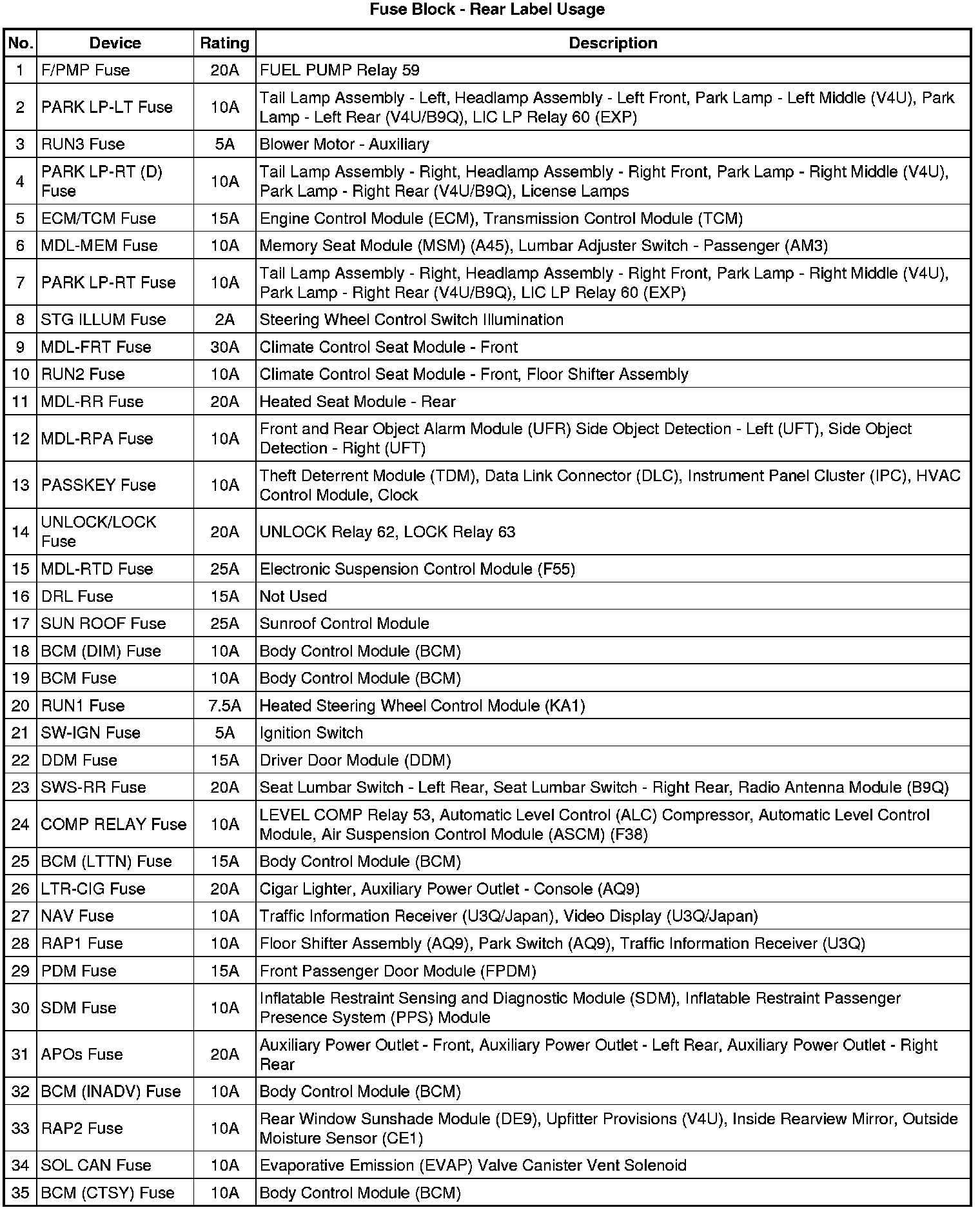

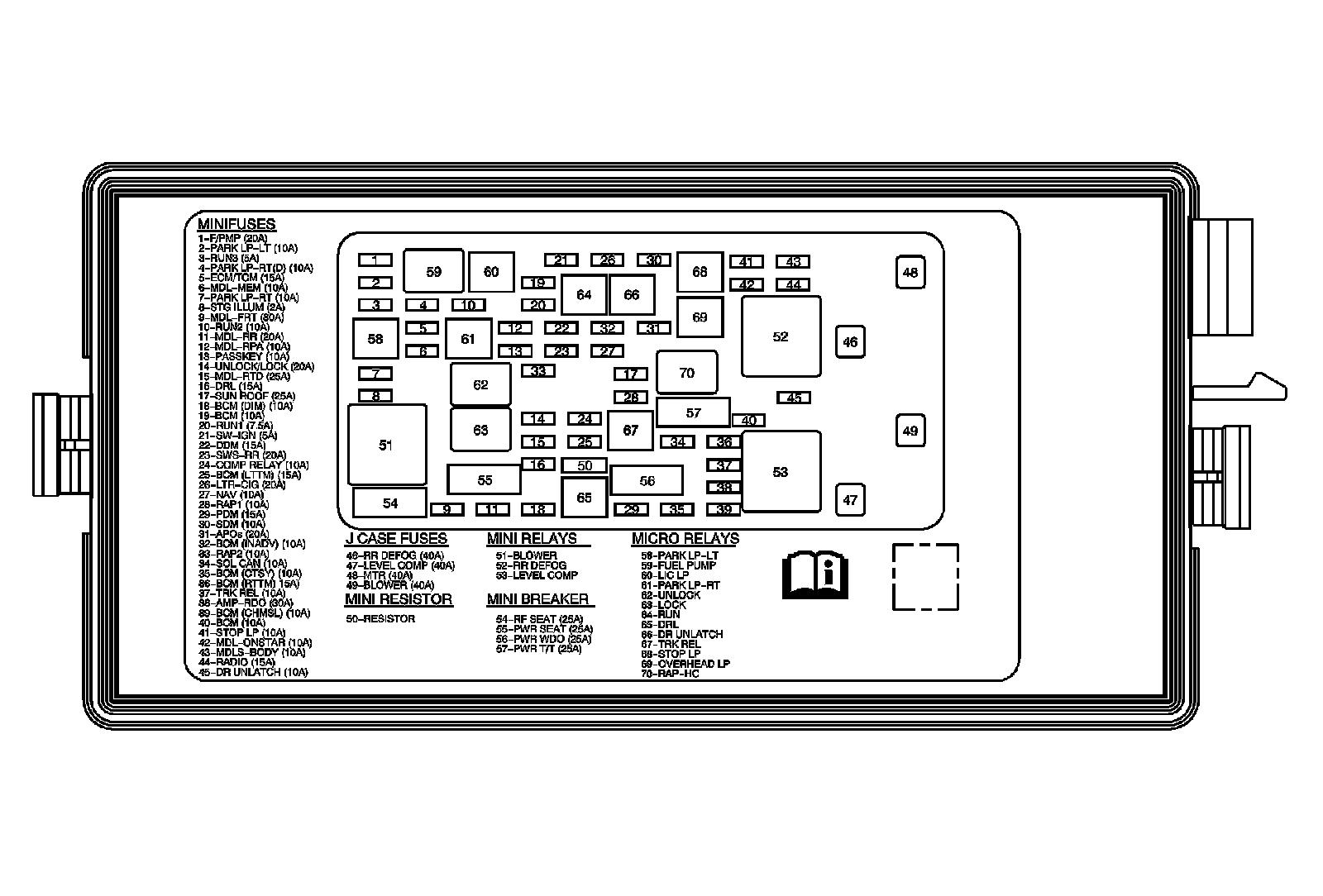

Fuse Block - Rear Label

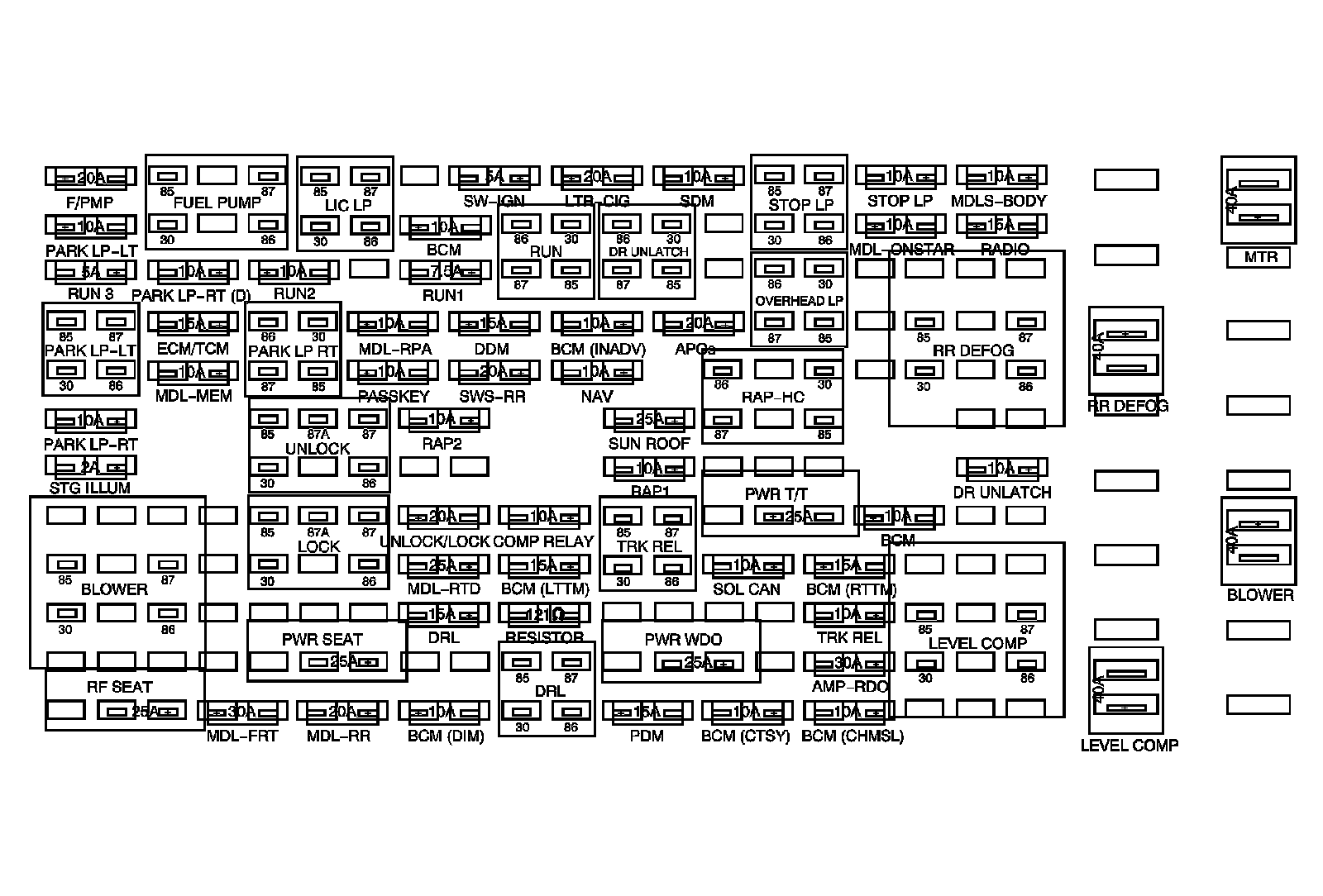

Fuse Block - Rear Top View
Fuse Block - Rear Bottom View

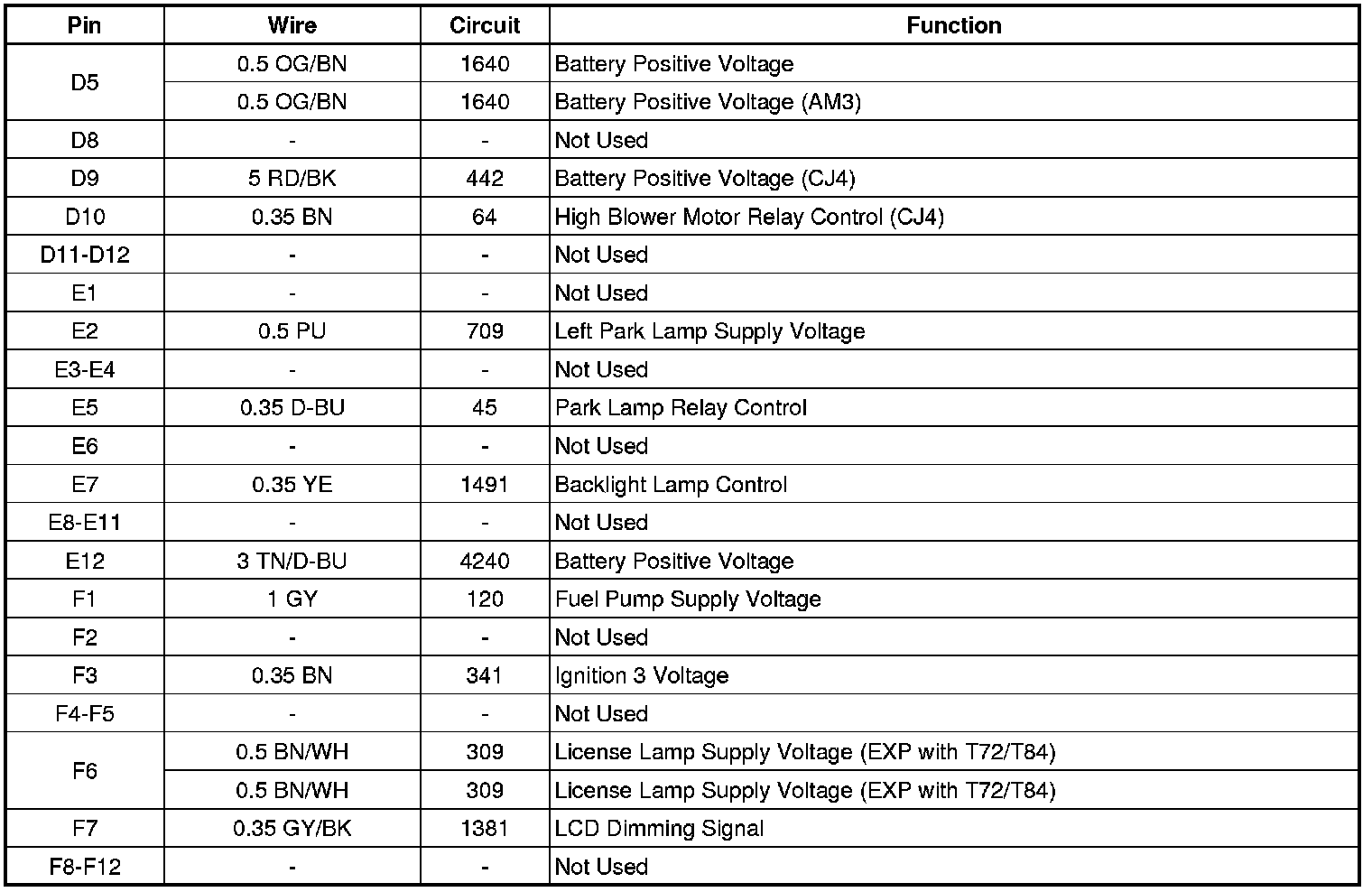

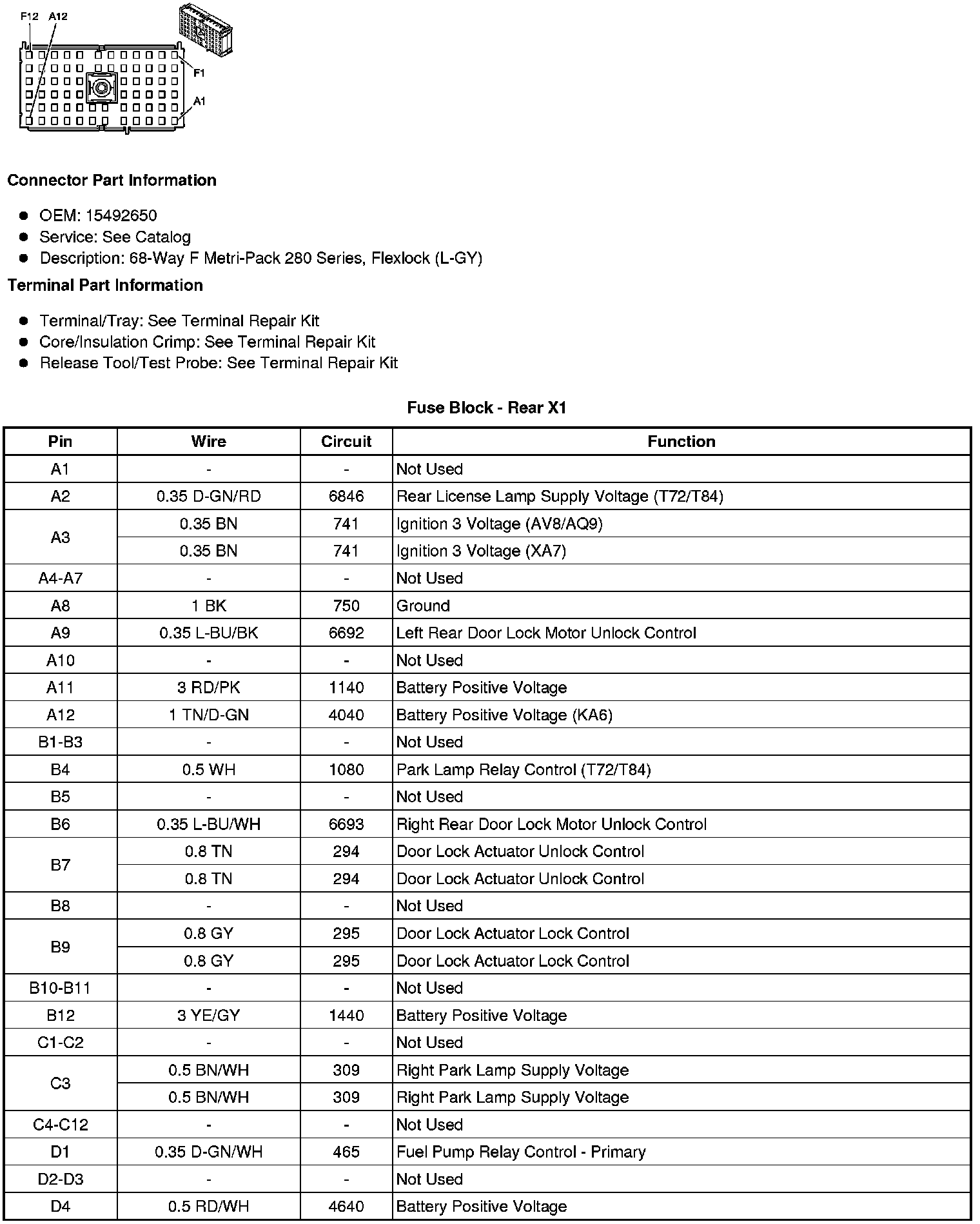

Fuse Block - Rear X1

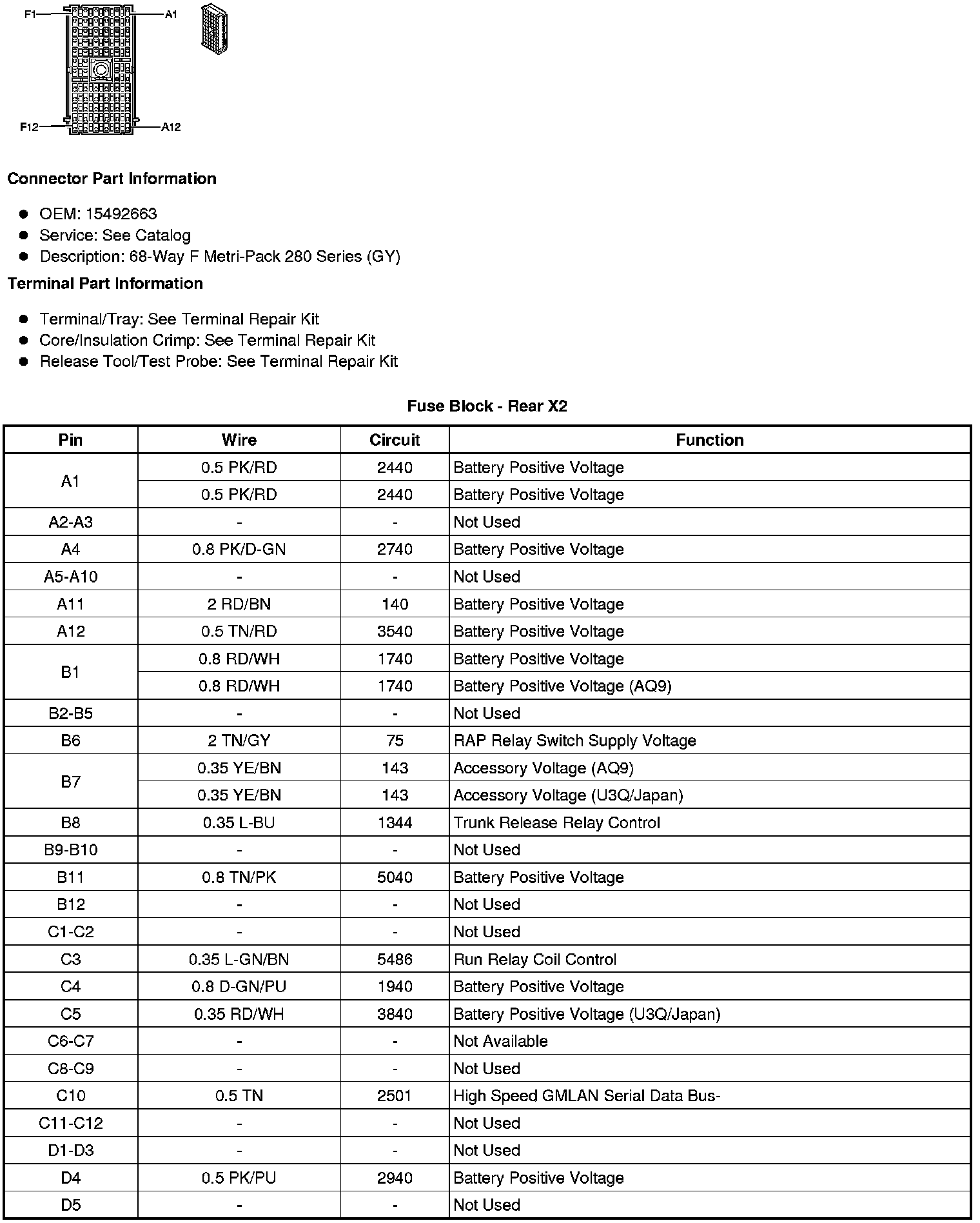

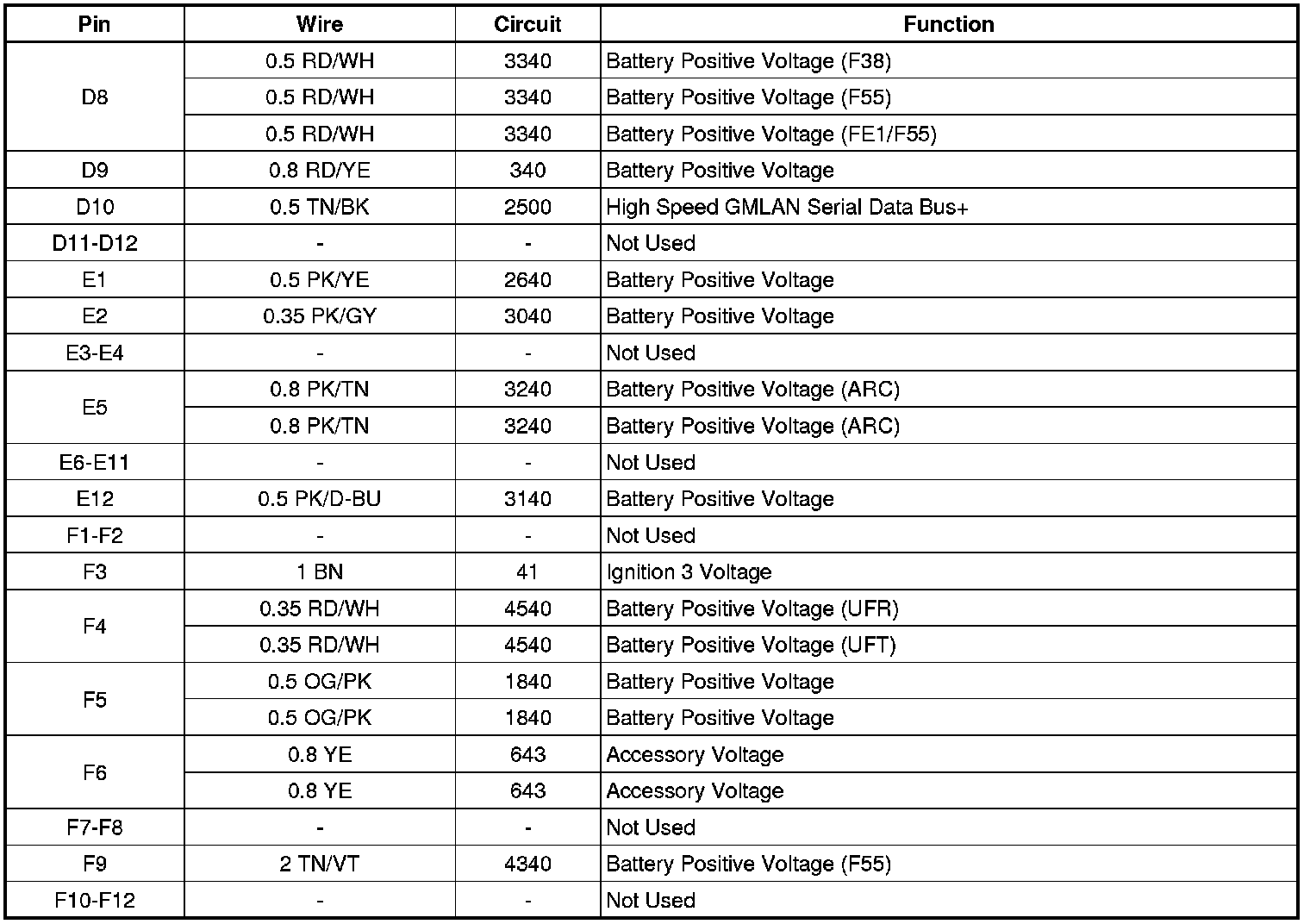

Fuse Block - Rear X2

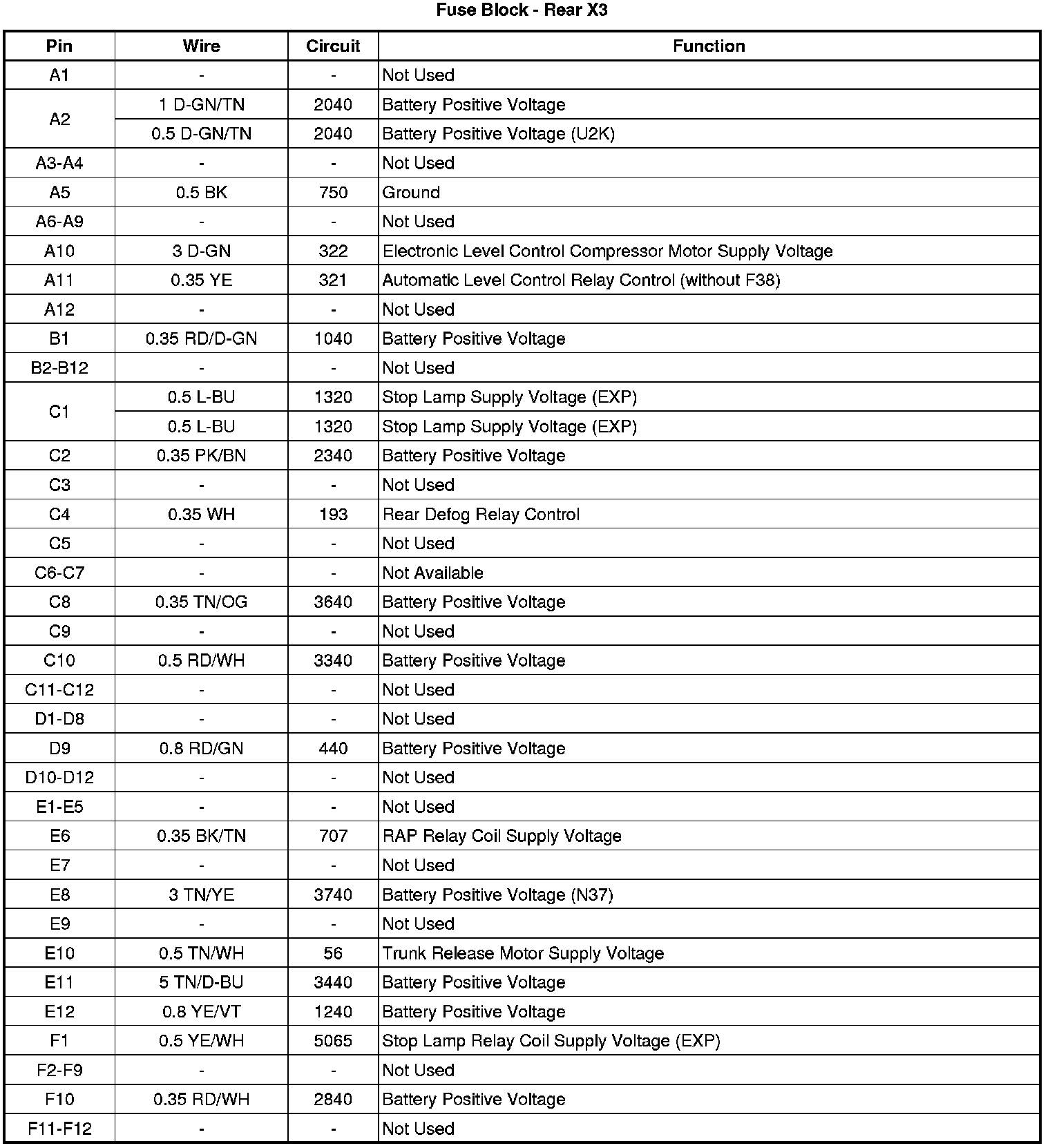

Fuse Block - Rear X3
Fuse Block - Rear X4 (CJ2)
Fuse Block - Rear X5
Fuse Block - Rear X6 (To Battery)
