Power Distribution Schematics

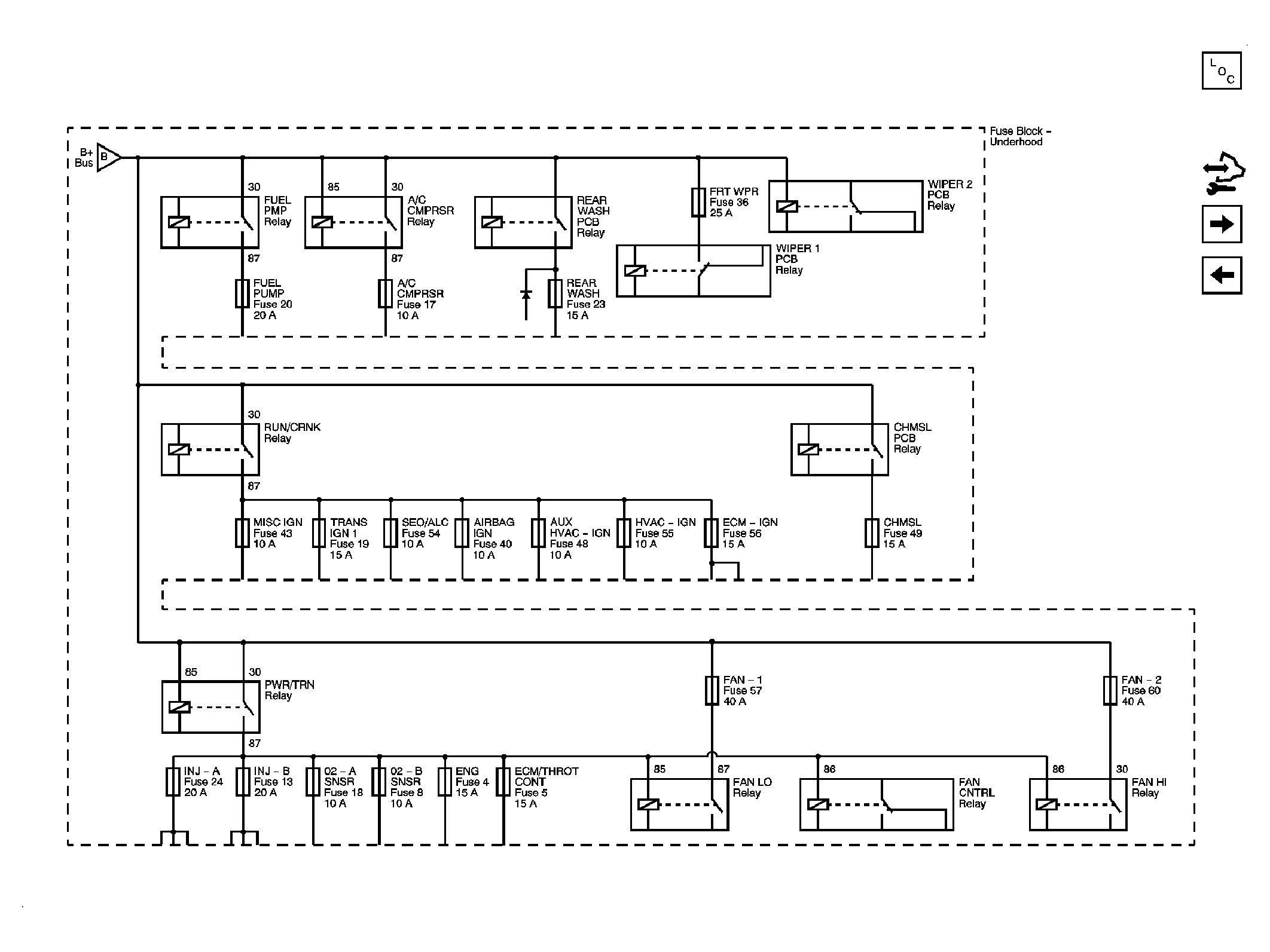

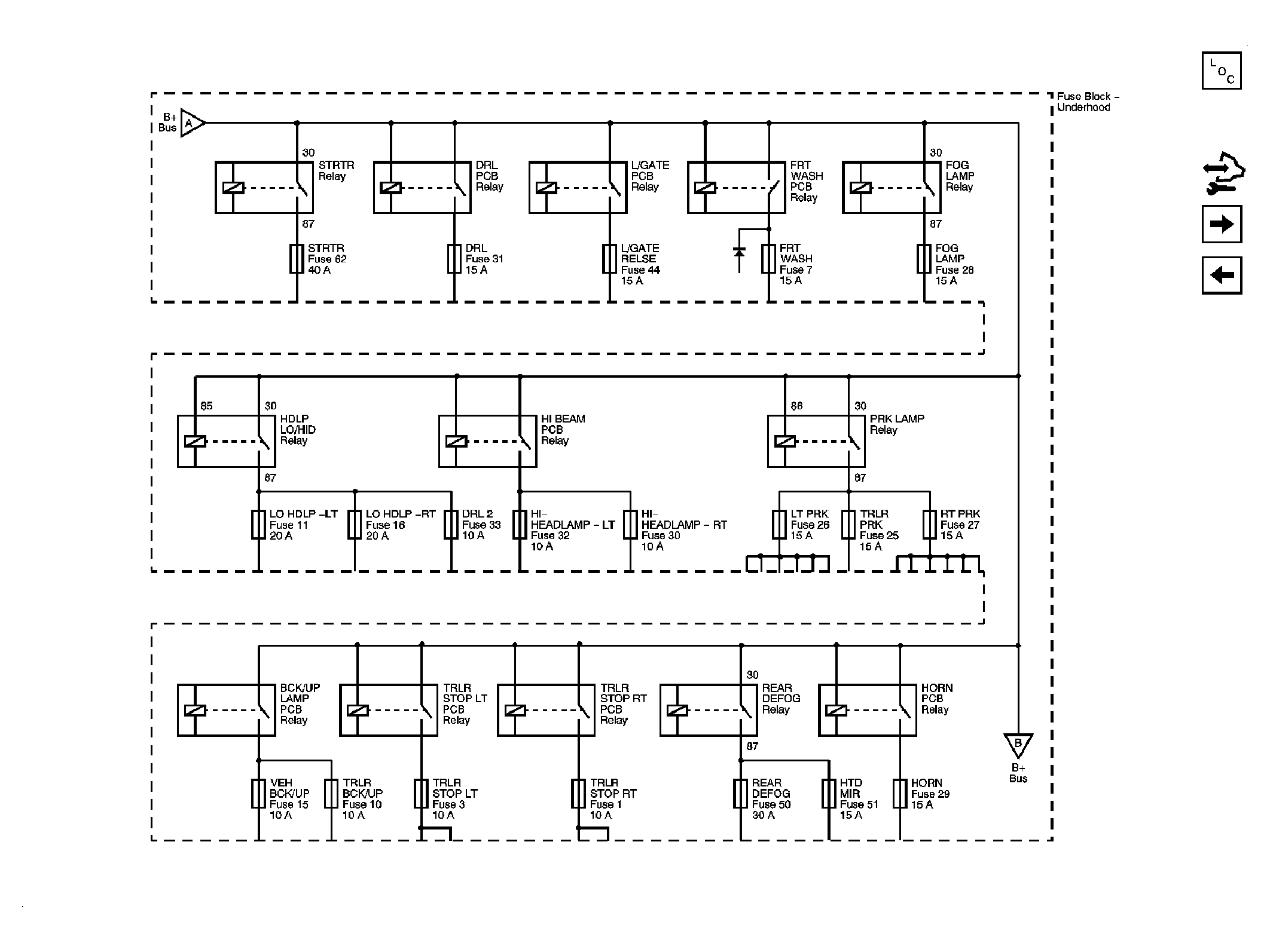

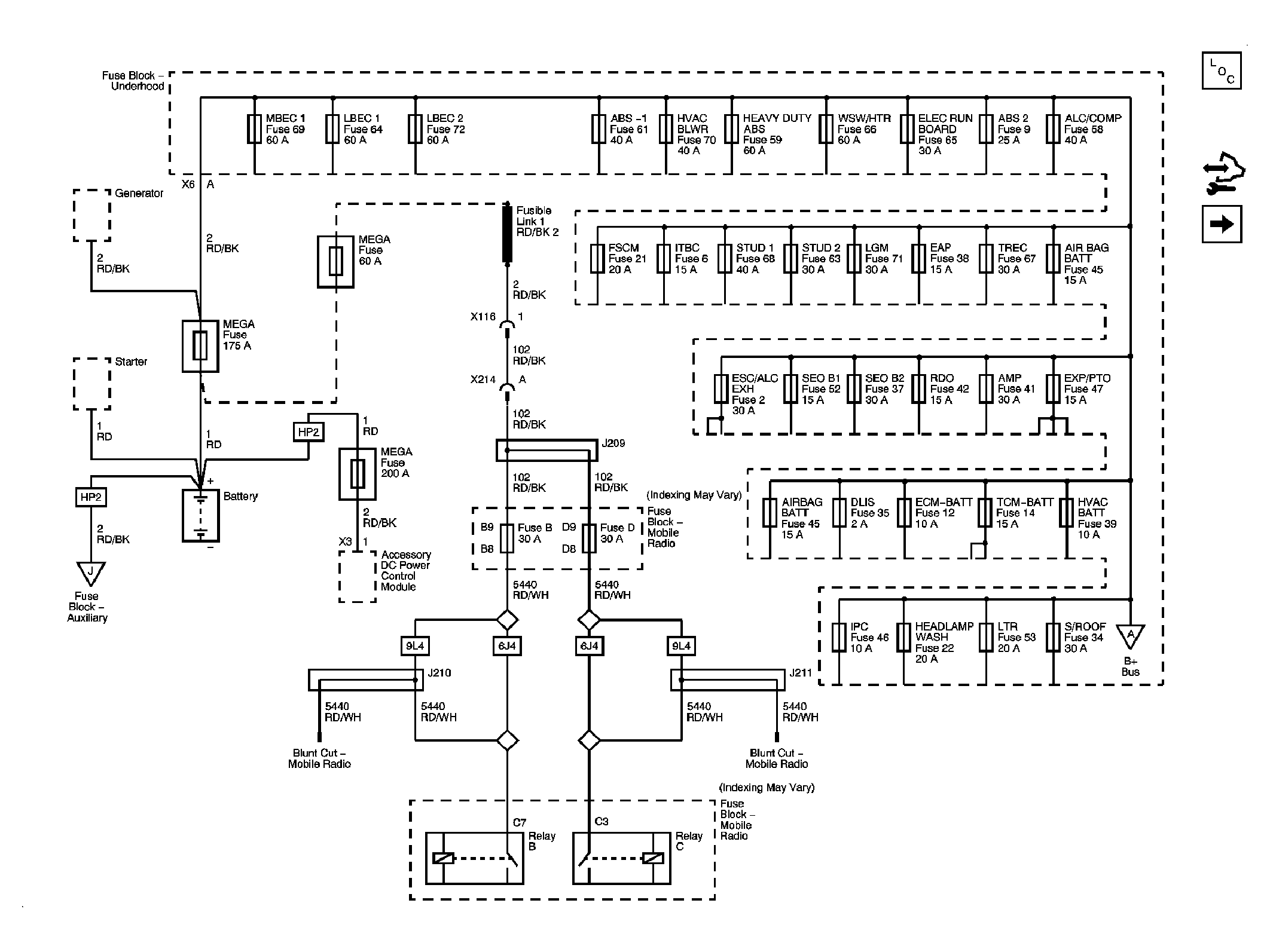

Fig 1: B+ Bus - 1 of 3
Courtesy of GENERAL MOTORS CORP.
Fig 2: B+ Bus - 2 of 3
Courtesy of GENERAL MOTORS CORP.
Fig 3: B+ Bus - 3 of 3
Courtesy of GENERAL MOTORS CORP.

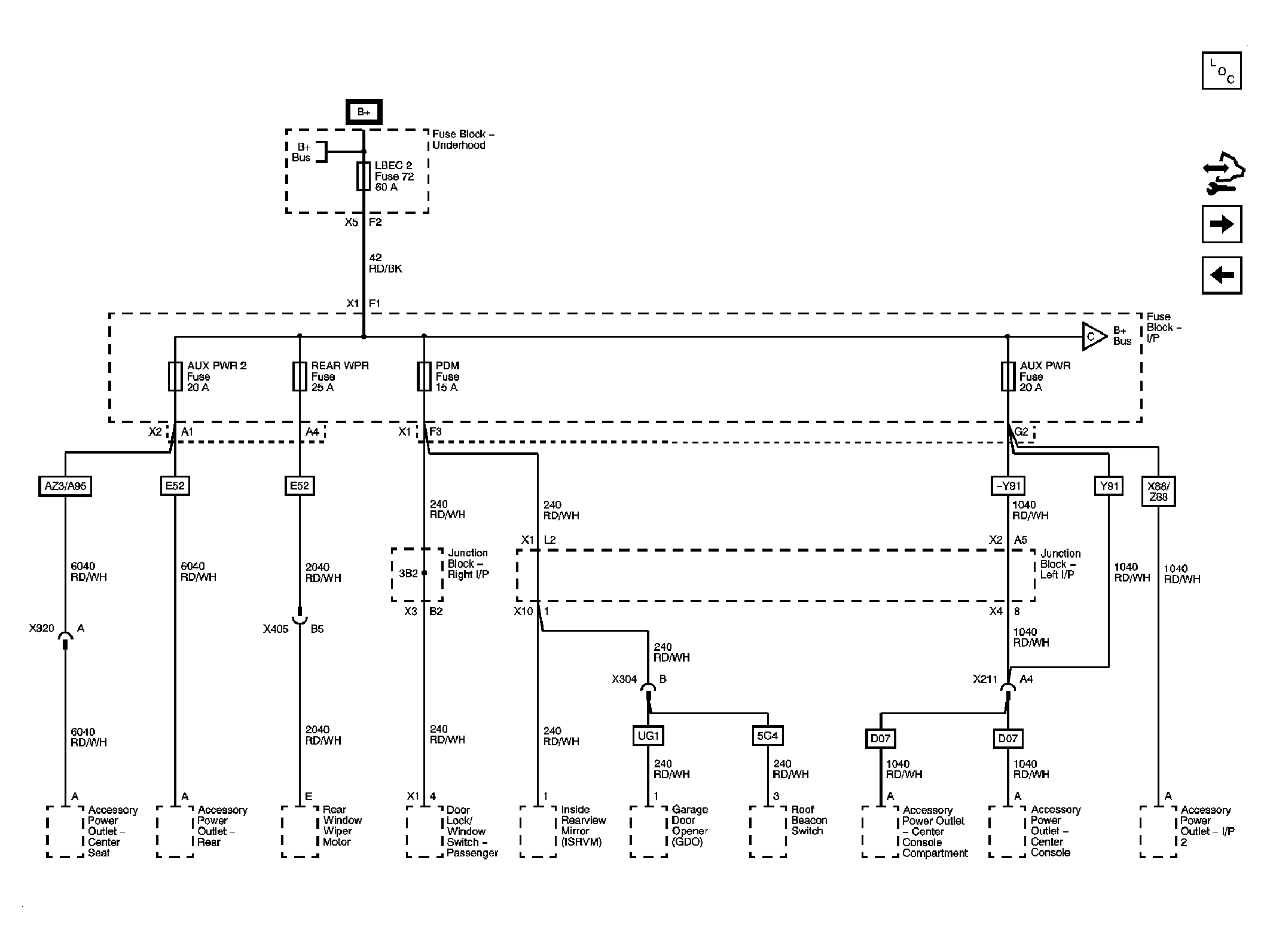

Fig 4: AUX PWR, AUX PWR 2, LBEC 1, PDM, and REAR WPR Fuses
Courtesy of GENERAL MOTORS CORP.

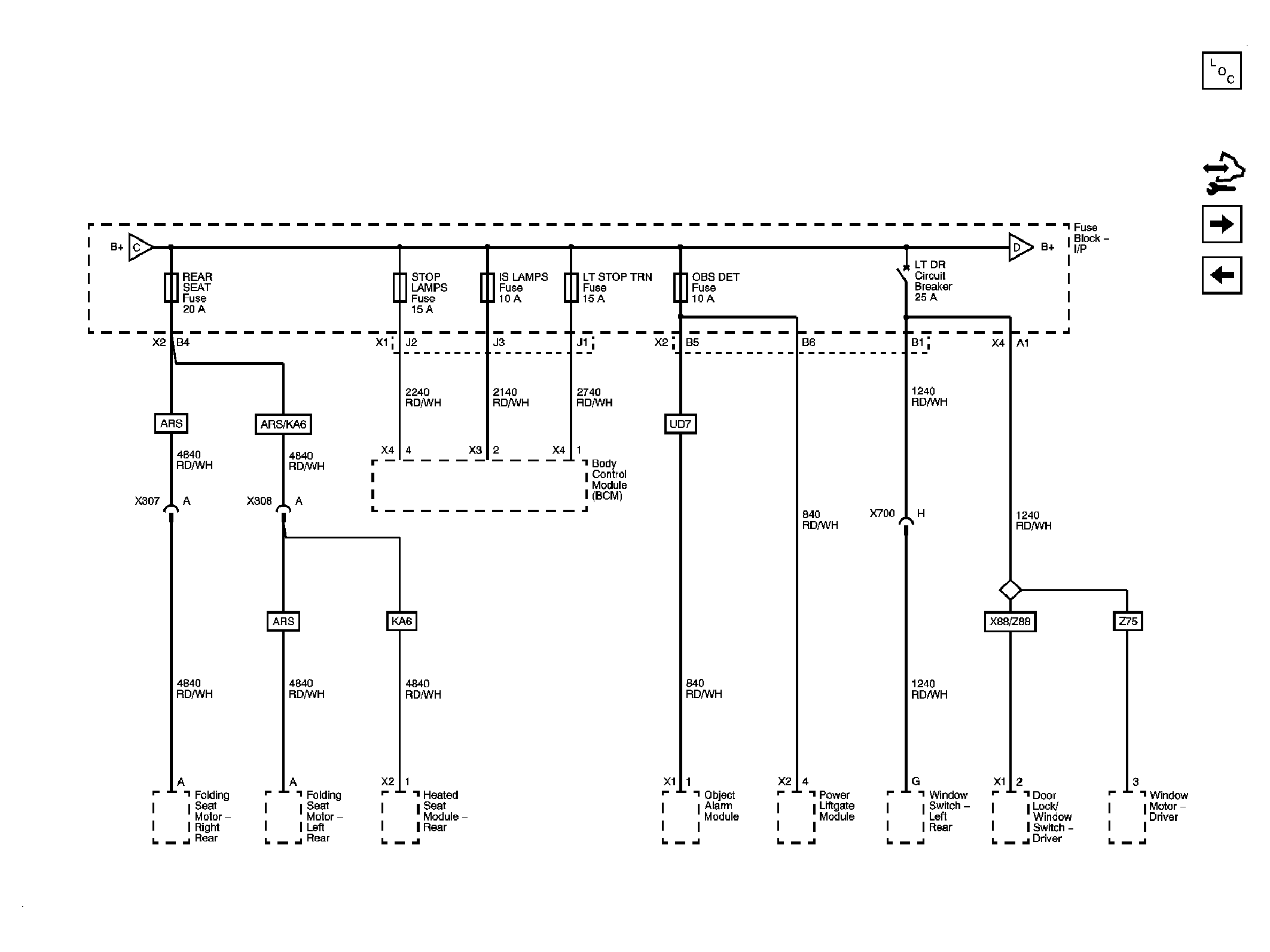

Fig 5: IS LAMPS, LT STOP TRN, OBS DET, REAR SEAT, and STOP LAMPS Fuses and LT DR Circuit Breaker
Courtesy of GENERAL MOTORS CORP.

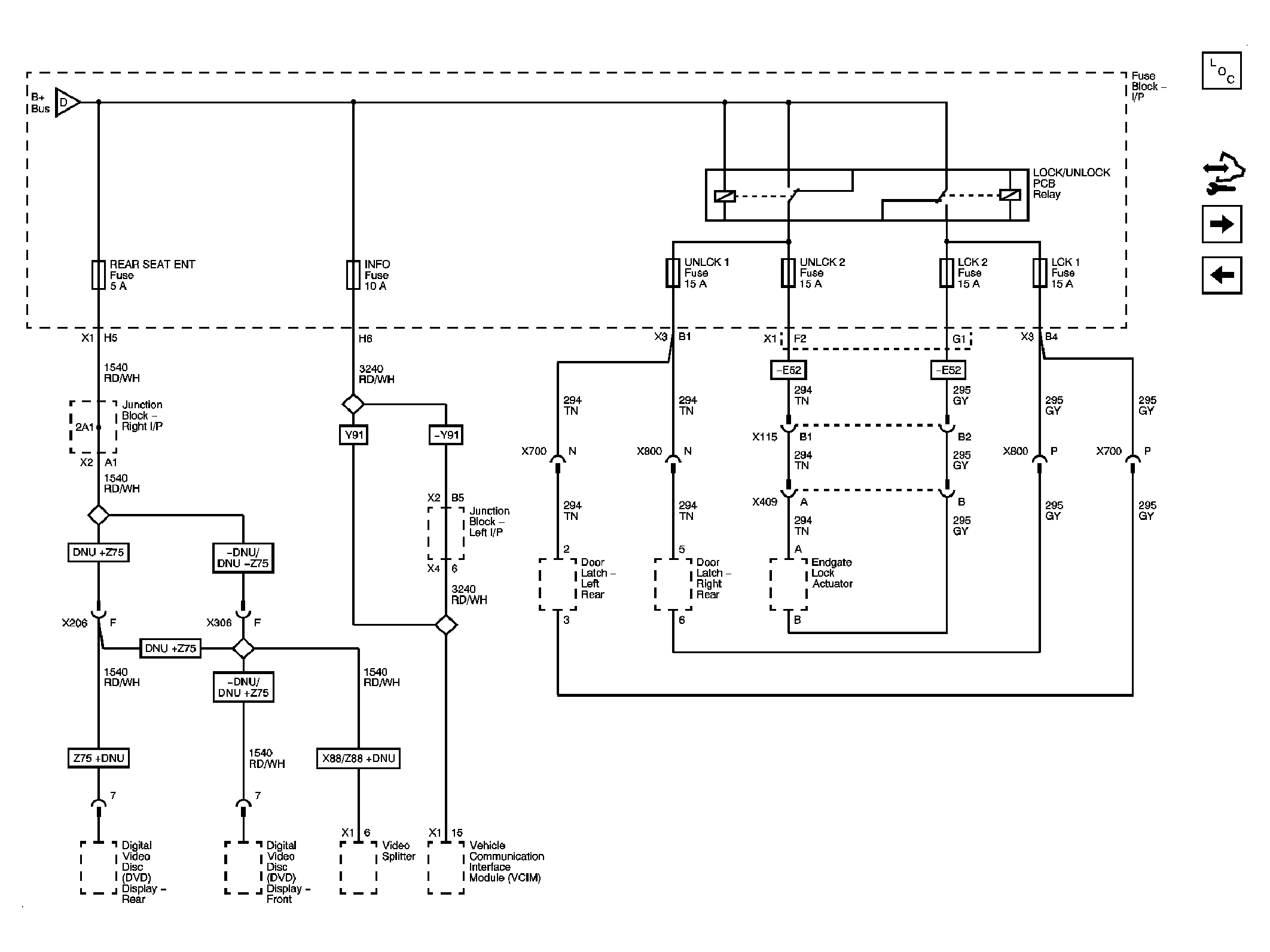

Fig 6: LCK 1, LCK 2, UNLCK 1, UNLCK 2, INFO and REAR SEAT ENT Fuses
Courtesy of GENERAL MOTORS CORP.

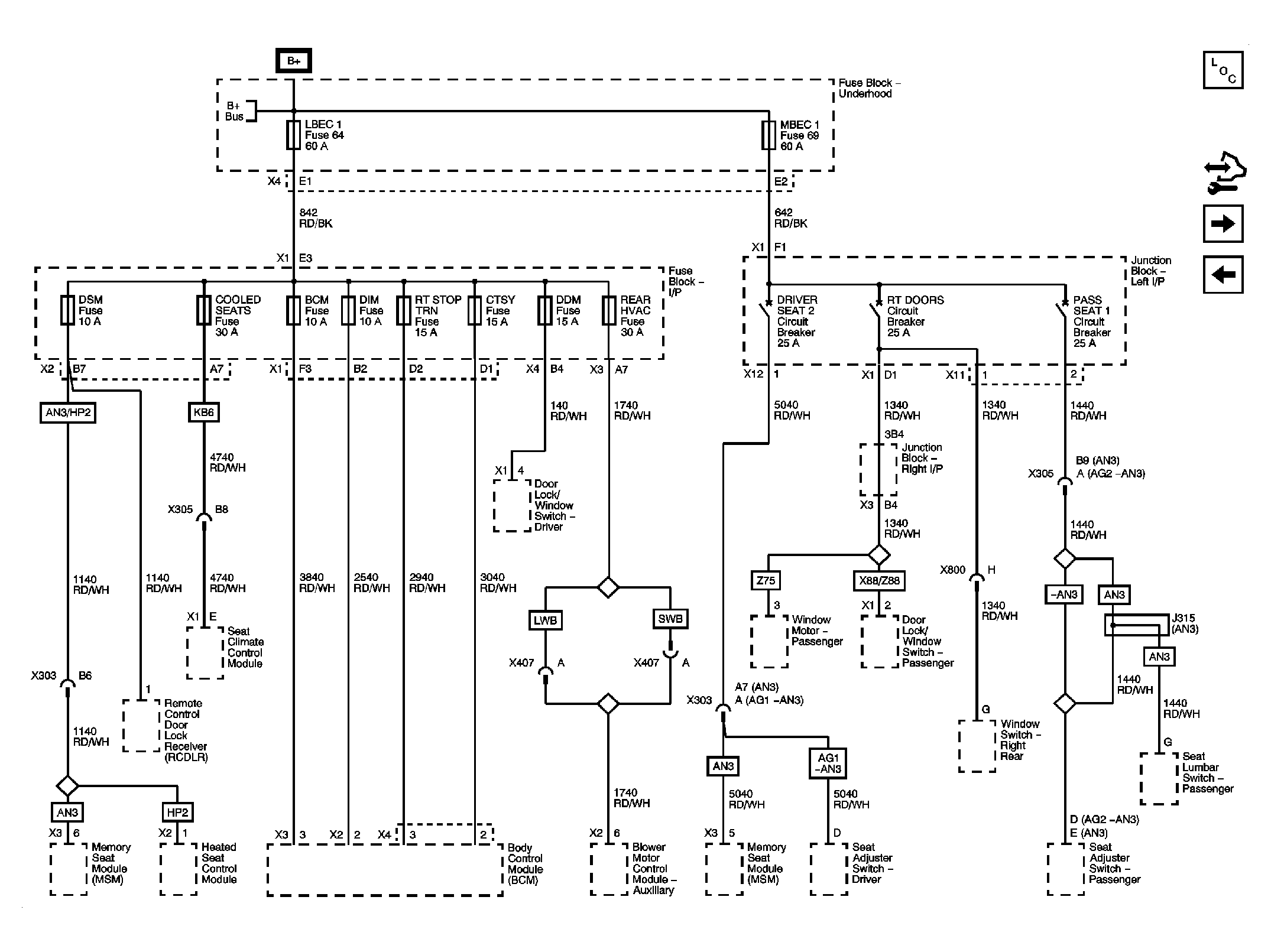

Fig 7: BCM, COOLED SEATS, CTSY, DDM, DIM, DSM, LBEC 2, MBEC 1, REAR HVAC, and RT STOP TRN Fuses and DRIVER SEAT 2, PASS SEAT 1, and RT DOORS Circuit Breakers
Courtesy of GENERAL MOTORS CORP.

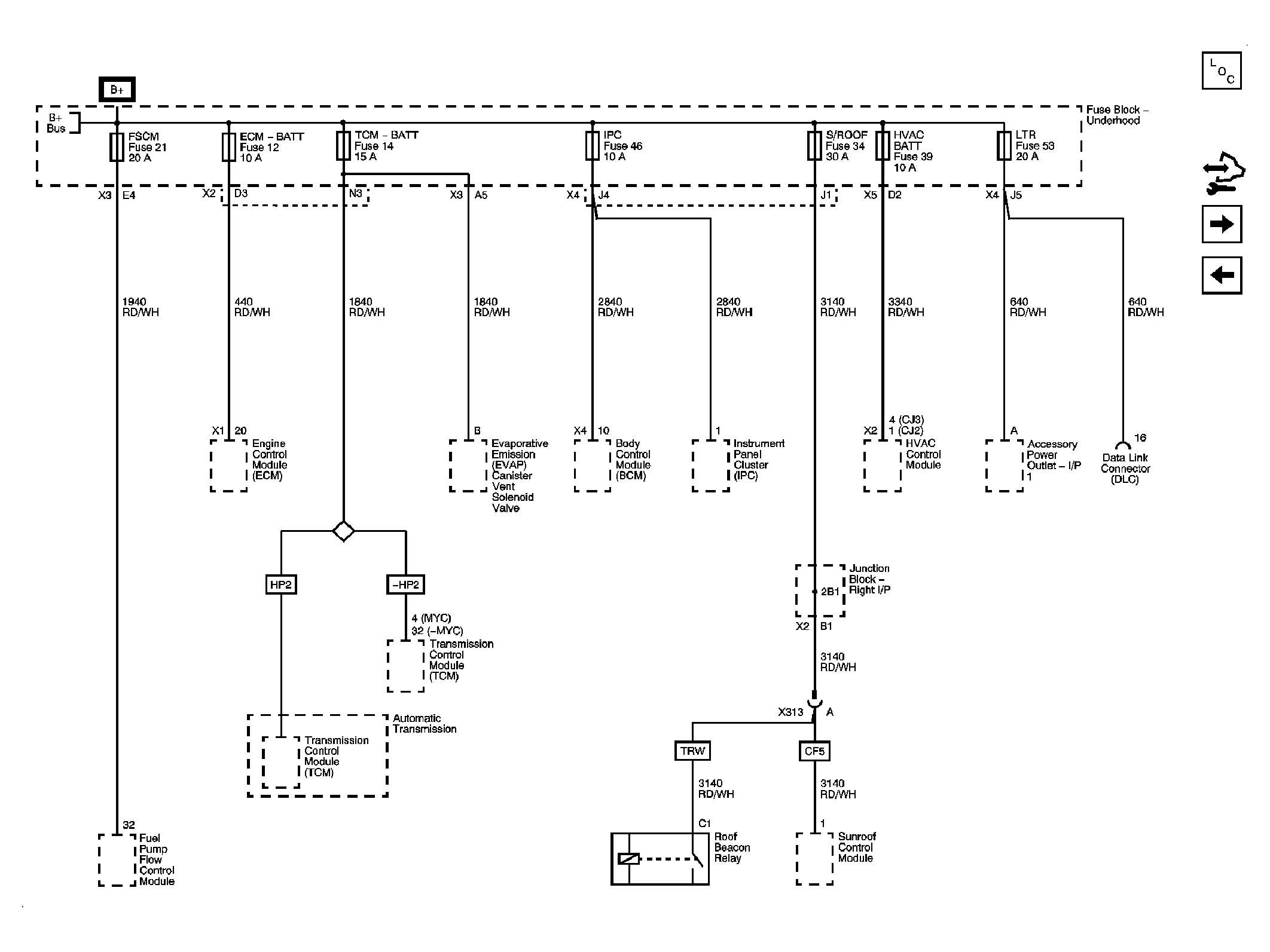

Fig 8: ECM-BATT, HEADLAMP WASH, HVAC BATT, IPC, LTR, S/ROOF, and TCM-BATT Fuses
Courtesy of GENERAL MOTORS CORP.
Fig 9: AMP, ELEC RUN BOARD, ESC/ALC EXH, EXP/BRK MDL and TREC Fuses
Courtesy of GENERAL MOTORS CORP.
Fig 10: RDO Fuse
Courtesy of GENERAL MOTORS CORP.

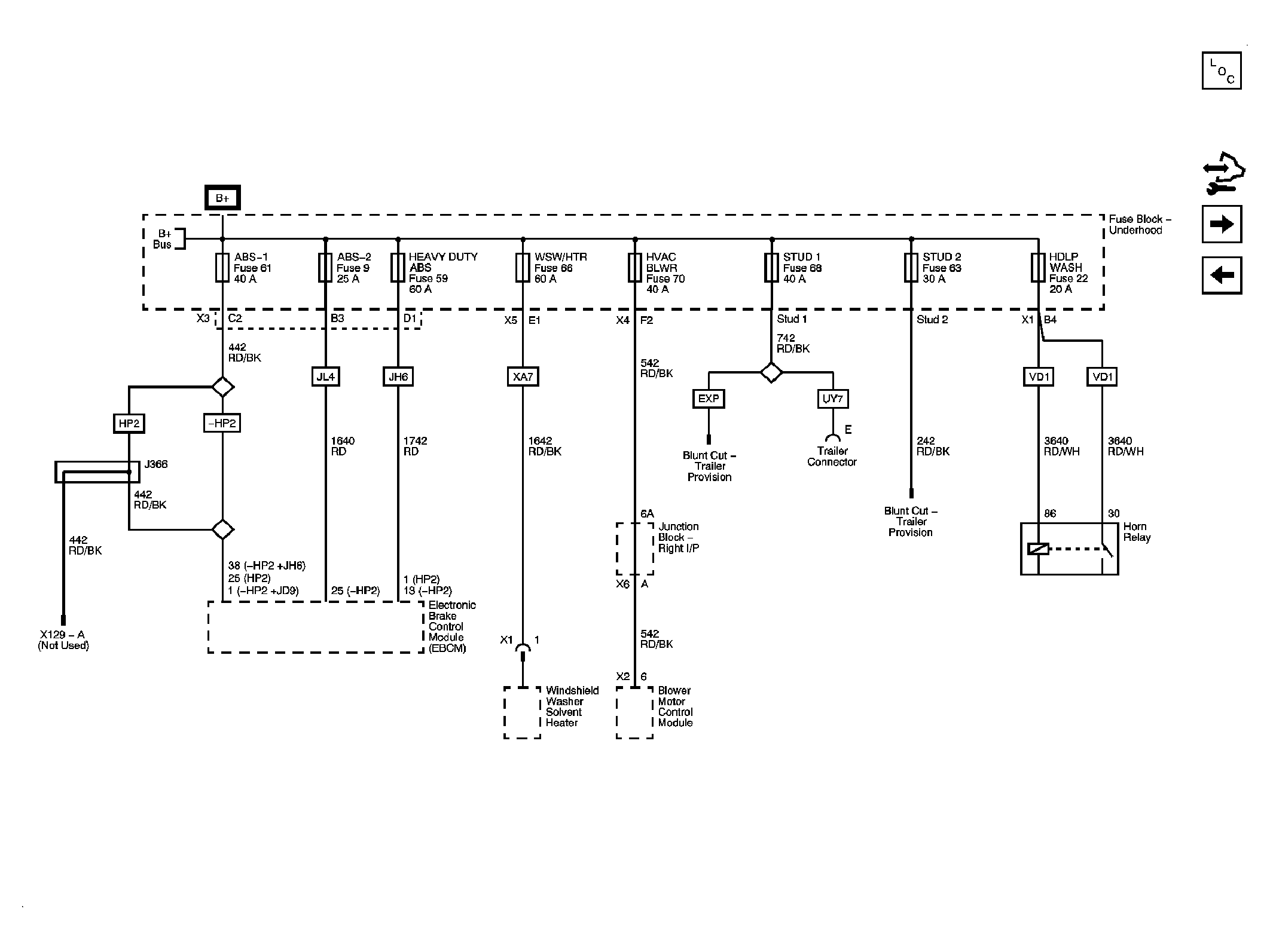

Fig 11: ABS-1, ABS 2, HEAVY DUTY ABS, HVAC BLWR, STUD 1, STUD 2, and WFHS Fuses
Courtesy of GENERAL MOTORS CORP.

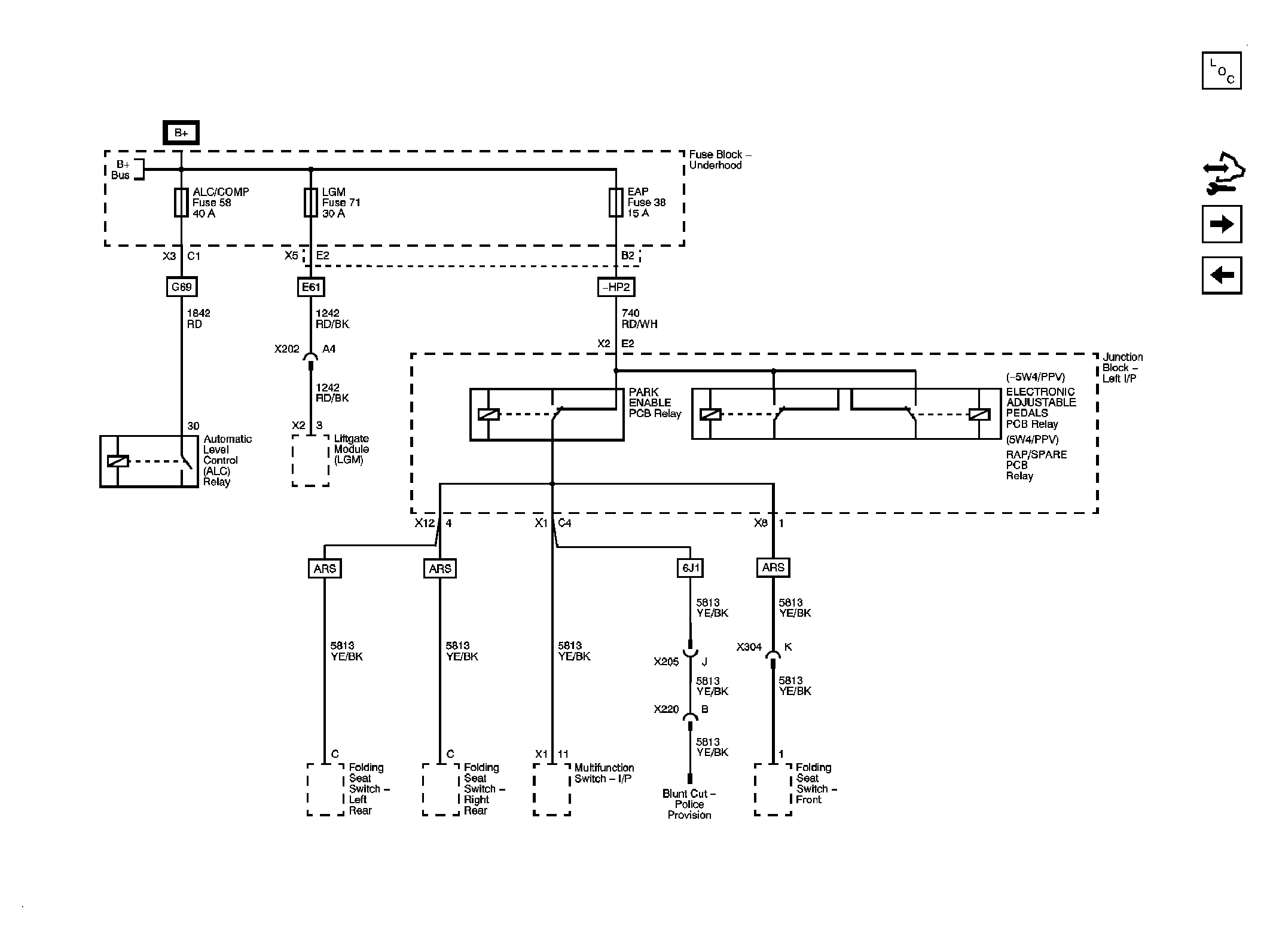

Fig 12: ALC/COMP, EAP, and LGM Fuses
Courtesy of GENERAL MOTORS CORP.

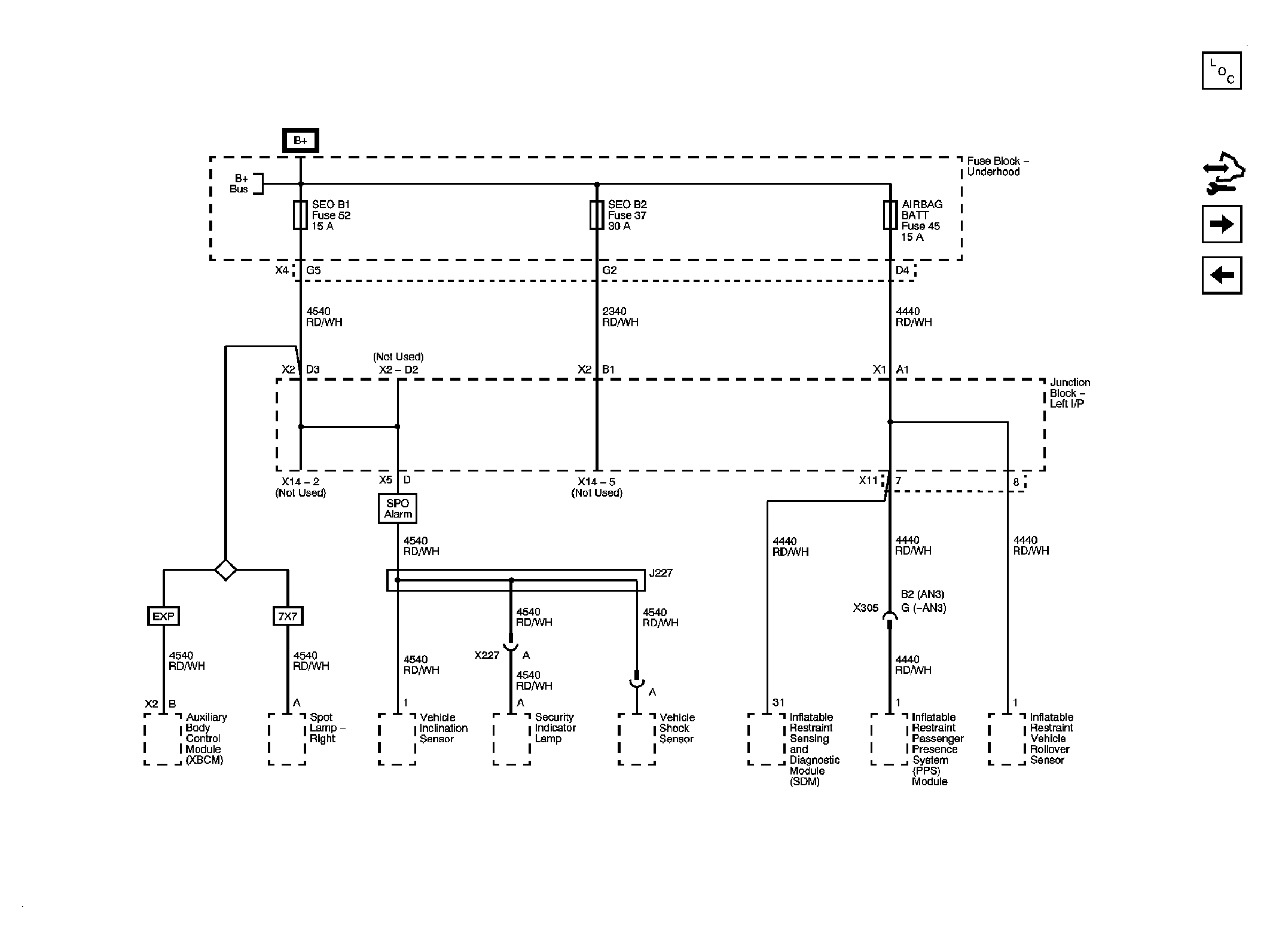

Fig 13: AIRBAG, SEO B1, and SEO B2 Fuses
Courtesy of GENERAL MOTORS CORP.

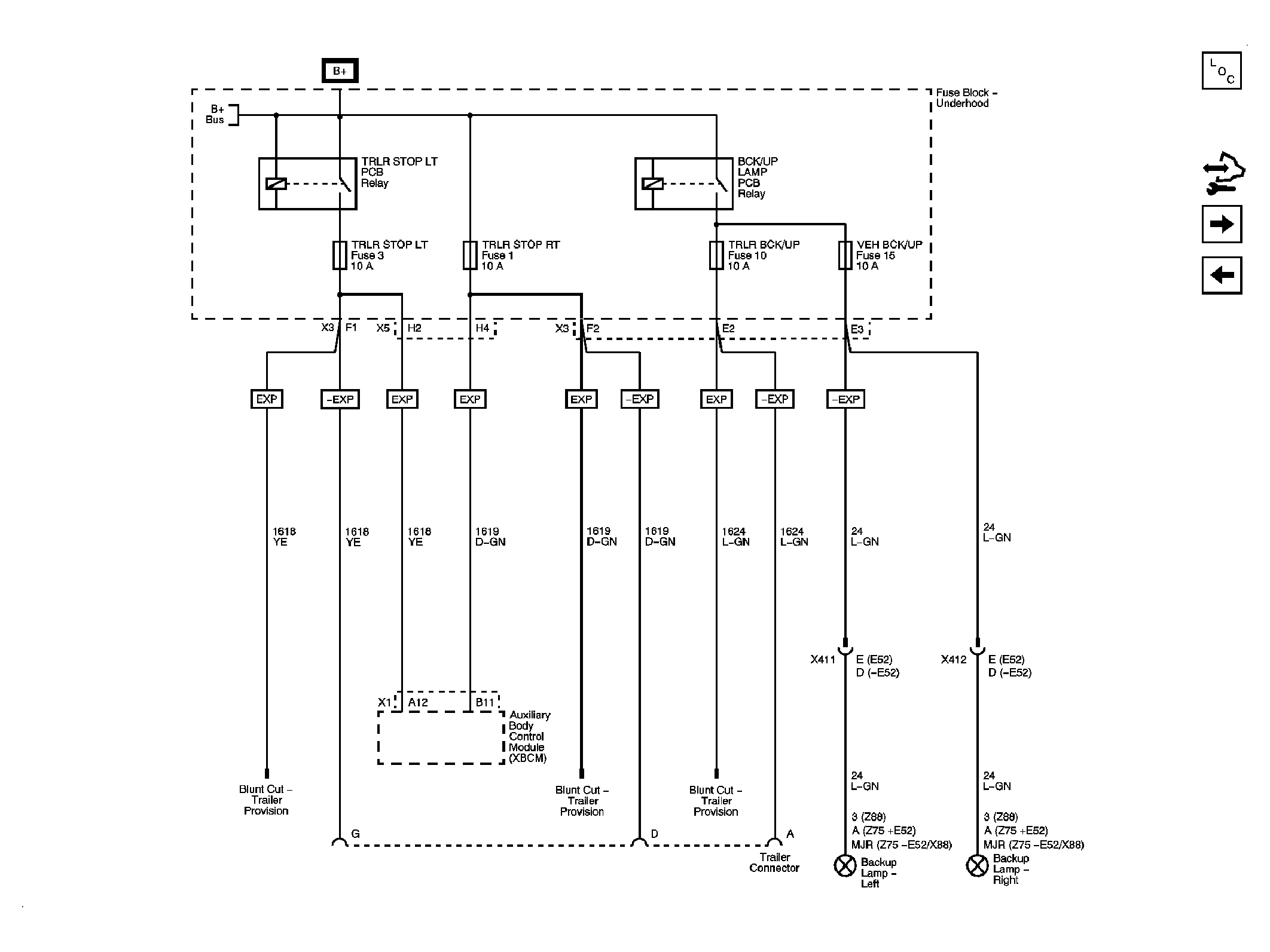

Fig 14: TRLR BCK/UP, TRLR STOP LT, TRAILER STOP RT, and VEH BCK/UP Fuses
Courtesy of GENERAL MOTORS CORP.

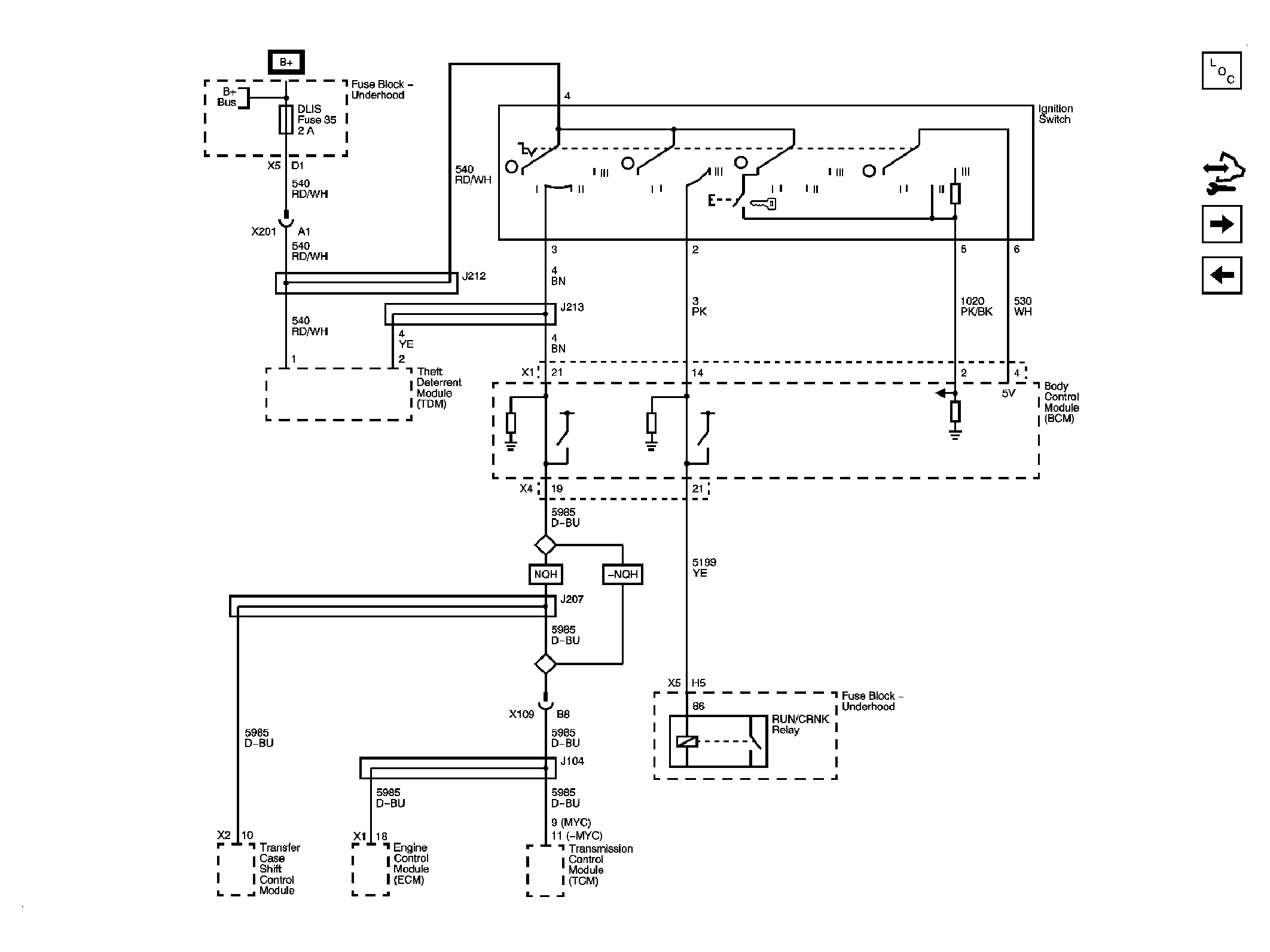

Fig 15: DLIS Fuse and Ignition Switch
Courtesy of GENERAL MOTORS CORP.

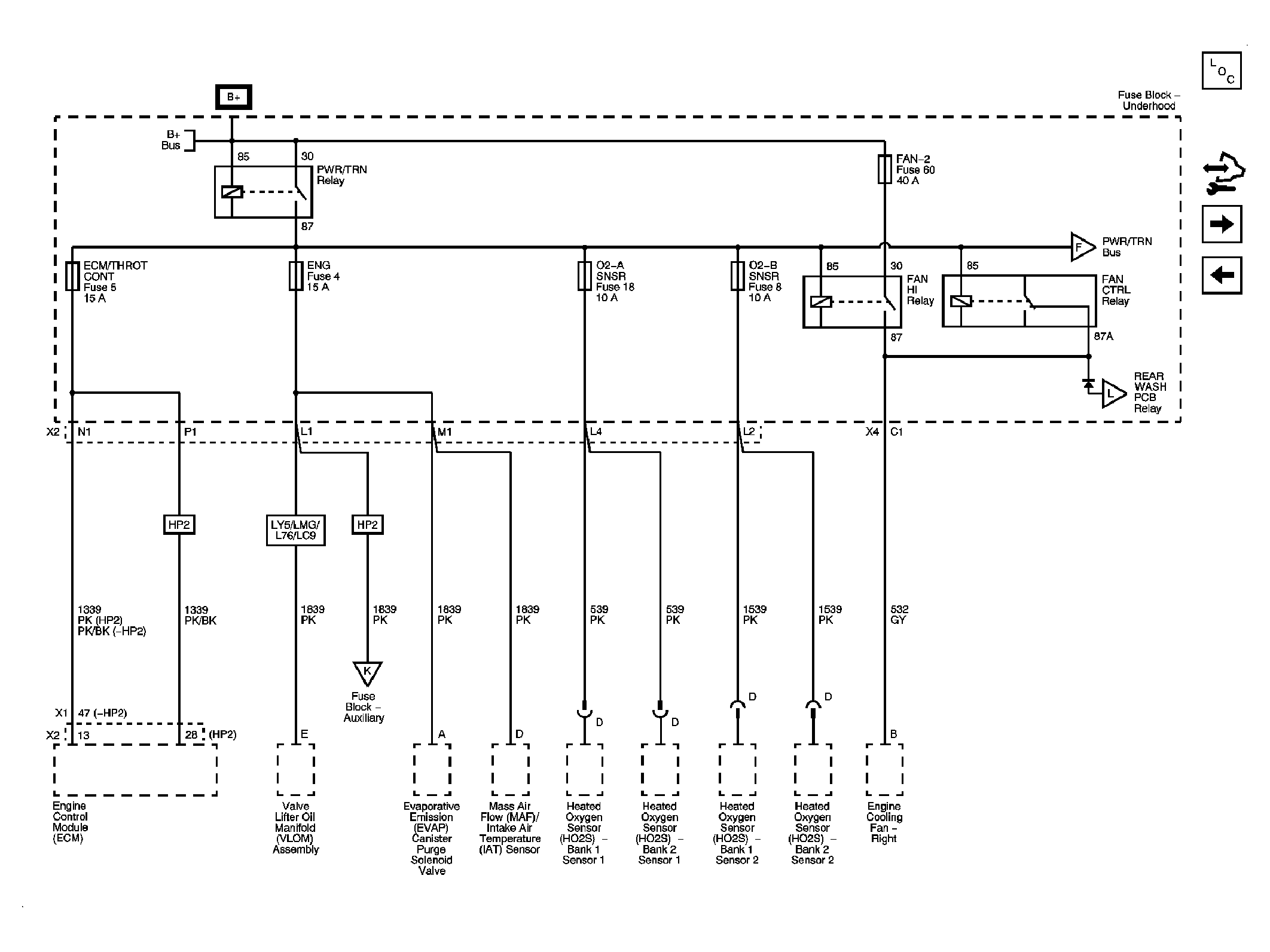

Fig 16: PWR/TRN Bus - ECM/THROT, ENG, O2-A SNSR and O2-B SNSR Fuses
Courtesy of GENERAL MOTORS CORP.

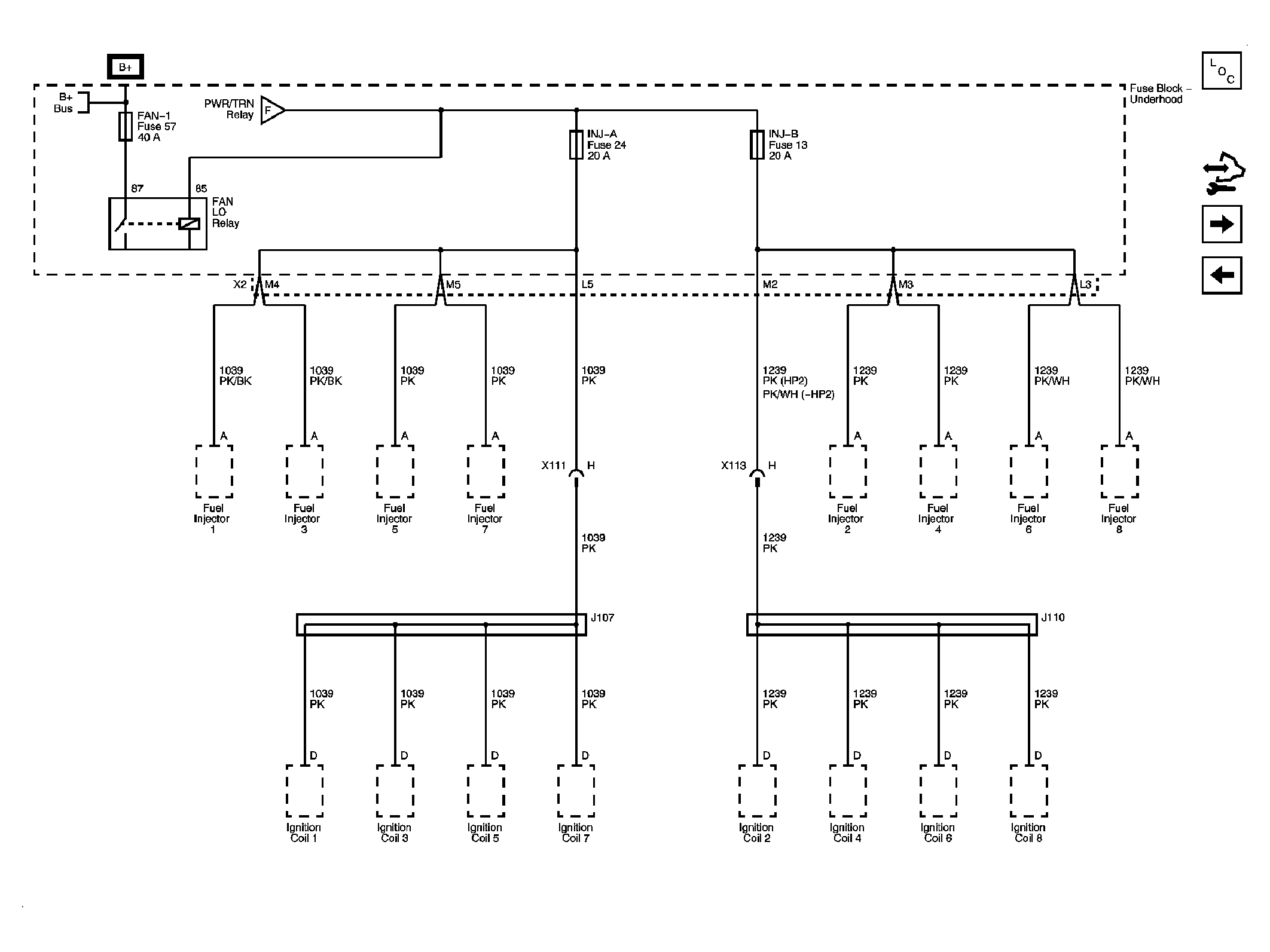

Fig 17: PWR/TRN Bus - INJ-A and INJ-B Fuses
Courtesy of GENERAL MOTORS CORP.

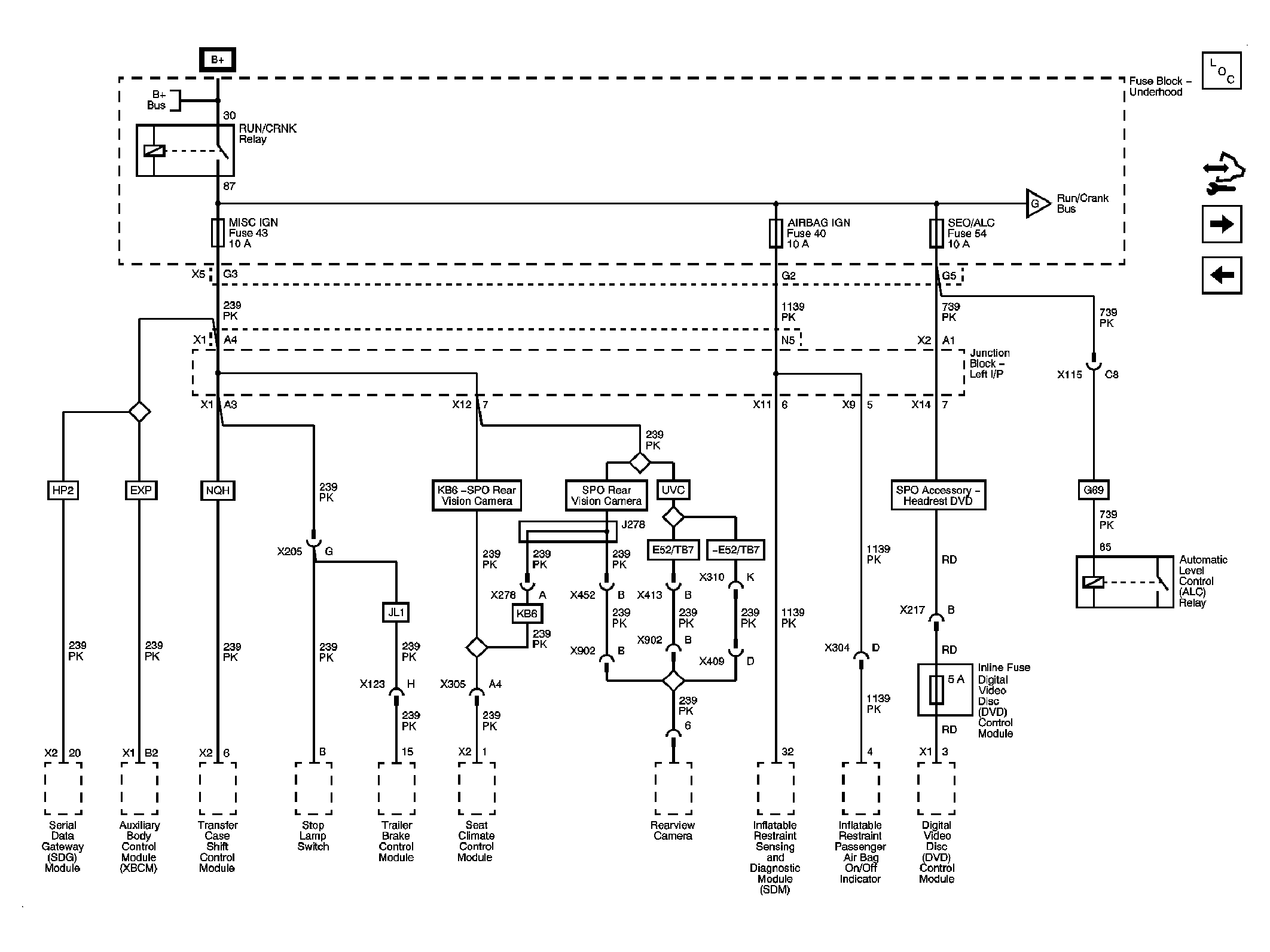

Fig 18: RUN/CRANK Bus - AIRBAG IGN, MISC IGN and SEO/ALC Fuses
Courtesy of GENERAL MOTORS CORP.

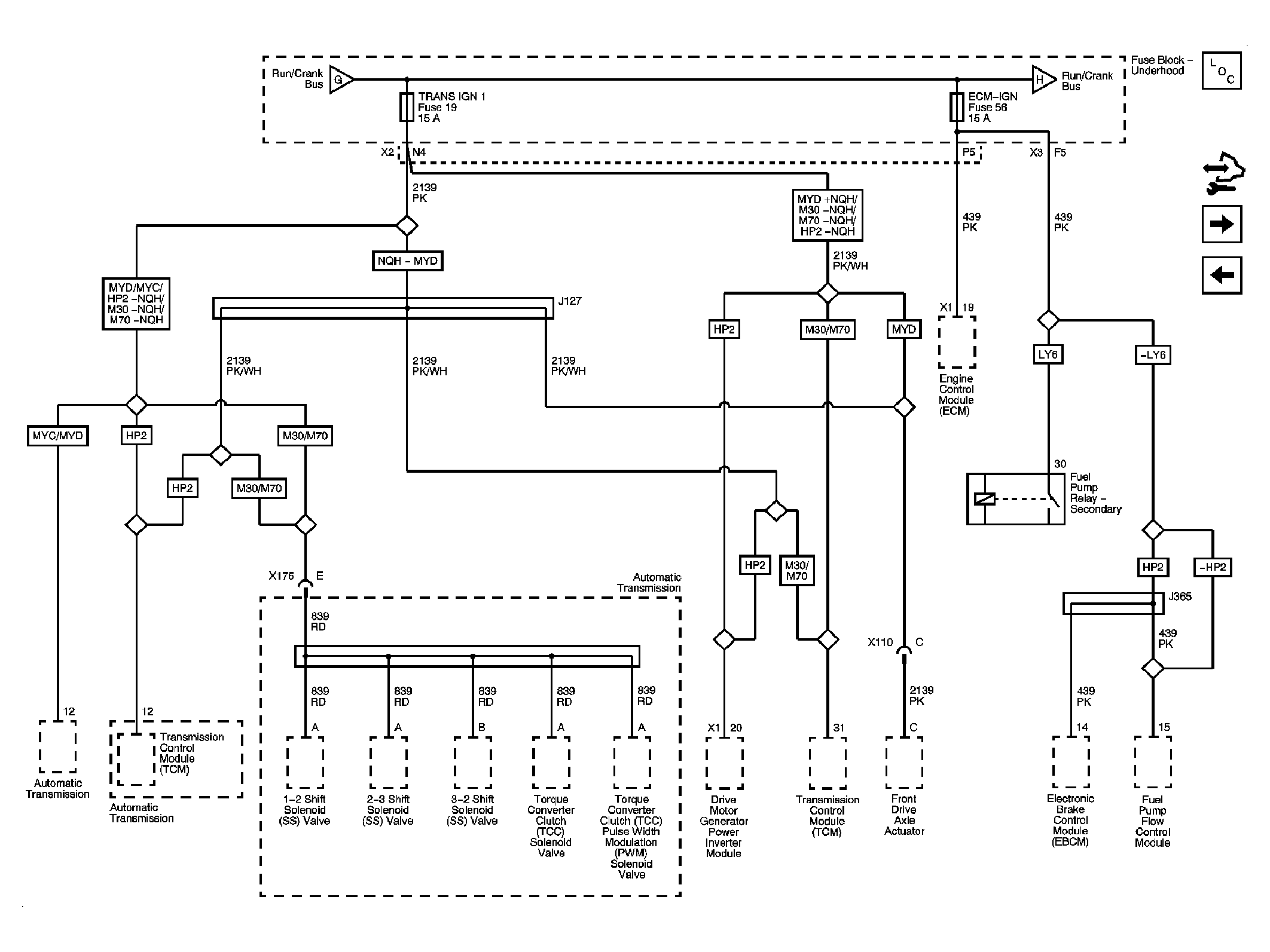

Fig 19: RUN/CRANK Bus - ECM-IGN and TRANS IGN 1 Fuses
Courtesy of GENERAL MOTORS CORP.

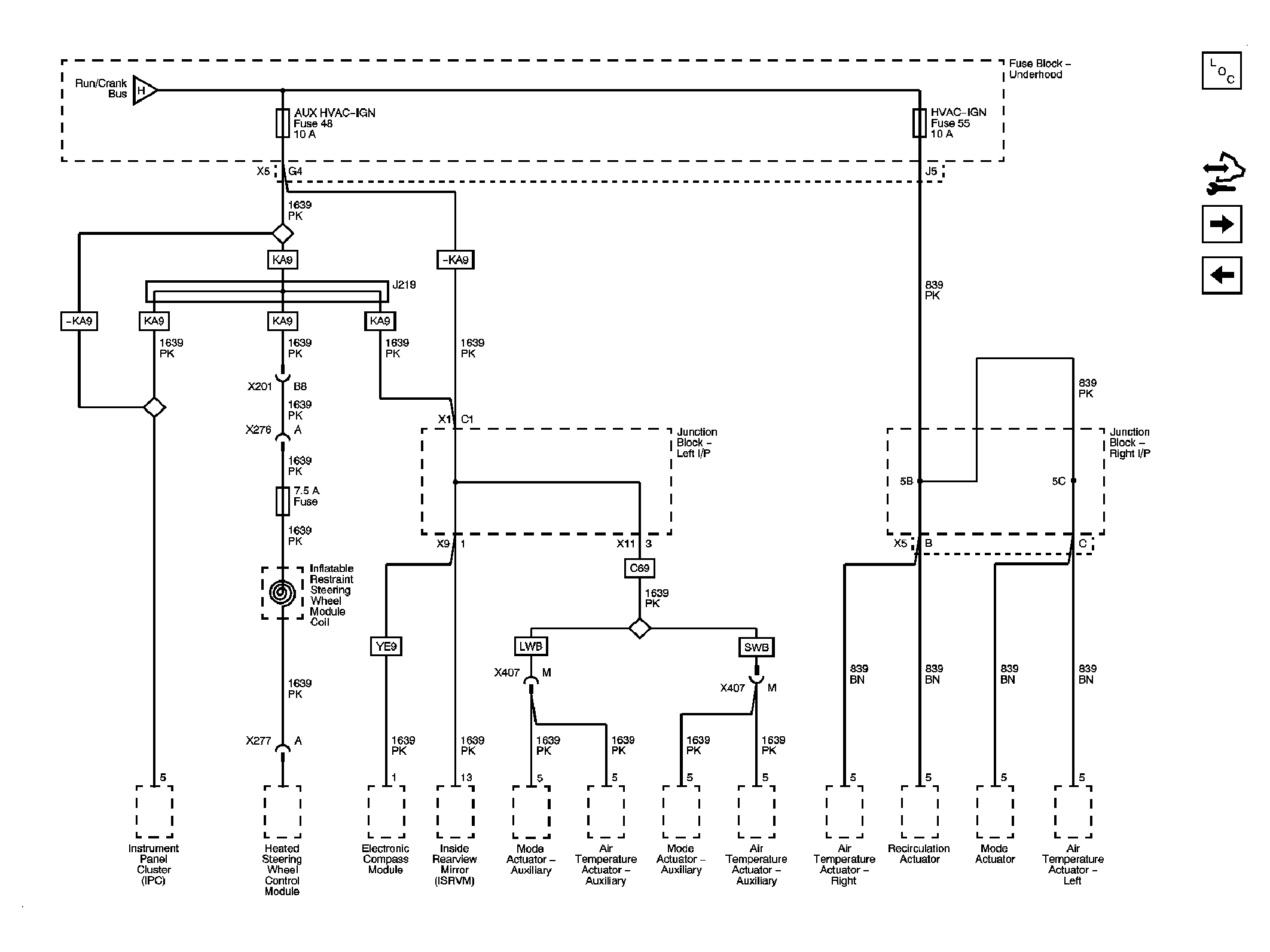

Fig 20: RUN/CRANK Bus - AUX HVAC-IGN and HVAC-IGN Fuses
Courtesy of GENERAL MOTORS CORP.

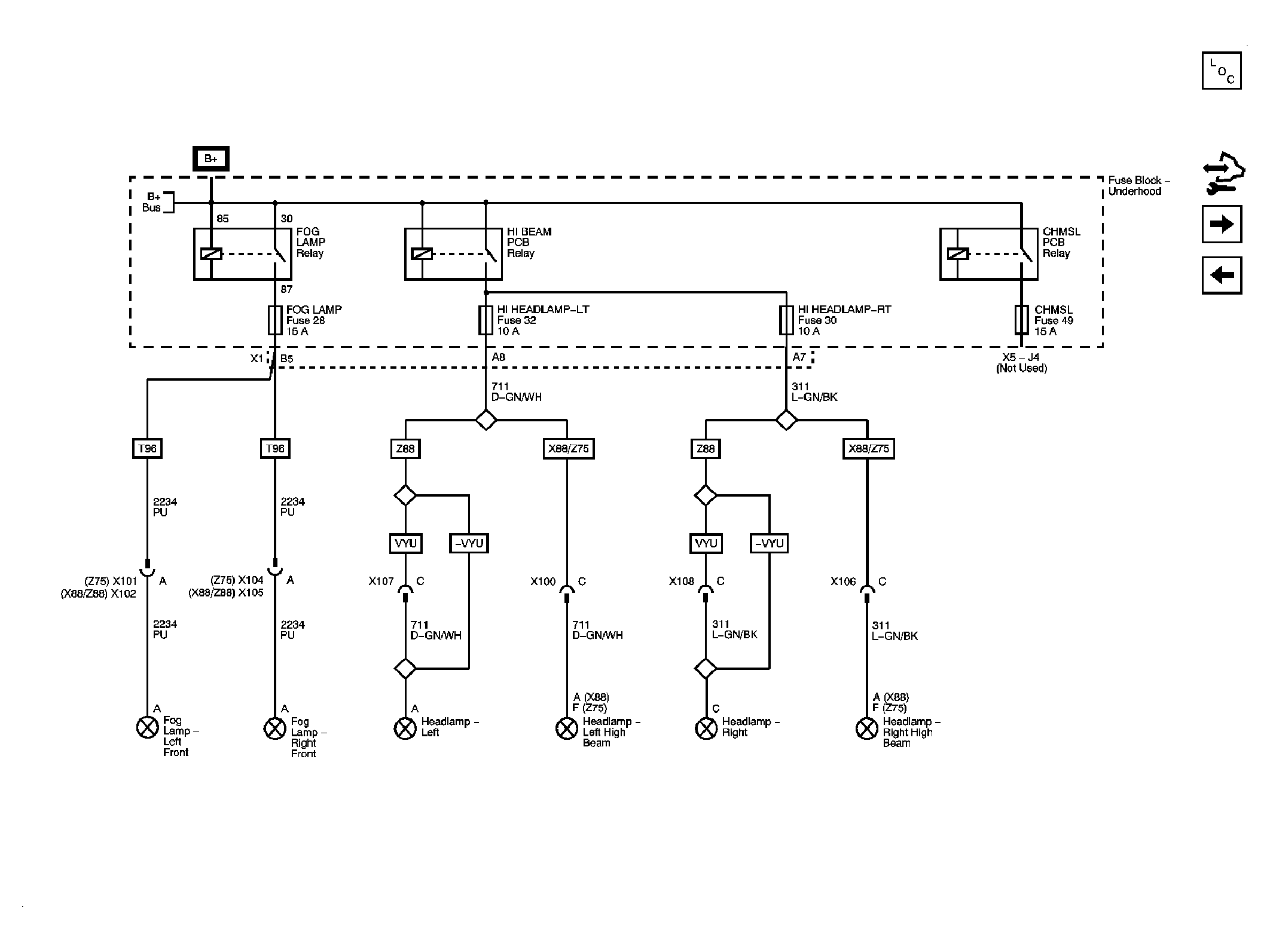

Fig 21: FOG LAMP, HI HEADLAMP-LT and HI HEADLAMP-RT Fuses
Courtesy of GENERAL MOTORS CORP.

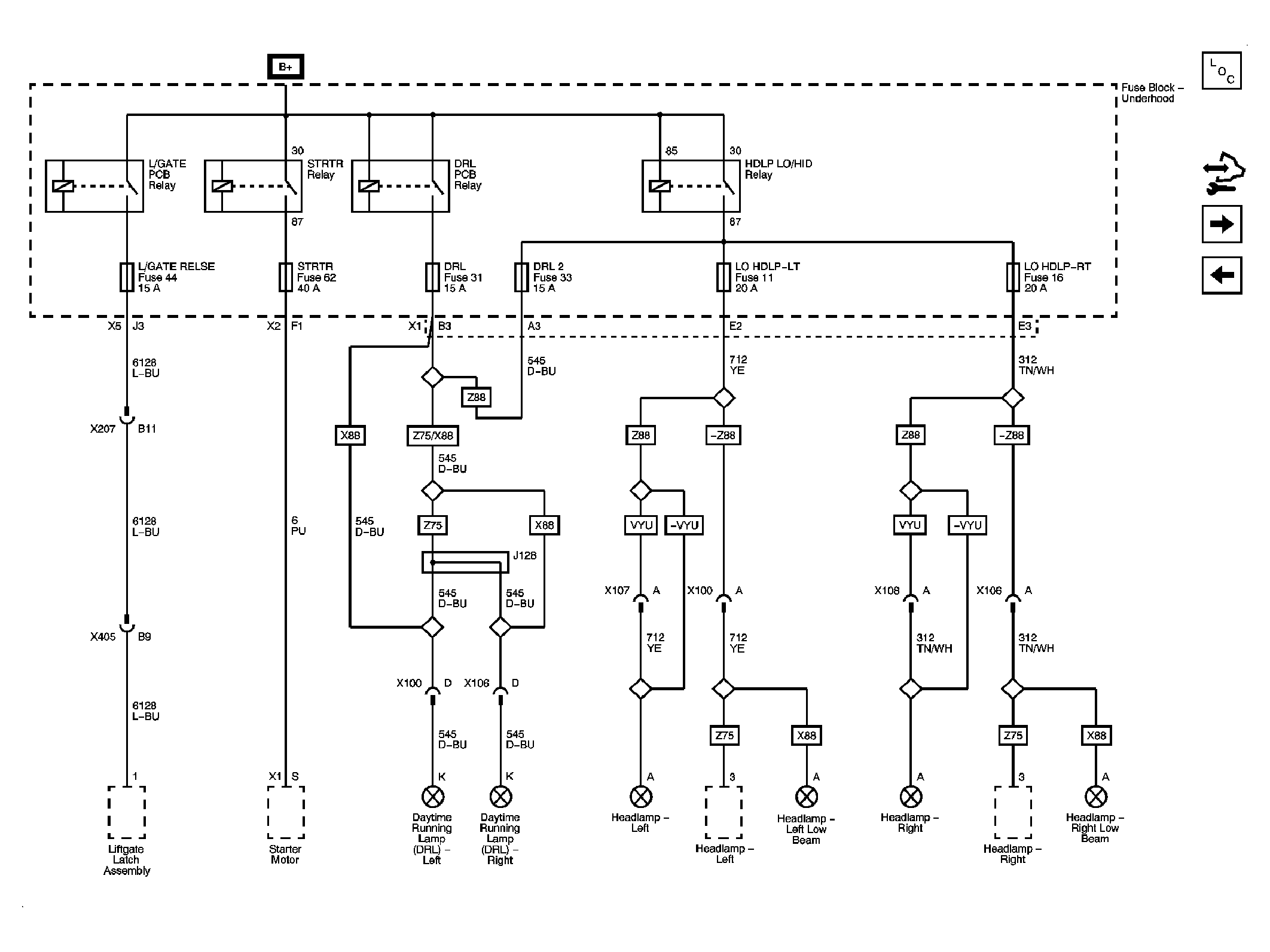

Fig 22: DRL, DRL 2, LO HDLP-LT, LO HDLP-RT, and STRTR Fuses
Courtesy of GENERAL MOTORS CORP.

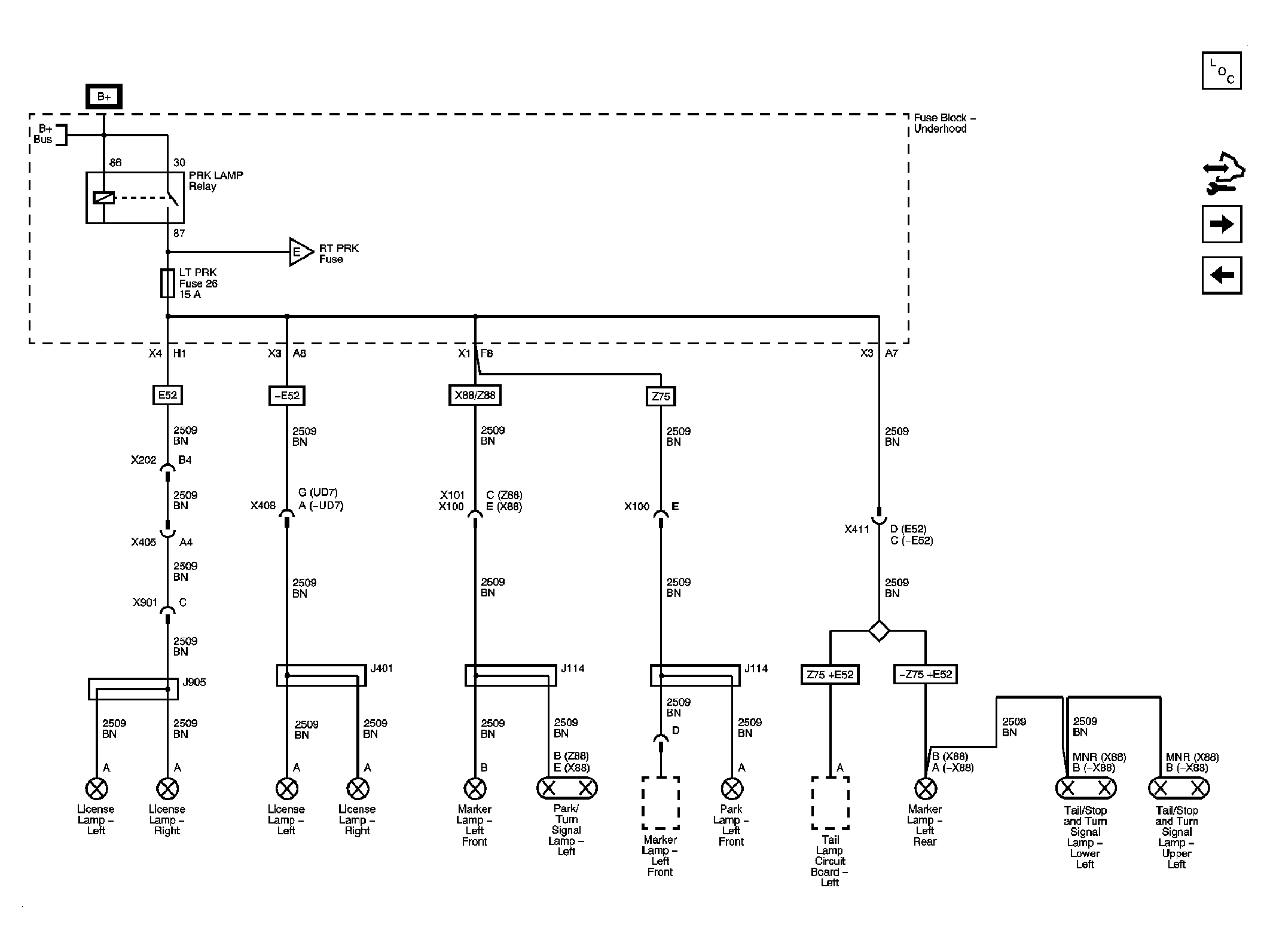

Fig 23: LT PRK Fuse
Courtesy of GENERAL MOTORS CORP.

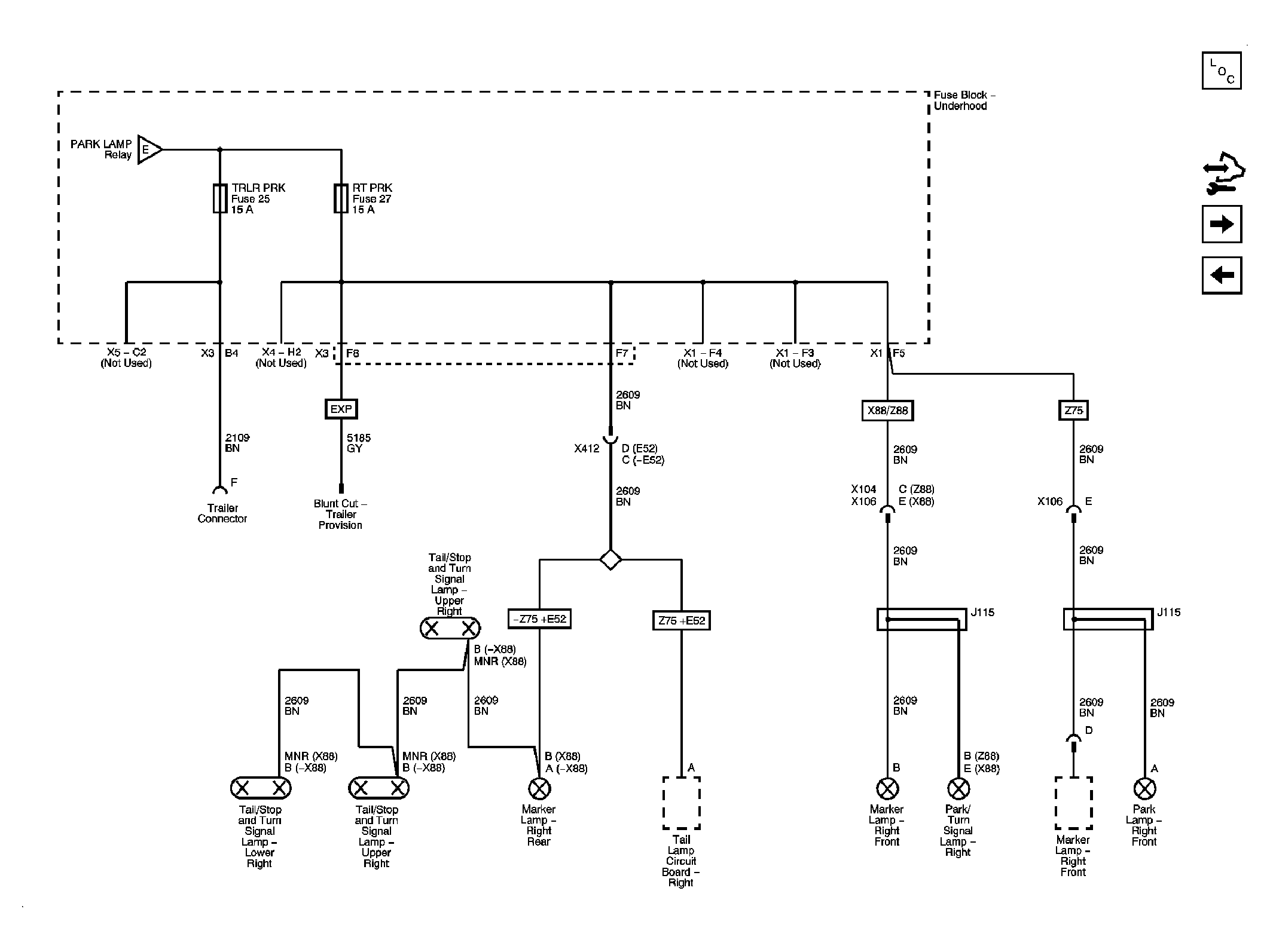

Fig 24: RT PRK AND TRLR PRK Fuses
Courtesy of GENERAL MOTORS CORP.

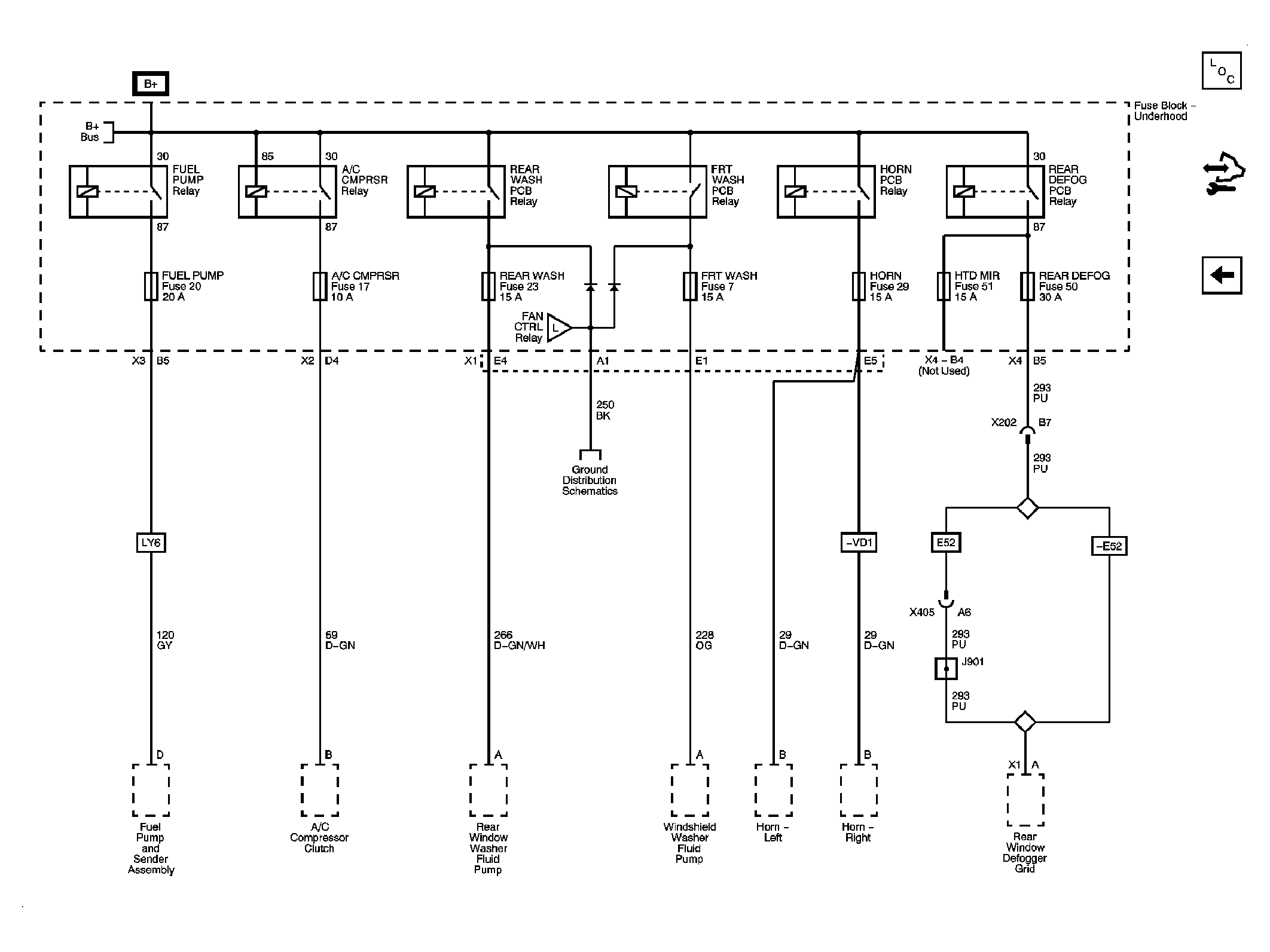

Fig 25: A/C CMPRSR, FRT WASH, FUEL PUMP, HORN, REAR DEFOG, and REAR WASH Fuses
Courtesy of GENERAL MOTORS CORP.

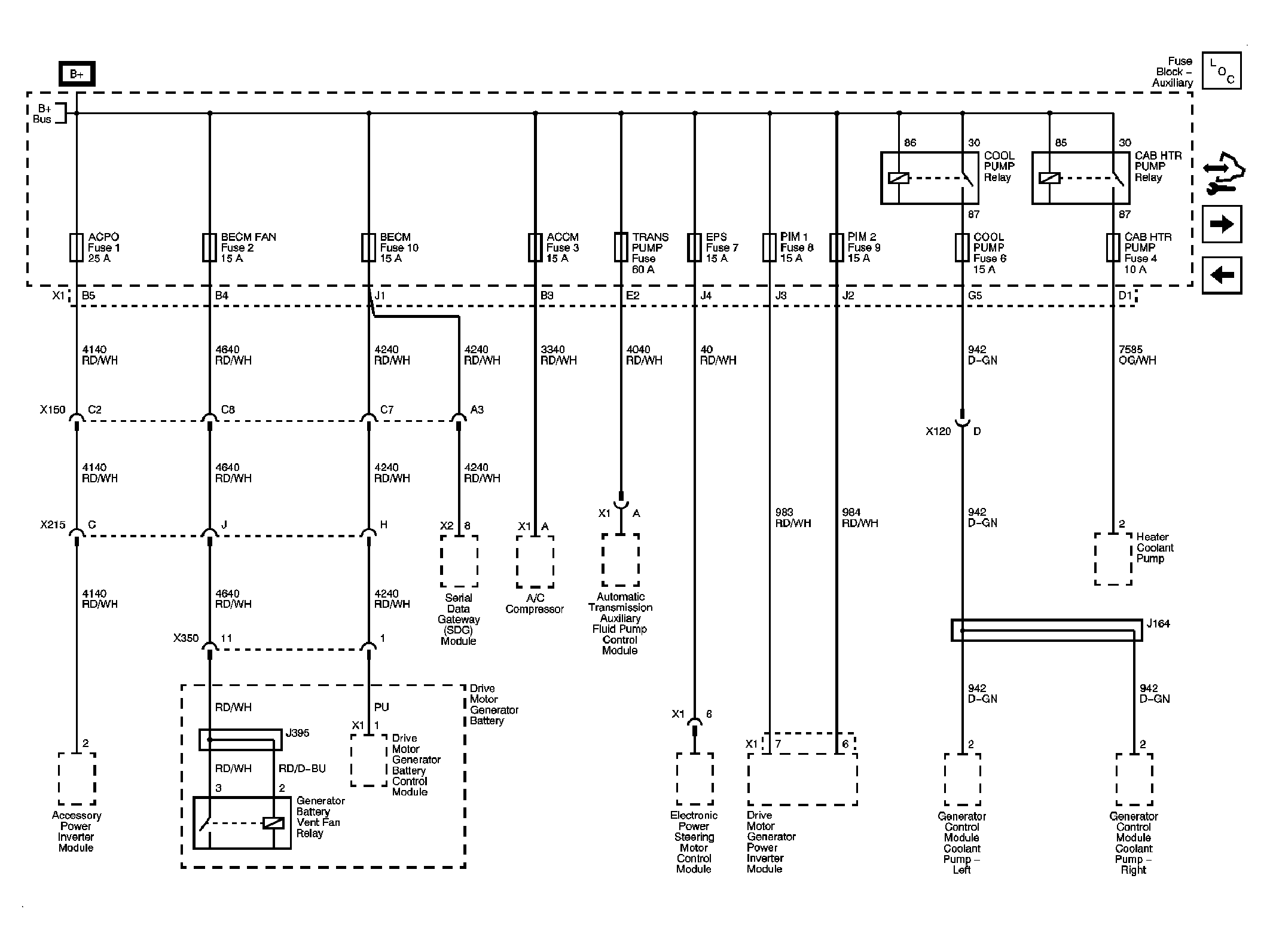

Fig 26: Fuse Block - Auxiliary B+ Bus
Courtesy of GENERAL MOTORS CORP.
Fig 27: ACCM, ACPO, BECM, BECM FAN, CAB HTR PUMP, COOL PUMP, EPS, PIM 1 and PIM 2 Fuses
Courtesy of GENERAL MOTORS CORP.

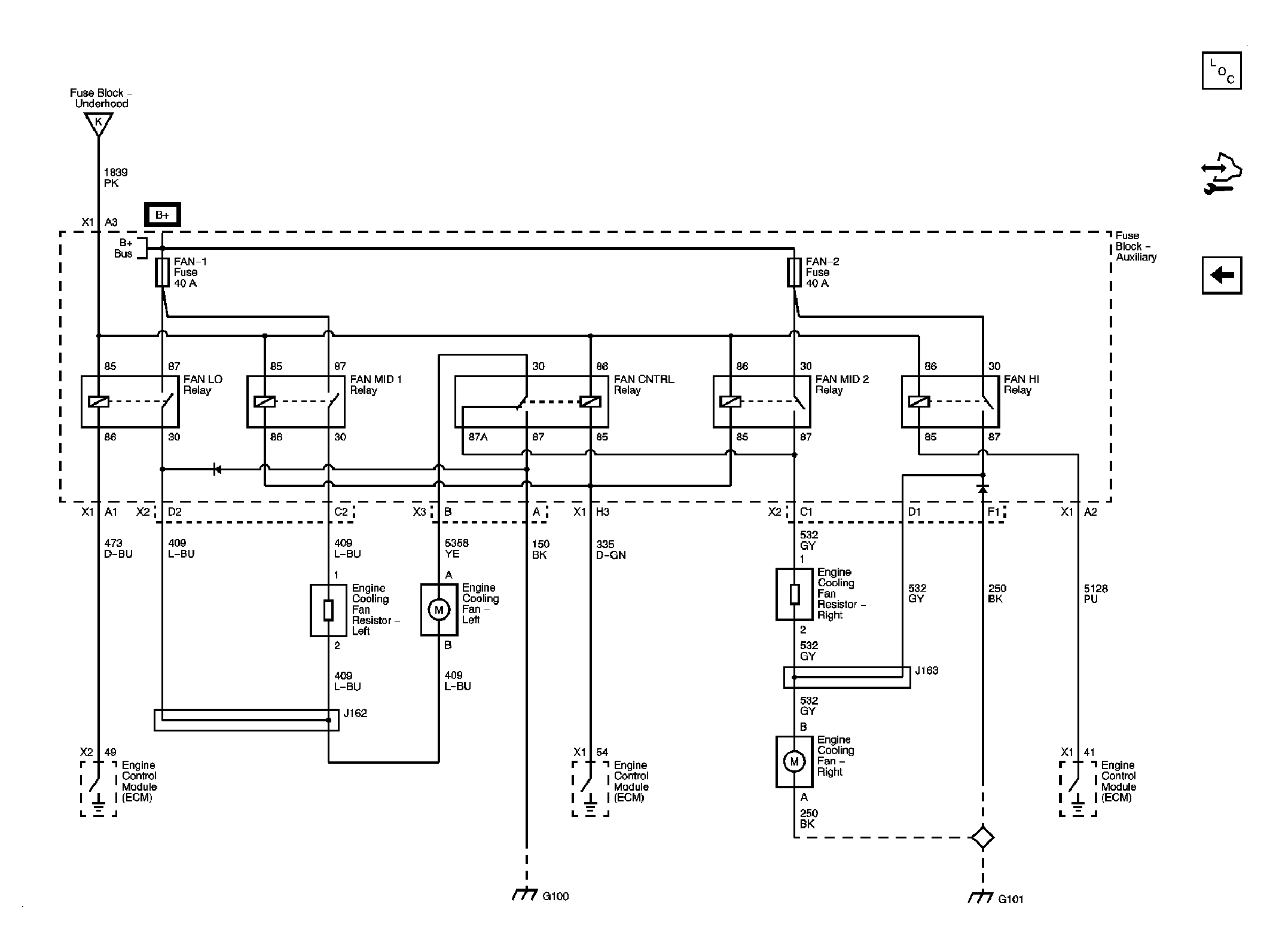

Fig 28: FAN 1 and FAN 2 Fuses
Courtesy of GENERAL MOTORS CORP.
