Map Light




Component Connector End Views

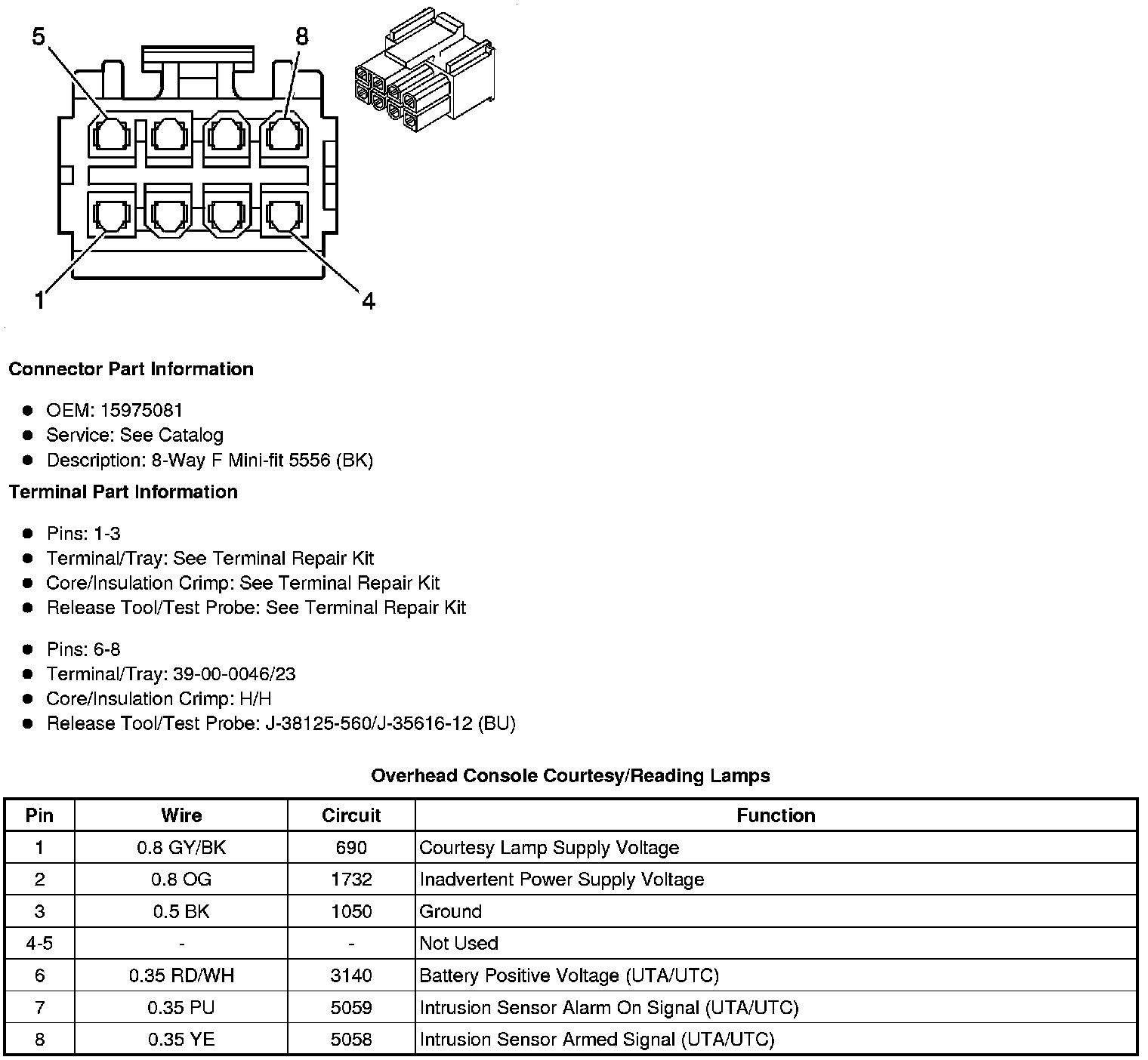

Overhead Console Courtesy/Reading Lamps






Courtesy/Reading Lamps - 2nd Row






Courtesy/Reading Lamps - 3rd Row
