Oxygen Sensor: Diagrams




Component Connector End Views

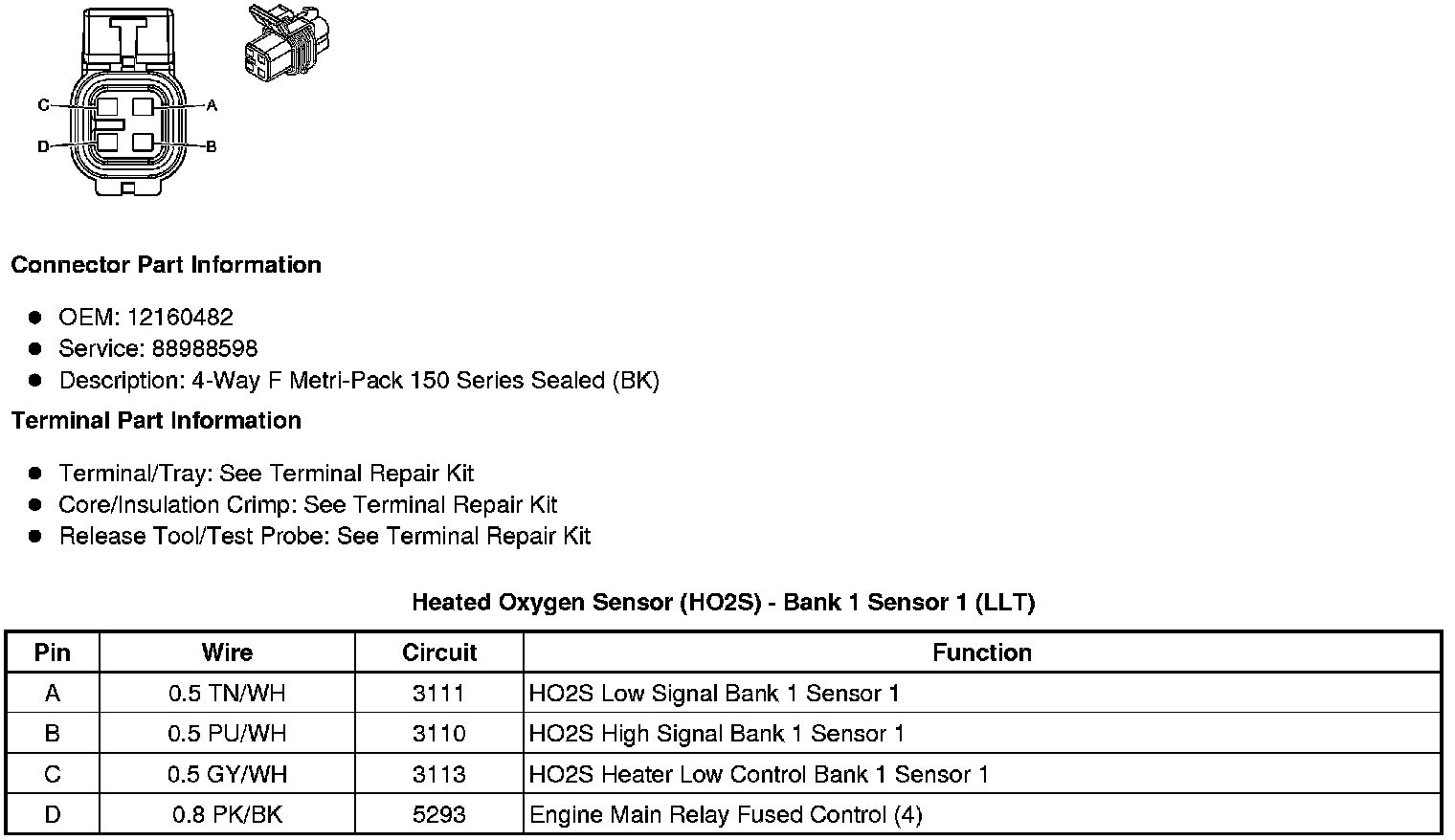

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LLT)

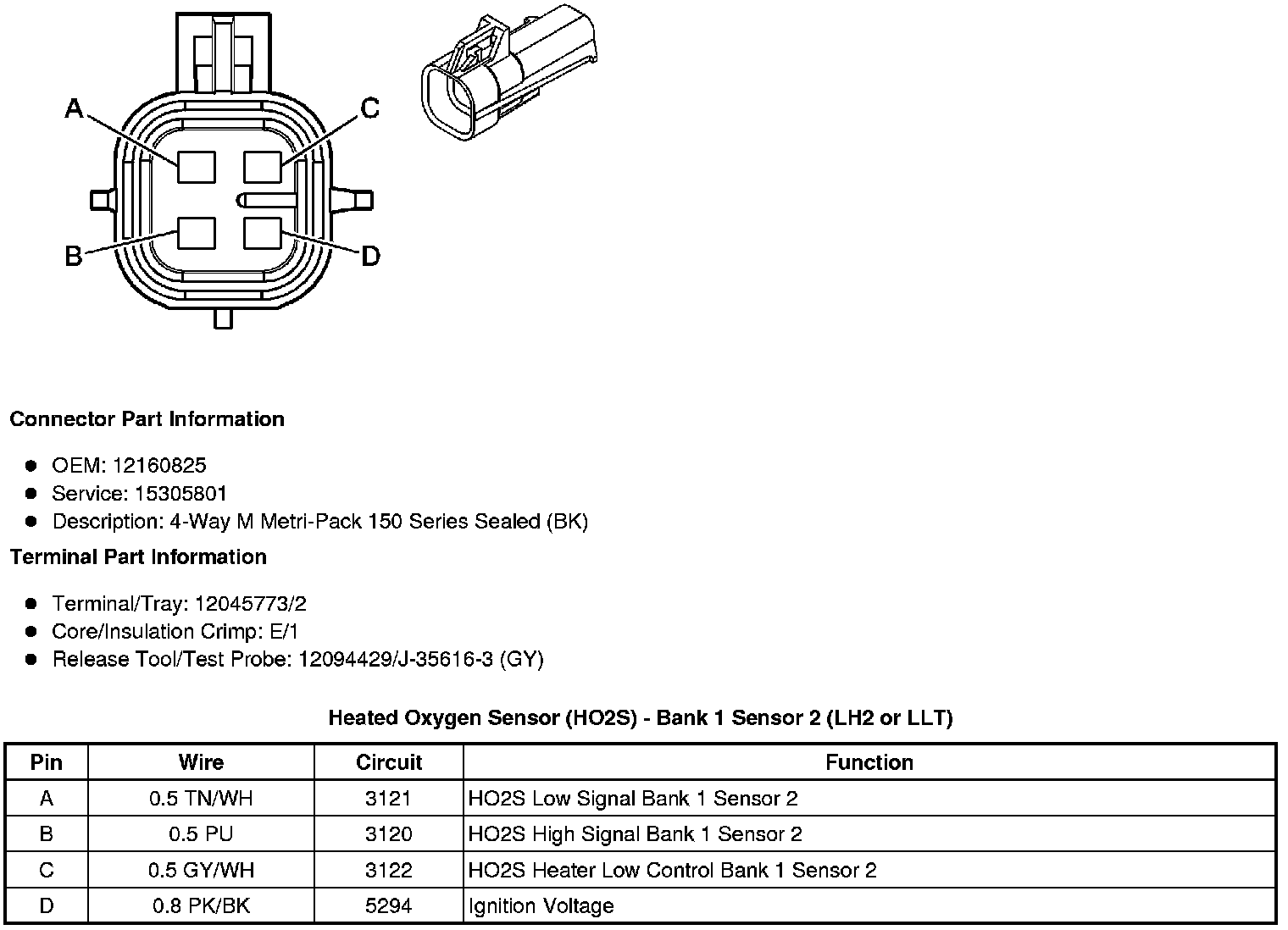

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LH2 or LLT)

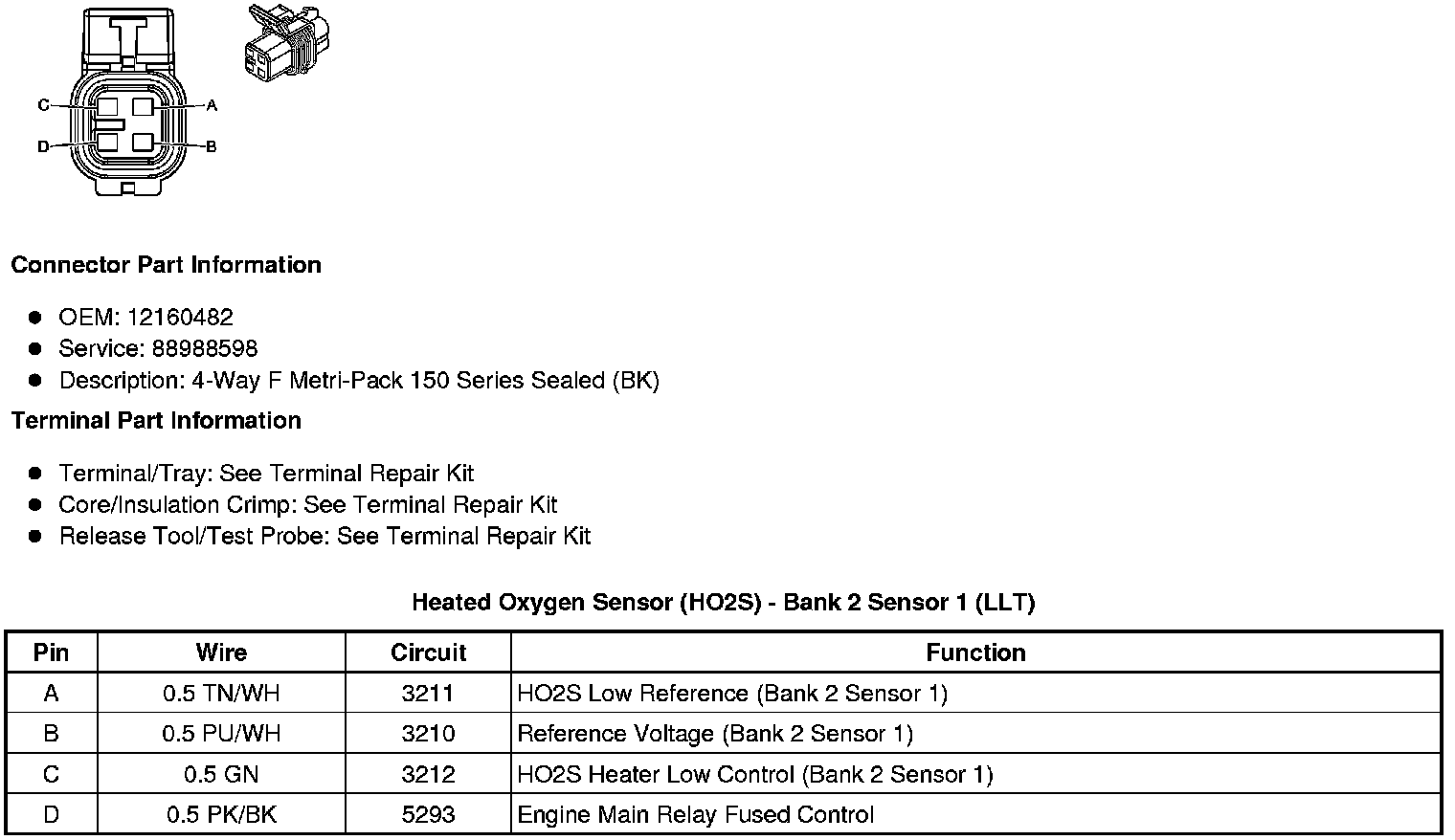

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LLT)

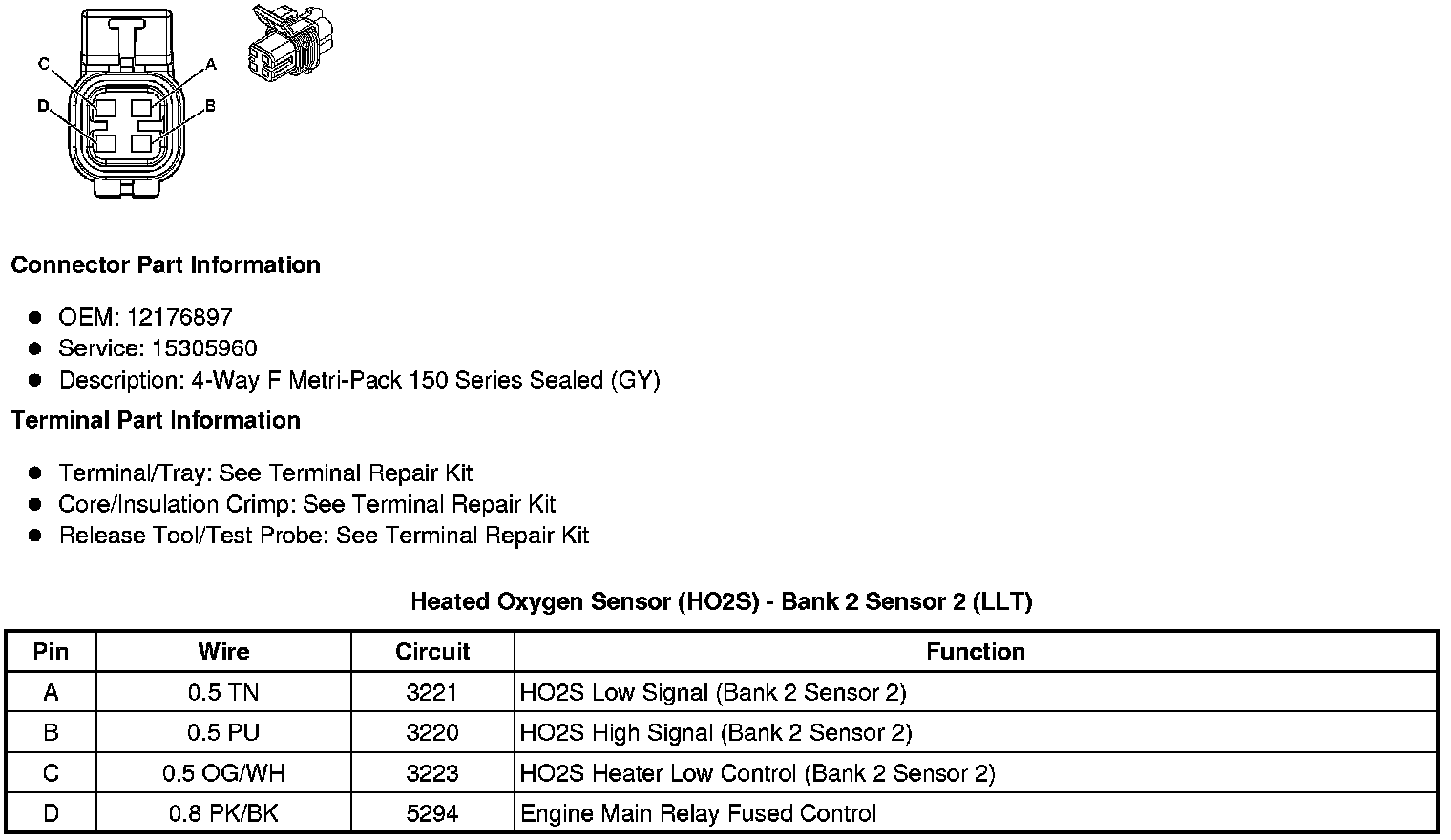

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LLT)
