Power Outlet Component Views

WARNING: This page is about a different car, the 2007 Cadillac STS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster
4	Windshield Wiper/Washer Switch
5	Inside Air Temperature Sensor
6	Sunload/Ambient Light Sensor
7	Speaker - Front Midrange (U57)
8	Hazard Switch
9	Radio
10	CD Player
11	HVAC Control Module - Climate Control - Right
12	Heated Seat Switch - Passenger (KA1)
13	Cigar Lighter
14	Heated Seat Switch - Driver (KA1)
15	HVAC Control Module - Climate Control - Left
16	Steering Wheel Controls - Left
17	Hood Release Lever

Fig 2: Rear Of Center Console Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Video Display (U42)
2	DVD Player (U42)
3	Auxilary Power Outlet - Center Console 2 (U42)
4	Auxiliary Power Outlet - Center Console 1

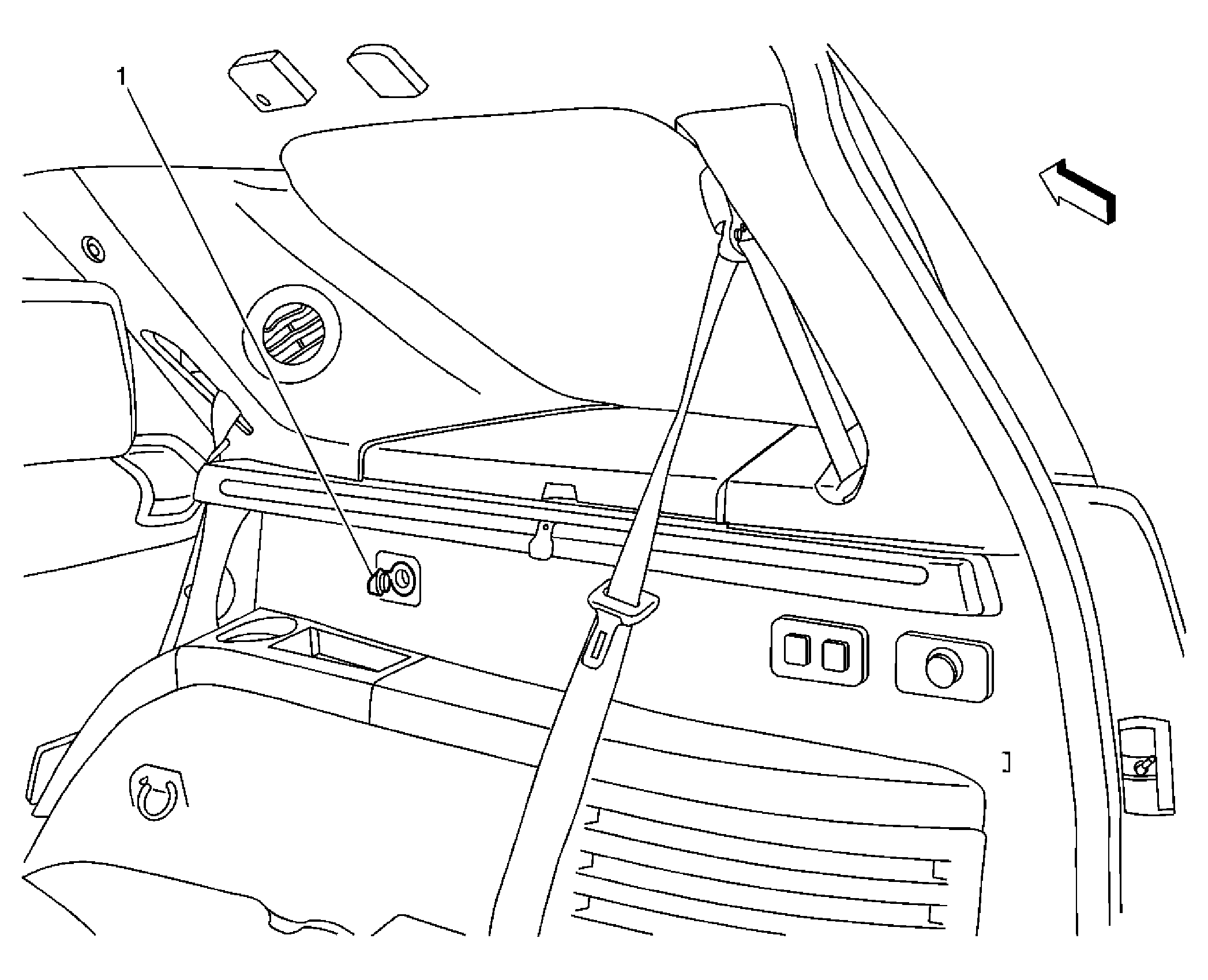

Fig 3: Right Rear Side Of Passenger Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet - Rear
