Module Power, Ground, Data Communication, Control Switch, and Liftgate Motor

WARNING: This page is about a different car, the 2013 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

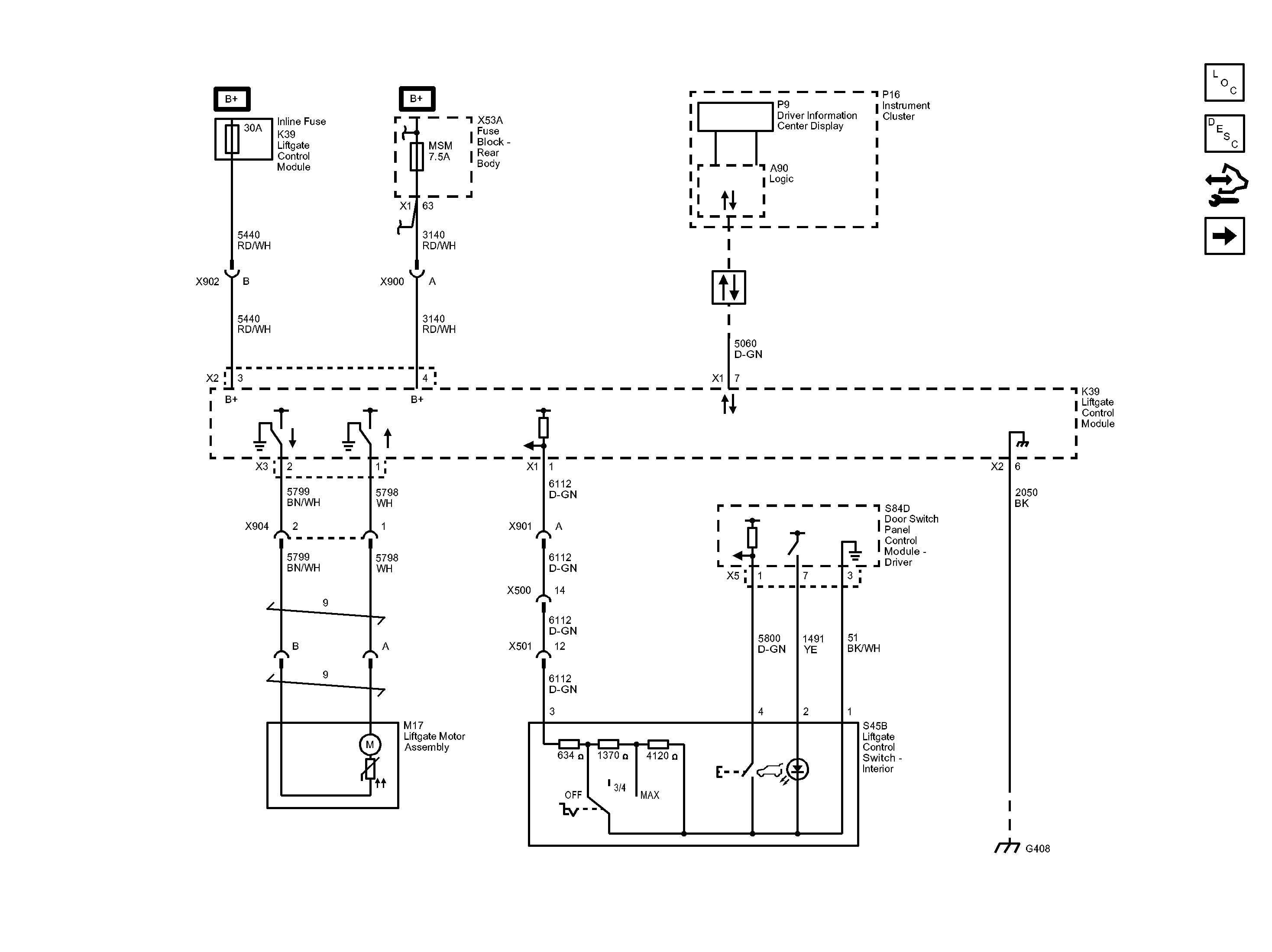

Fig 1: Module Power, Ground, Data Communication, Control Switch, and Liftgate Motor Wiring Schematic
GM2778109Courtesy of GENERAL MOTORS COMPANY
