Installation Procedure

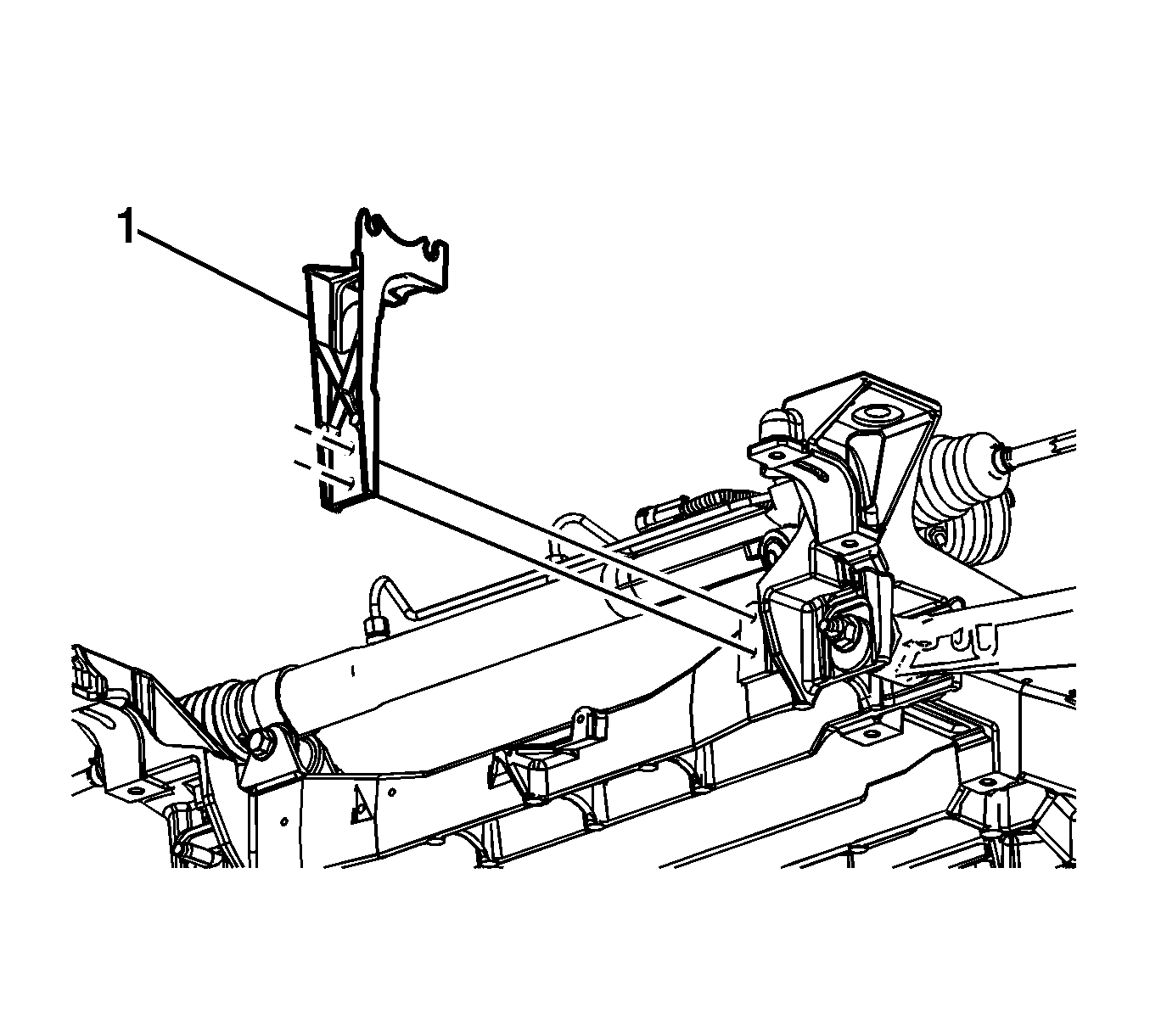

Fig 1: Identifying BPMV Bracket

GM2141666

Courtesy of GENERAL MOTORS CORP.

Install the BPMV bracket.

CAUTION: Refer to Fastener Caution .

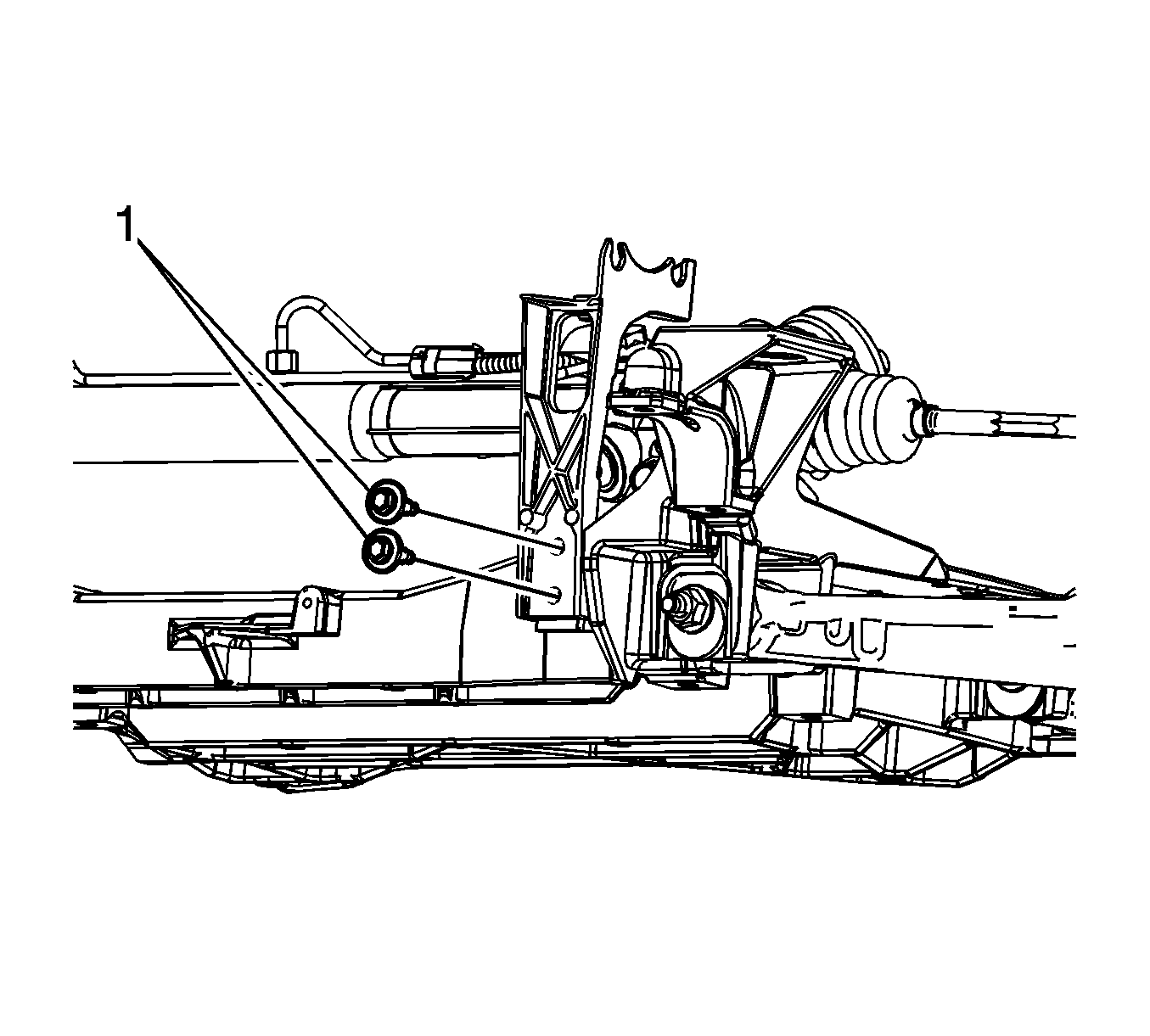

Fig 2: Identifying BPMV Bracket Bolts

GM2141662

Courtesy of GENERAL MOTORS CORP.

Install the BPMV bracket bolts (1) and tighten to 27 N.m (20 lb ft).

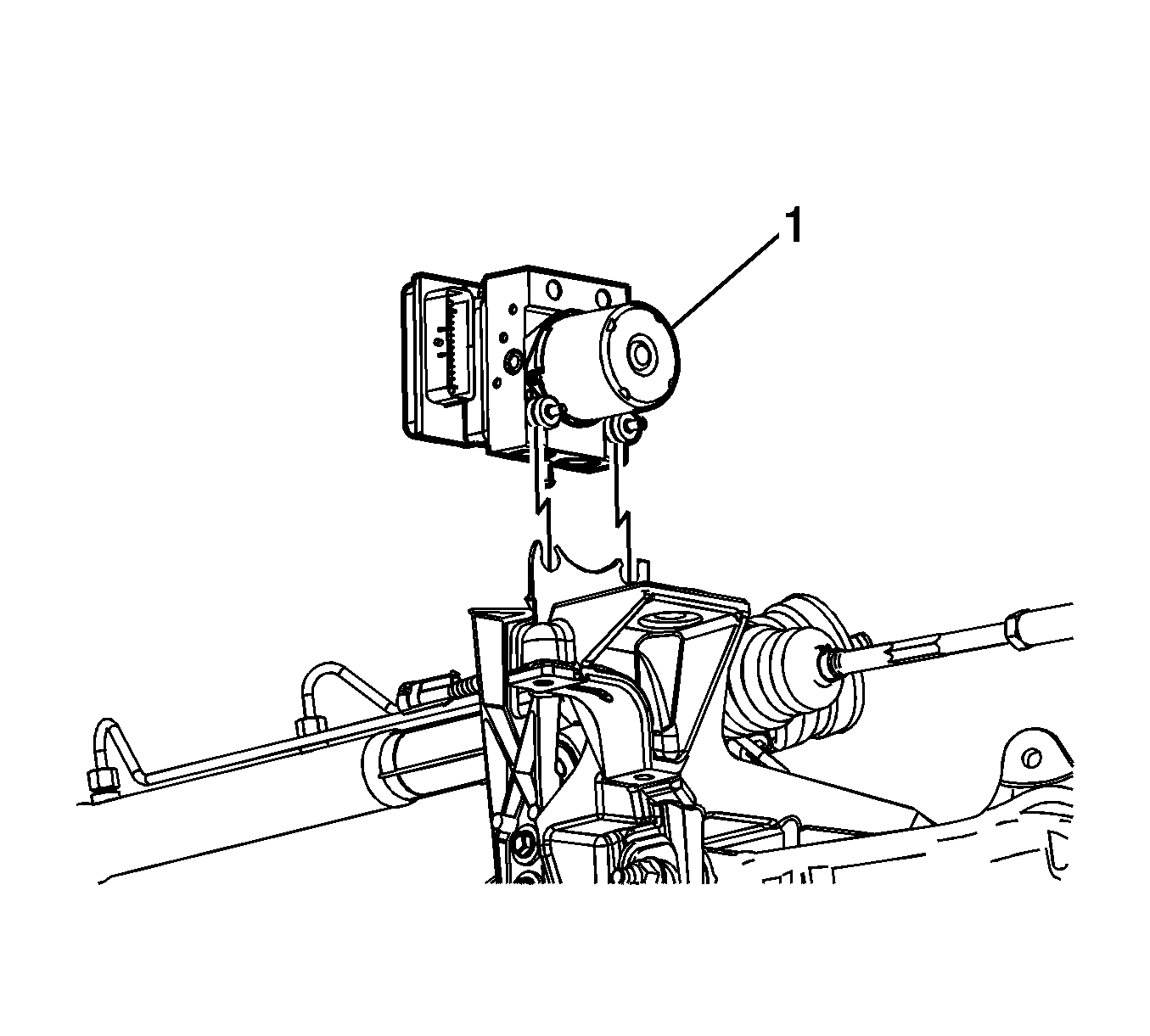

Fig 3: Identifying EBCM/BPMV Module Assembly

GM2141659

Courtesy of GENERAL MOTORS CORP.

Position the BPMV assembly (1) to the brake pressure modulator valve bracket.

Fig 4: Identifying BPMV Nuts

GM2141655

Courtesy of GENERAL MOTORS CORP.

Install the BPMV nuts (1) and tighten to 12 N.m (106 lb in).
