Installation Procedure

    Fig 1: Identifying EBCM
    GM2141673Courtesy of GENERAL MOTORS CORP.
  1. Carefully install the EBCM (1) to the BPMV.

    Do not force the components together.

    2. CAUTION: Refer to Fastener Caution .

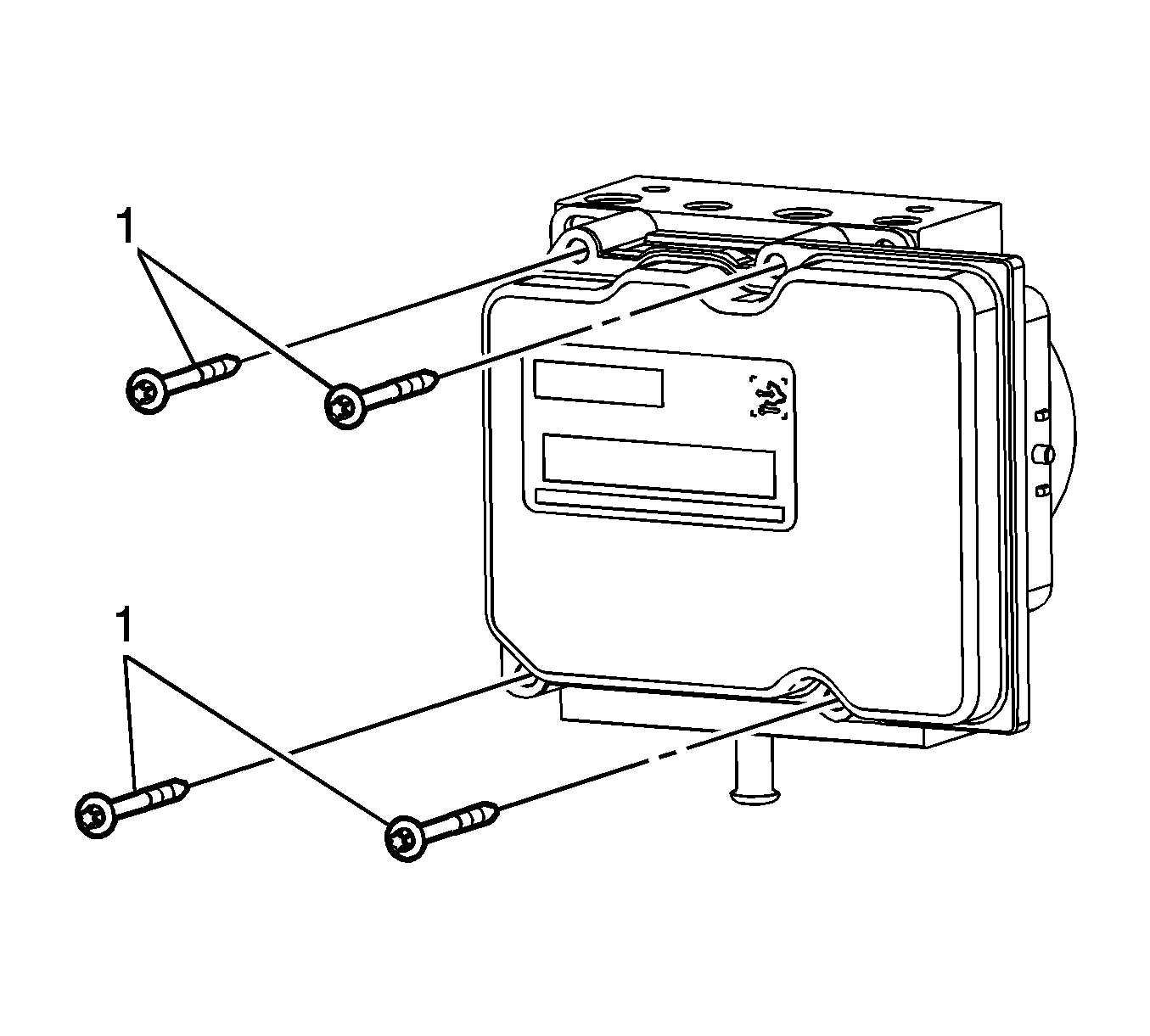

    Fig 2: Identifying EBCM Bolts
    GM2141671Courtesy of GENERAL MOTORS CORP.
  2. Install the EBCM bolts (1) and tighten to 3 N.m (27 lb in).

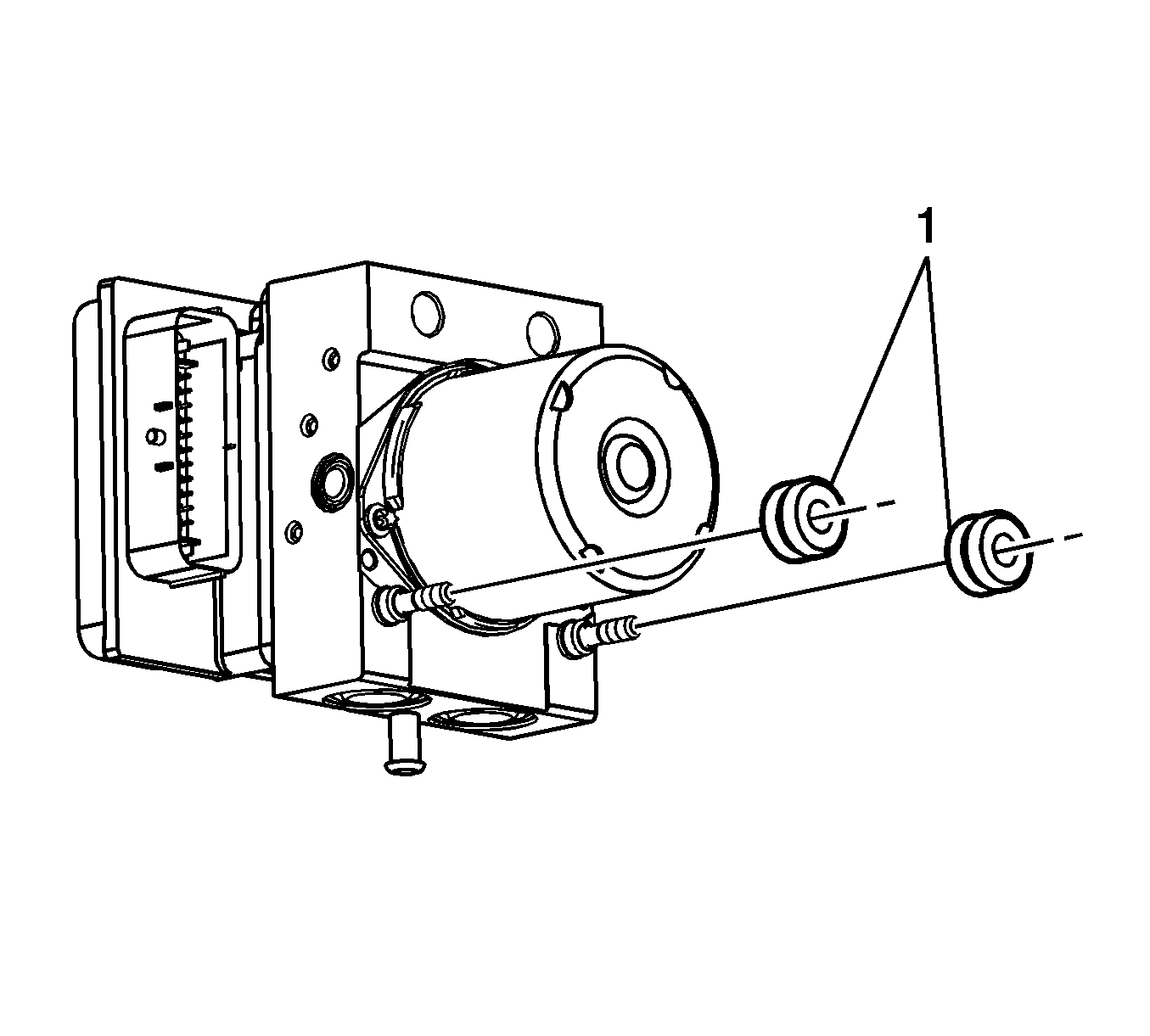

    3. Fig 3: Identifying BPMV Insulators
    GM2141669Courtesy of GENERAL MOTORS CORP.
  3. Install the BPMV insulators (1).

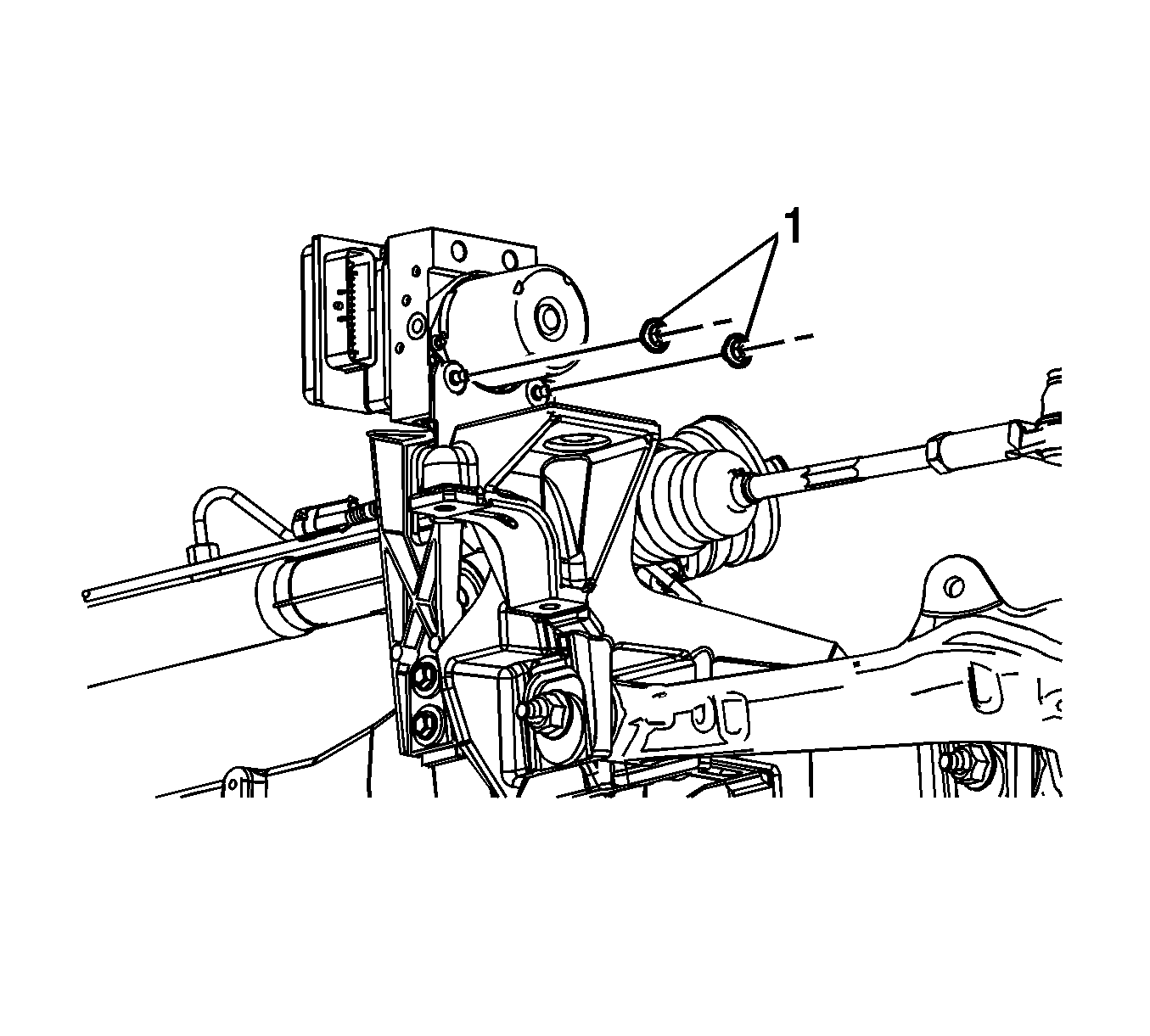

    4. Fig 4: Identifying BPMV Nuts
    GM2141655Courtesy of GENERAL MOTORS CORP.
  4. Install the EBCM/BPMV module assembly to the bracket.
  5. Install the BPMV nuts (1) and tighten to 12 N.m (106 lb in).

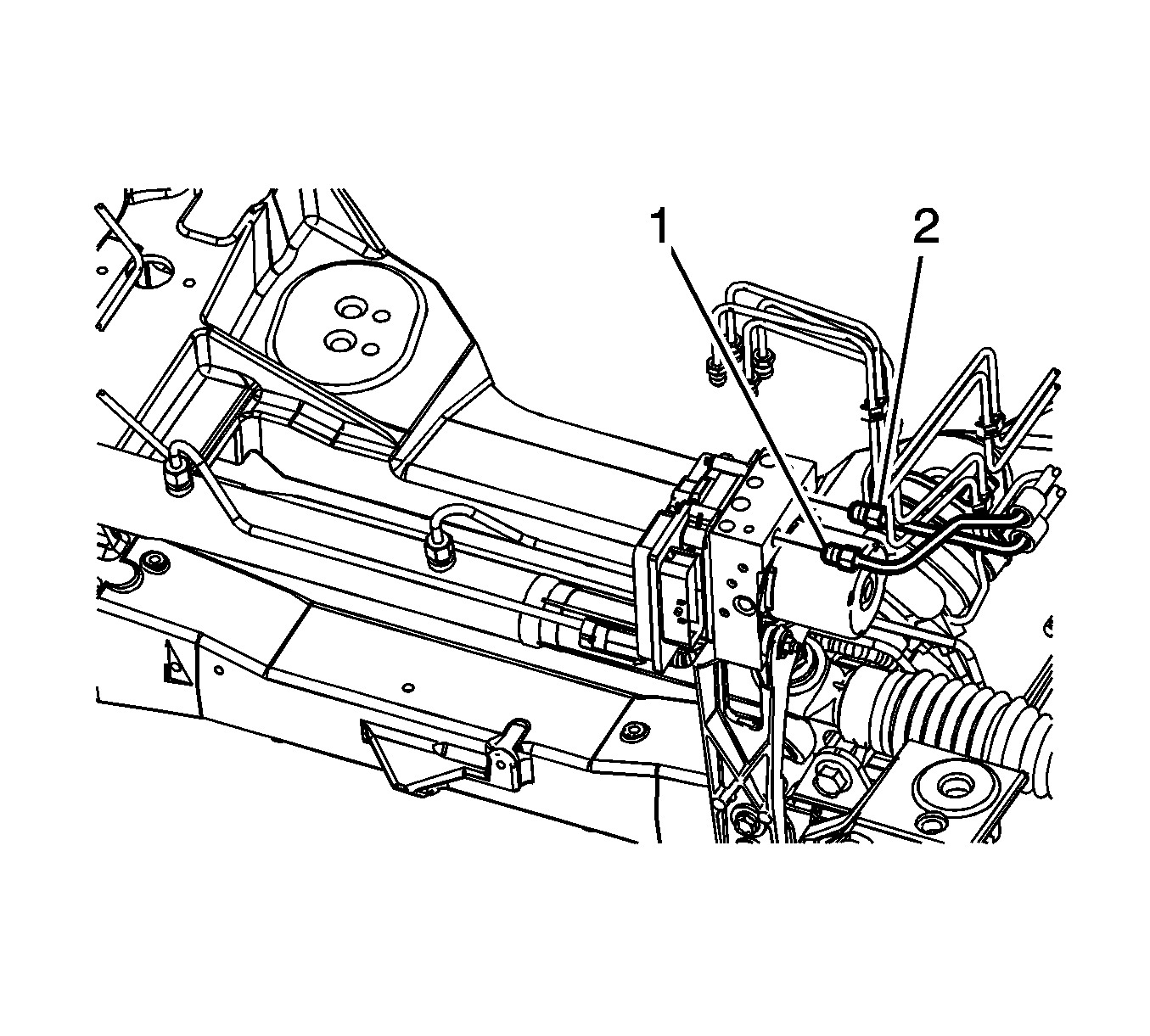

    6. Fig 5: Identifying Master Cylinder Brake Pipe Fittings
    GM2141653Courtesy of GENERAL MOTORS CORP.
  6. Connect the master cylinder secondary brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  7. Connect the master cylinder primary brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).

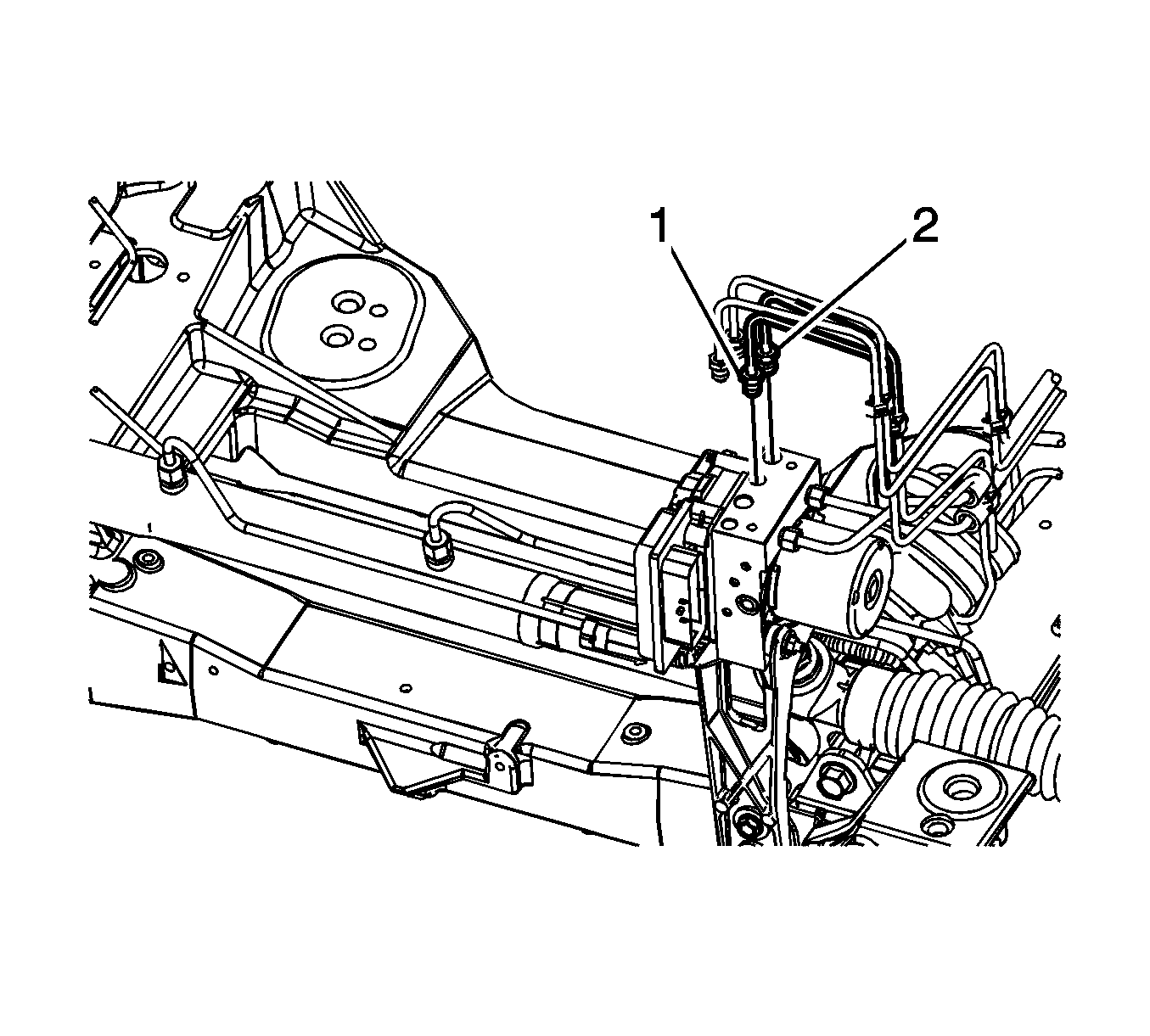

    8. Fig 6: Identifying Front Brake Pipe Fittings
    GM2141648Courtesy of GENERAL MOTORS CORP.
  8. Connect the right front brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  9. Connect the left front brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).

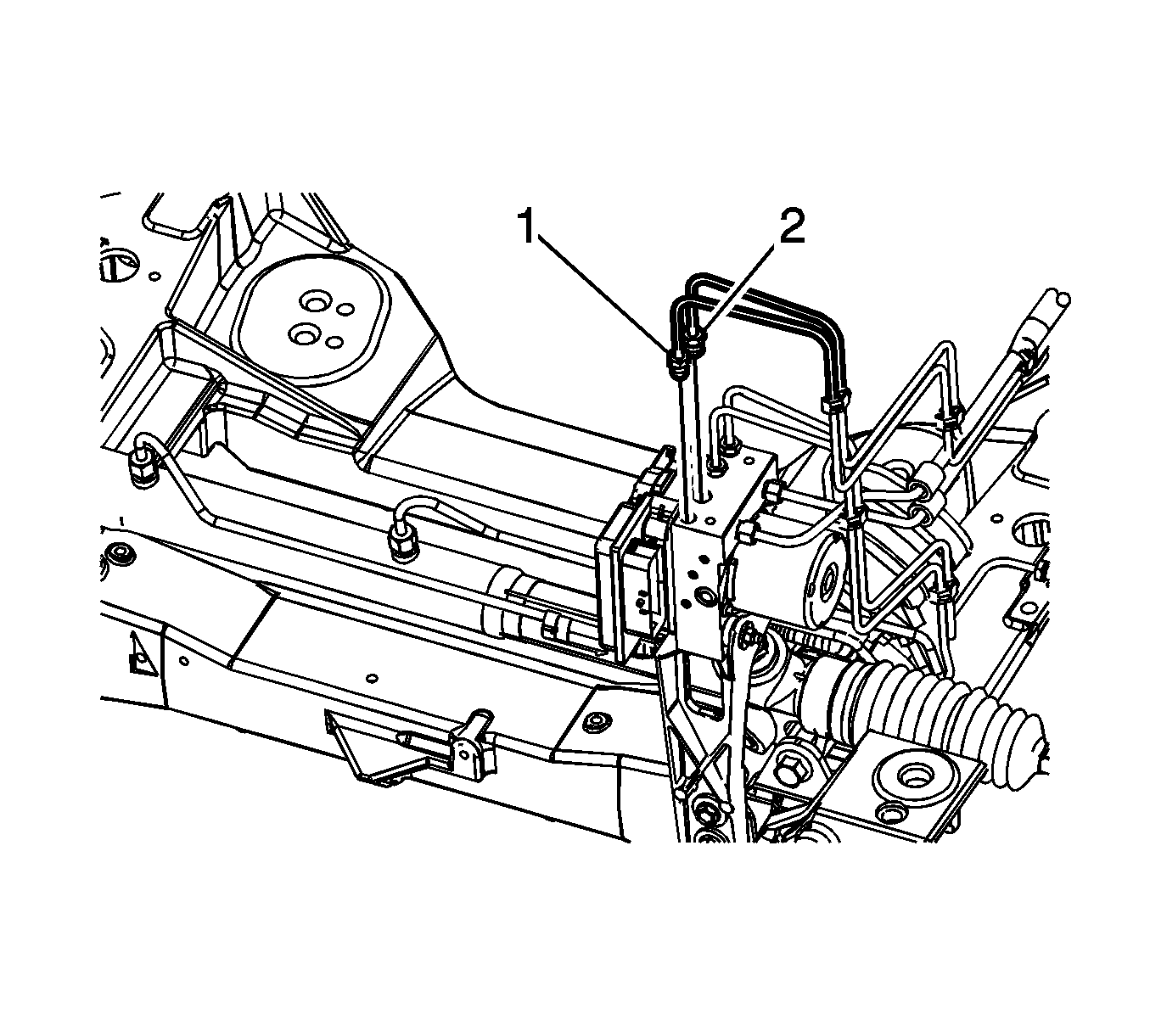

    10. Fig 7: Identifying Rear Brake Pipe Fittings
    GM2141647Courtesy of GENERAL MOTORS CORP.
  10. Connect the left rear brake pipe fitting (1) and tighten to 18 N.m (13 lb ft).
  11. Connect the right rear brake pipe fitting (2) and tighten to 18 N.m (13 lb ft).
  12. Install the drive belt tensioner. Refer to Supercharger Belt Tensioner Replacement (LC3) or Drive Belt Tensioner Replacement (LH2).
  13. Install the intake manifold sight shield or the fuel injector sight shield. Refer to Intake Manifold Sight Shield Replacement (LC3) or Fuel Injector Sight Shield Replacement (LH2).
  14. Connect the radiator surge tank inlet hose. Refer to Radiator Surge Tank Inlet Hose/Pipe Replacement .
  15. If equipped with RPO LH2, install the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement .
  16. Connect the upper radiator hose. Refer to Radiator Inlet Hose Replacement .
  17. Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (GE 47716) .
  18. Connect the EBCM electrical connector.
  19. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  20. If installing a new EBCM, program the EBCM. Refer to Service Programming System (SPS) .
  21. Perform the Antilock Brake System Automated Bleed Procedure .
