Installation Procedure

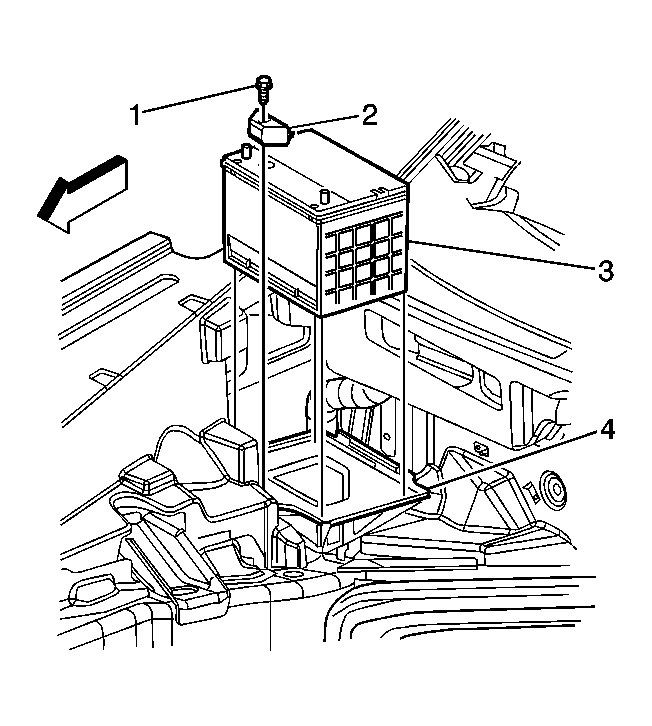

    Fig 1: Identifying Battery Retainer & Bolt
    GM932135Courtesy of GENERAL MOTORS CORP.
  1. Install the battery (3).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the battery hold down retainer (2) and bolt (1) and tighten to 18 N.m (13 lb ft).
    3. Fig 2: Identifying Battery Components
    GM1709697Courtesy of GENERAL MOTORS CORP.
  3. Connect the positive battery cable (2) to the battery (3) and tighten nut 8 N.m (71 lb in).
  4. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
