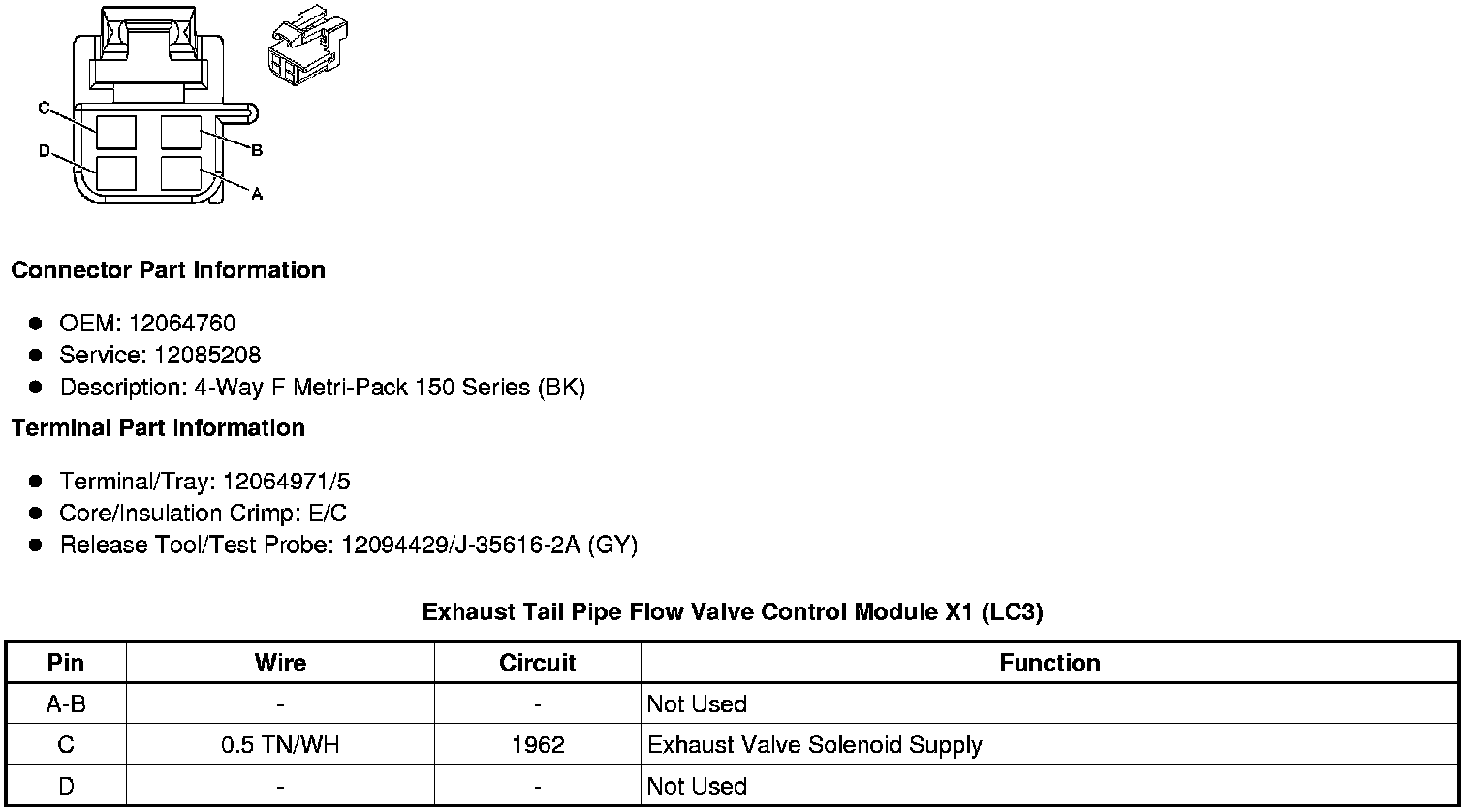

Exhaust Tail Pipe Flow Valve Control Module X1




Component Connector End Views

Exhaust Tail Pipe Flow Valve Control Module X1 (LC3)
