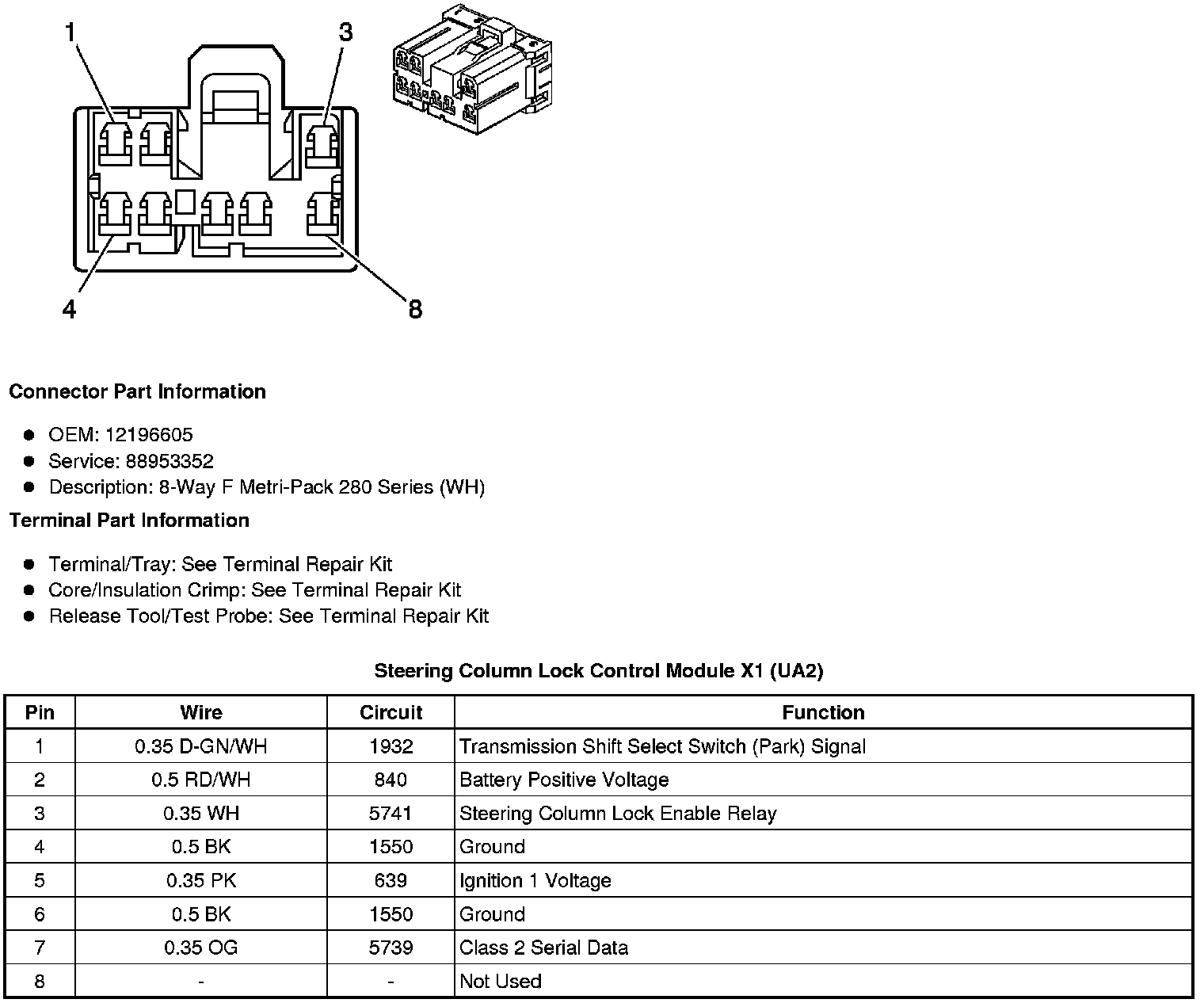

Steering Column Lock Control Module X1 (UA2)
Component Connector End Views
Steering Column Lock Control Module X1 (UA2)
