Engine Control Module: Locations

Front of Vehicle/Engine Compartment Component Views

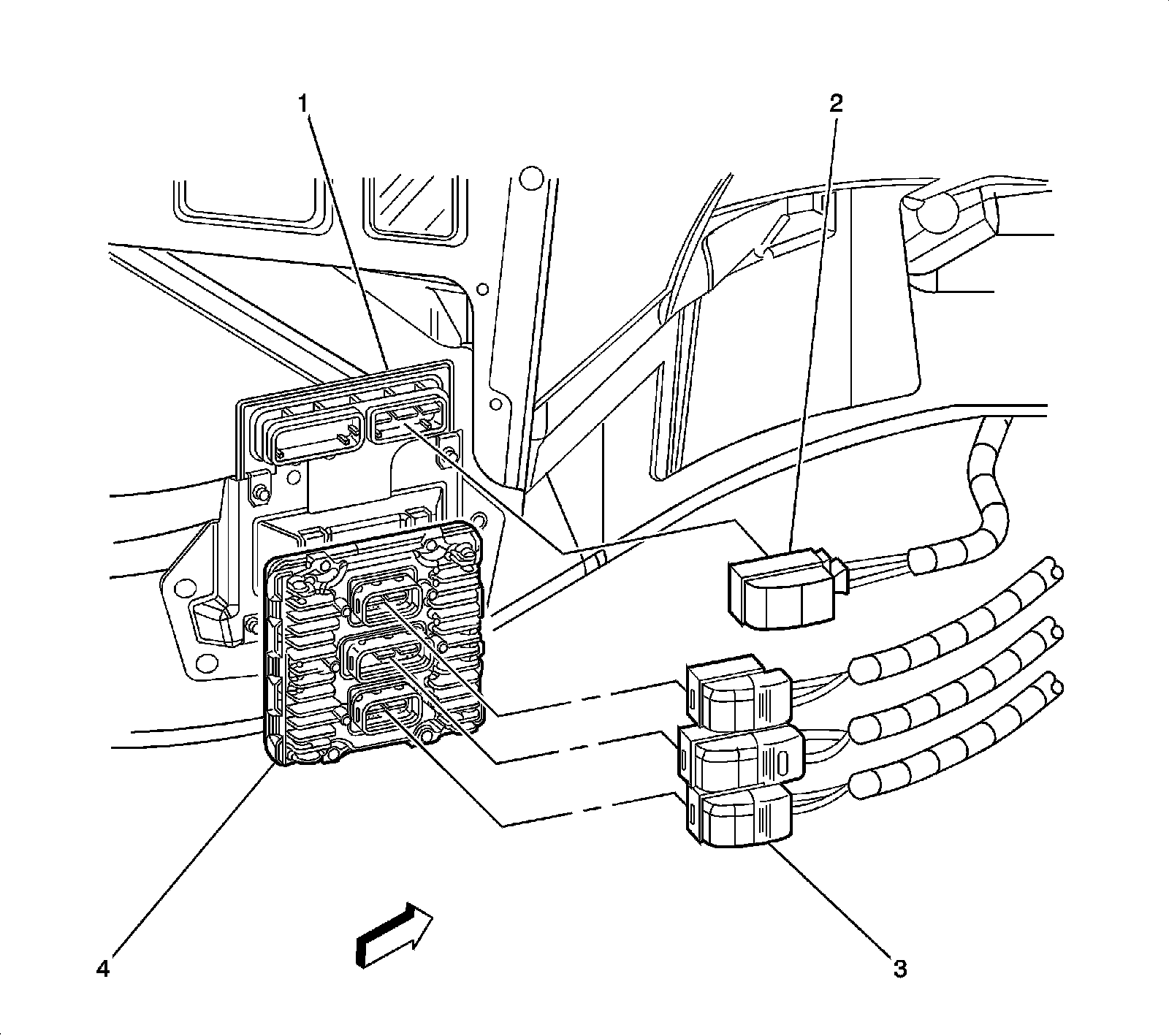

Lower Right Rear of the Engine Compartment




4 - Engine Control Module (ECM)

Passenger Compartment/Roof Component Views

Modules




13 - Engine Control Module (ECM)
