Tightening Torques & Sequences

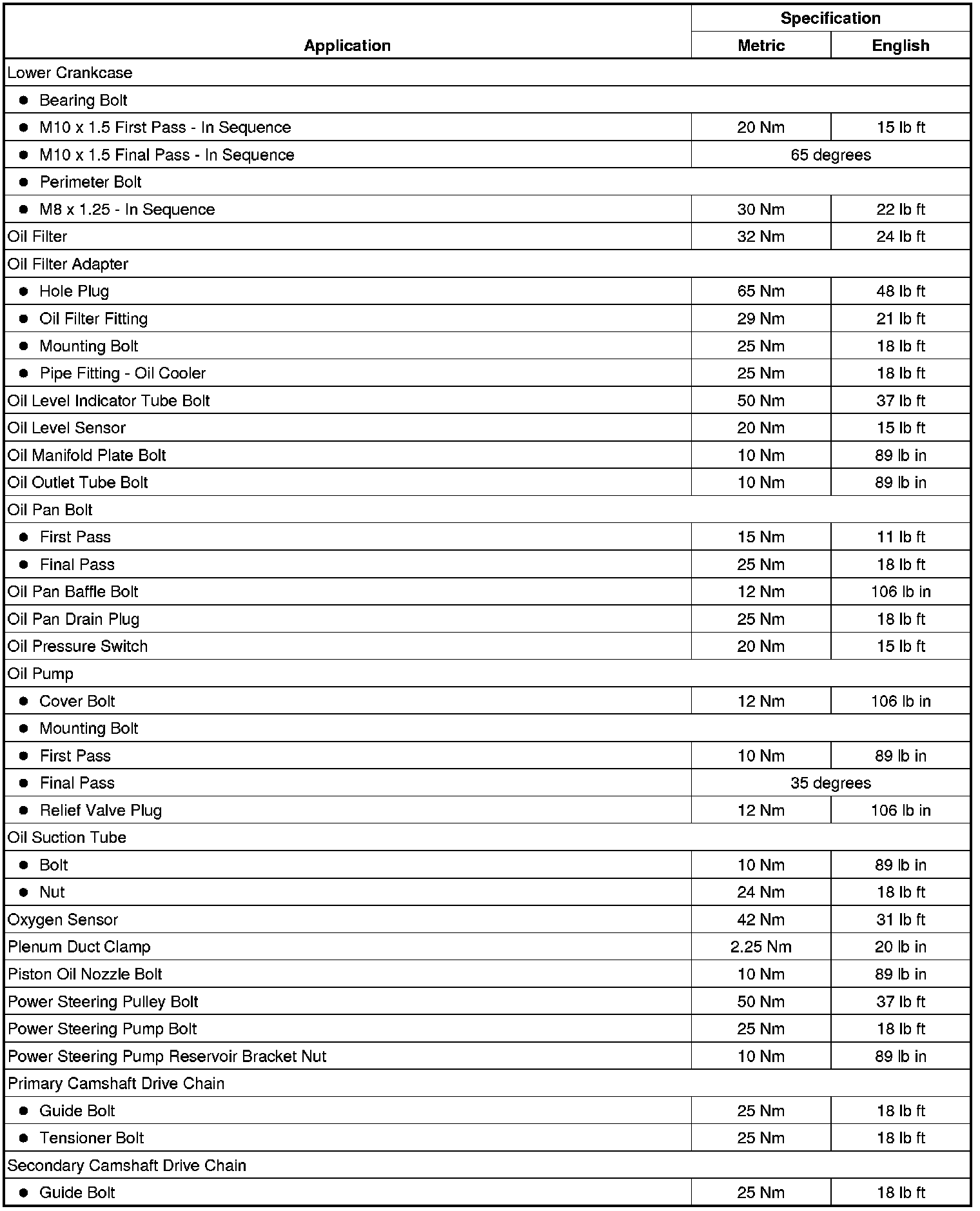

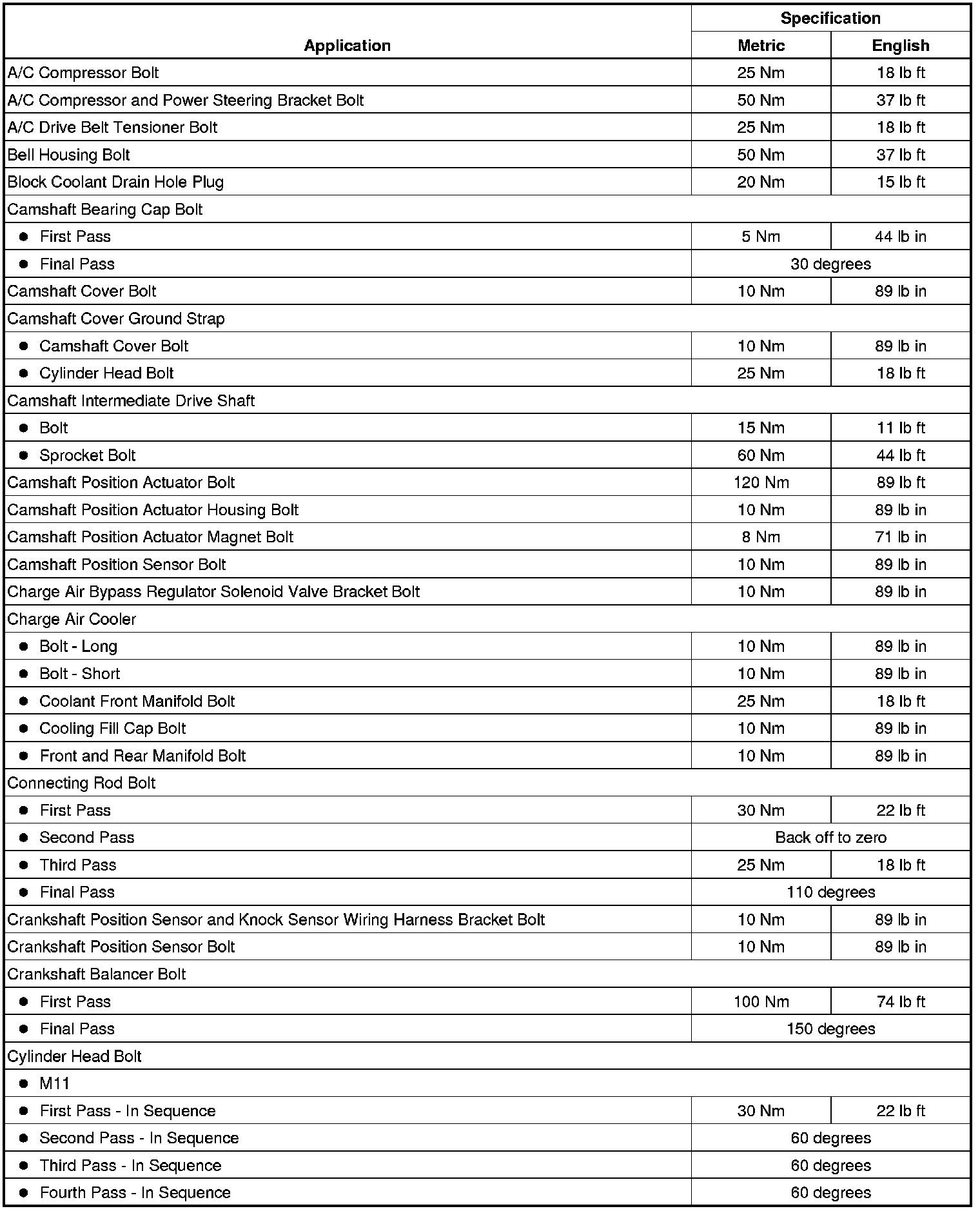

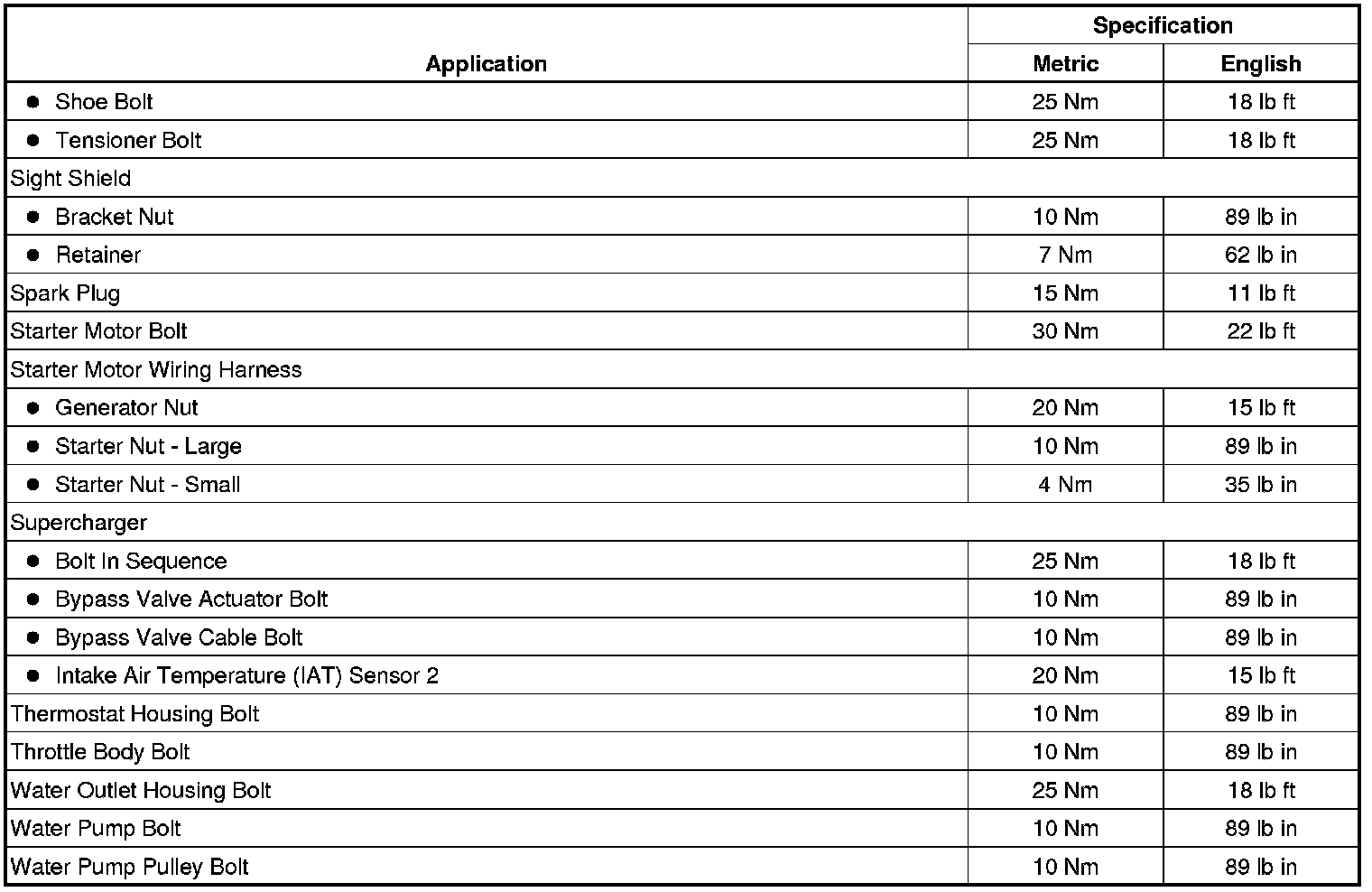

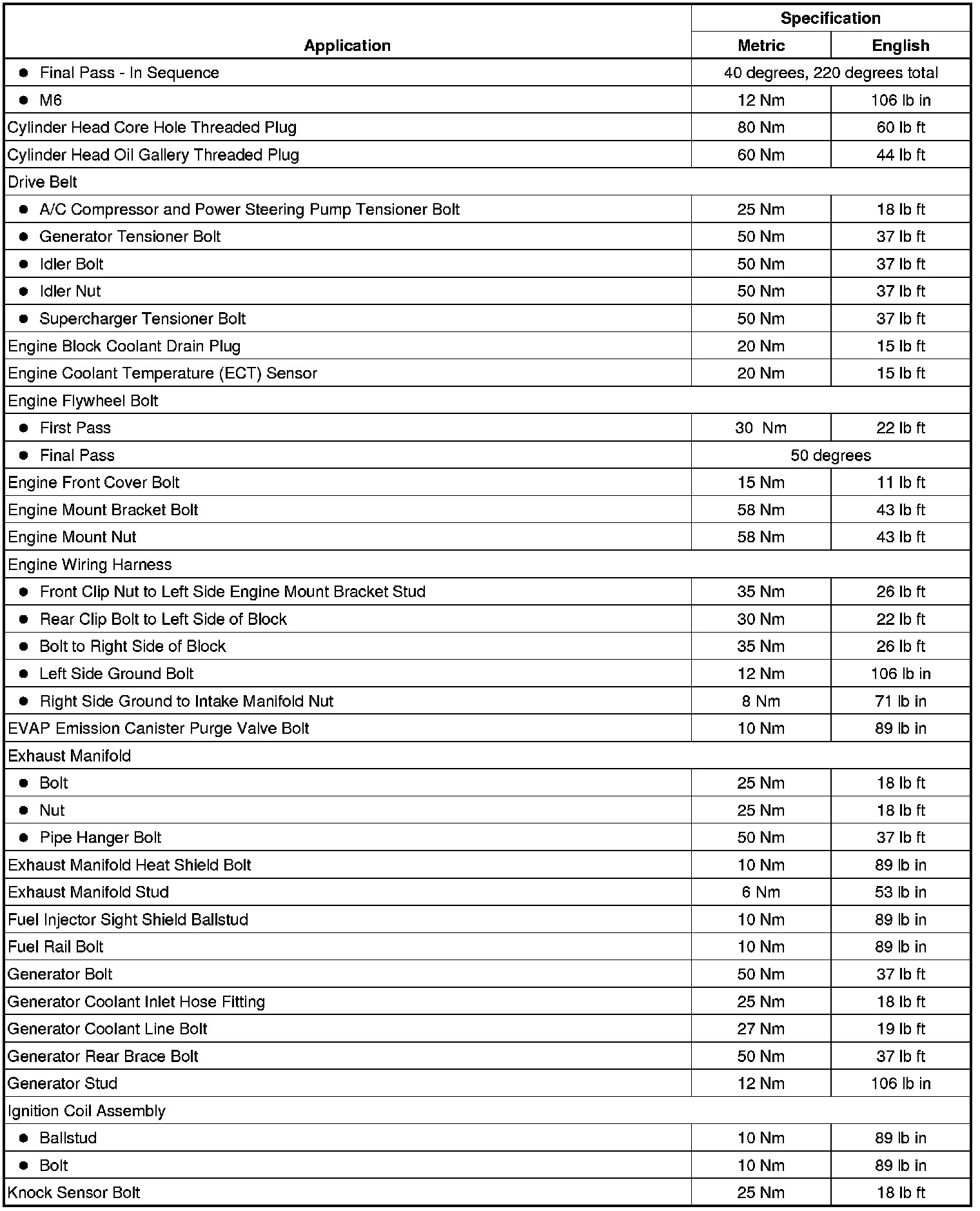

Fastener Tightening Specifications

















Cylinder Head Bolt
DO NOT reuse the old M11 cylinder head bolts
Install new M11 cylinder head bolts in the cylinder head

Flex Plate Bolts 50 Nm (37 lb ft).
