Manifold Pressure/Vacuum Sensor: Service and Repair

Manifold Absolute Pressure Sensor Replacement

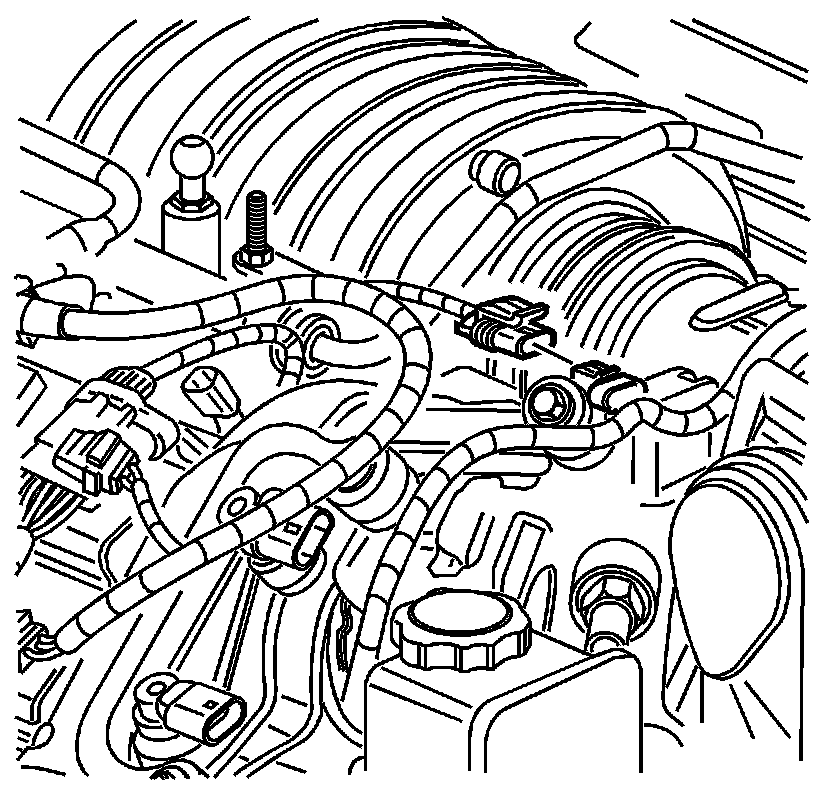

Removal Procedure




1. Turn the ignition OFF.
2. Disconnect the MAP sensor electrical connector.
3. Remove the MAP sensor from the intake manifold.
4. Inspect the MAP sensor grommet for wear or damage. If a problem is found, replace as necessary.

Installation Procedure





Caution: Refer to Fastener Caution (Fastener Caution).

1. Install the MAP sensor into the intake manifold and tighten to 12 Nm (106 lb in).
2. Connect the MAP sensor electrical connector.
