Ignition Coil Module Replacement - Right Side

Ignition Coil Module Replacement - Right Side

Removal Procedure

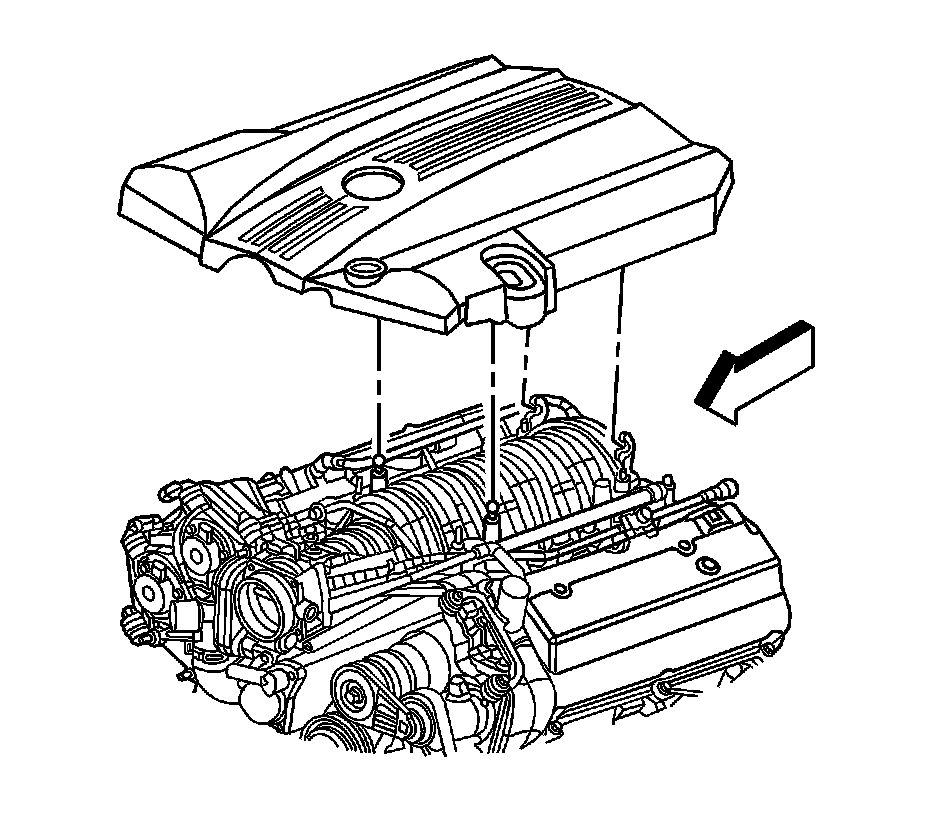

1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (Service and Repair).

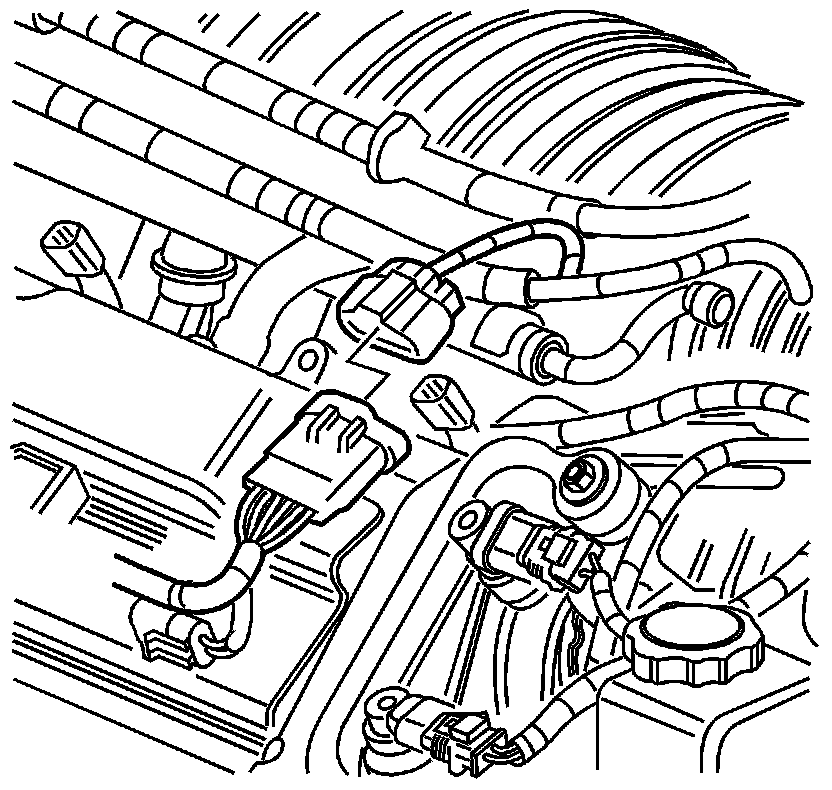

2. Disconnect the ignition coil assembly electrical connector.
3. Remove the ignition coil assembly retaining bolts.
4. Carefully remove the ignition coil assembly.

Installation Procedure




1. Carefully install the ignition coil assembly.

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the ignition coil assembly retaining bolts and tighten to 10 Nm (89 lb in).




3. Reconnect the ignition coil assembly electrical connector.




4. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (Service and Repair).
