Installation Procedure

    Fig 1: Removing/Installing BPMV
    GM2090873Courtesy of GENERAL MOTORS CORP.
  1. Install the BPMV (1) to the bracket.

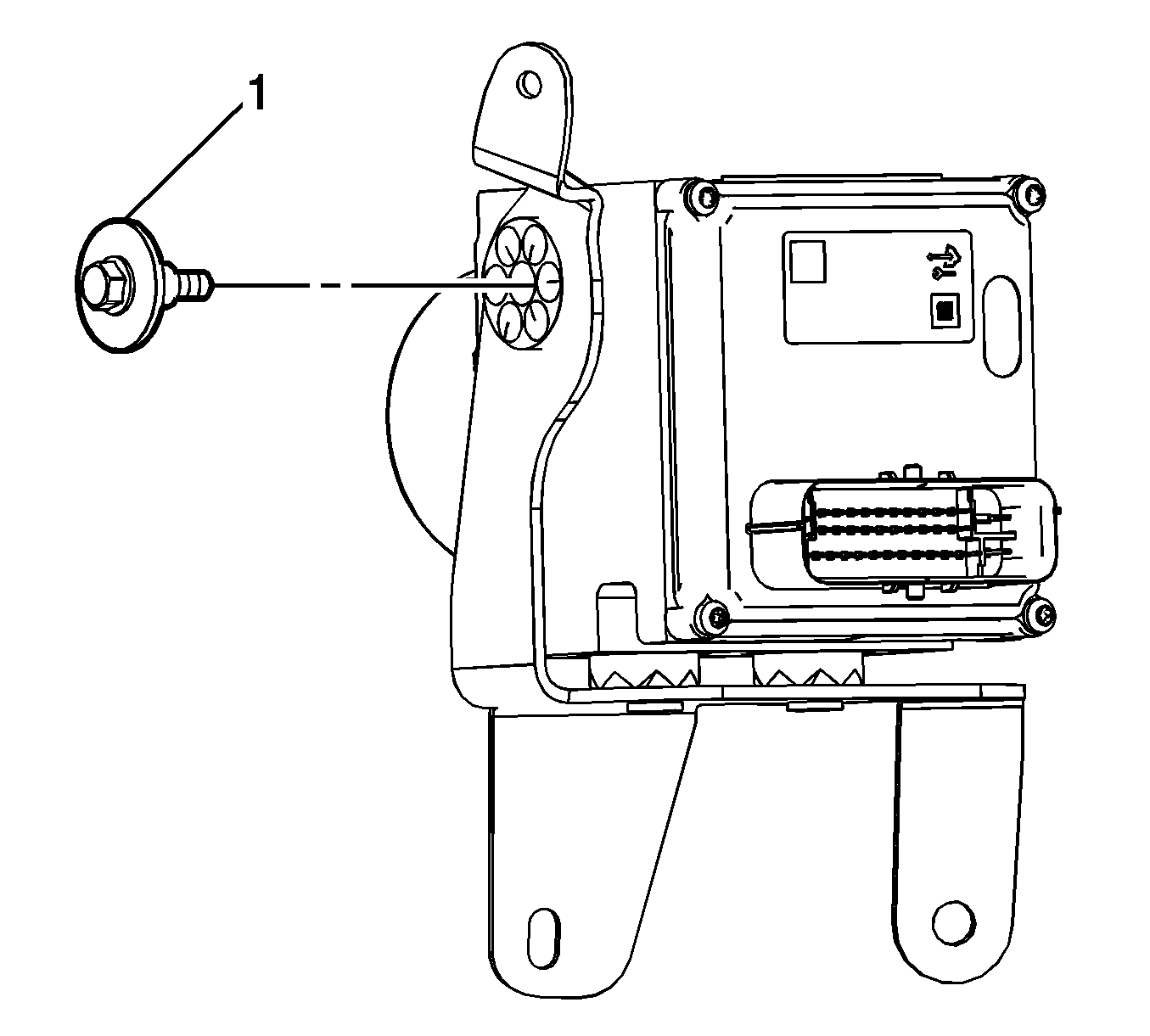

    2. Fig 2: Identifying BPMV Bolt
    GM2090865Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the BPMV bolt (1) and tighten to 12 N.m (106 lb in).

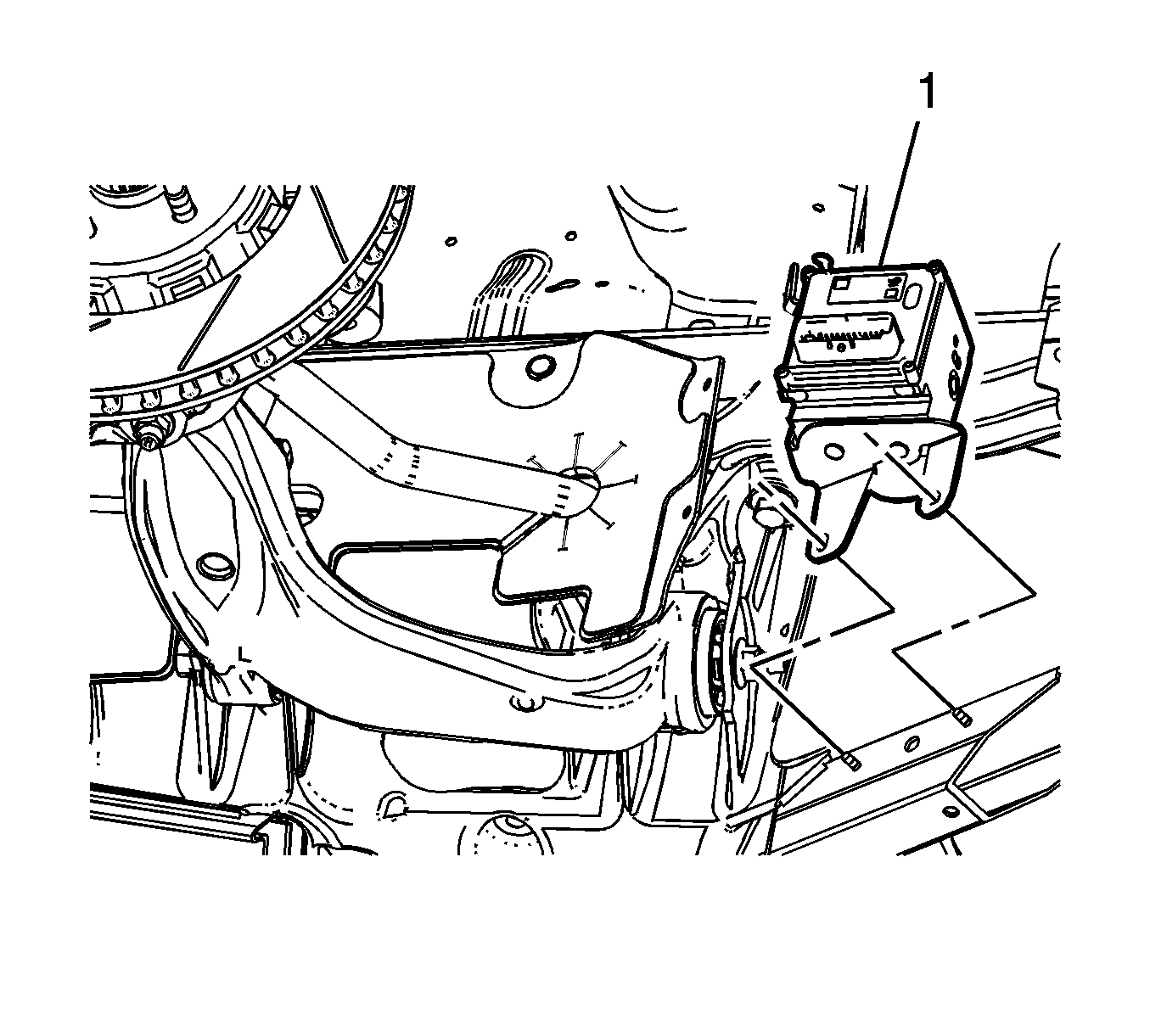

    3. Fig 3: Identifying BPMV & Bracket Assembly
    GM2090863Courtesy of GENERAL MOTORS CORP.
  3. Install the BPMV and bracket assembly (1).

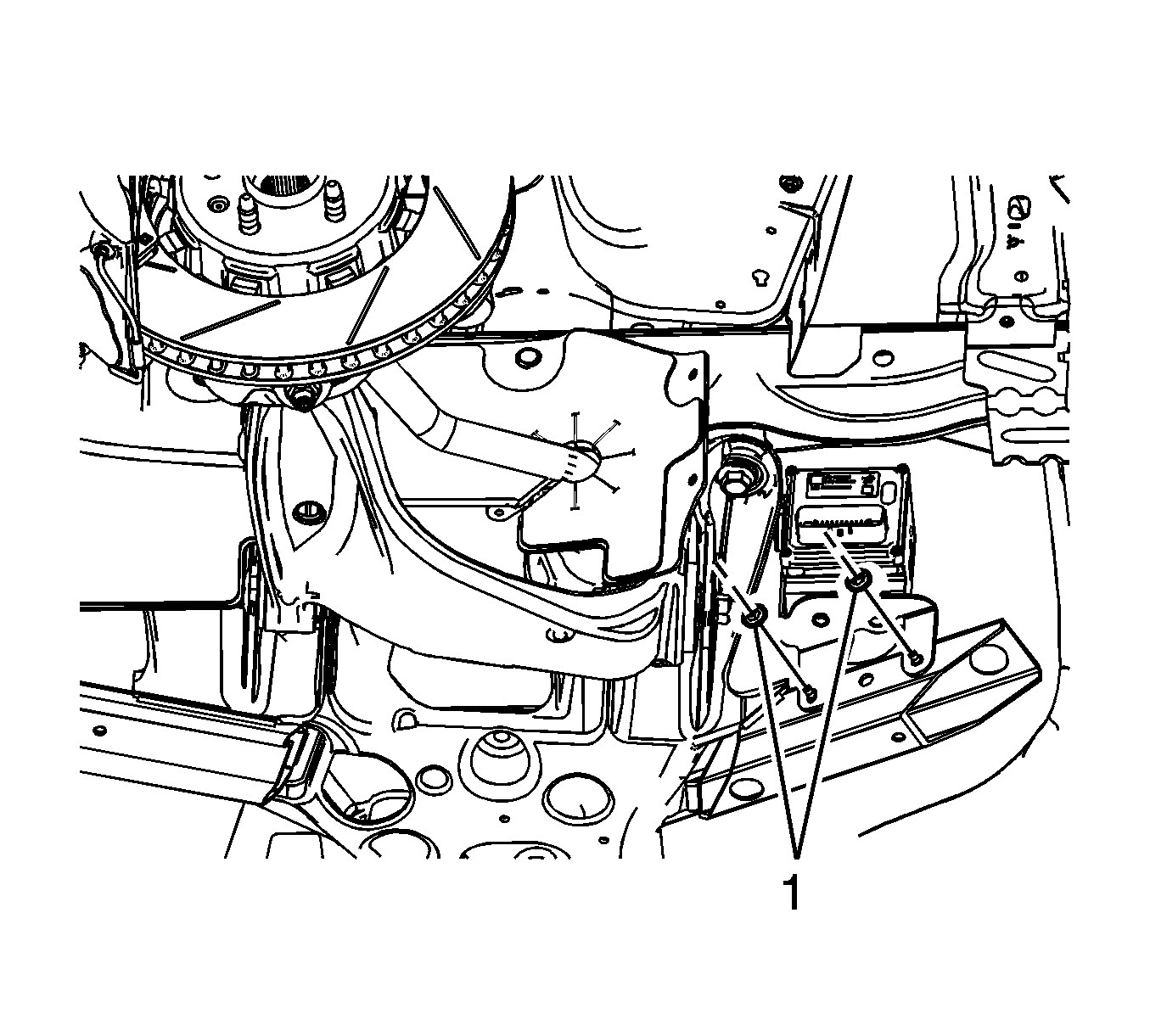

    4. Fig 4: Identifying BPMV Bracket Nuts
    GM2090860Courtesy of GENERAL MOTORS CORP.
  4. Install the BPMV bracket nuts (1) and tighten to 12 N.m (106 lb in).
  5. Position the washer solver container and install the fasteners. Refer to Windshield Washer Solvent Container Replacement (With CE4) or Windshield Washer Solvent Container Replacement (Without CE4) .
  6. Install the front air deflector. Refer to Front Air Deflector Replacement .
  7. Install the right front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  8. Lower the vehicle.

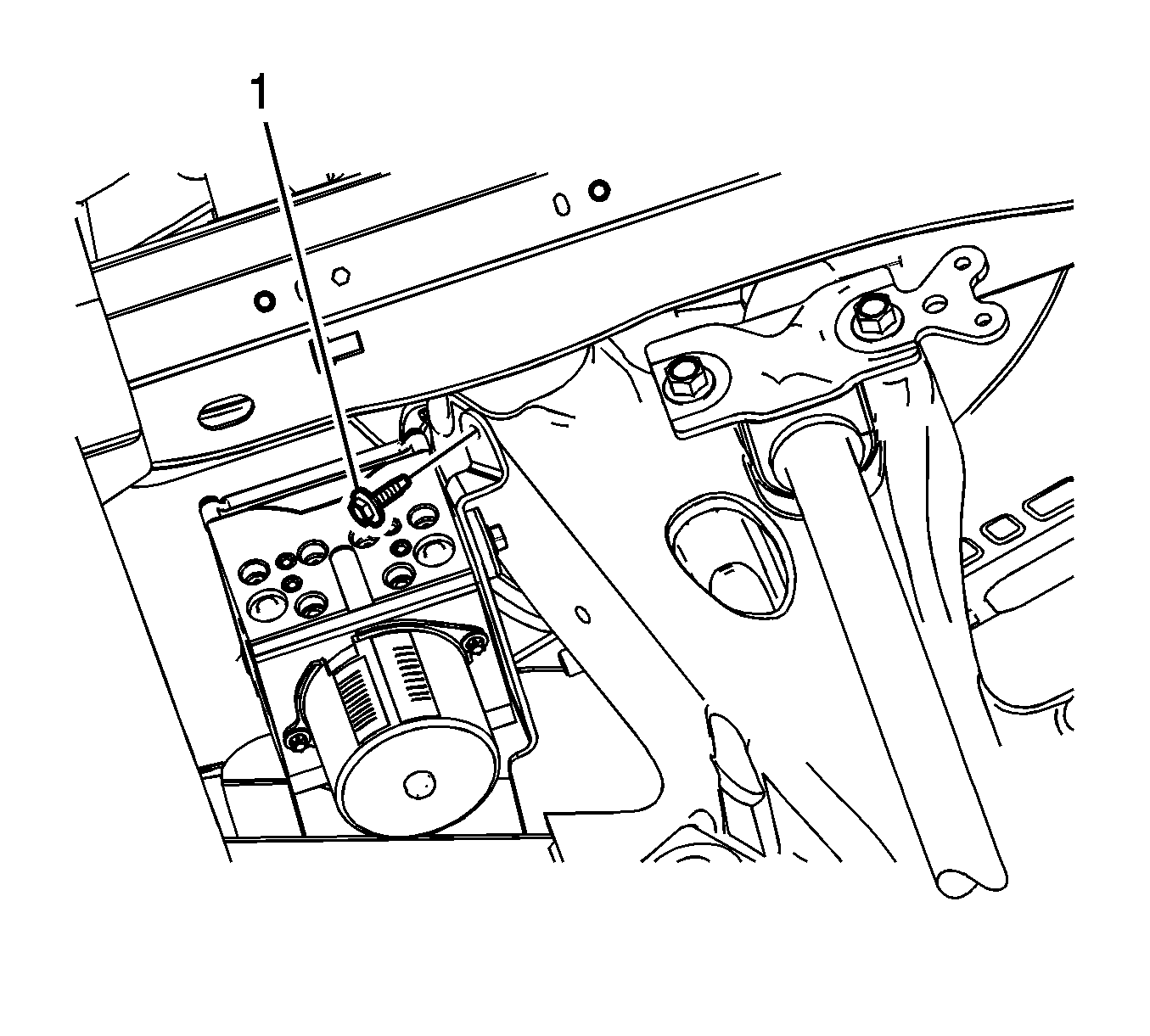

    9. Fig 5: Identifying BPMV Assembly Bracket Bolt
    GM2090856Courtesy of GENERAL MOTORS CORP.
  9. Install the BPMV assembly bracket bolt (1) and tighten to 12 N.m (106 lb in).

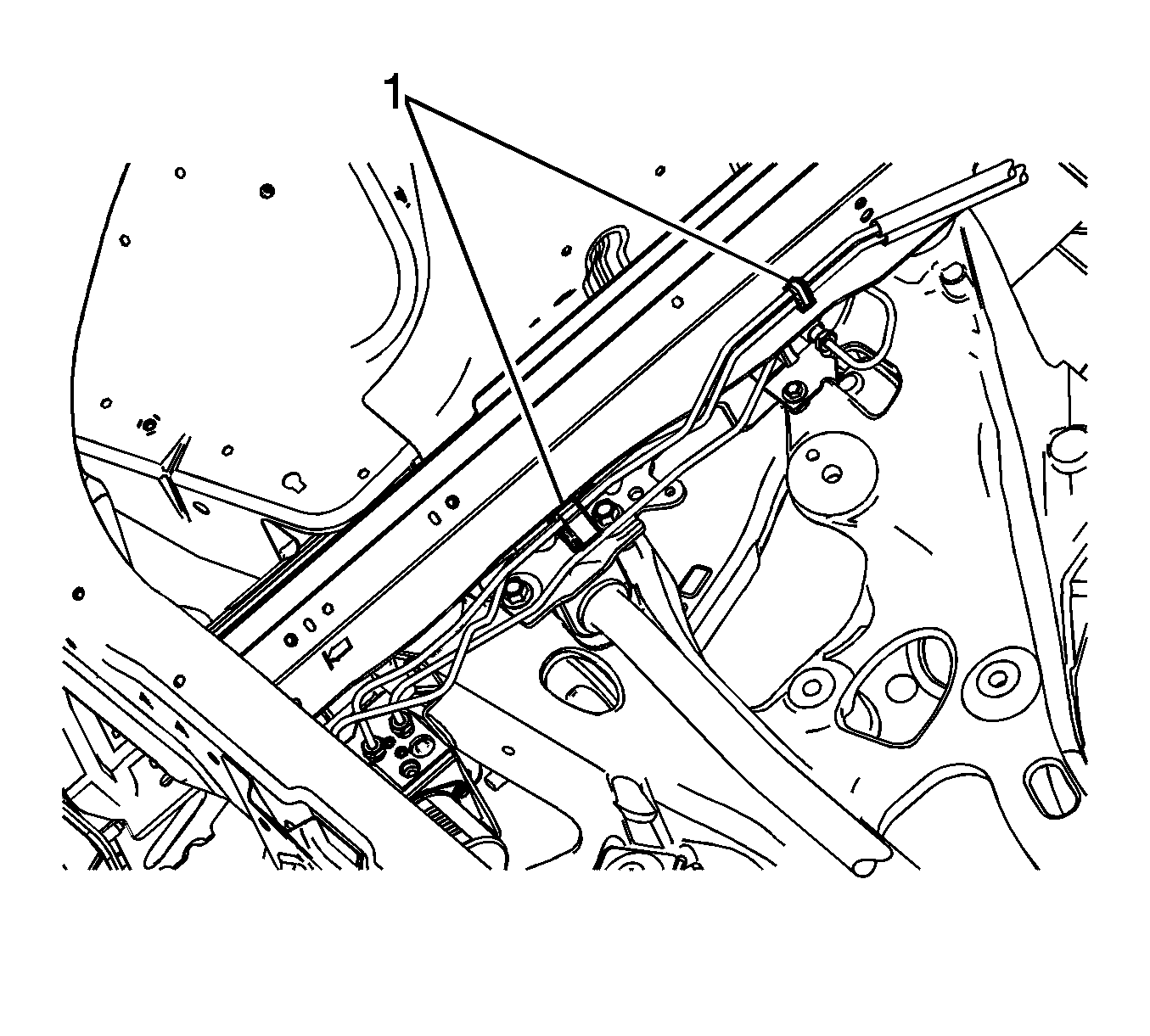

    10. Fig 6: Identifying Right Side Engine Compartment Side Rail Brake Pipe Clips
    GM2090851Courtesy of GENERAL MOTORS CORP.
  10. Install the brake pipes to the brake pipe clips (1) on the right side engine compartment side rail.

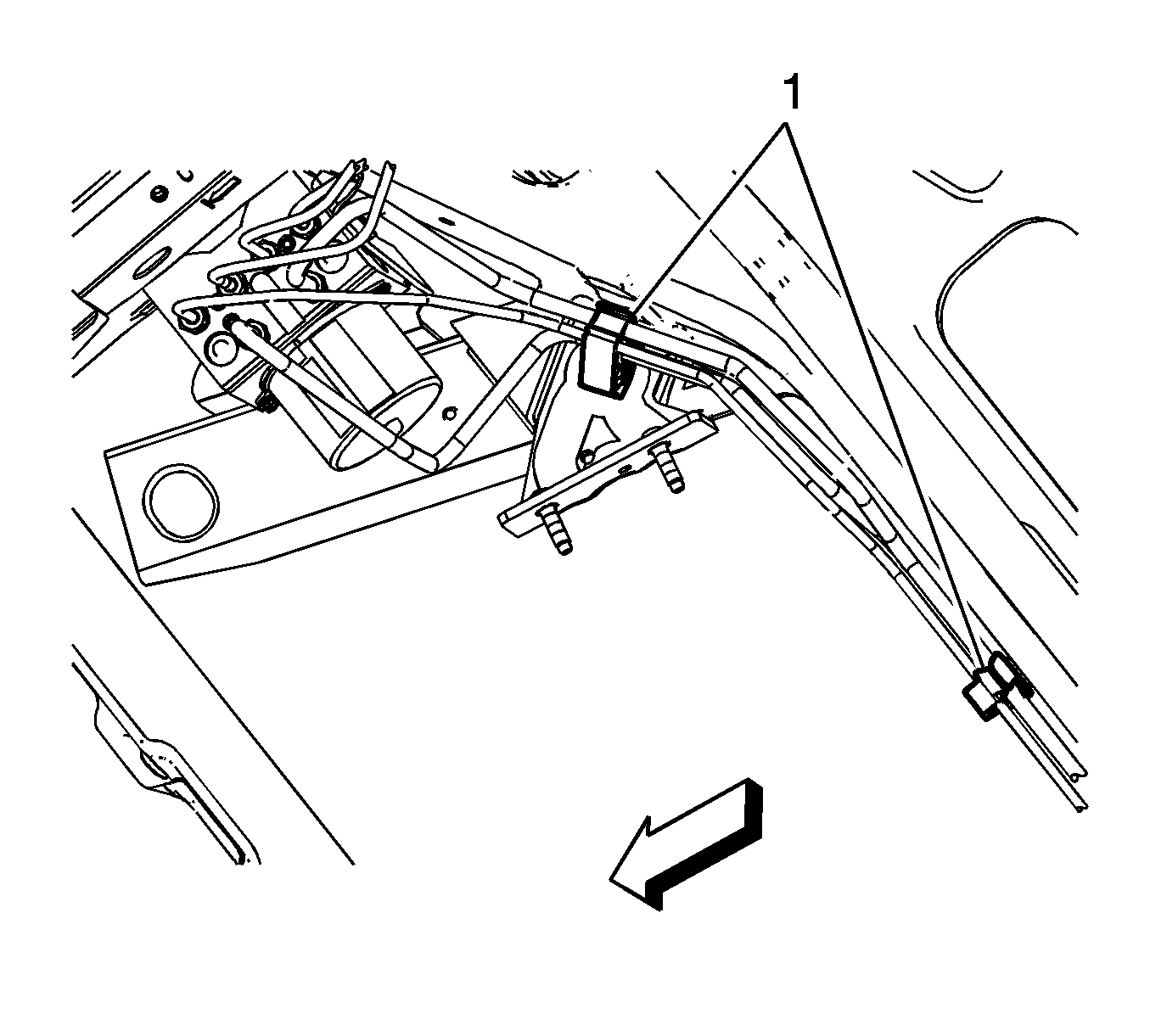

    11. Fig 7: Locating Vehicle Front Frame Brake Clips
    GM2090847Courtesy of GENERAL MOTORS CORP.
  11. Install the brake pipes to the brake pipe clips on the vehicle front frame (1).
  12. Install the front compartment sight shield. Refer to Front Compartment Sight Shields Replacement .
