Fuel Pump Flow Control Module Replacement (Coupe, Sedan)

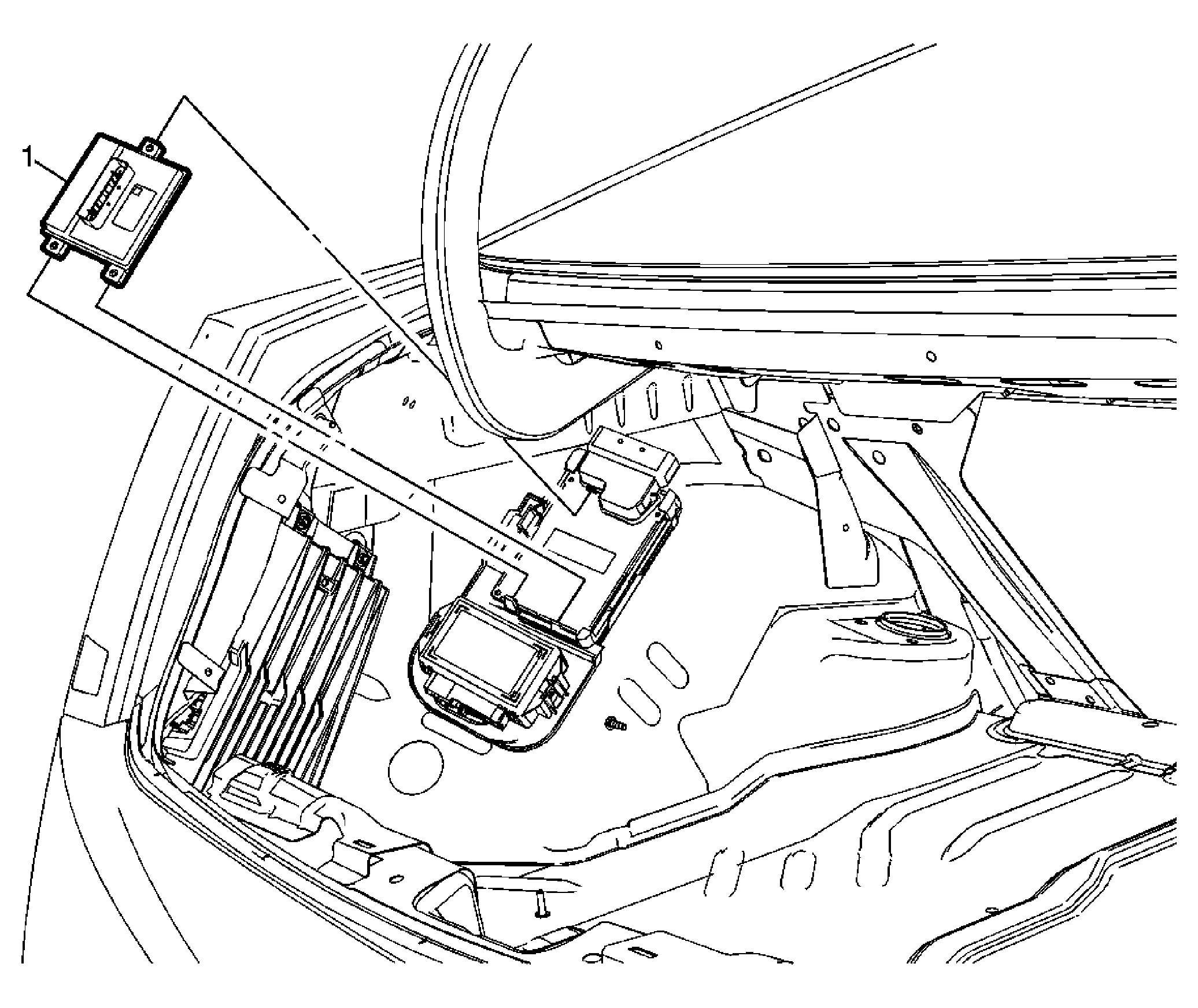

Fig 1: Identifying Fuel Pump Flow Control Module (Coupe, Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Partially remove the left side rear compartment trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
1	Fuel Pump Flow Control Module Procedure Disconnect the electrical connector. Release the two integral retainer tabs and remove the module. If replacing the fuel pump flow control module, program the control module. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Partially remove the left side rear compartment trim panel. Refer to Rear Compartment Side Trim Panel Replacement .

Fuel Pump Flow Control Module

Procedure

Disconnect the electrical connector.
Release the two integral retainer tabs and remove the module.
If replacing the fuel pump flow control module, program the control module. Refer to Control Module References .
