Fastener Tightening Specifications
Fastener Tightening Specifications
Flex plate
3.0L, 3.6L
First pass 30 Nm (22 lb ft)
Final pass 45 degrees
6.2L
First pass 20 Nm (15 lb ft)
Second pass 50 Nm (37 lb ft)
Final pass 100 Nm (74 lb ft)

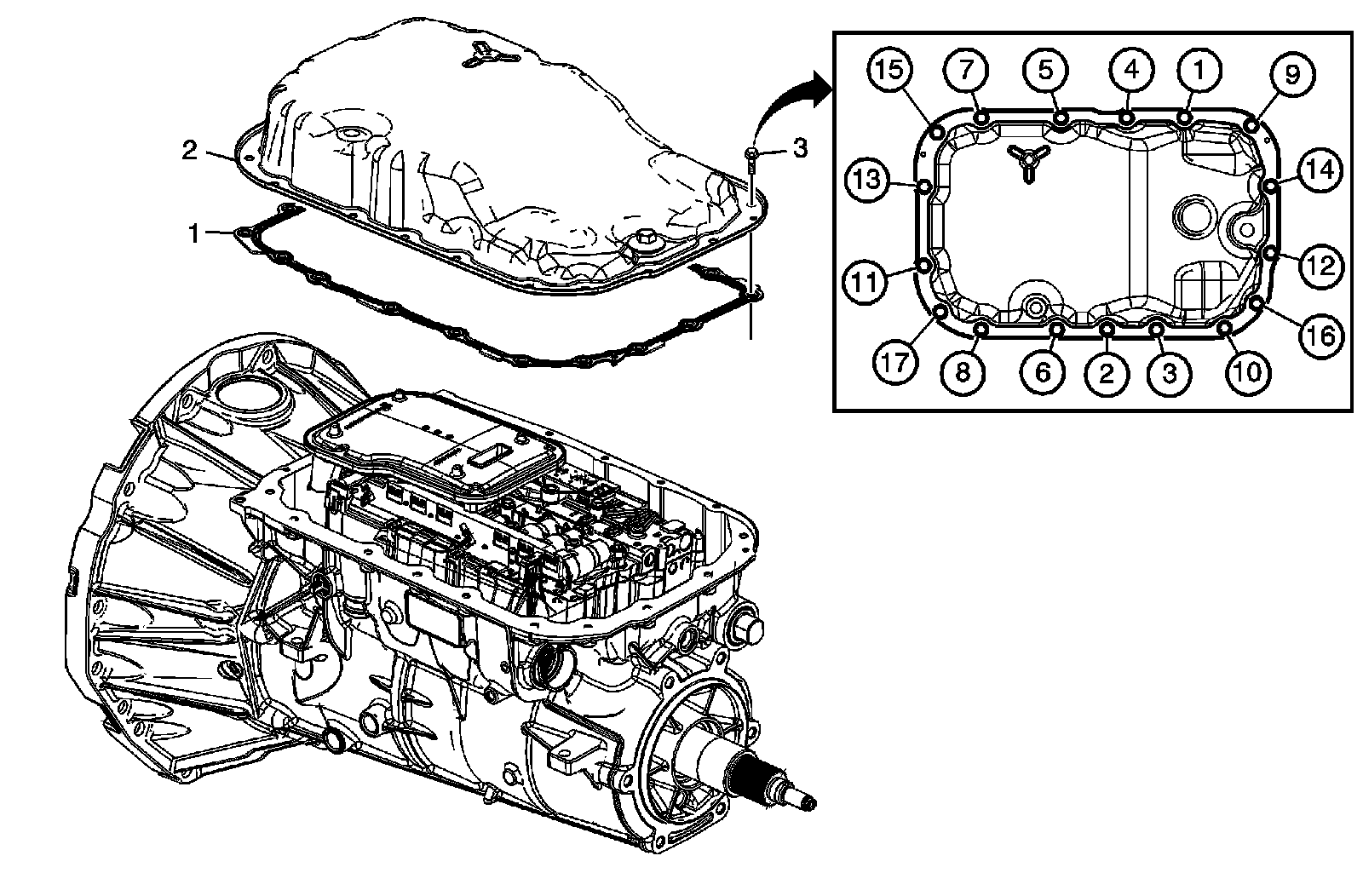

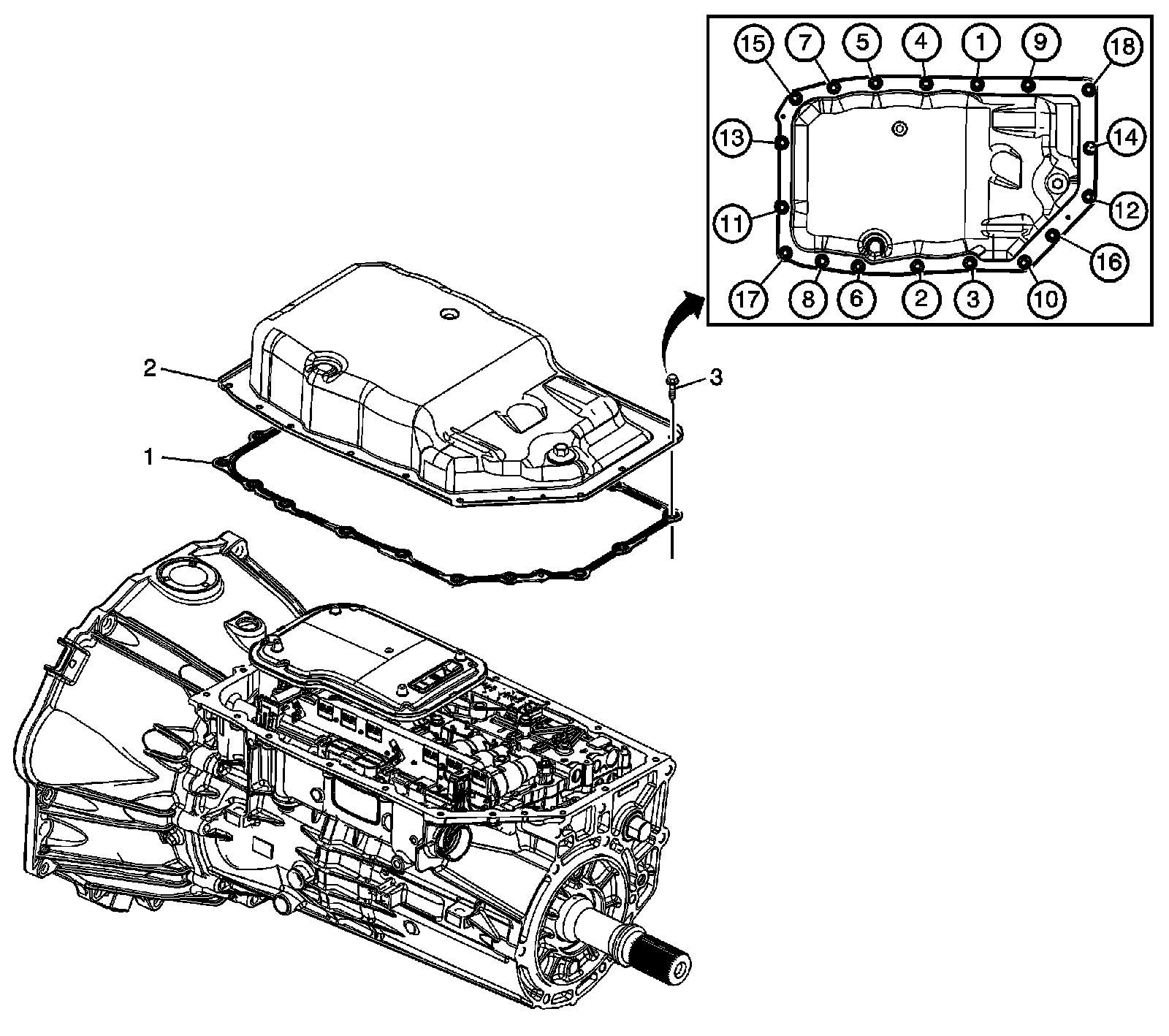

Fluid pan
6L50 9 Nm (80 lb in)
6L90 9 Nm (80 lb in)
