Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location

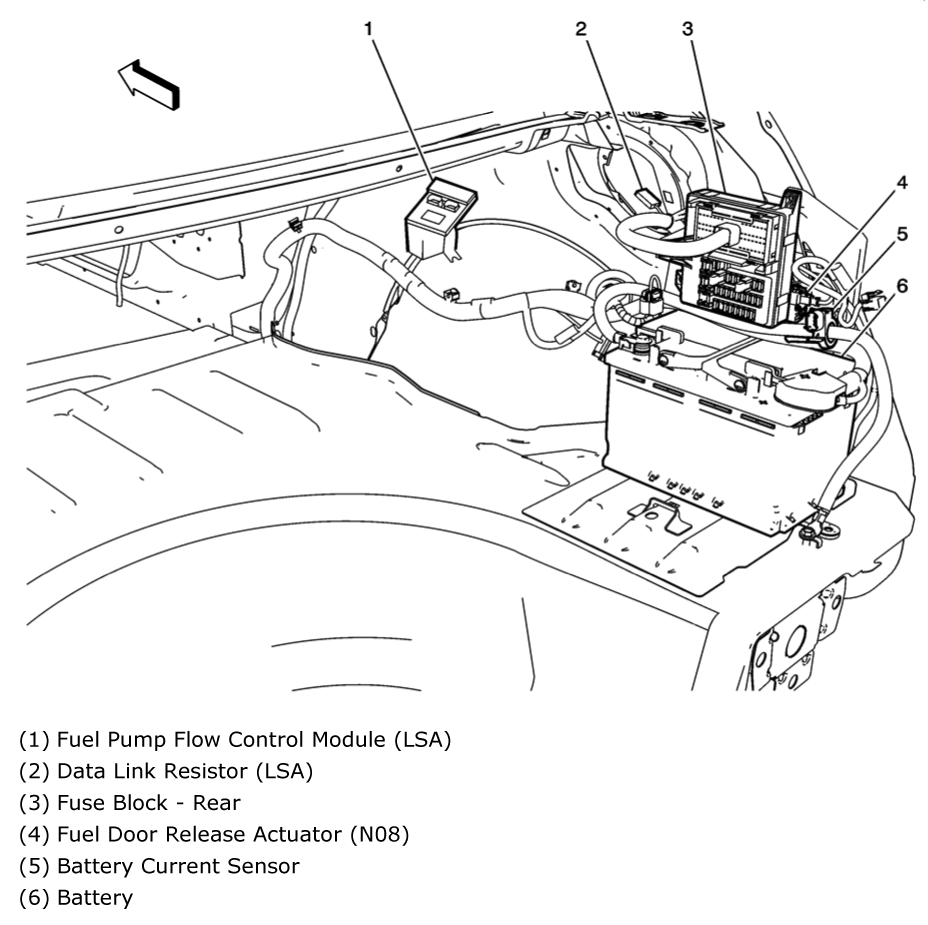

Fuse Block - Rear (Sedan) Right rear of luggage compartment. See Figure.

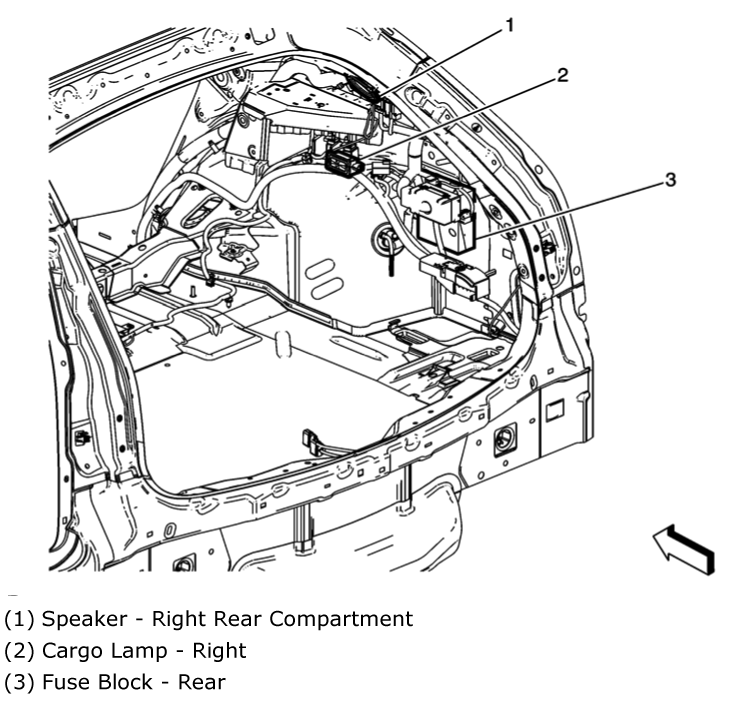

Fuse Block - Rear (Wagon) Right rear of luggage compartment. See Figure.

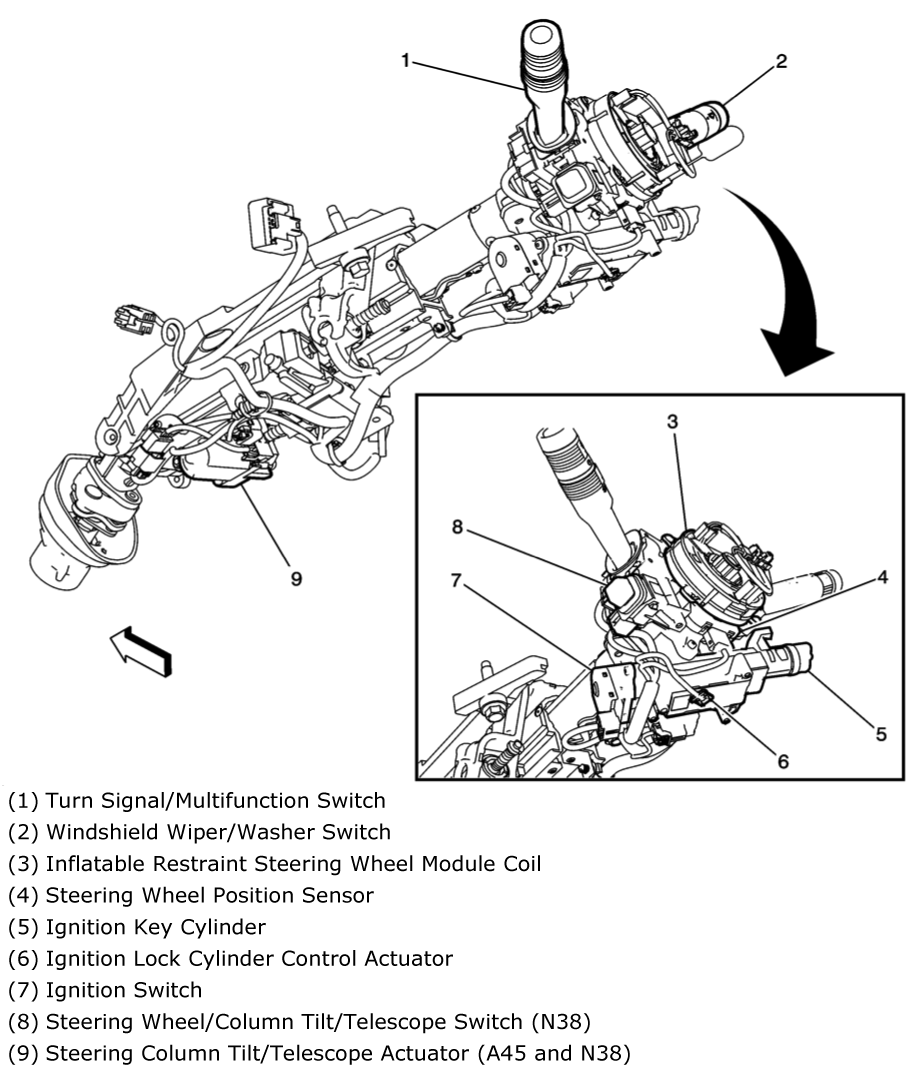

Fuse Block (Steering Column) (12) Base of steering column. See Figure.

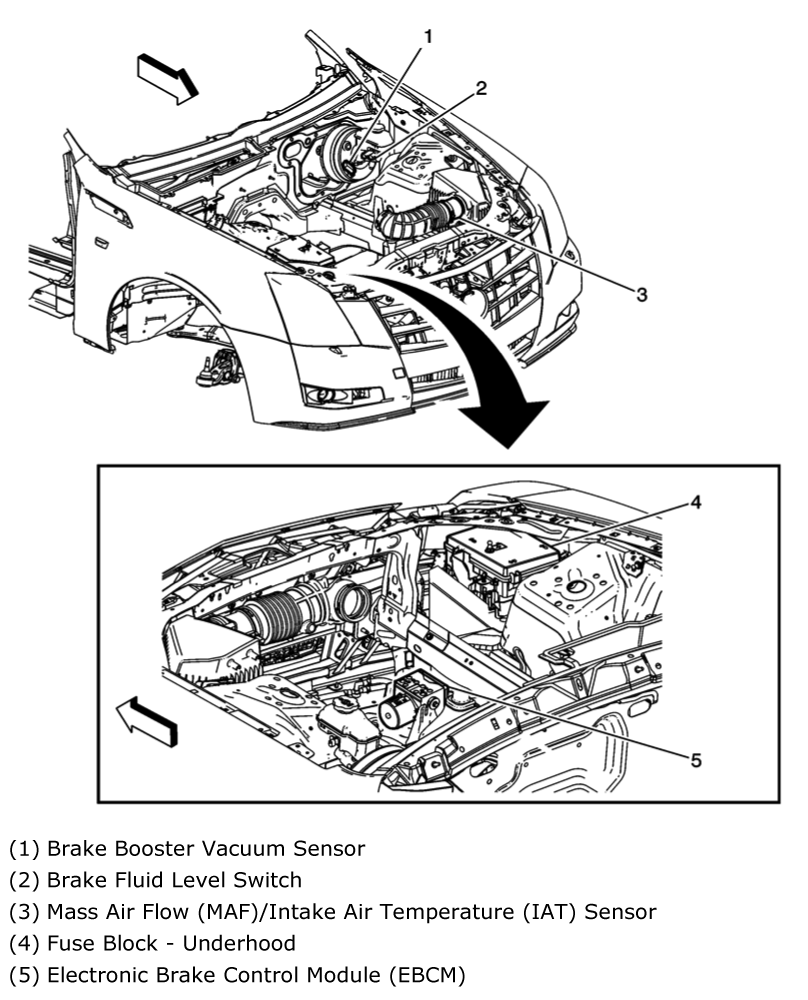

Underhood Fuse Block Right front of engine compartment. See Figure.
