Battery Current Sensor Replacement

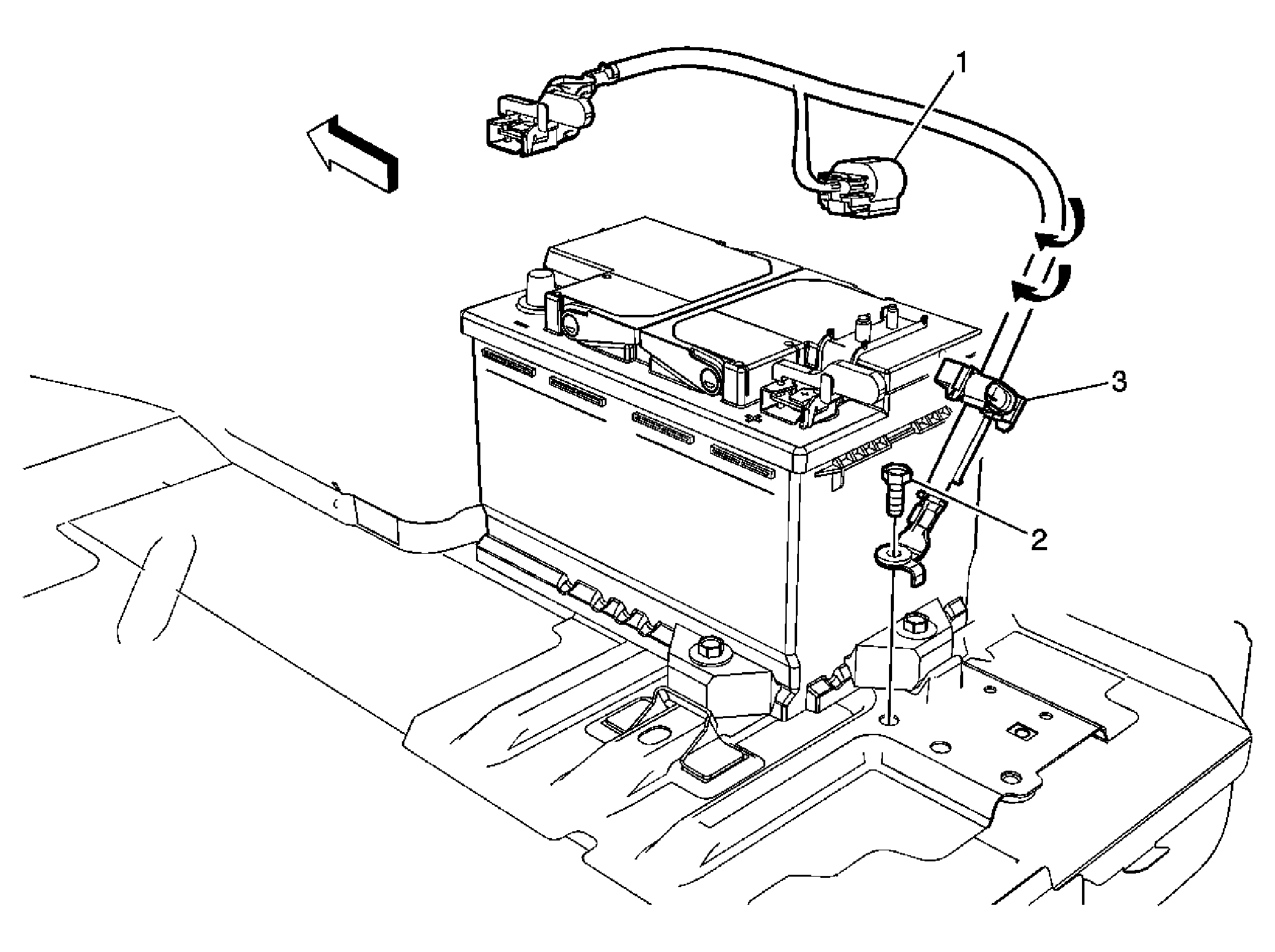

Fig 1: Battery Current Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Sedan,Wagon) .
1	Battery Current Sensor Connector
2	Bolt CAUTION: Refer to Fastener Caution . Tighten: 20 N.m (15 lb ft)
3	Battery Current Sensor Procedure Disconnect the battery current sensor from the body harness. Slide the battery current sensor from the negative battery cable.
