Installation Procedure

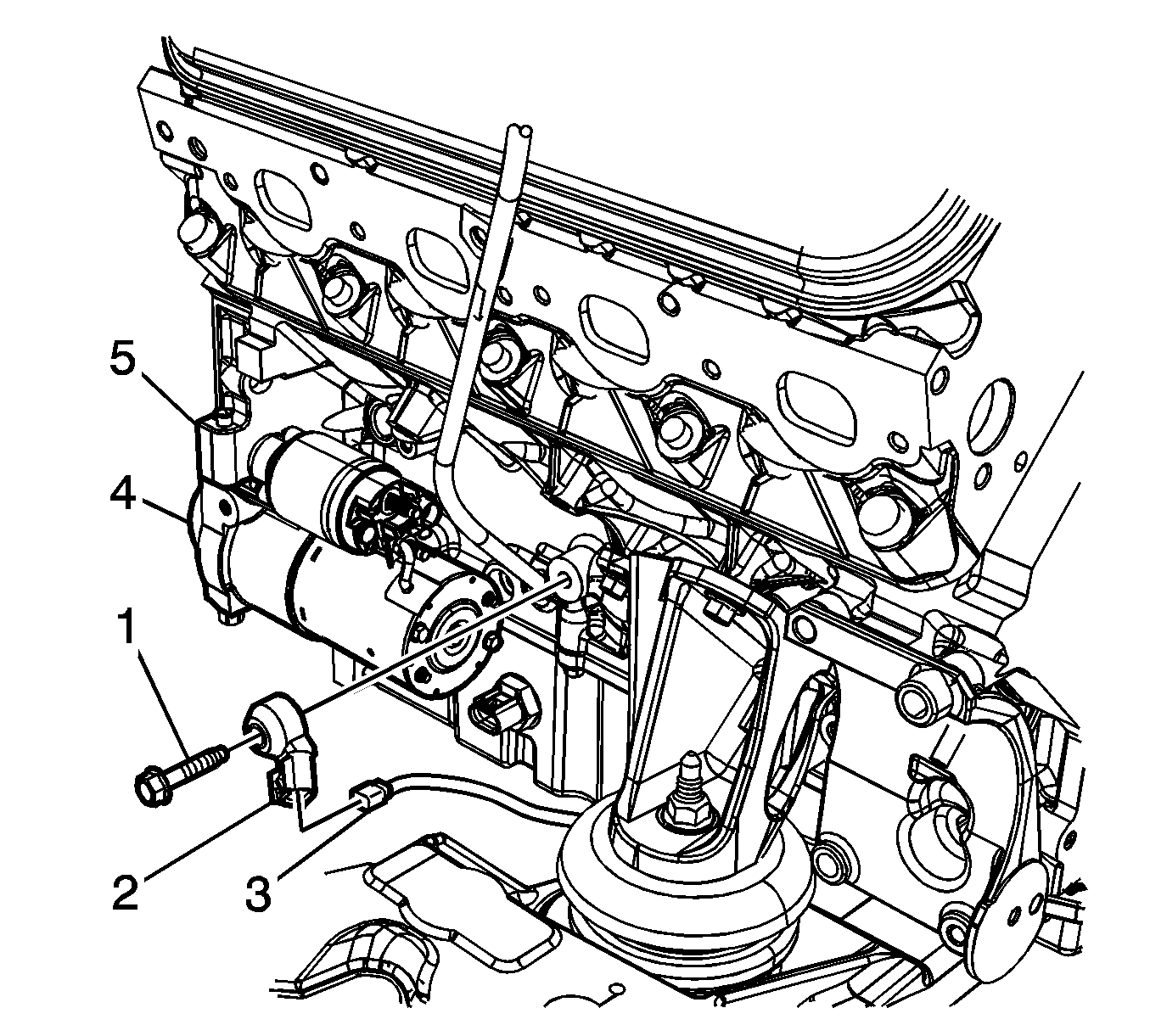

    Fig 1: Knock Sensor, Starter Assembly, Engine Electrical Connector & Engine Block - Right Side
    GM1480896Courtesy of GENERAL MOTORS CORP.
  1. Reconnect electrical connector (3) for the engine harness to the knock sensor (2).
  2. Position the knock sensor (2) on the engine block (5).
  3. Install the mounting bolt (1) for the knock sensor (2).
    4. CAUTION: Refer to Fastener Caution .
  4. Tighten the knock sensor mounting bolt (1) and tighten to 20 N.m (15 lb ft).
  5. Install the starter assembly (4), ONLY IF REMOVED. Refer to Starter Replacement (LSA) .
  6. Install the right catalytic convertor. Refer to Catalytic Converter Replacement - Right Side (LSA) .
  7. Install the right exhaust manifold. Refer to Exhaust Manifold Replacement - Right Side (LSA) .
