Component Locations

Passenger Compartment/Roof Component Views

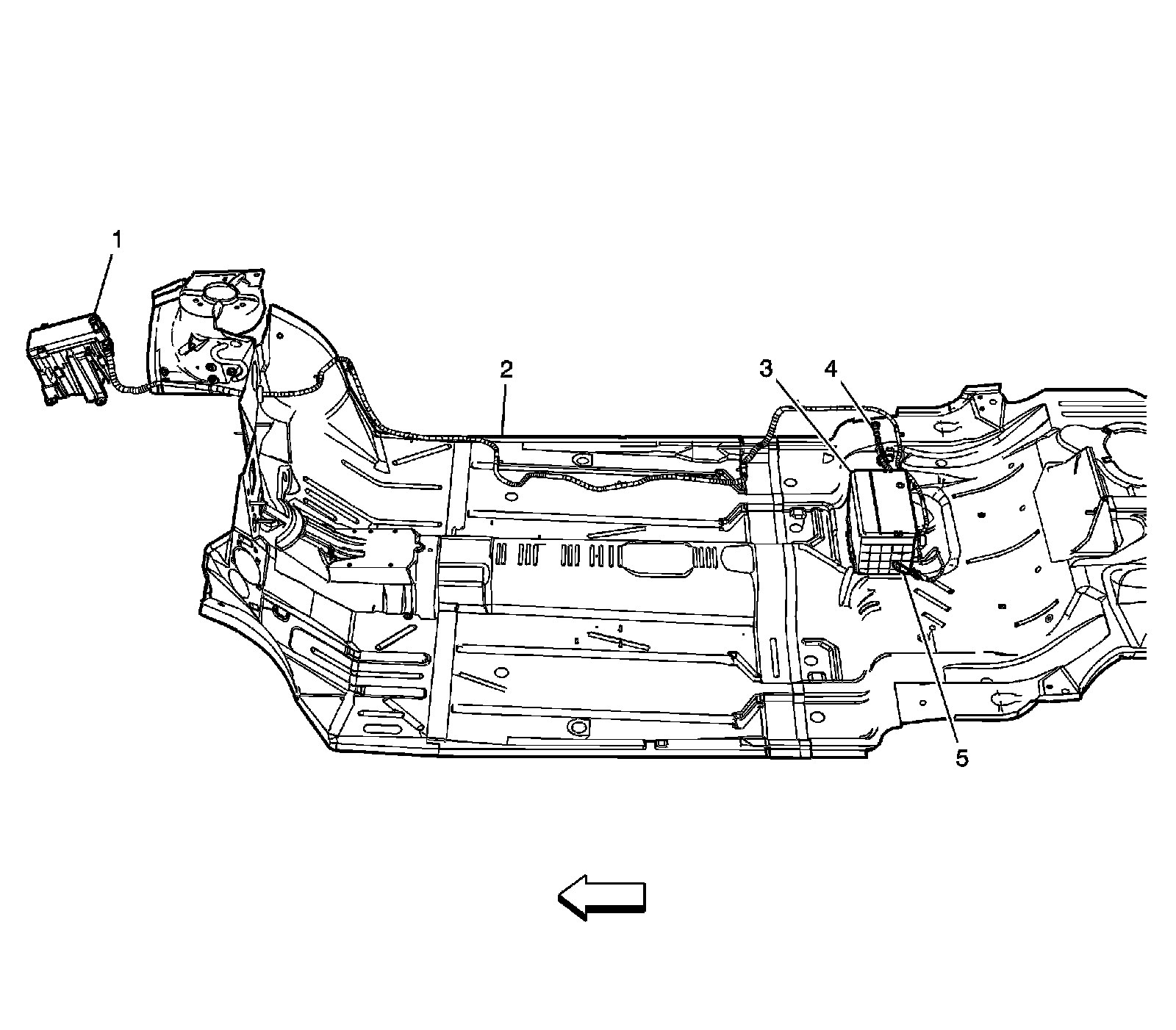

Battery Cable Harness




1 - Fuse Block - Underhood
2 - Floor Panel
3 - Battery
4 - G303
5 - Fuse Block - Rear Terminal Connector

Under Passenger Seat - Right Rear




1 - Body Harness
2 - G303
3 - Battery Current Sensor
4 - X337 Negative Battery Cable to the Body Harness
5 - Rear Seat Back Cushion
6 - Battery Positive Cable
7 - Fuse Block - Rear
8 - Battery
9 - Negative Battery Cable
