Cadillac
>>
2011
>>
CTS Coupe RWD V8-6.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Combination Switch
>>
Turn Signal/Multifunction Switch X1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

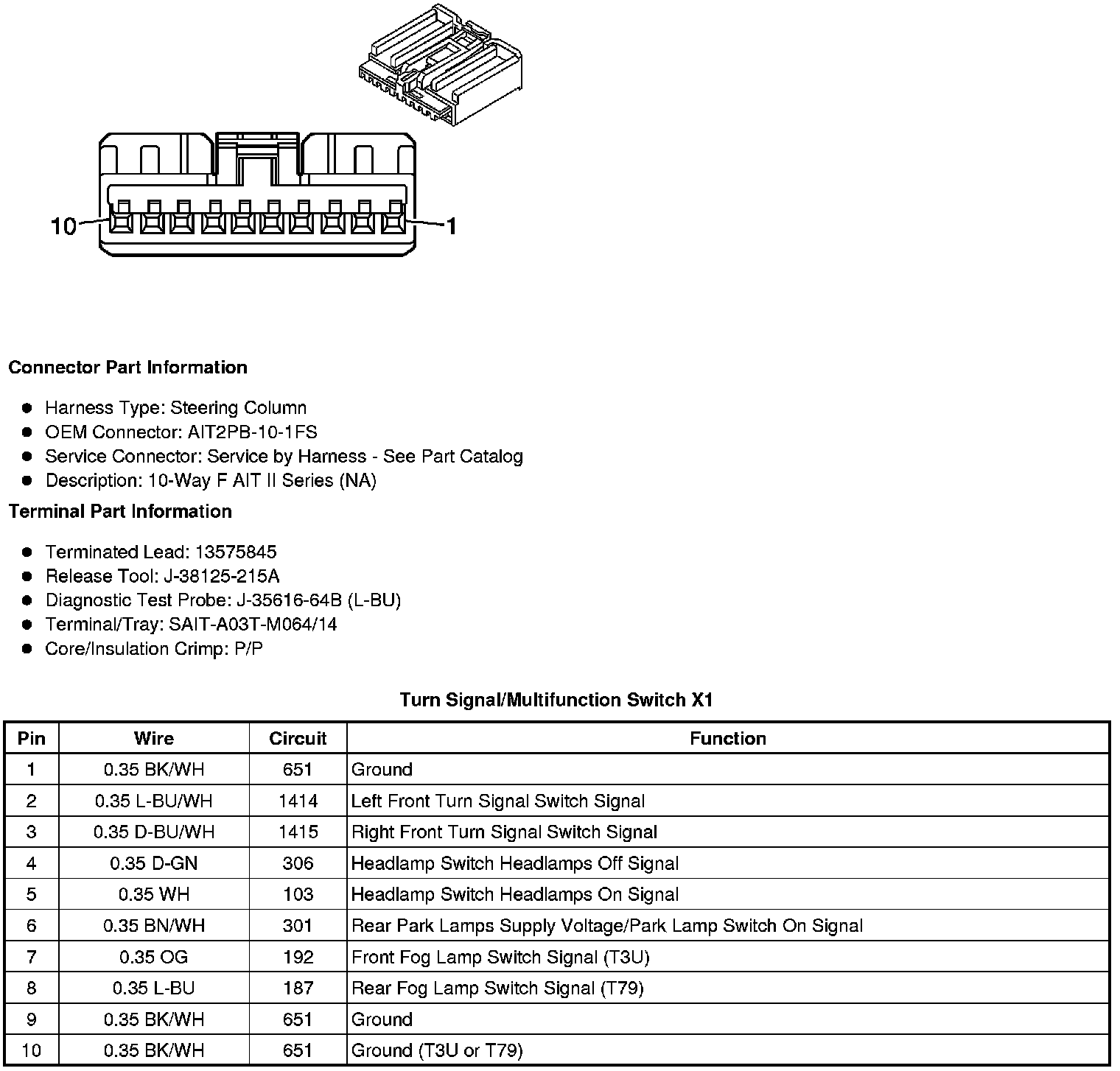

Turn Signal/Multifunction Switch X1
Component Connector End Views
Turn Signal/Multifunction Switch X1
